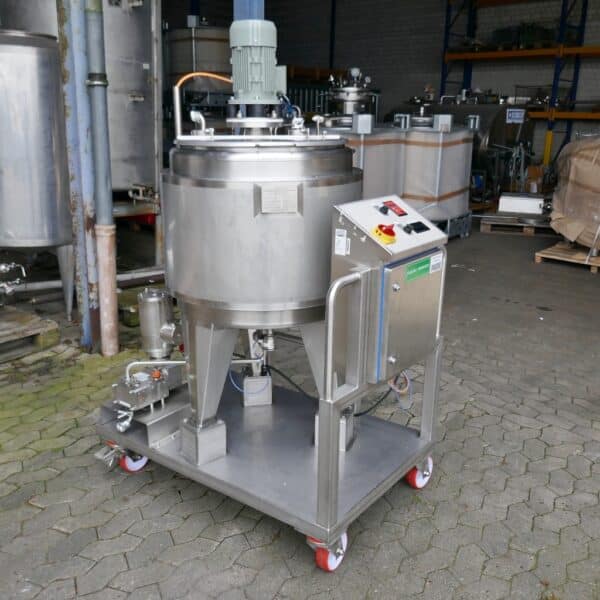

200 liter tank i Syrafast 316

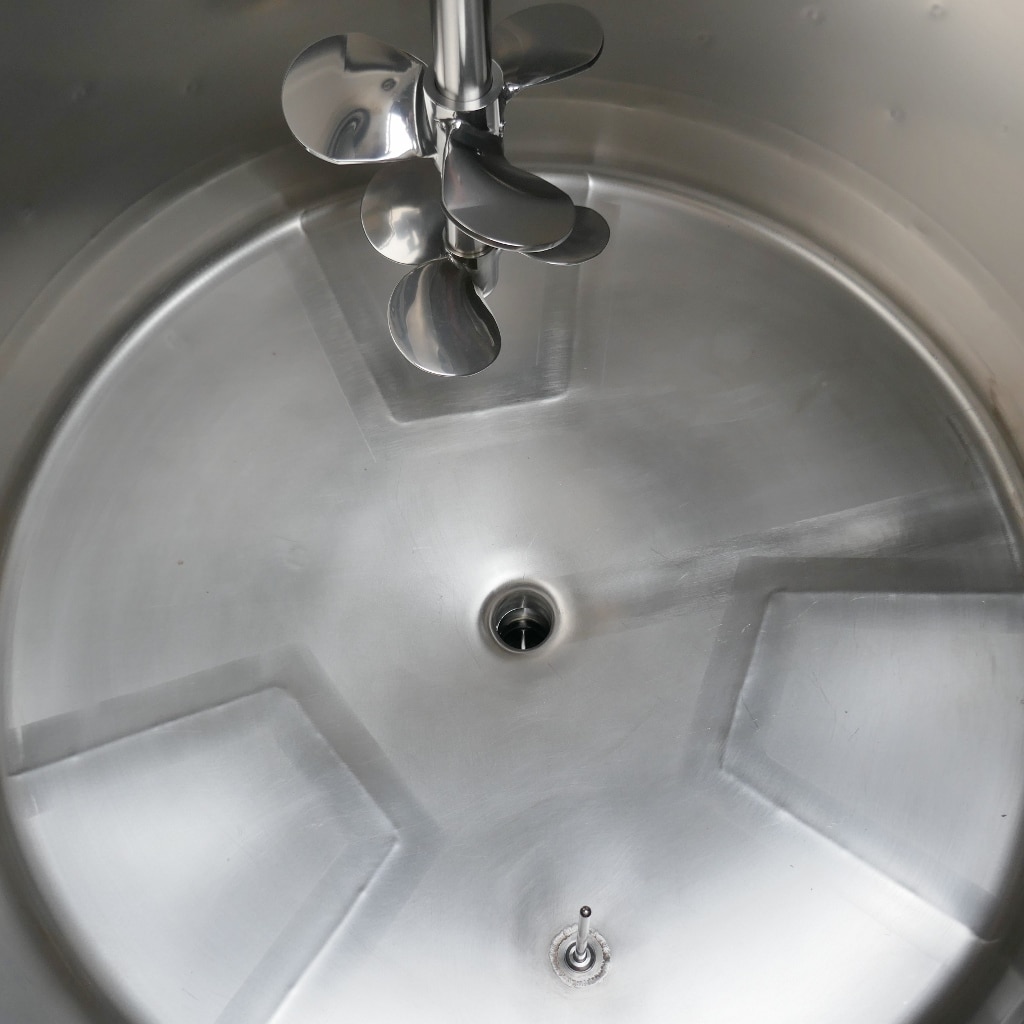

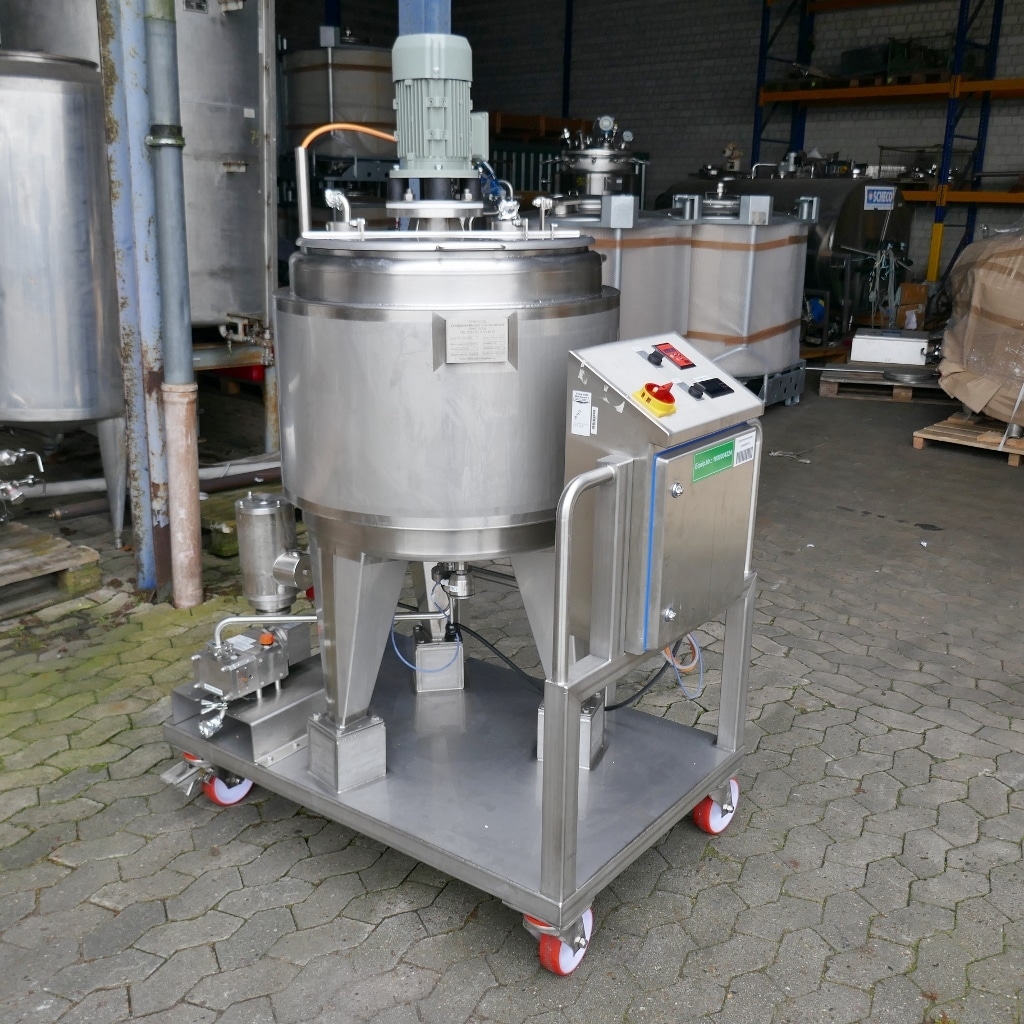

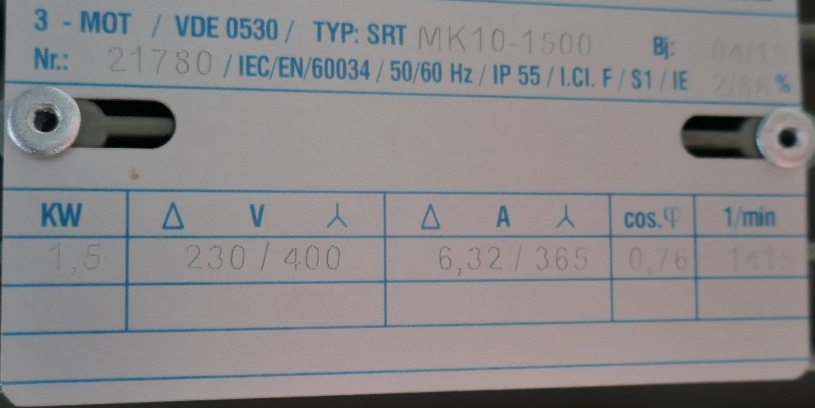

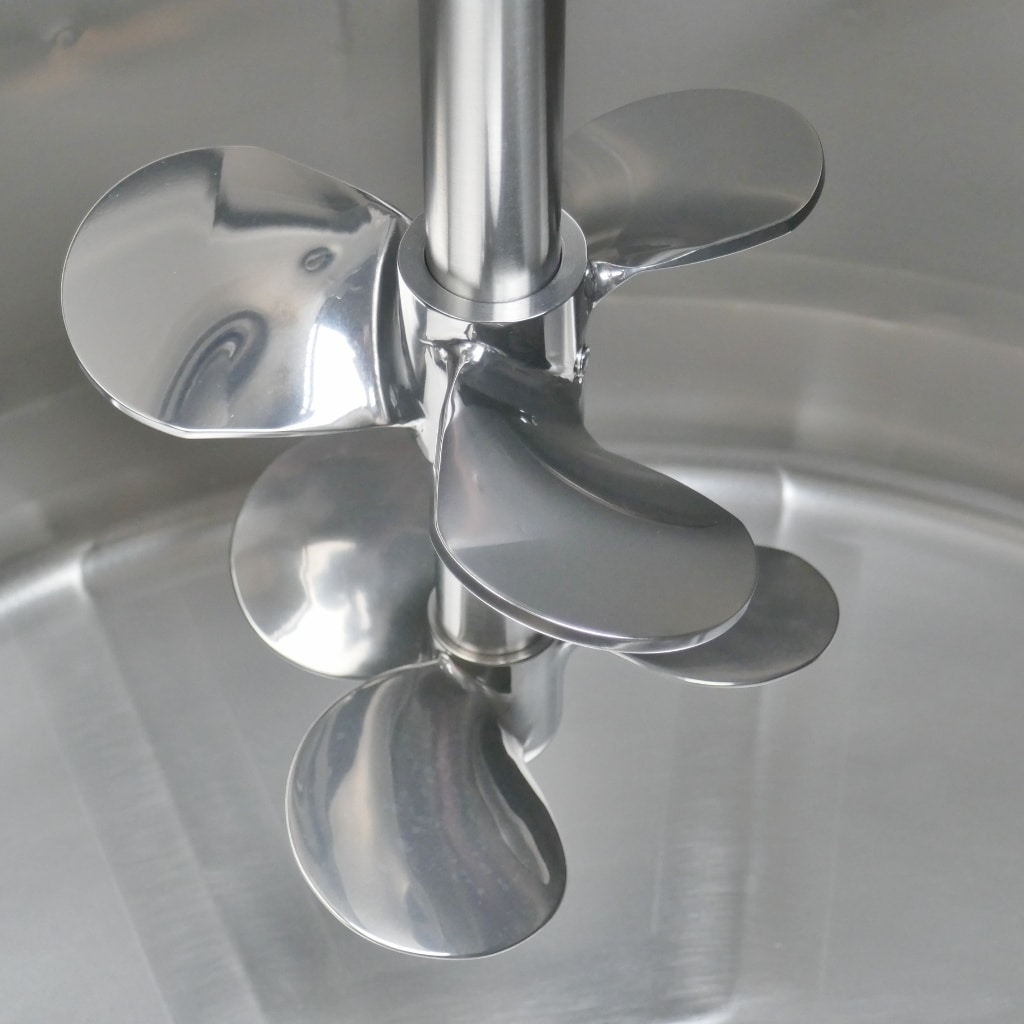

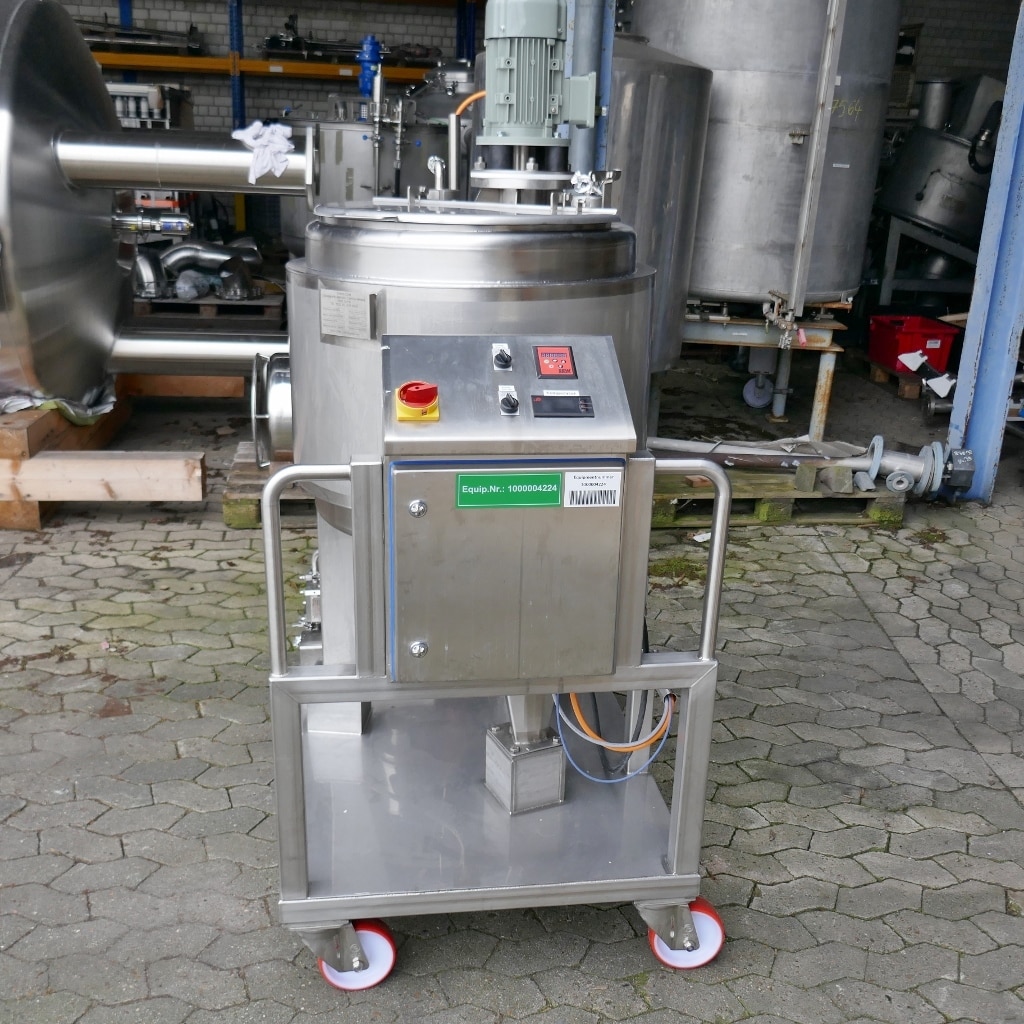

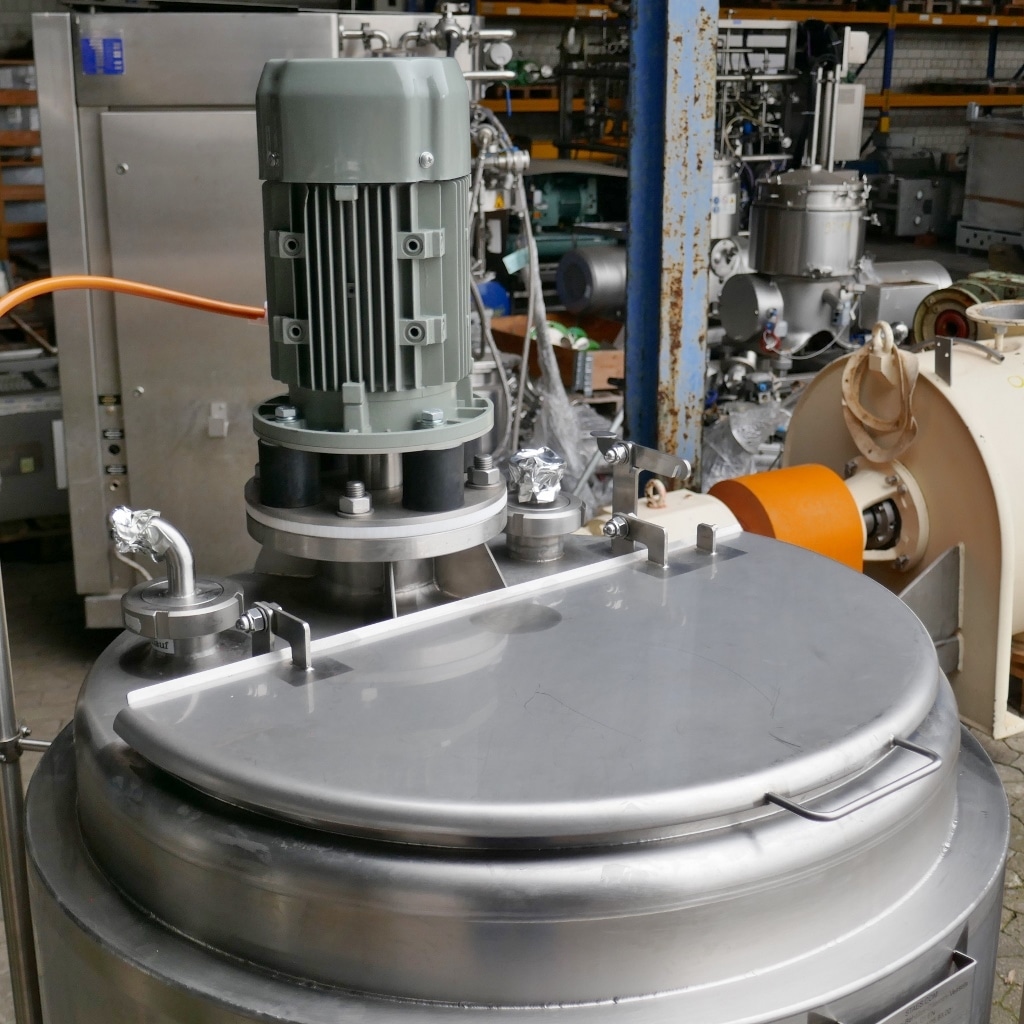

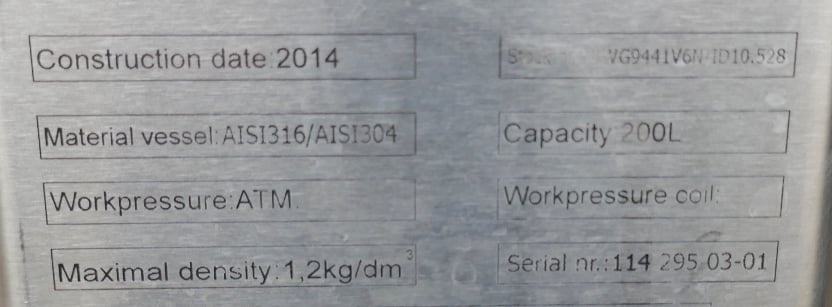

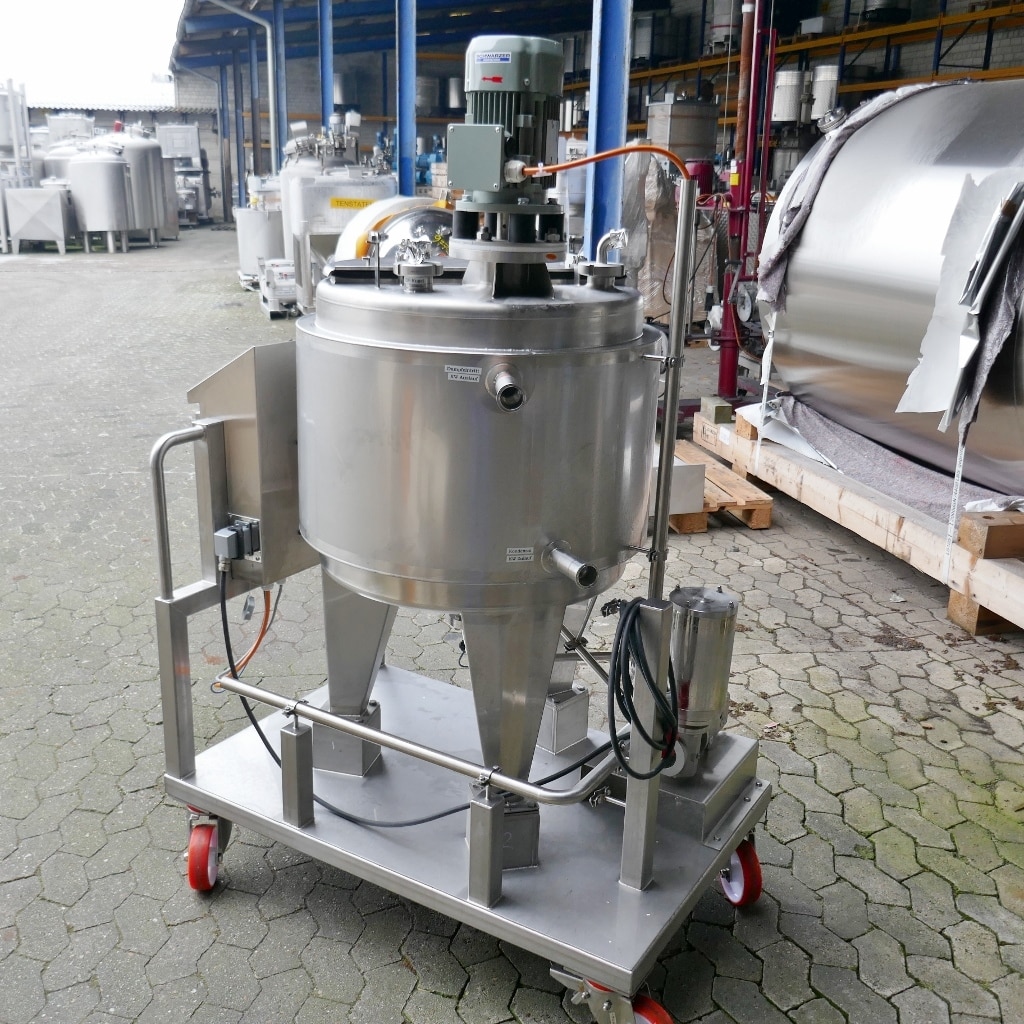

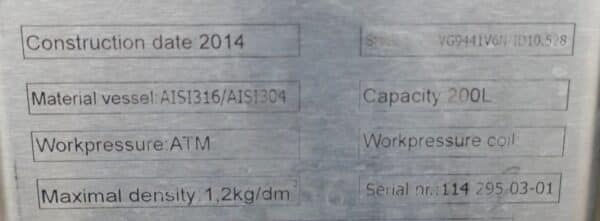

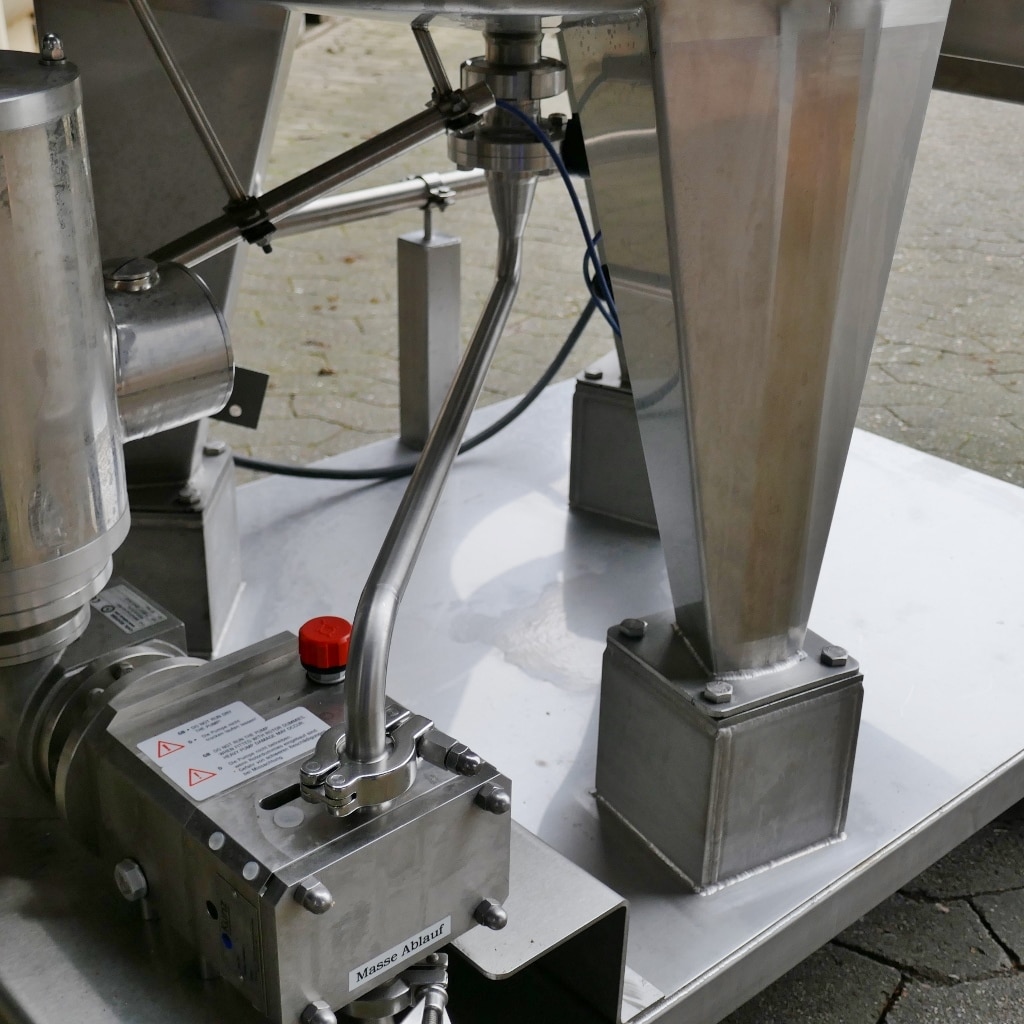

Additional information: Pharmacy; Tank screwed onto a mobile frame, Aisi 304; 1 pump on the frame is included in delivery Volumetric volume (L): 200 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Total discharge: yes Max Overpressure: 3 Bar Max. working temperature: 100 °C Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Outlet of tank: available Agitator: yes Number of revolutions: 1.415 Power: 1,50 Cylinder: 3 mm Bottom: 3 mm Internal diameter tank: 670 mm Outer diameter tank: 750 mm Cylinder height: 550 mm Total height of tank: 1.900 mm Total outer width: 850 mm Total outer length: 1.400 mm
