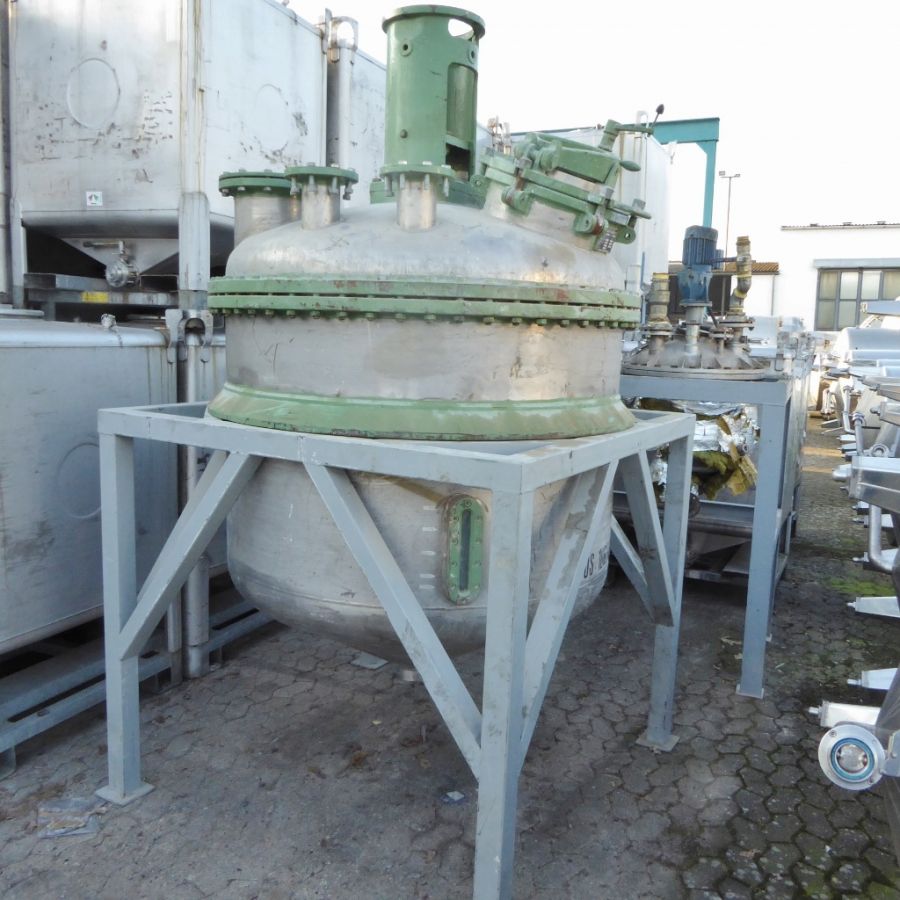

1600 liter tank i Syrafast 316

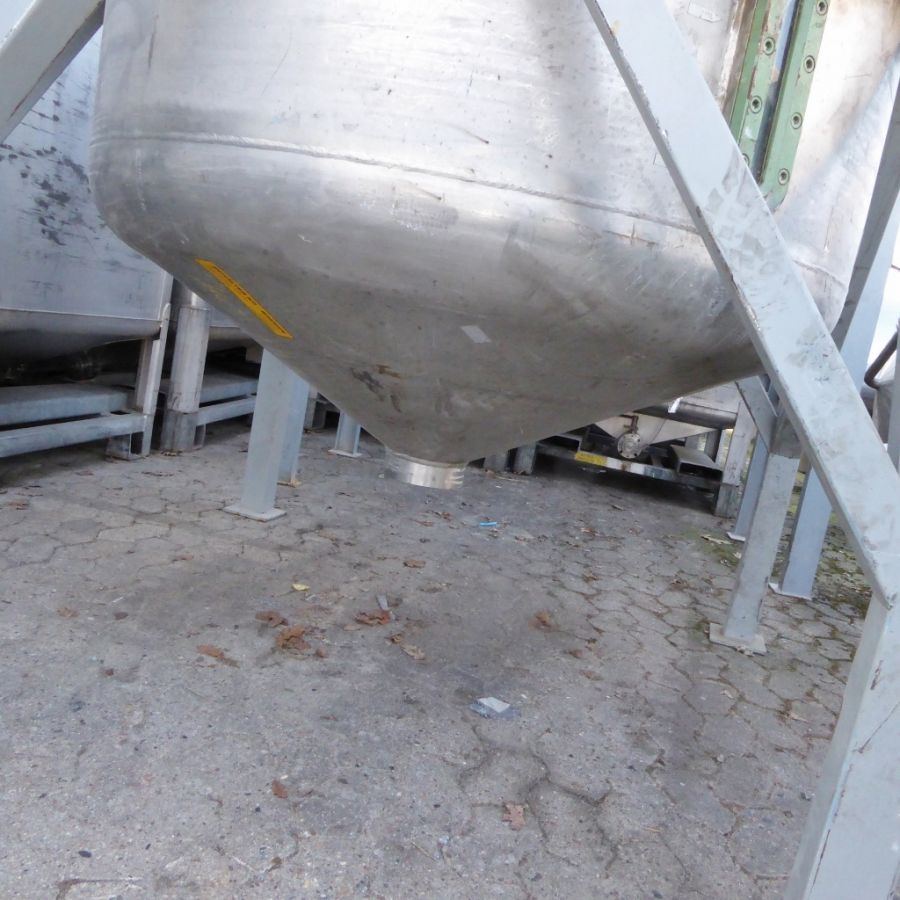

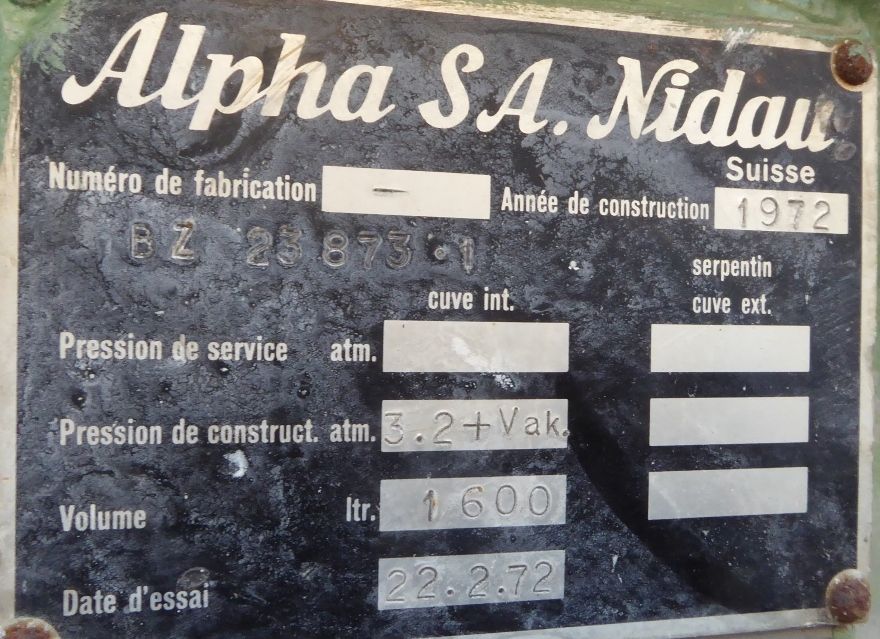

Additional information: chemistry; design pressure: -1/3,2 bar; sightglas in the cylinder; motor-/gear is missing Volumetric volume (L): 1.600 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: in the bottom Outlet of tank: flange DN50 Internal diameter tank: 1.400 mm Cylinder height: 890 mm Total height of tank: 2.750 mm
