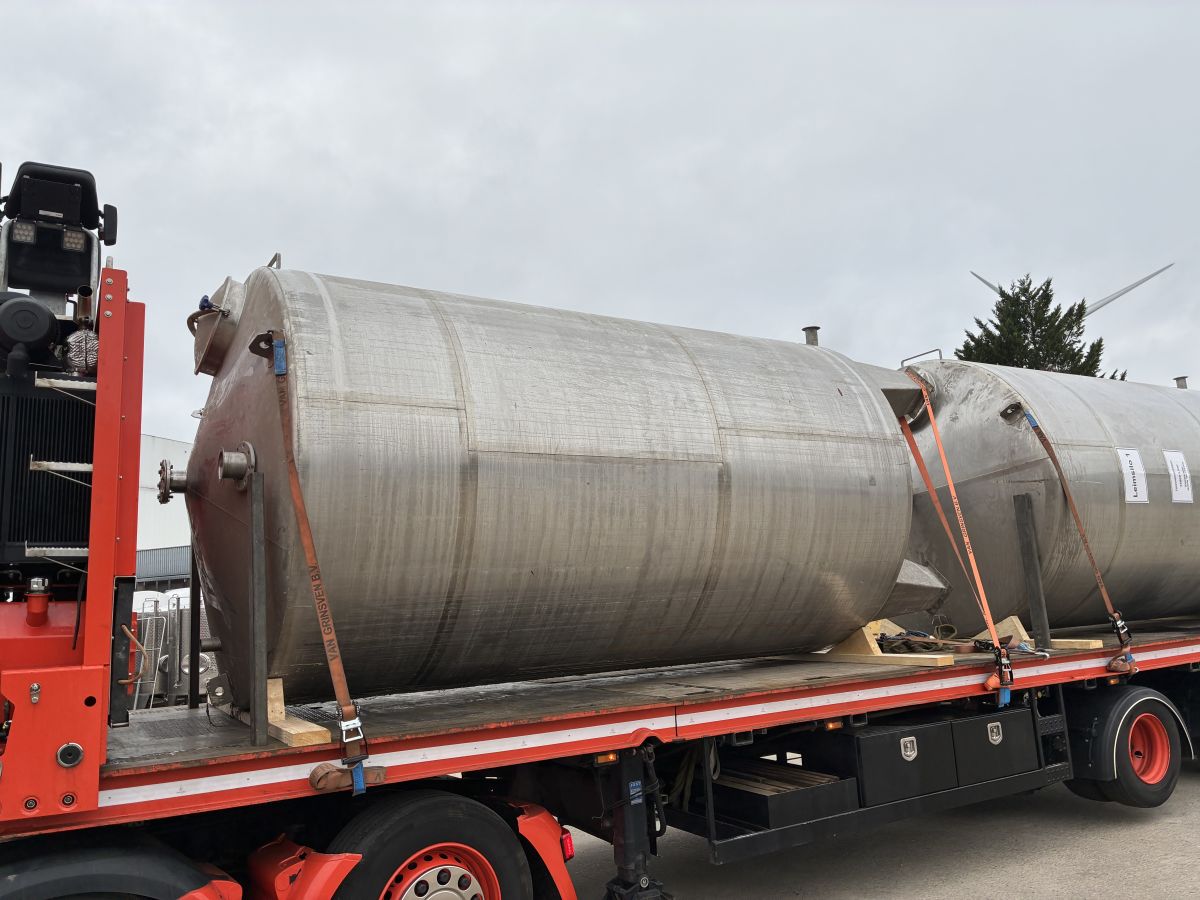

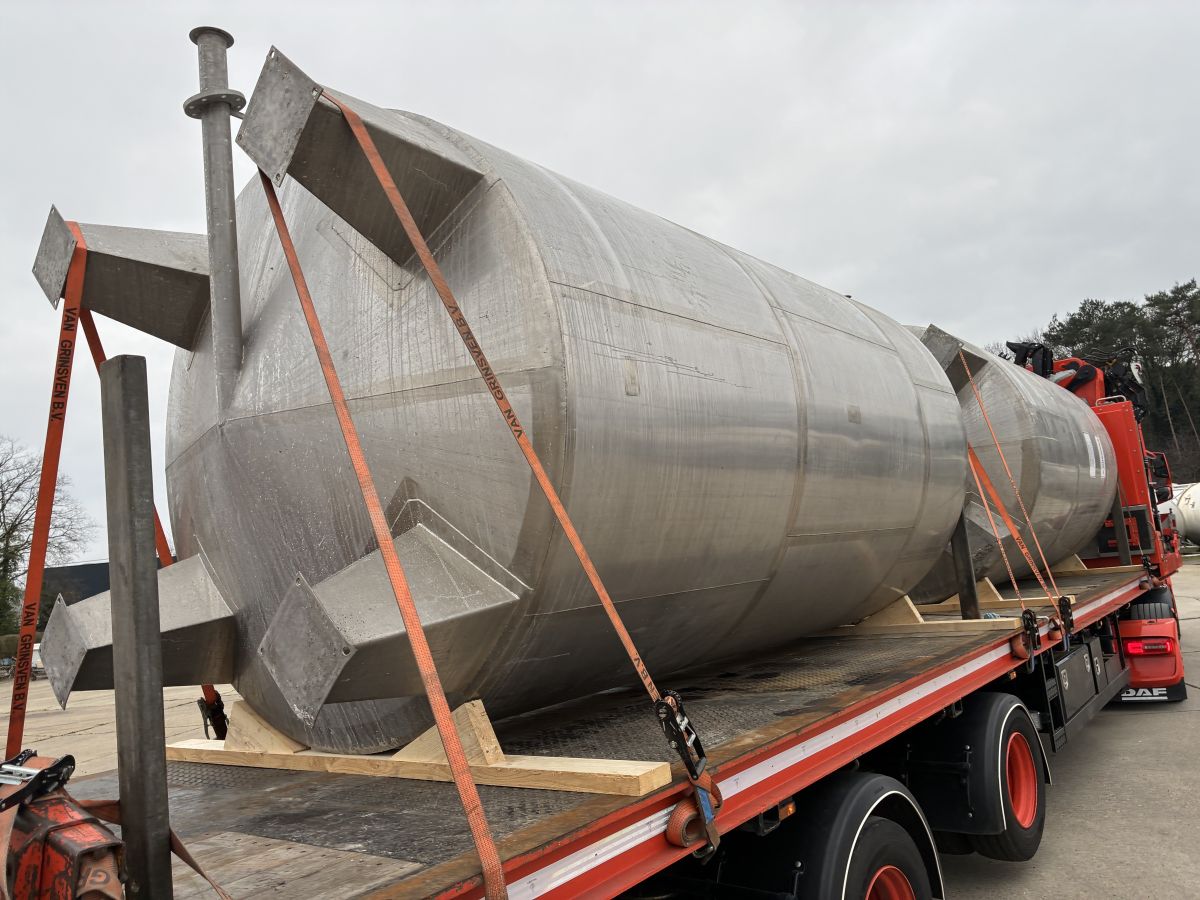

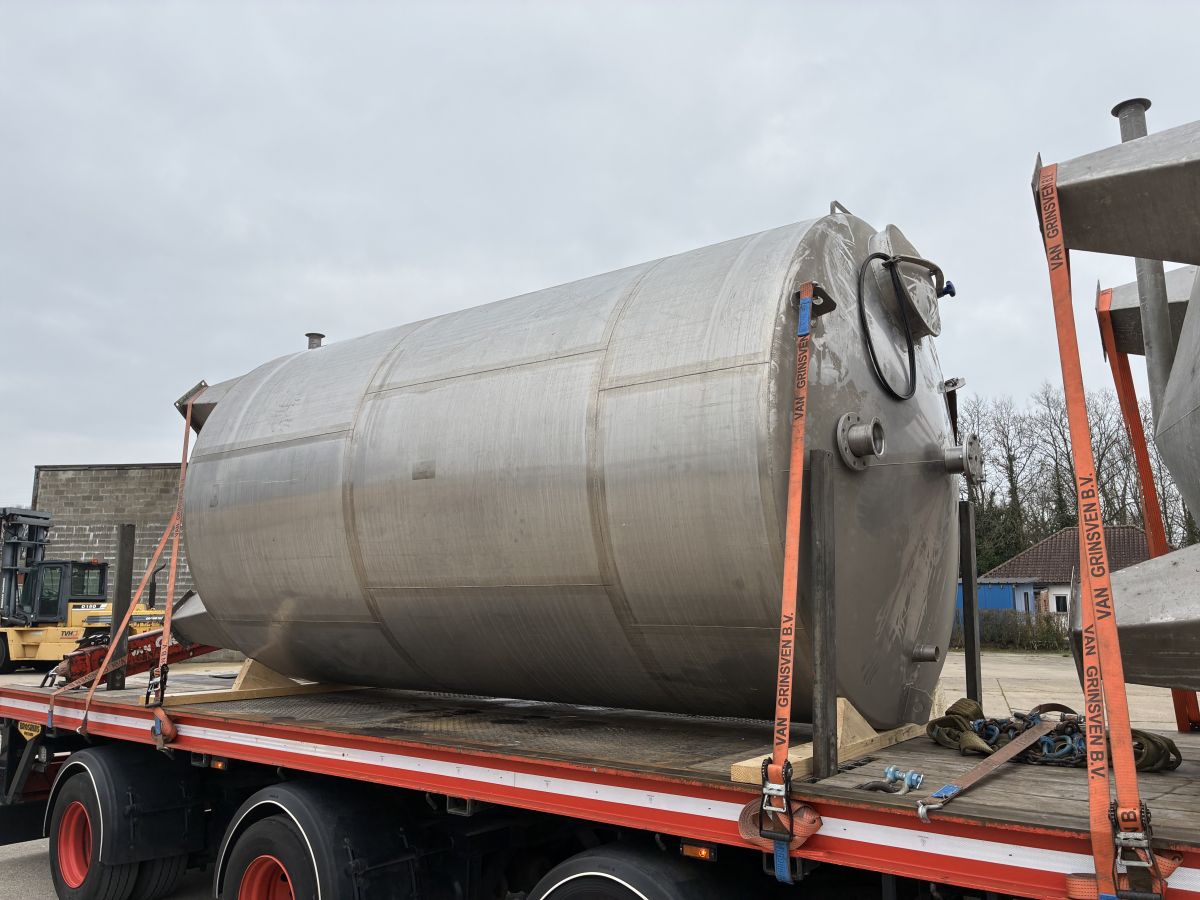

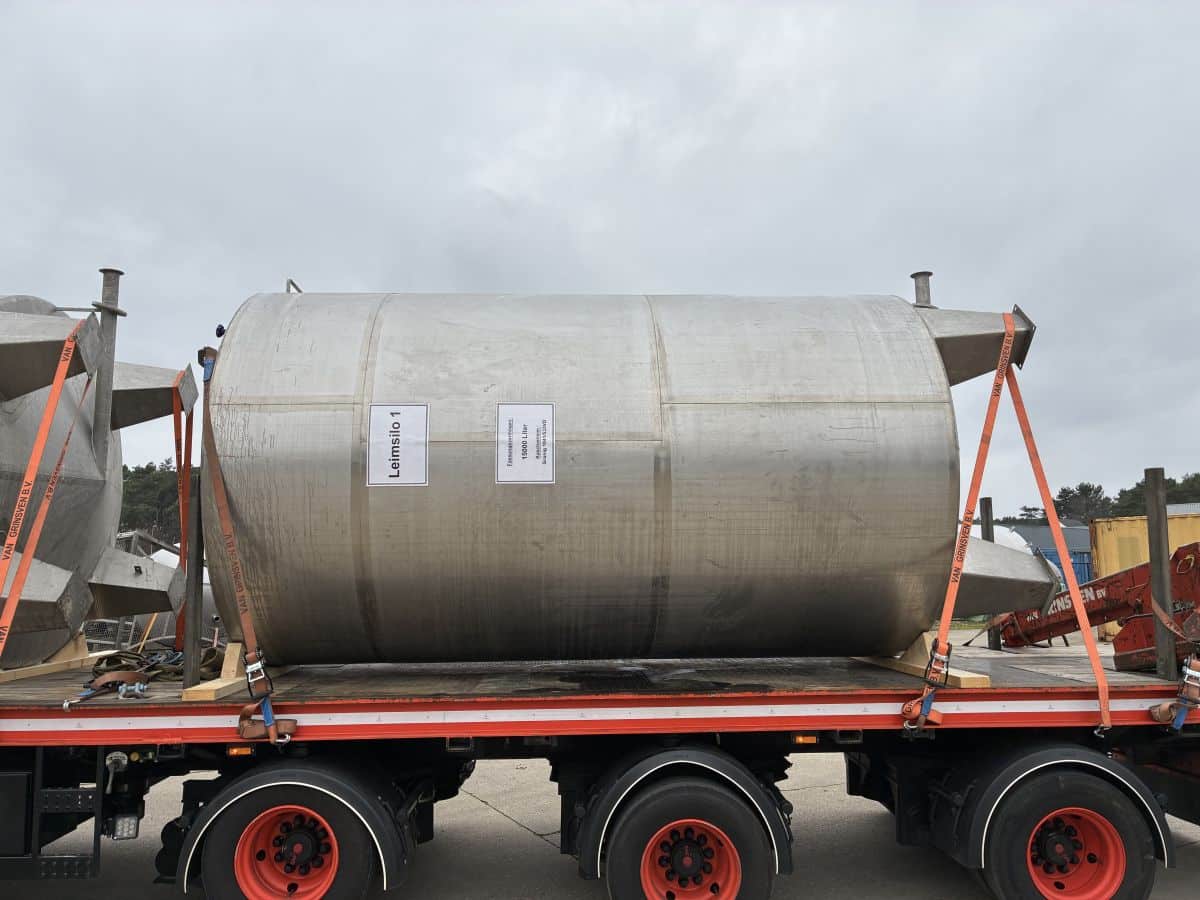

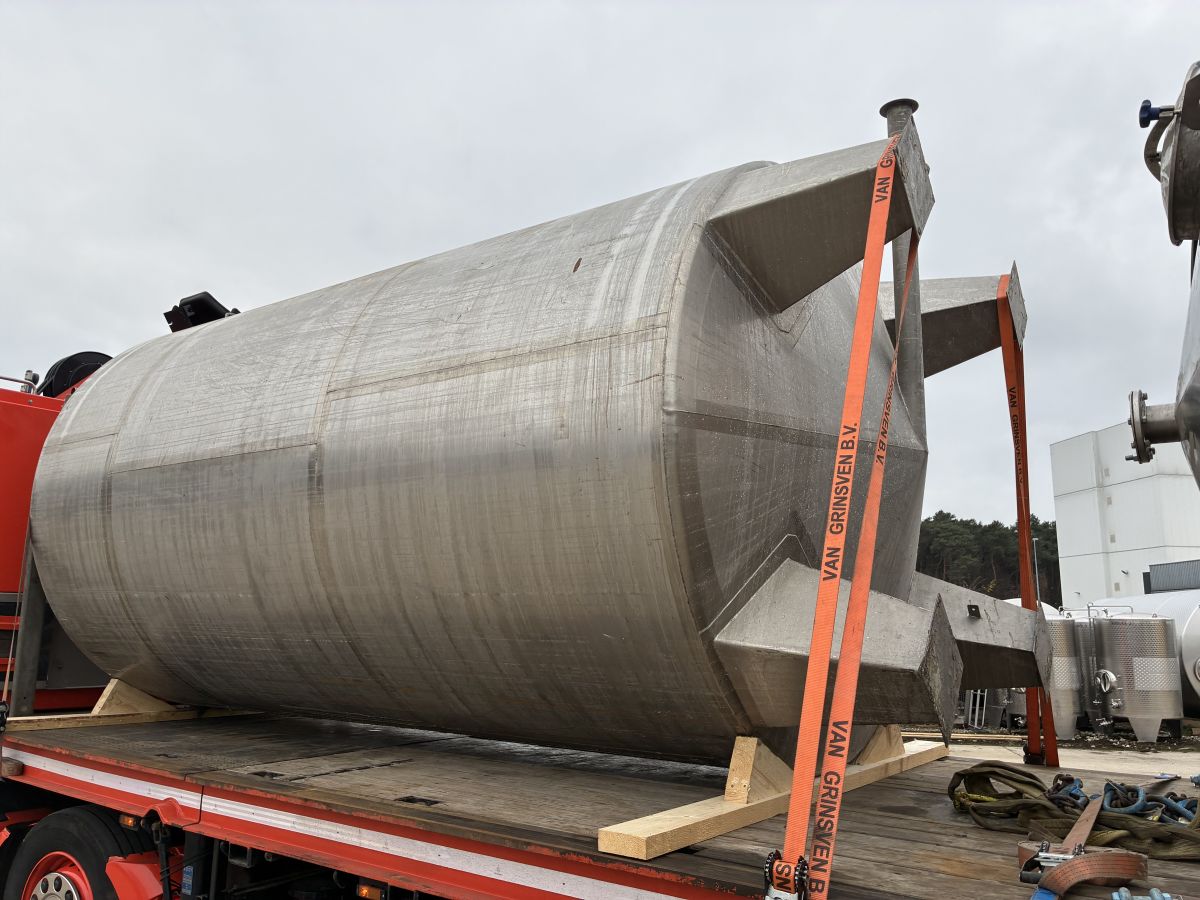

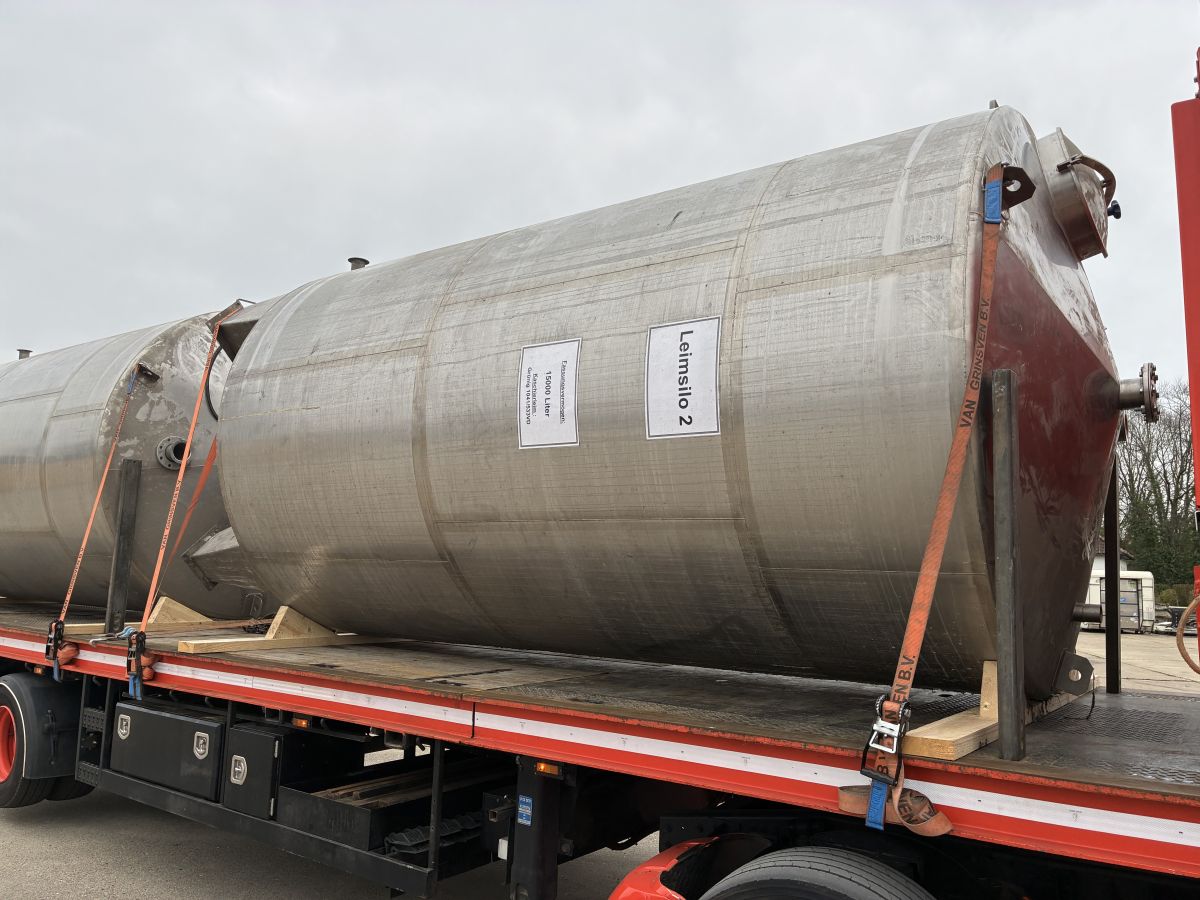

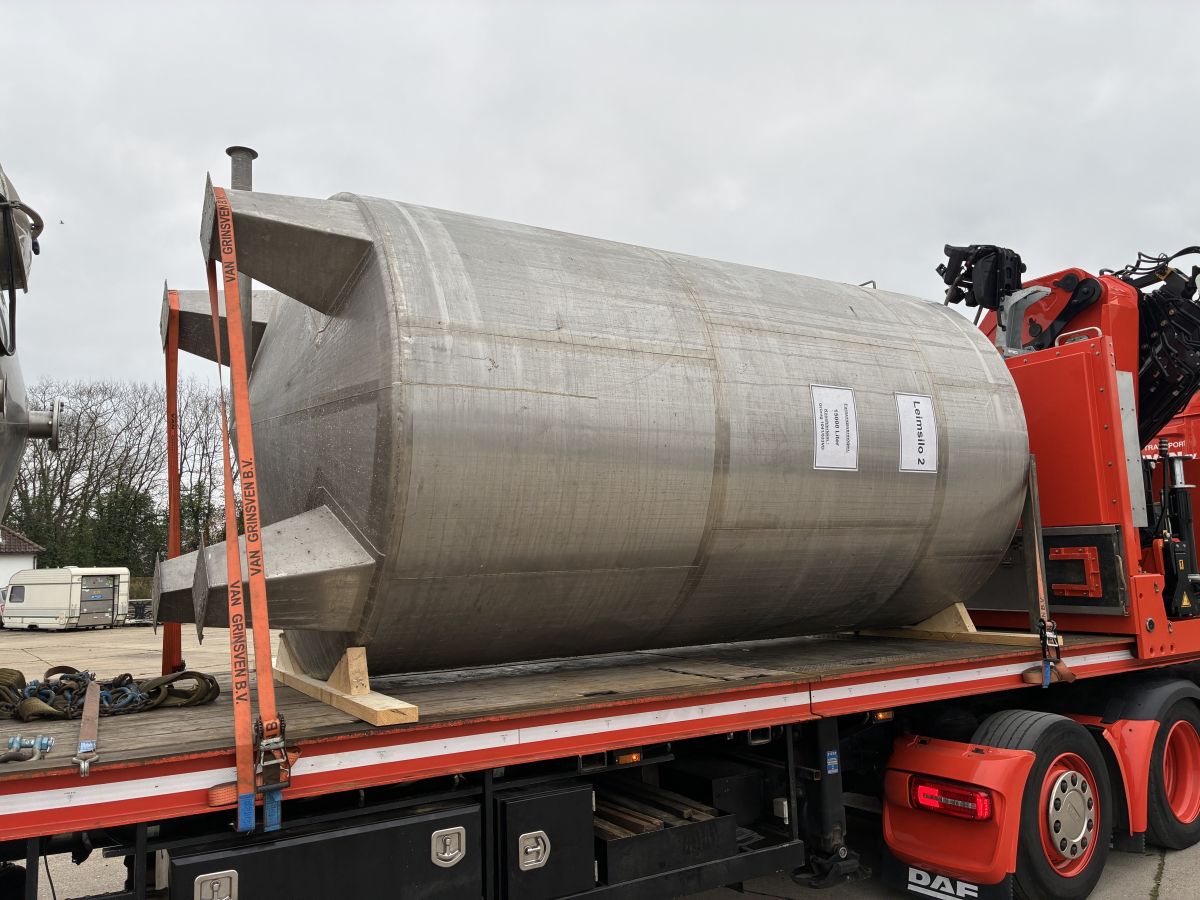

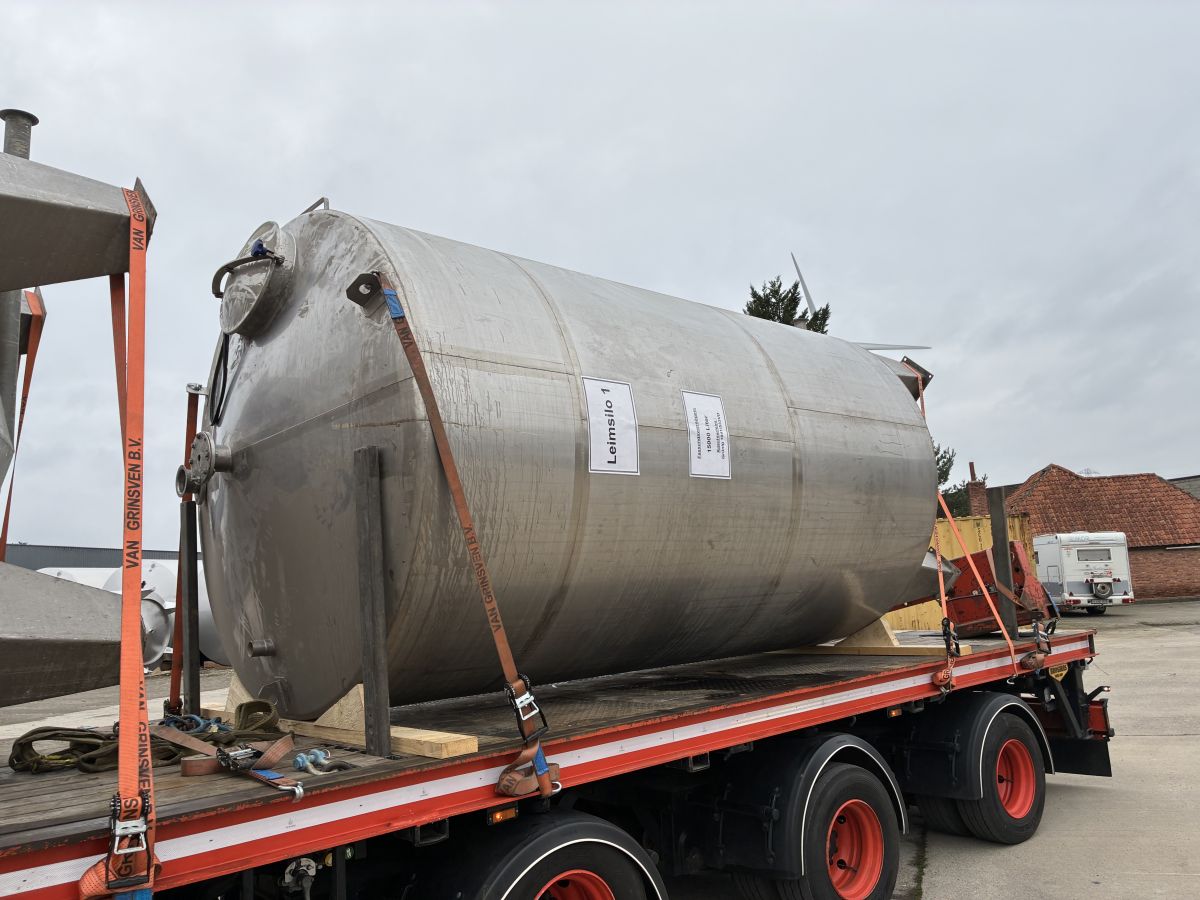

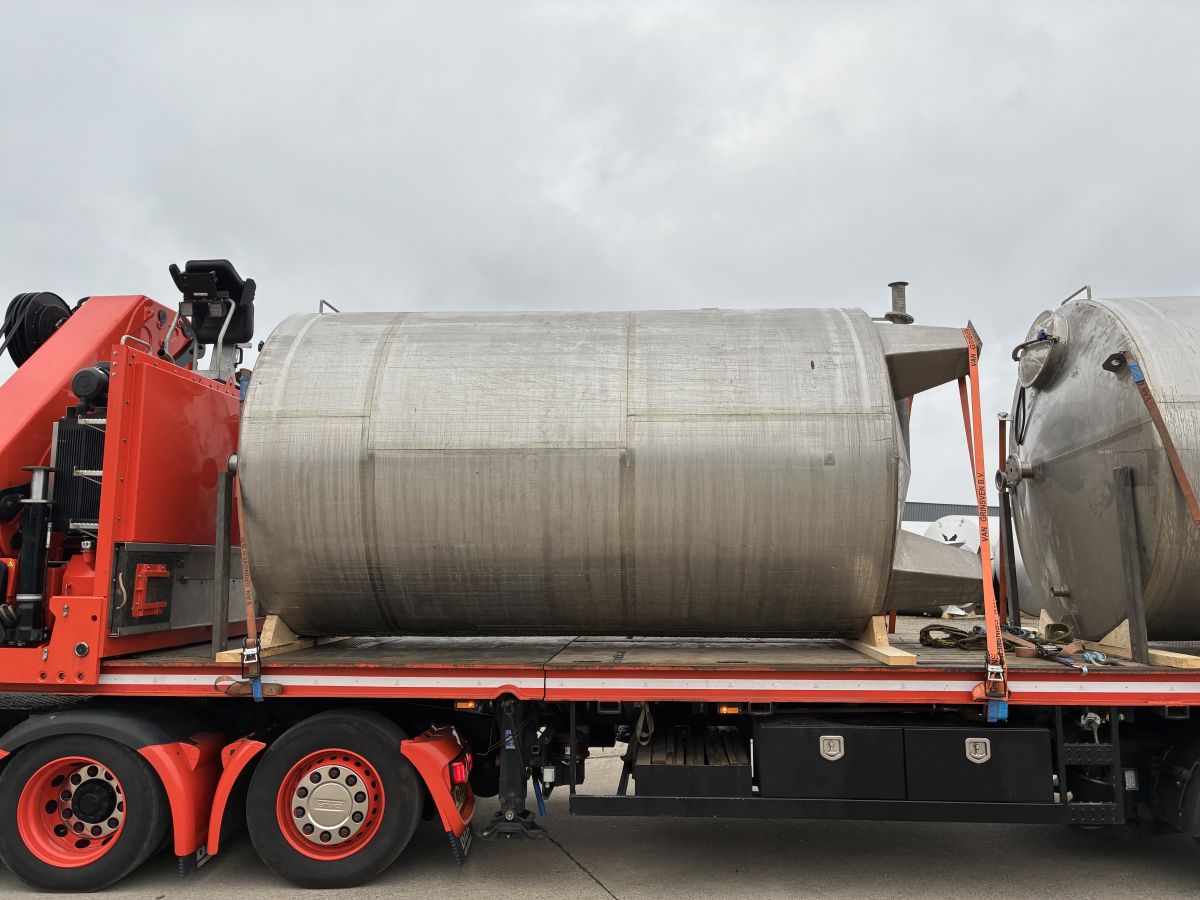

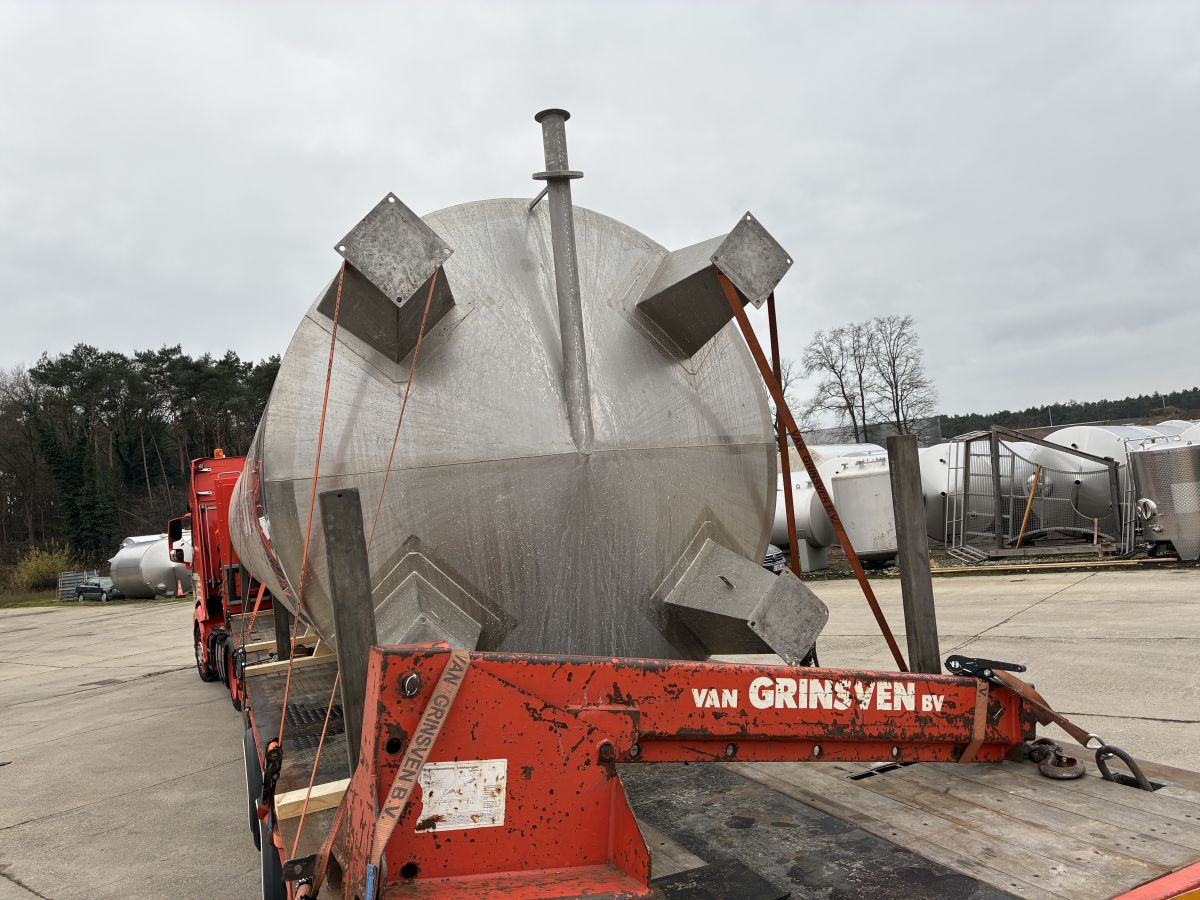

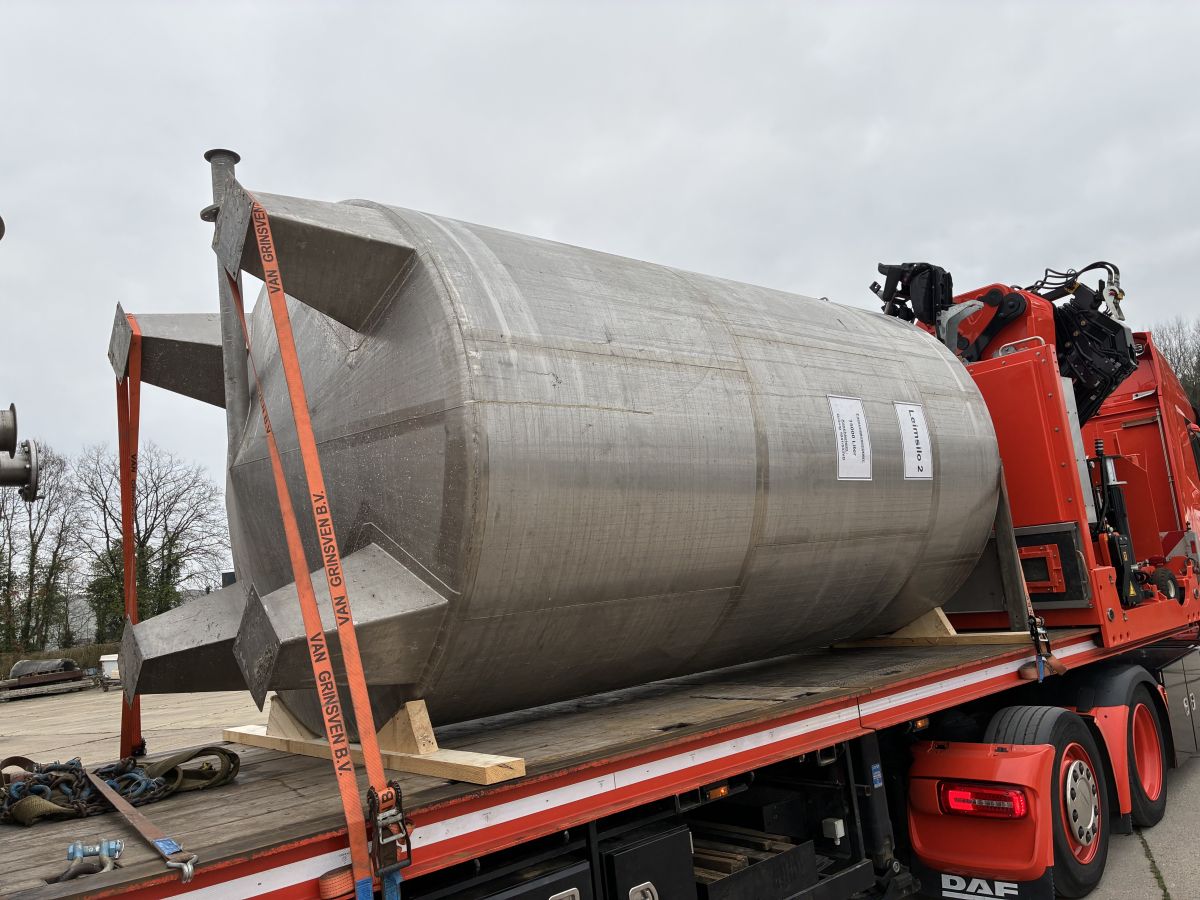

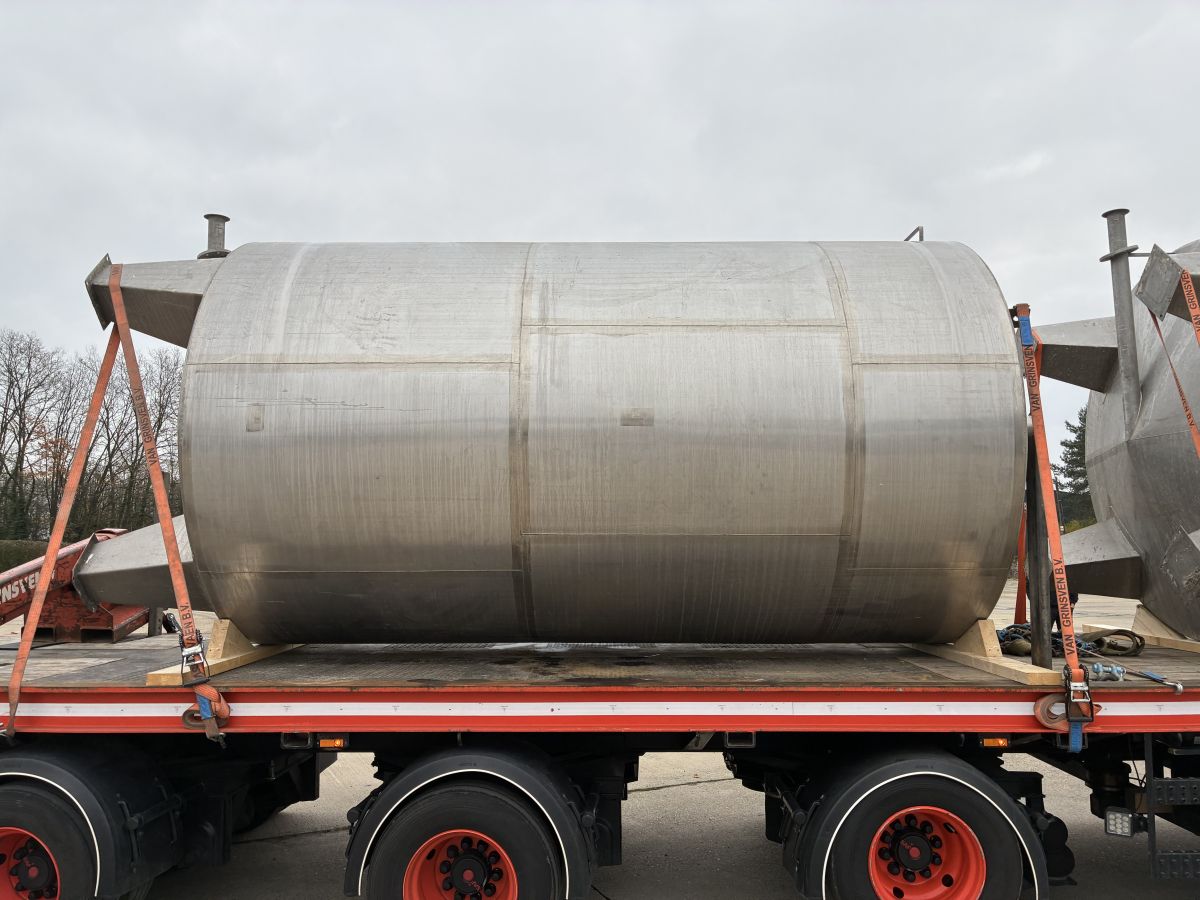

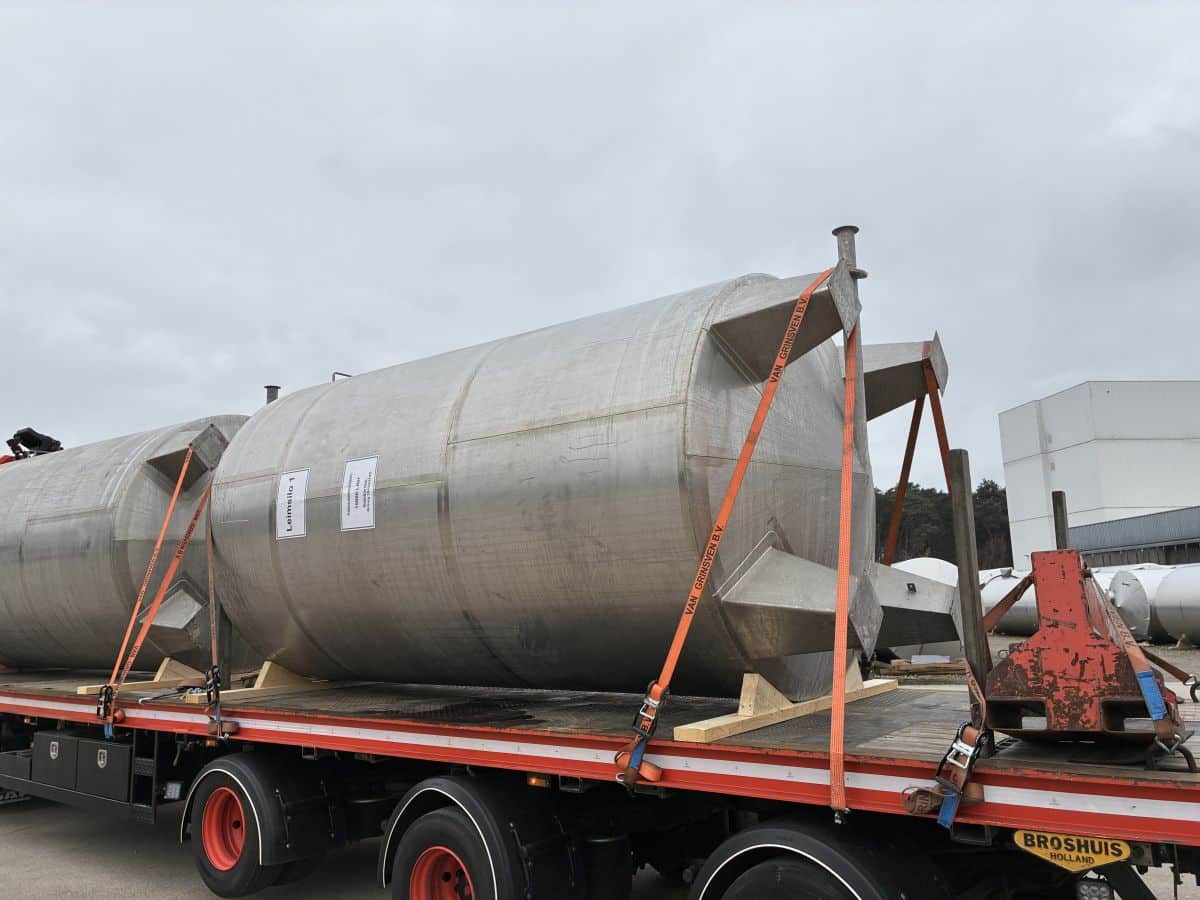

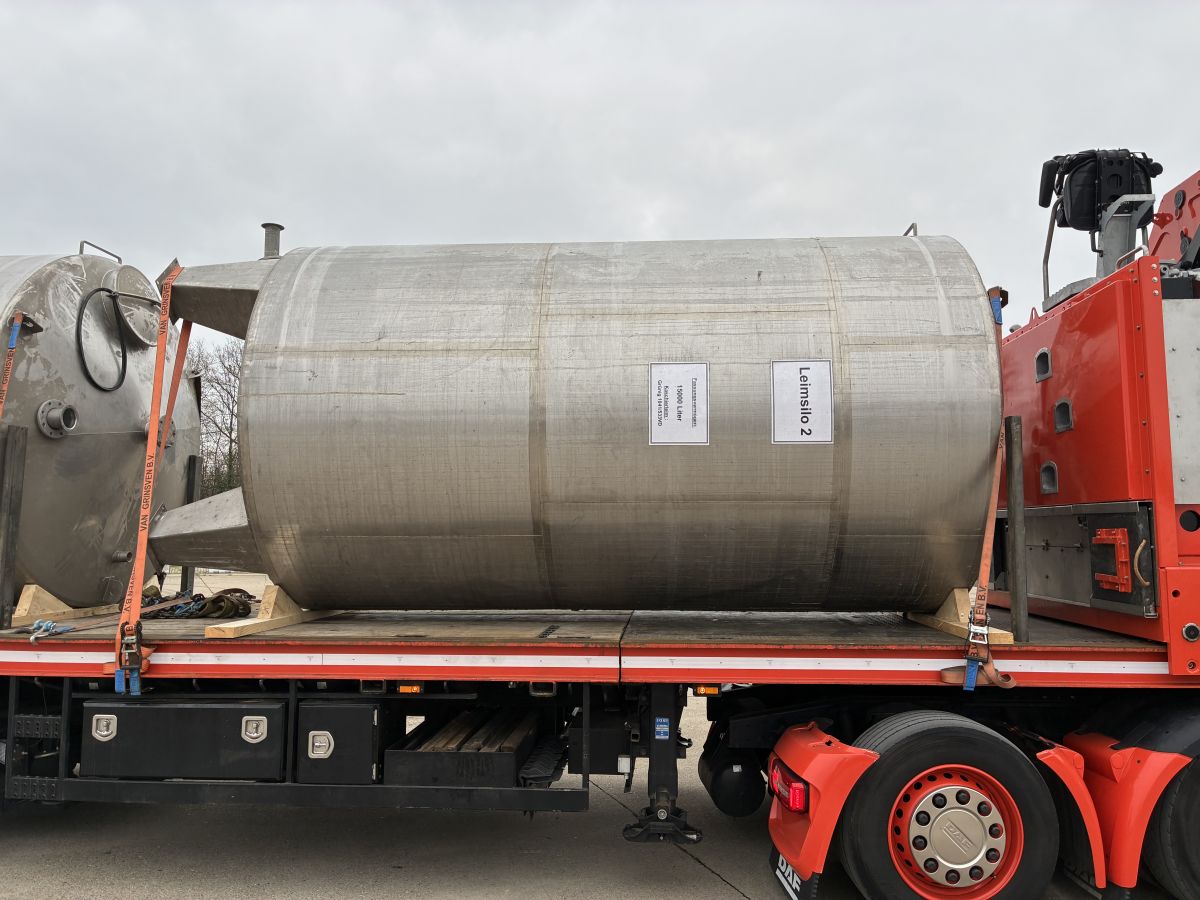

15000 liter tank i Rostfritt 304

Article type: second-hand storage tank Volumetric volume (L): 15.000 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Top type: conical Shape of tank: cylindrical Bottom type: conical Total discharge: yes Fixation points: 4 non adjustable feet Manway(s): RVS 304 Gasket manway(s): unknown Fixation point(s): RVS 304 Suitable for food industry: no Documents included: no Technical drawing included: no Registration plate on the tank: no Flange for agitator: no Number of manways: 1 Position of manway: at the top Height manhole 1 (mm): 500 mm Tank outlet: inside Ø 85 mm Agitator: no, optional Distance from outlet to ground: 200 mm Outer diameter tank: 2.300 mm Cylinder height: 3.750 mm Total height of tank: 4.750 mm Empty weight tank: 800
