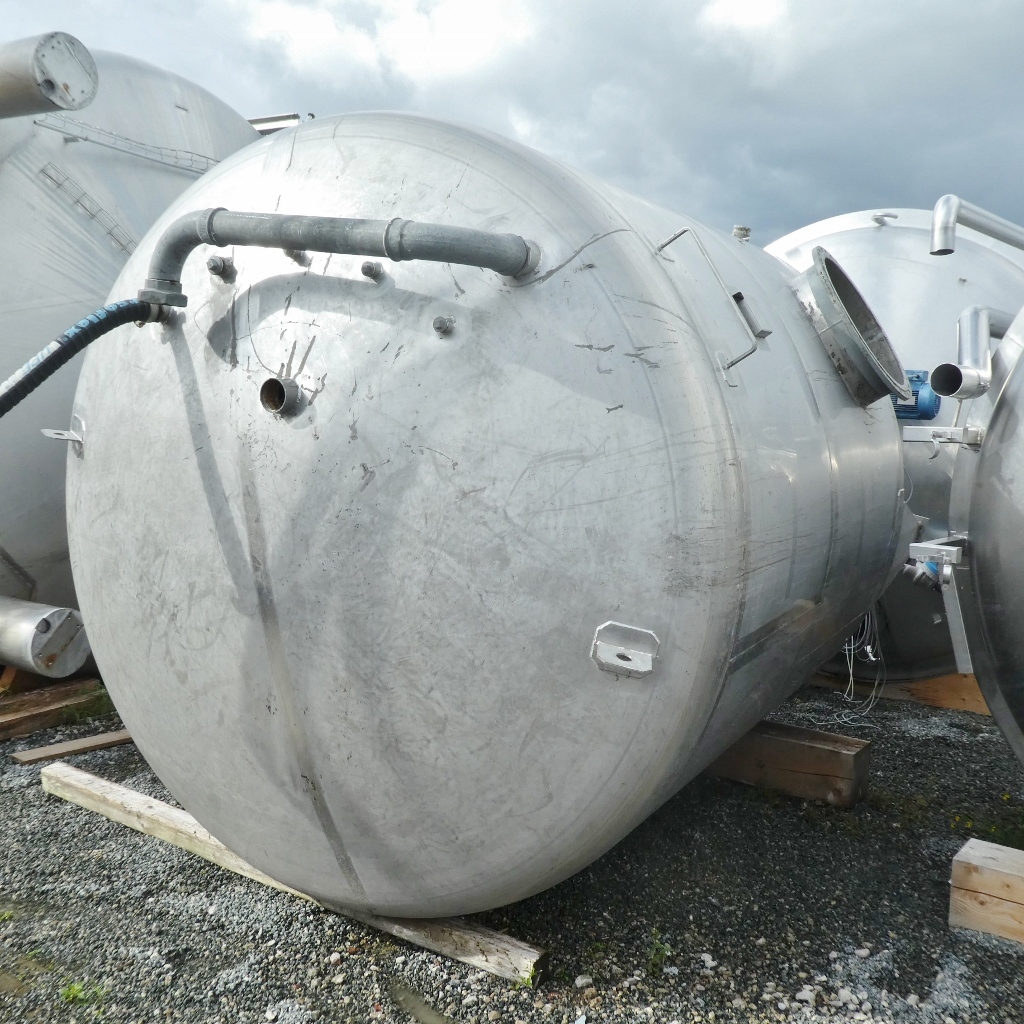

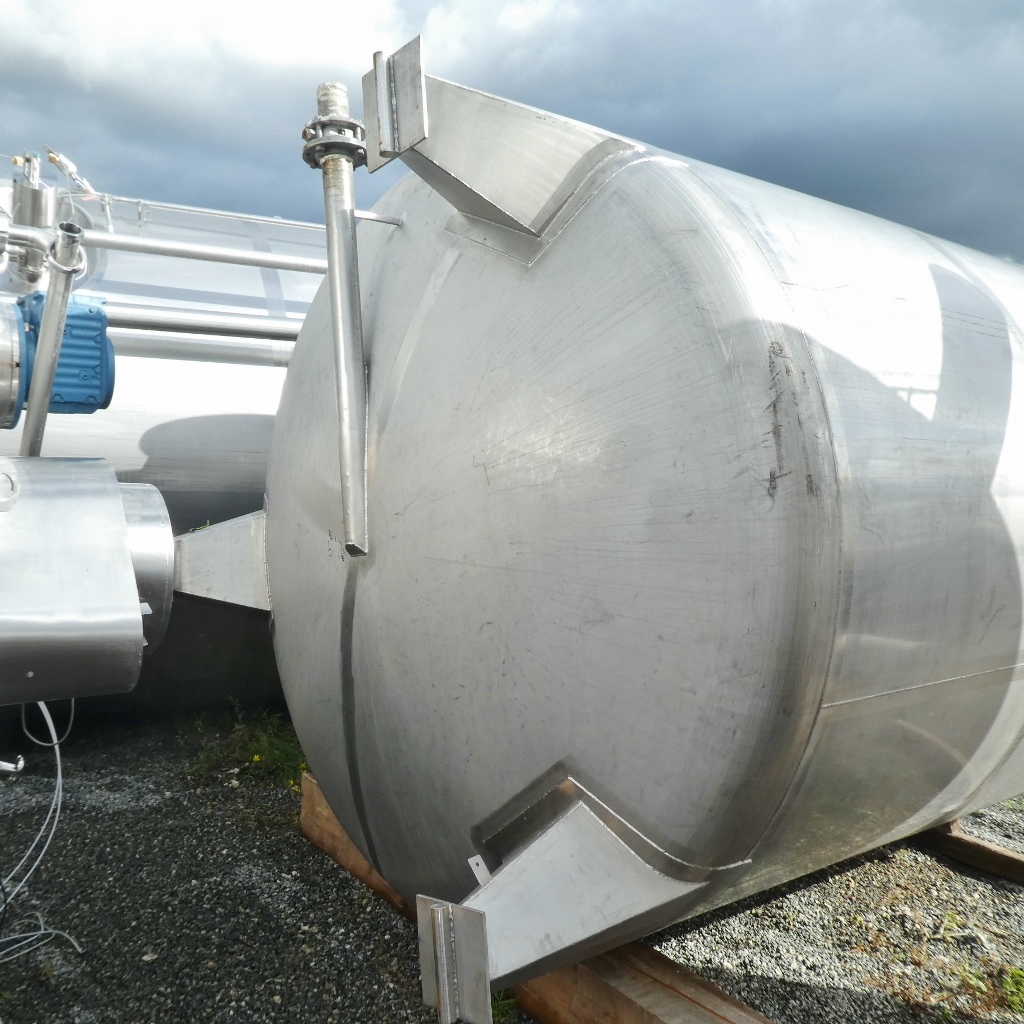

14300 liter tank i Rostfritt 304

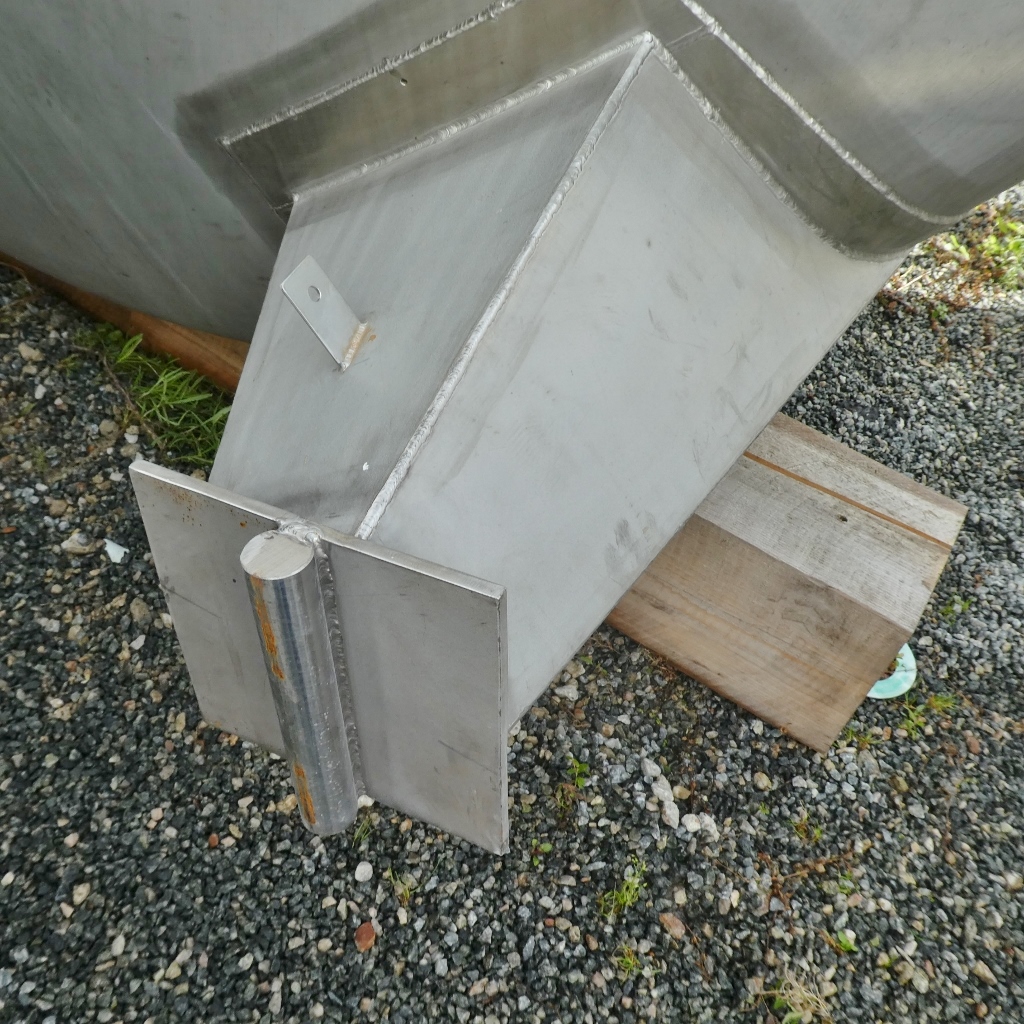

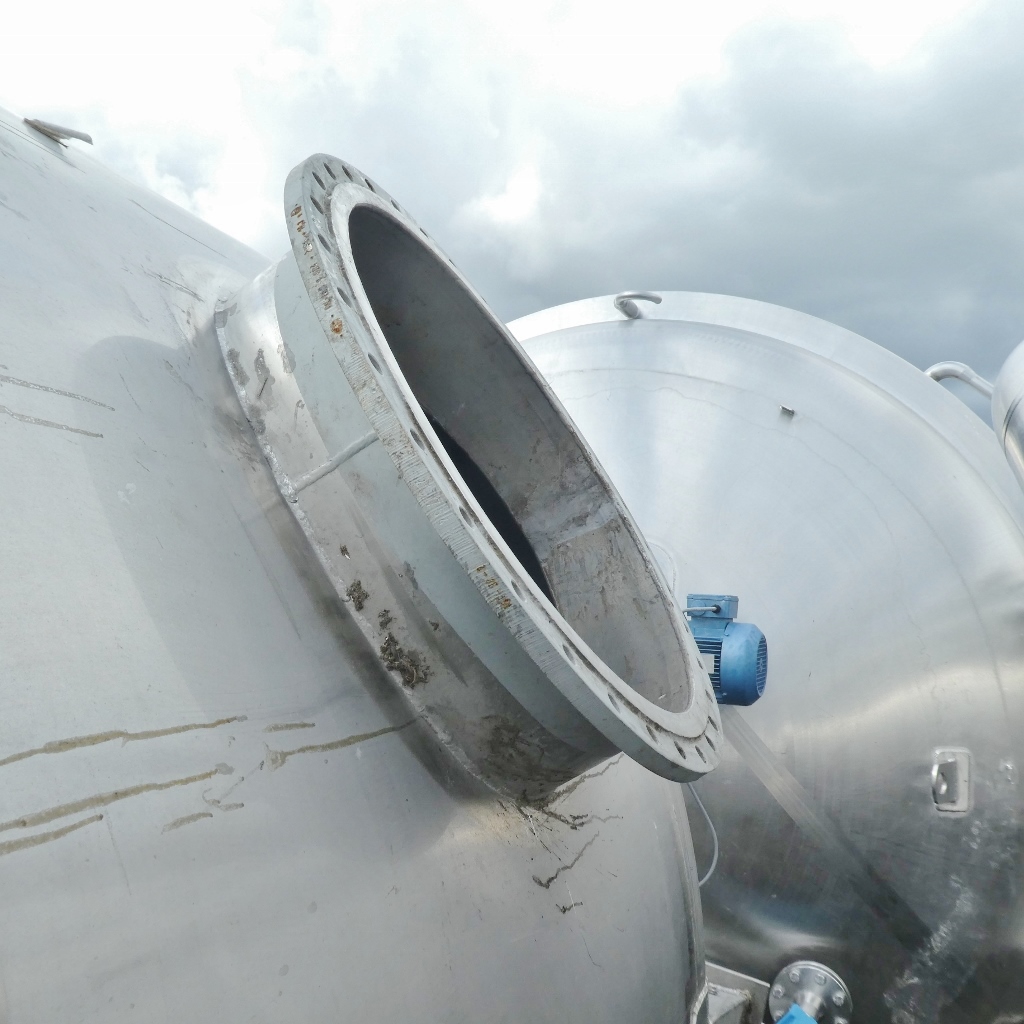

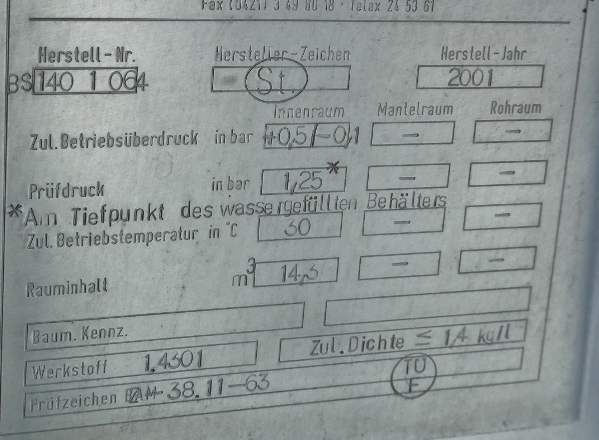

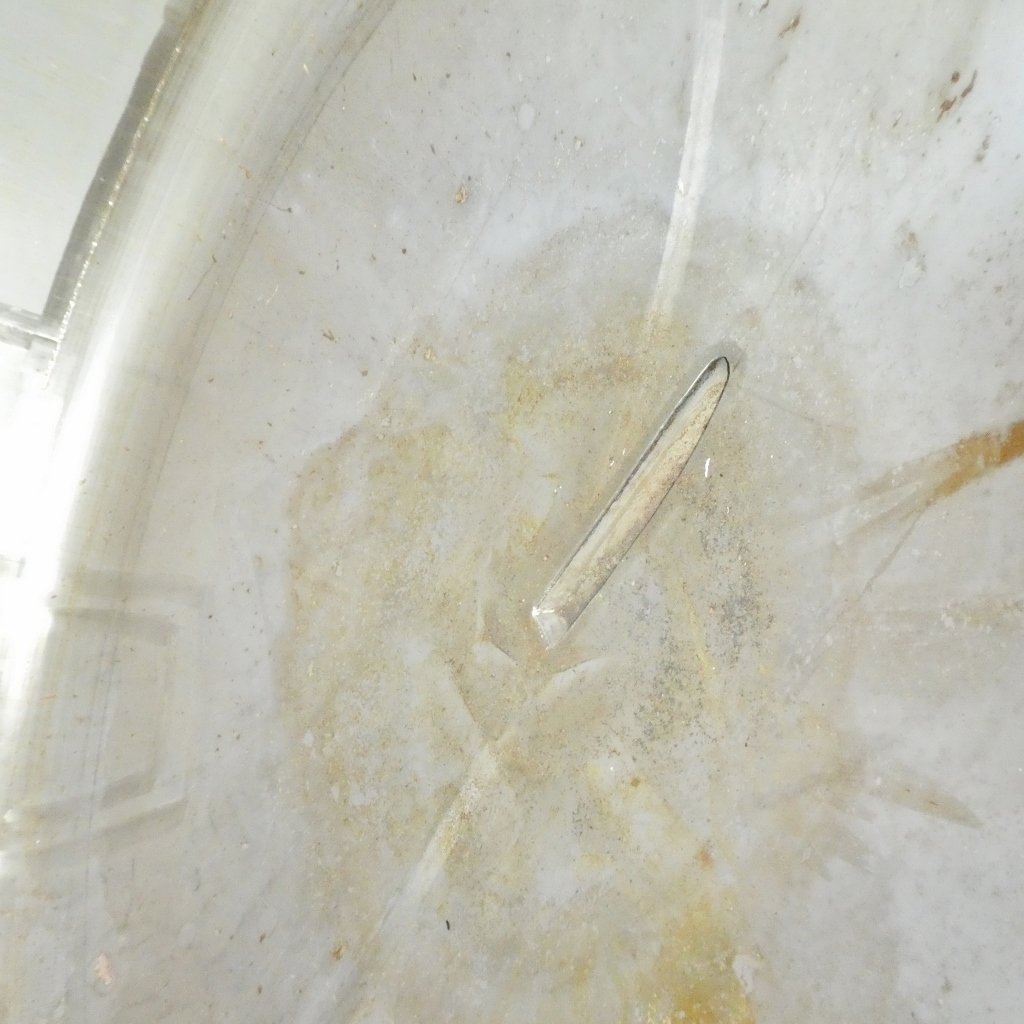

Additional information: coatings industry; 1 foot shorter than the others; the other 2 feet with a welded metall part under the bottom plate (see pictures); for installation the feet needs to be reworked; manhole diameter 600 mm; some residues of previous content; manhole cover plated Volumetric volume (L): 14.300 L Pressure in tank: pressure Max. pressure (Bar): 0,50 Bar Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Max Overpressure: 0,50 Bar Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: cylinder Outlet of tank: flange DN80 Internal diameter tank: 2.490 mm Cylinder height: 2.250 mm Total height of tank: 3.600 mm
