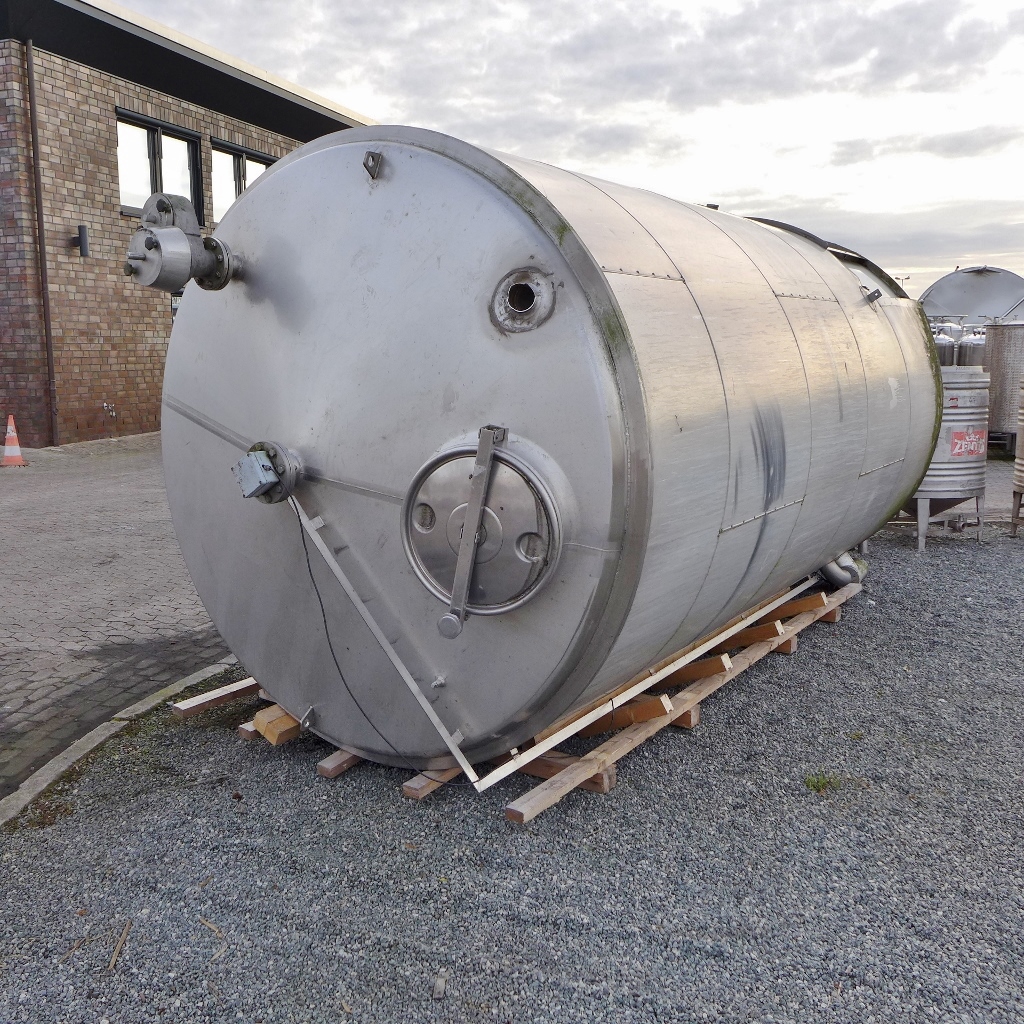

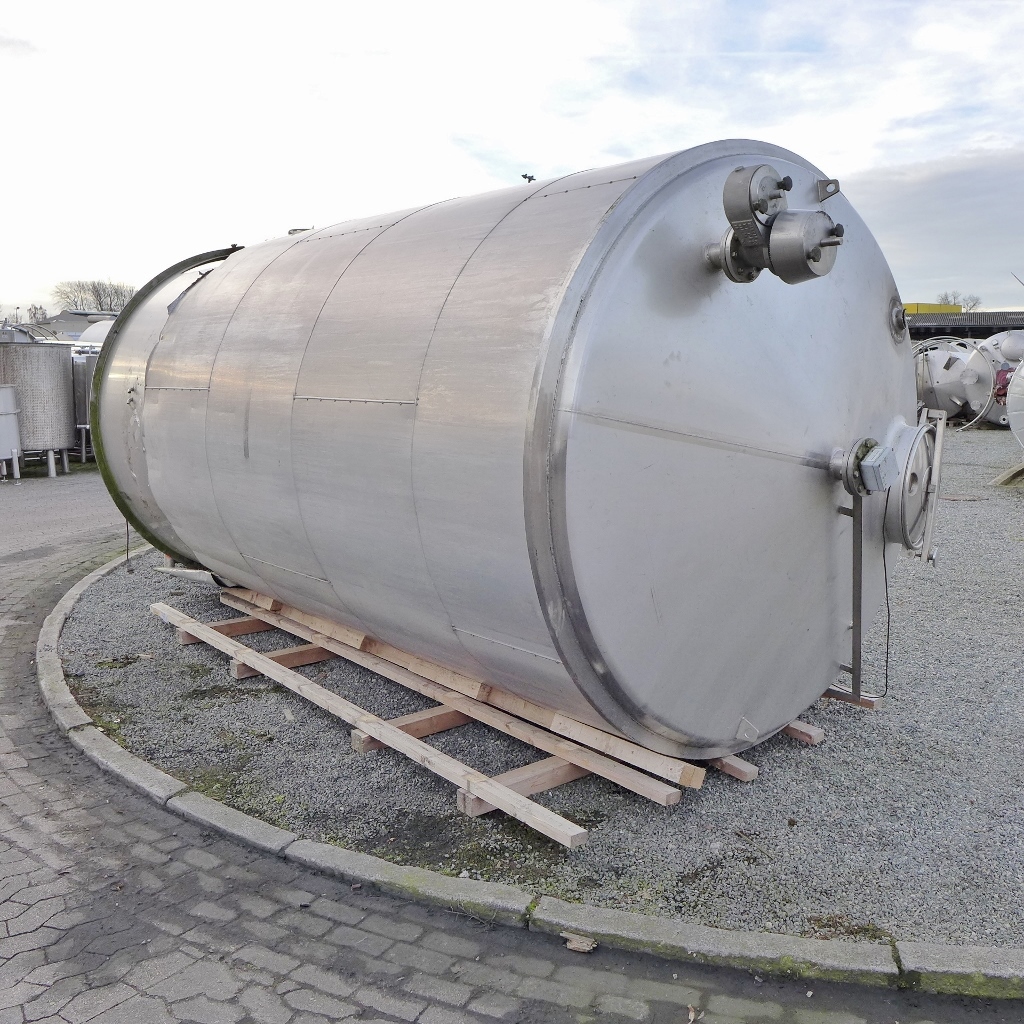

14000 liter tank i Rostfritt 304

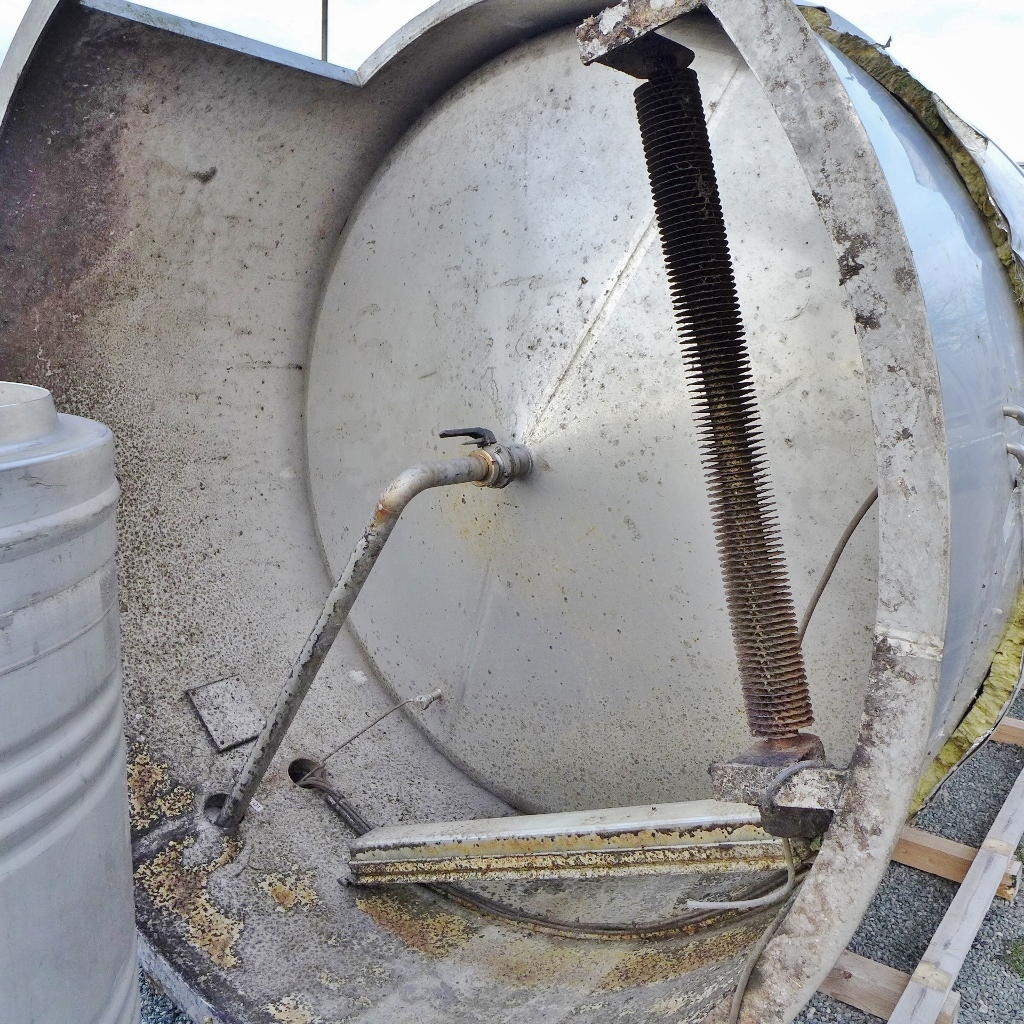

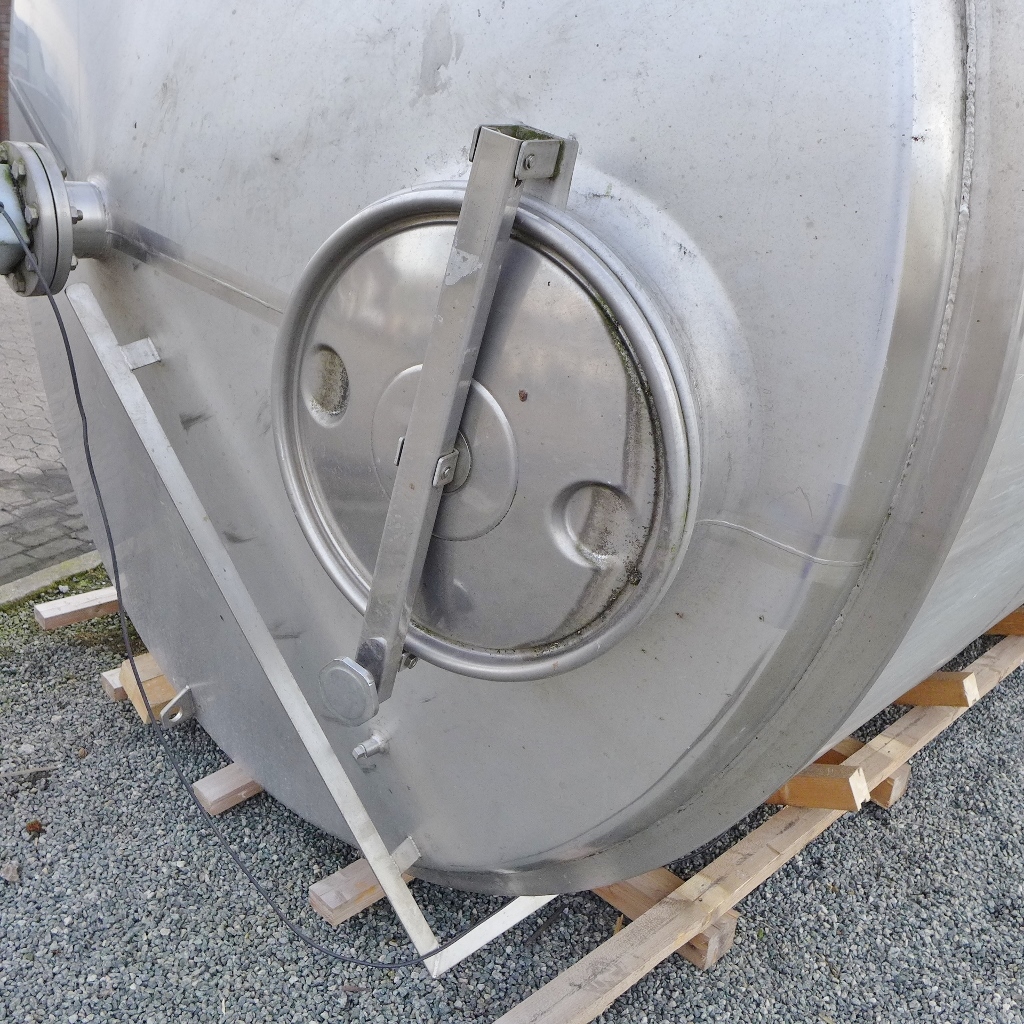

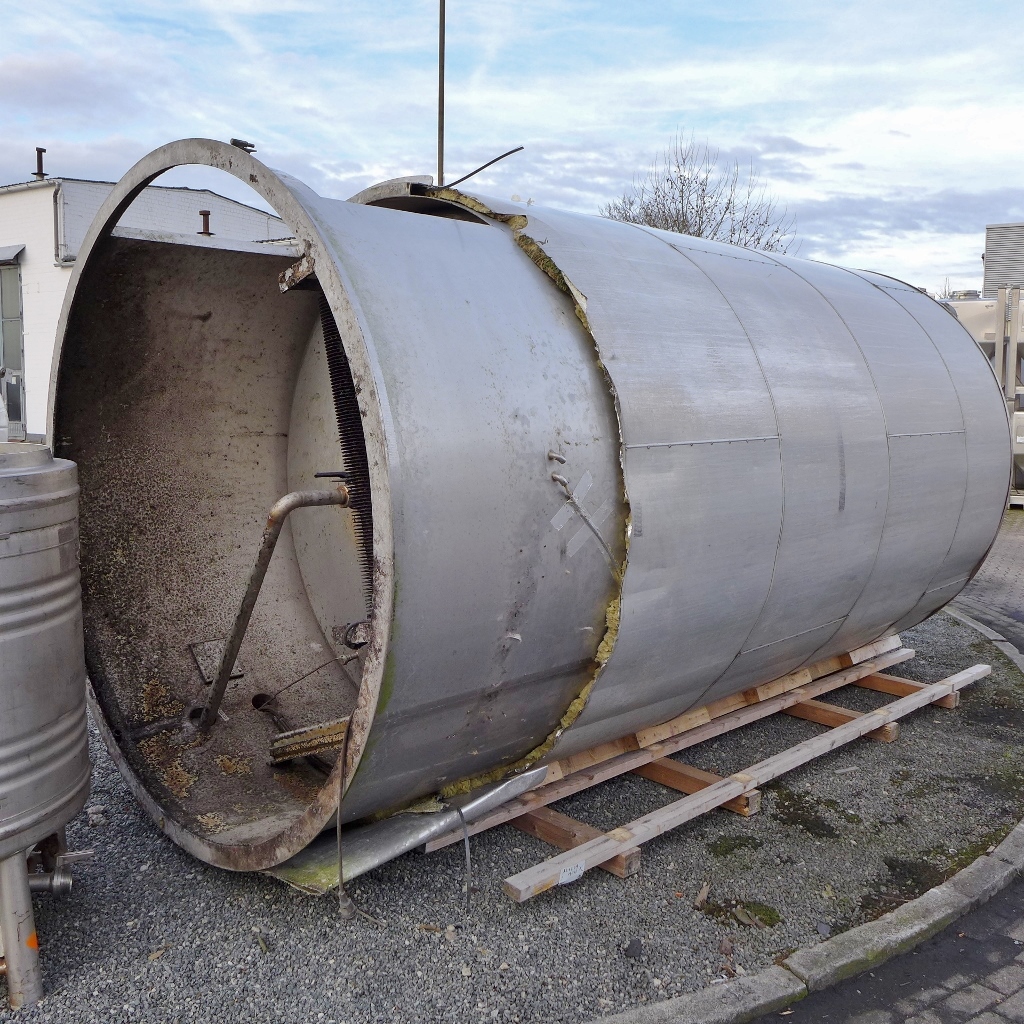

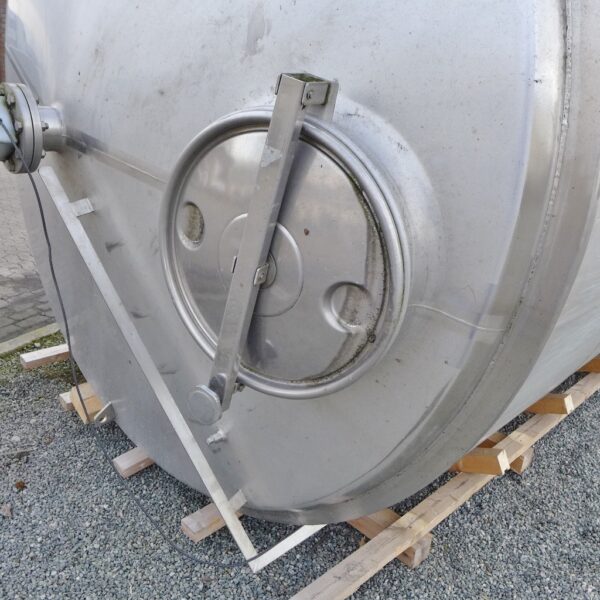

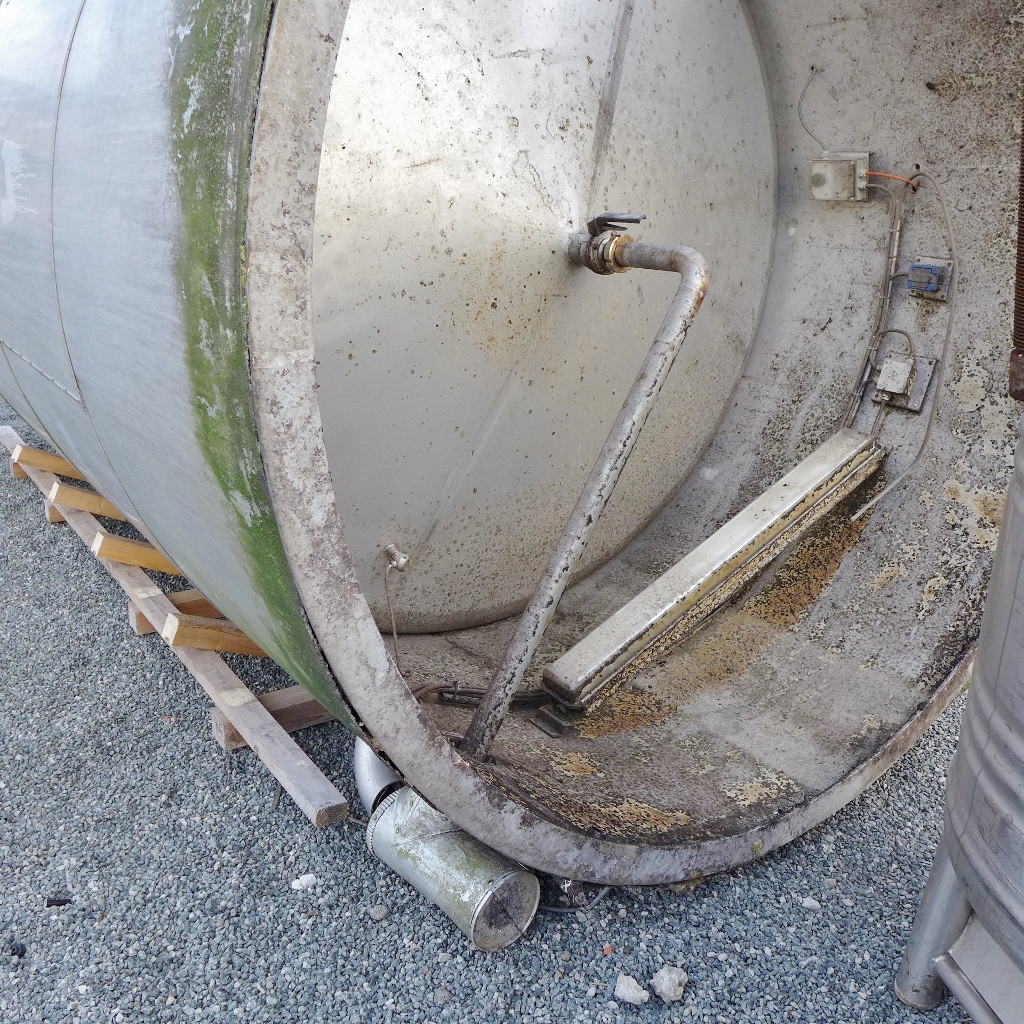

Additional information: Skirt support, Aisi 304; manhole diameter 510 mm; Insulation jacket cut open below (see photos); bump at the insulation jacket Volumetric volume (L): 14.000 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: insulated Heat exchanger: no Insulation: yes Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: no Flange for agitator: no Position of manway: in the bottom Outlet of tank: available Internal diameter tank: 2.350 mm Outer diameter tank: 2.470 mm Cylinder height: 3.200 mm Total height of tank: 5.150 mm
