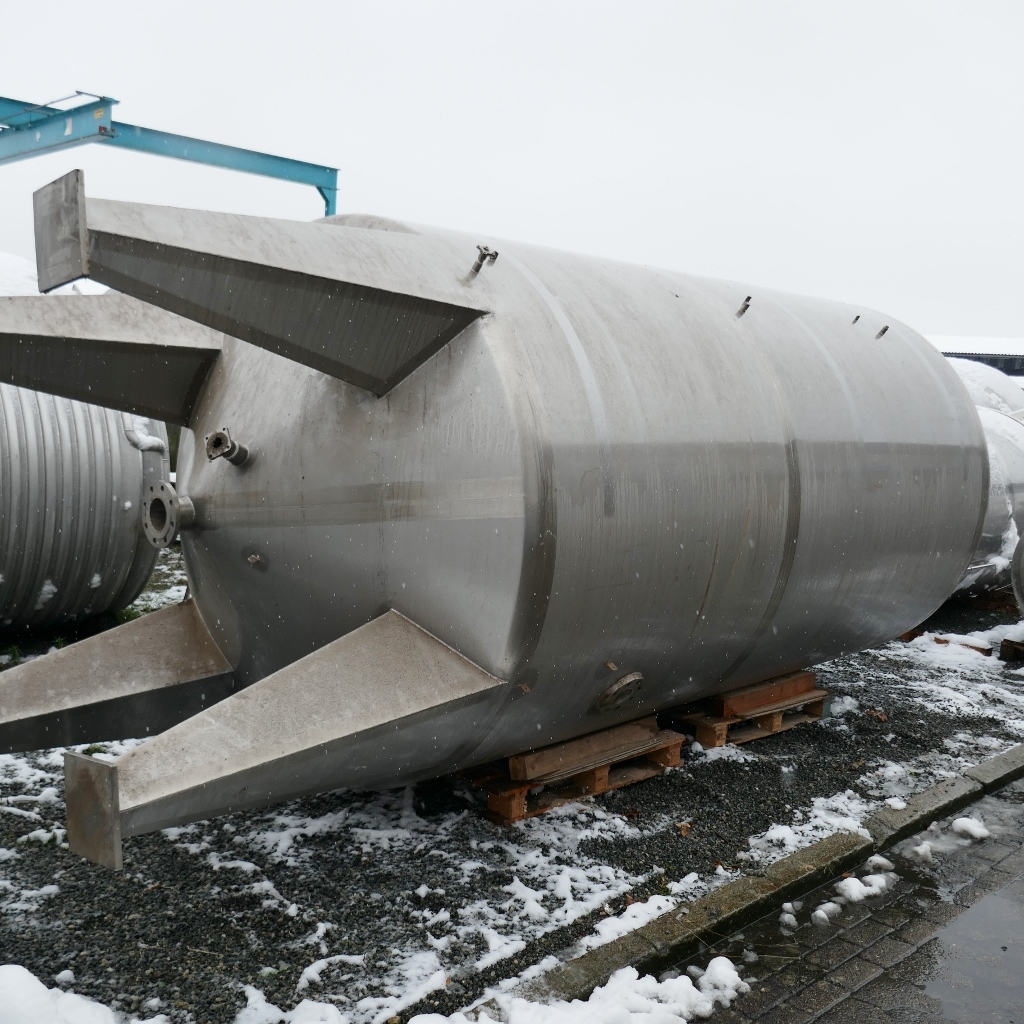

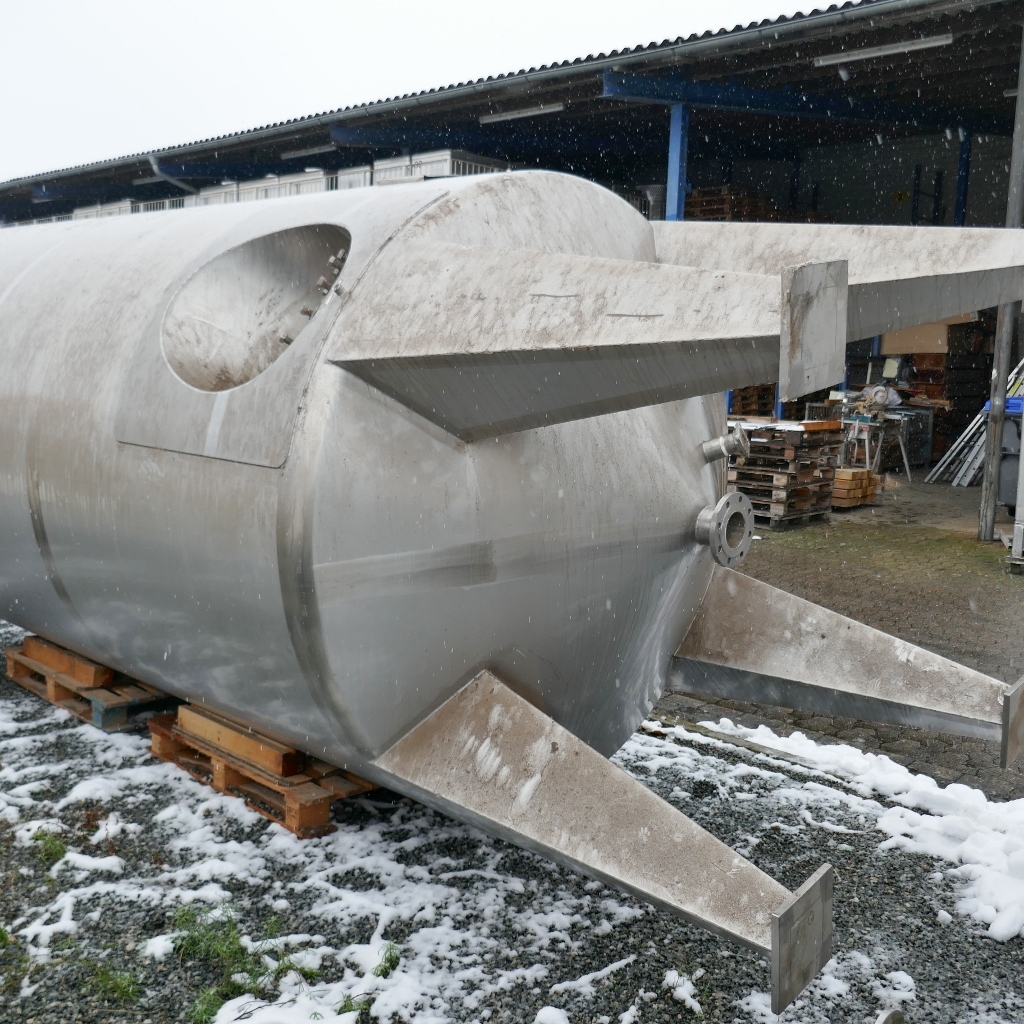

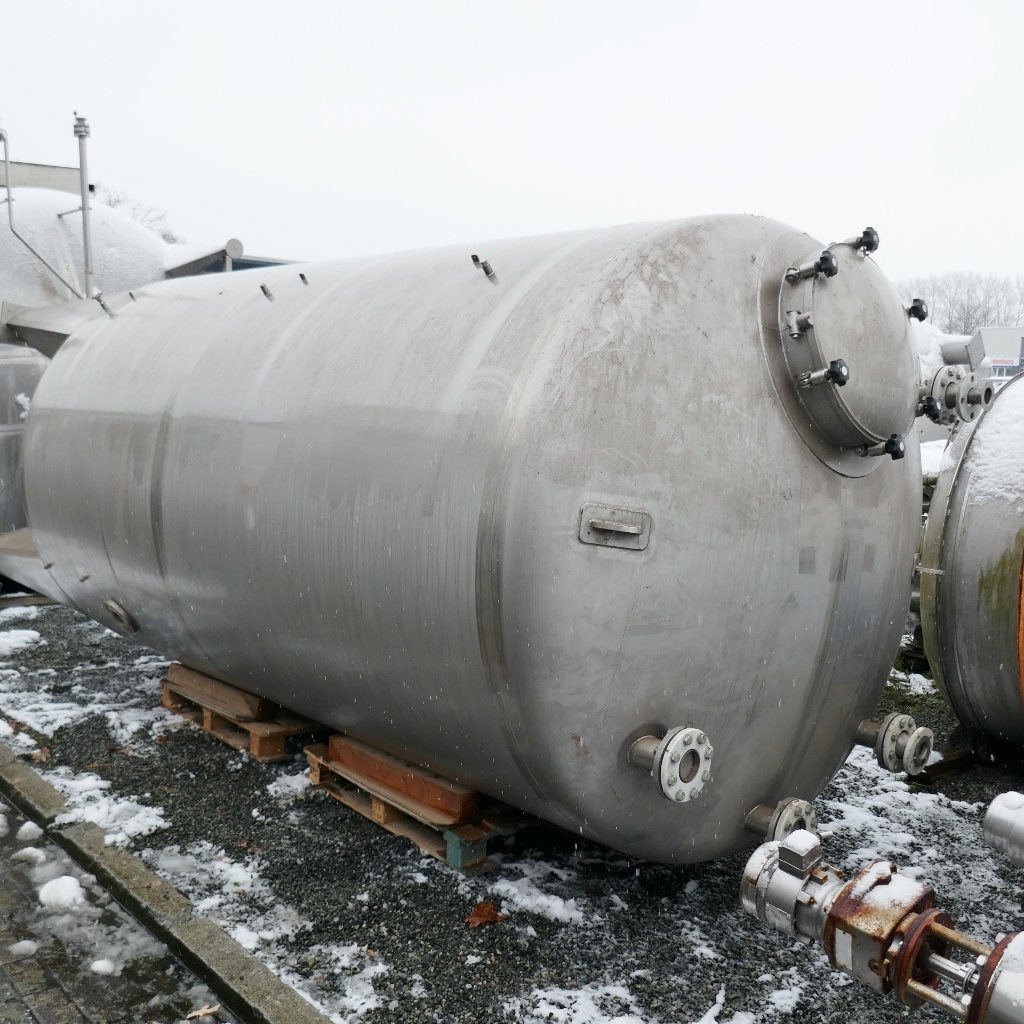

13719 liter tank i Rostfritt 304

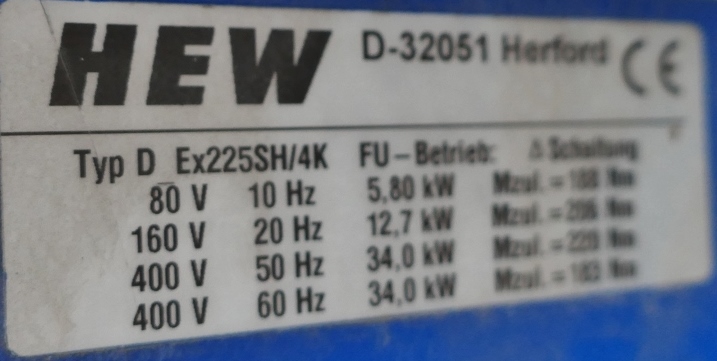

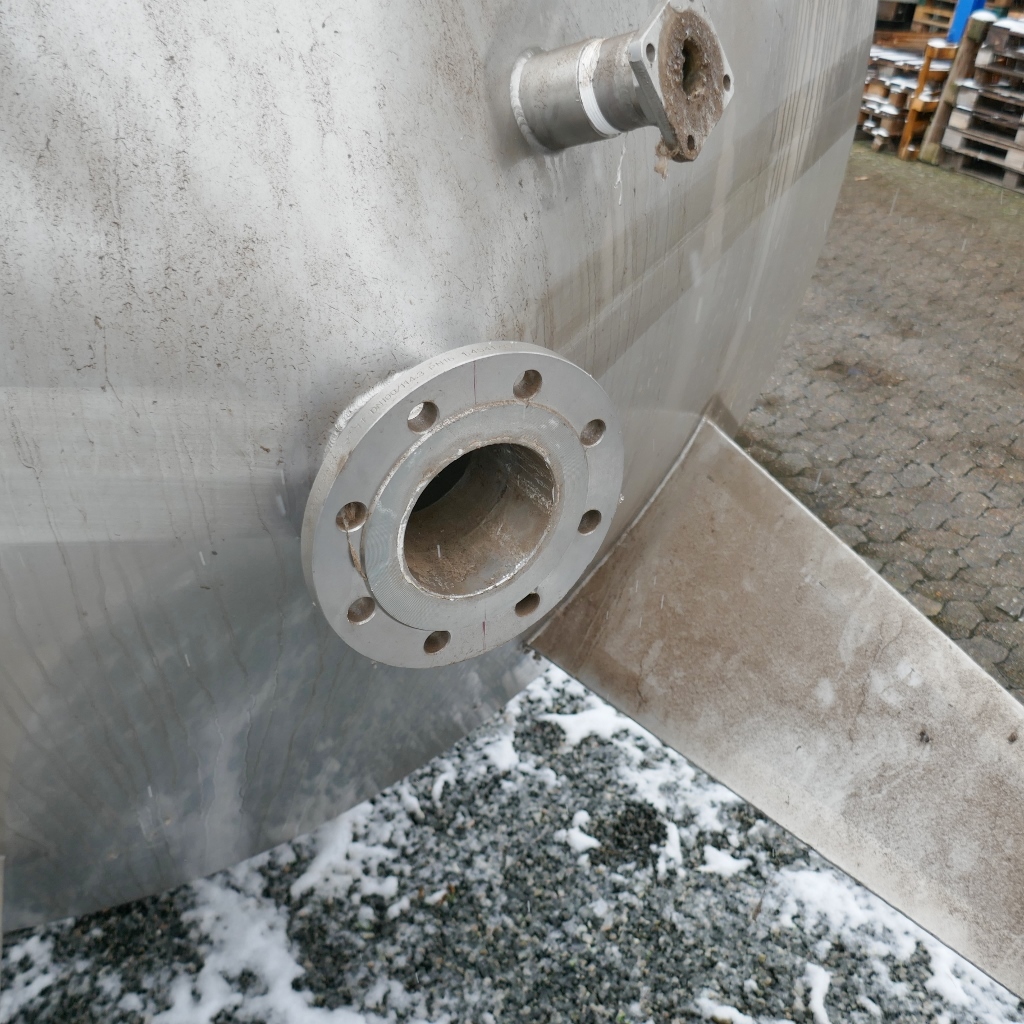

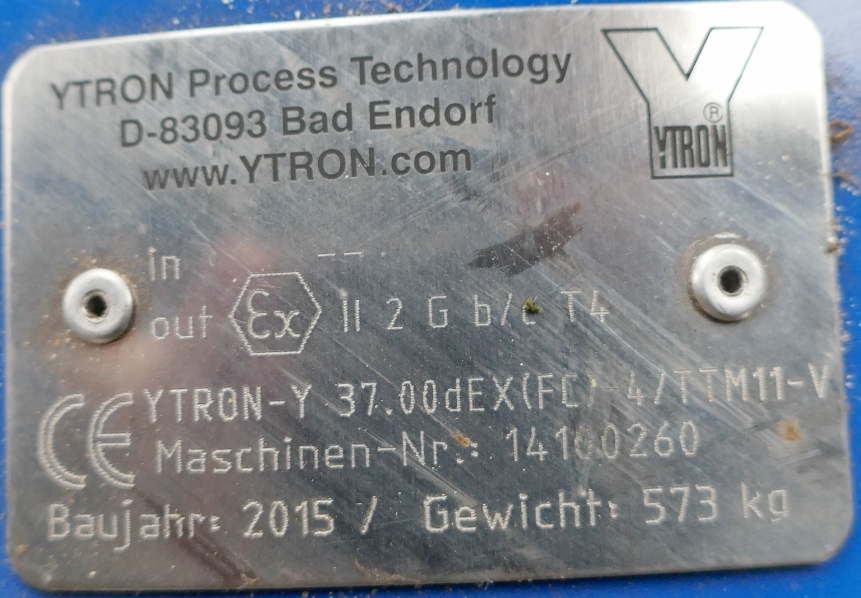

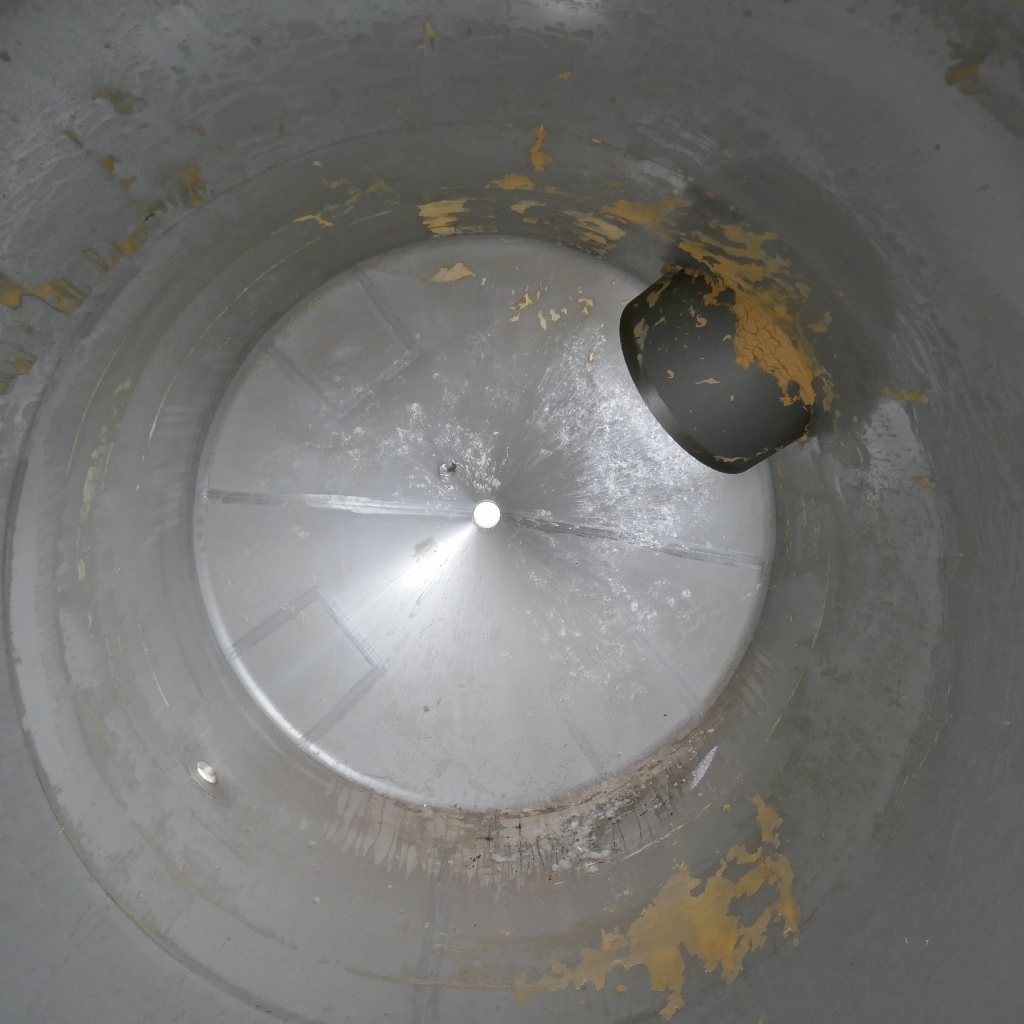

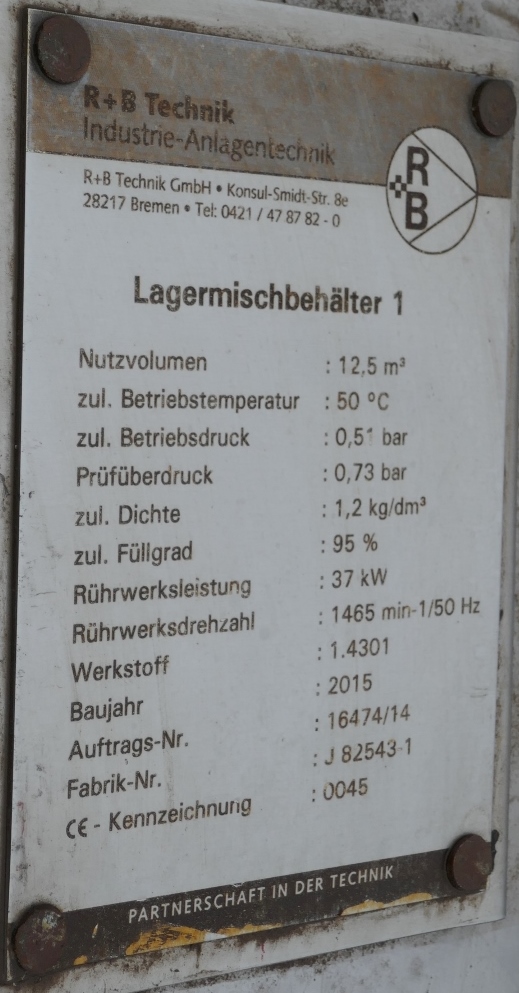

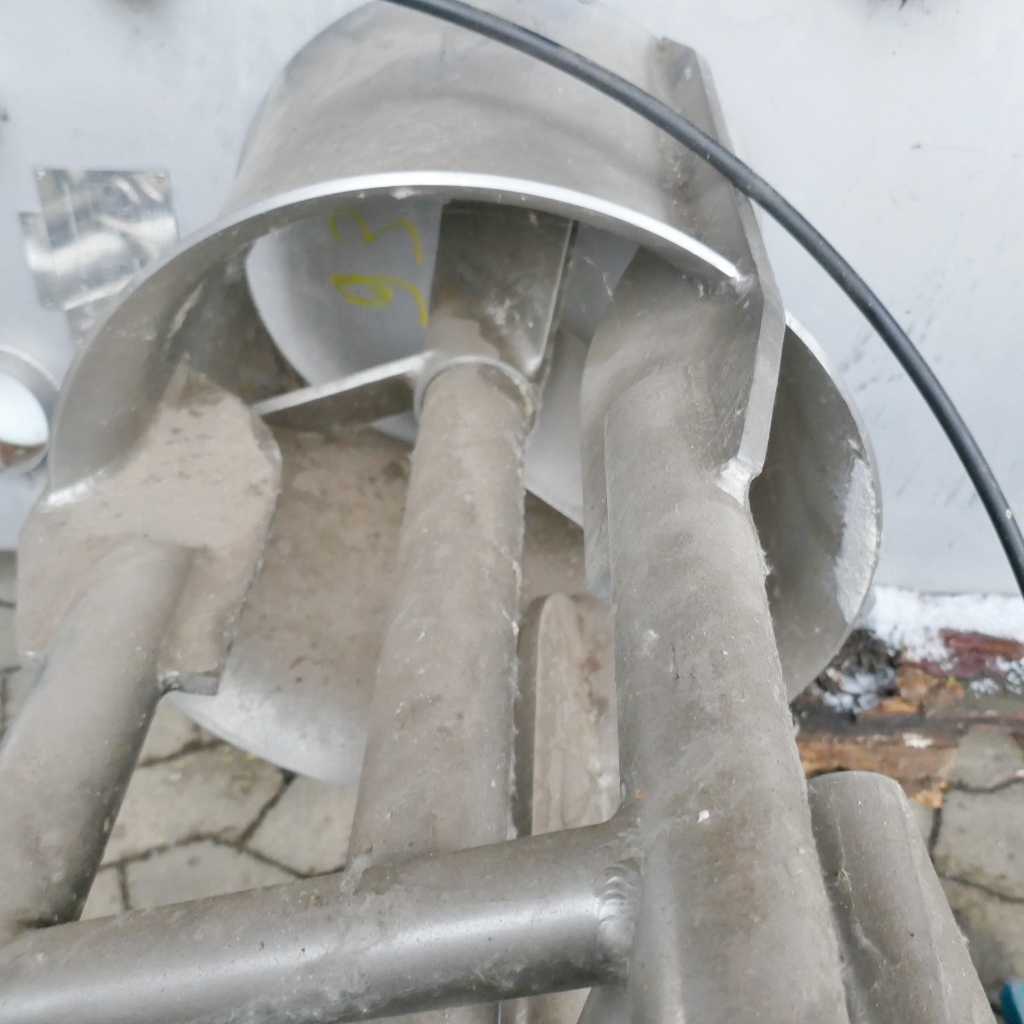

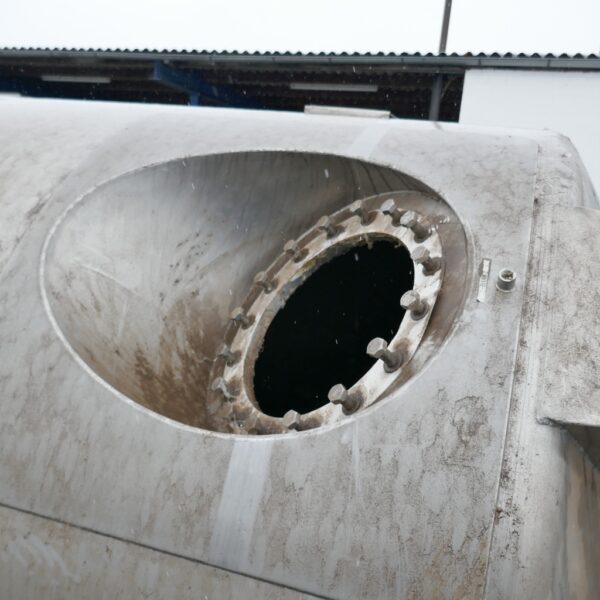

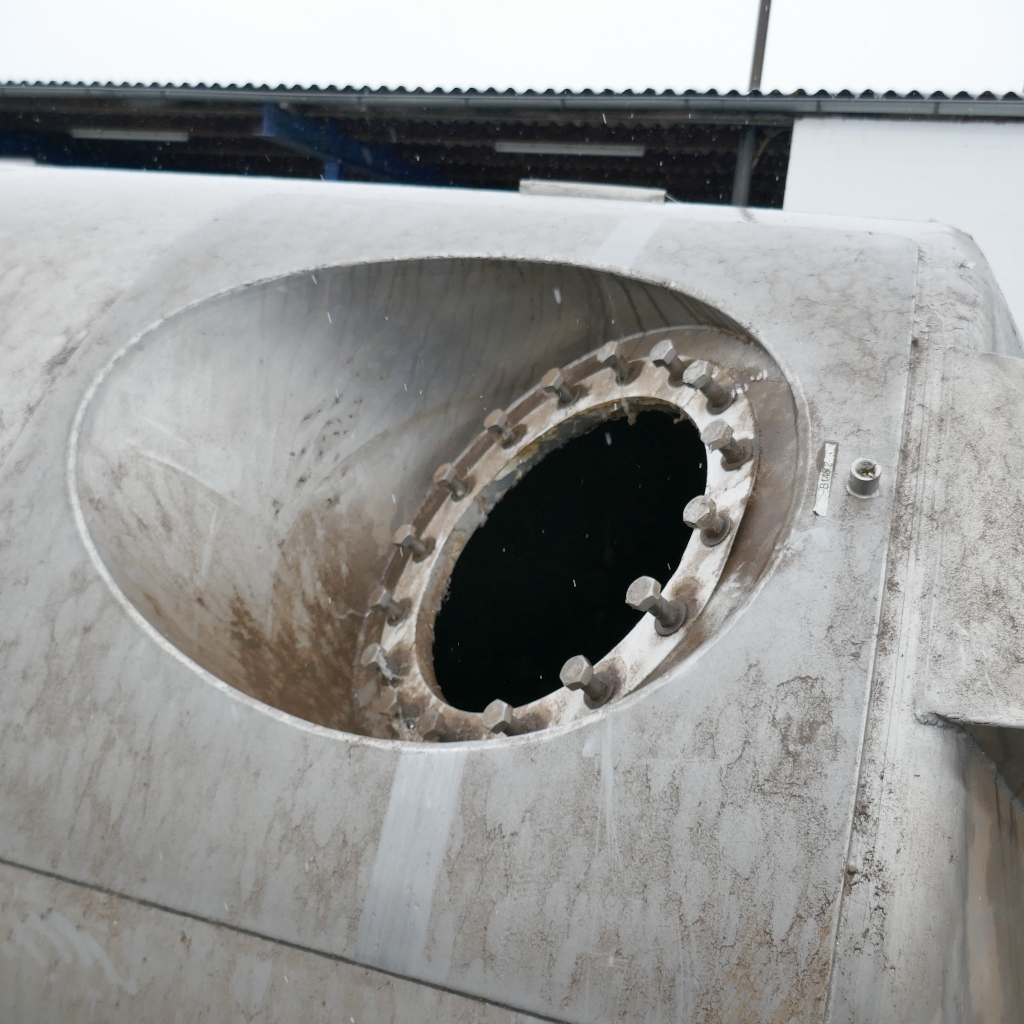

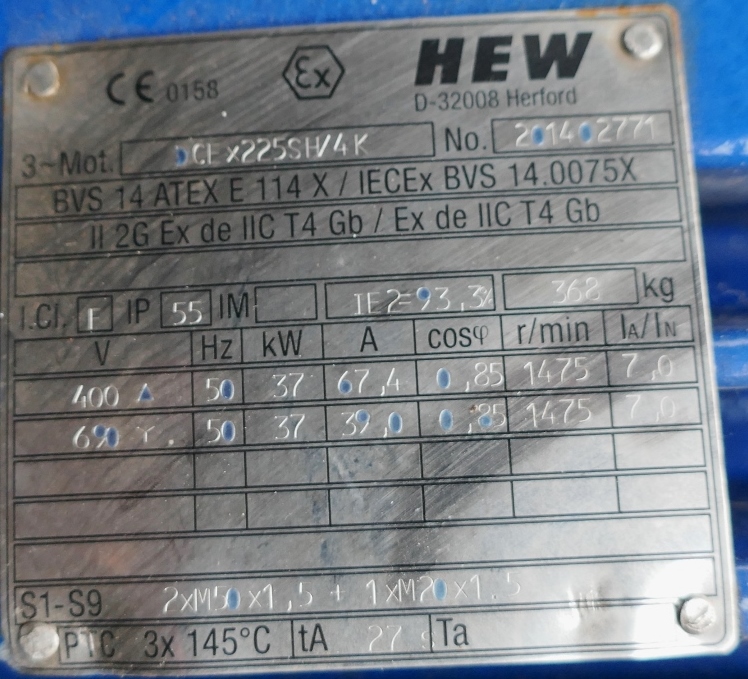

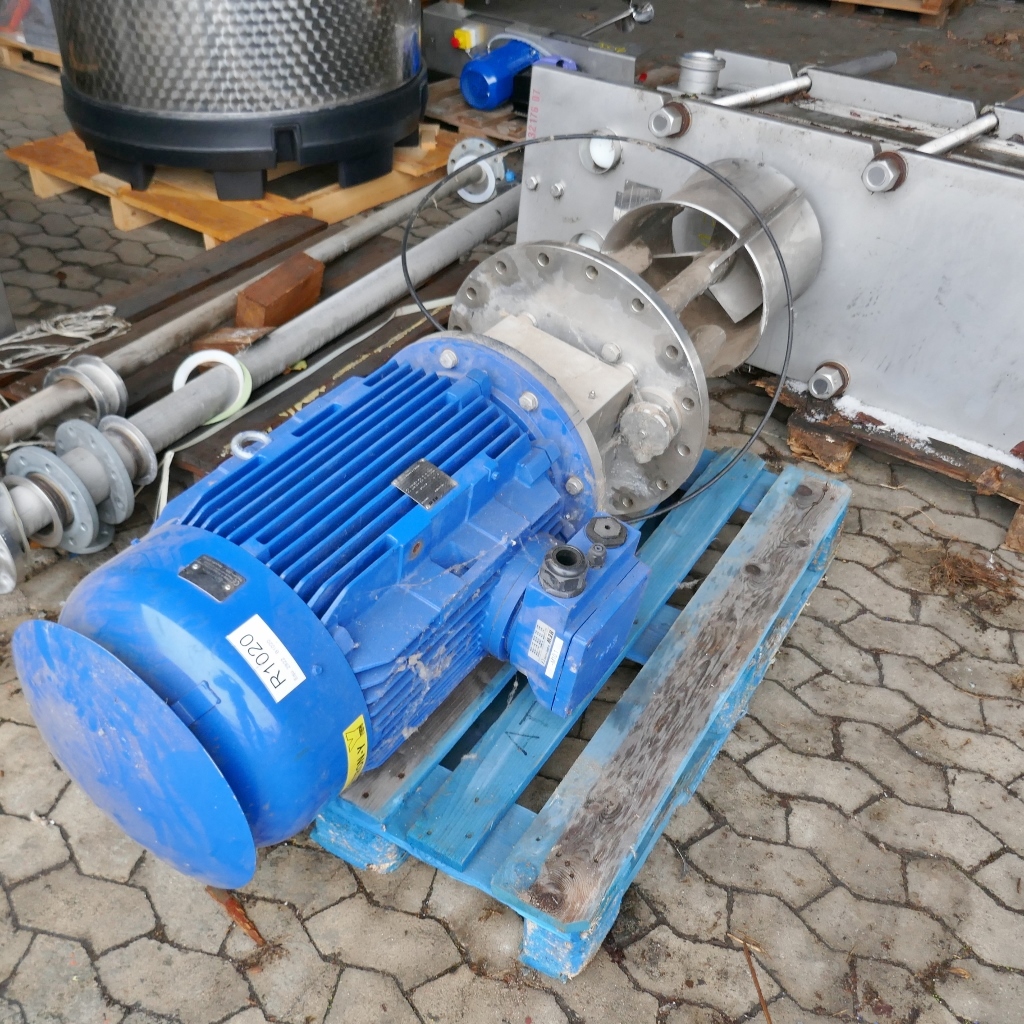

Additional information: Chemistry; Wall thickness of the lower cylinder height (1.500 mm): 4 mm; some residues of previous content Volumetric volume (L): 13.719 L Pressure in tank: pressure Max. pressure (Bar): 0,51 Bar Max. temperature (°C): 50 °C Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: in the bottom Outlet of tank: flange DN100 Agitator: yes Number of revolutions: 1.465 Power: 37 Top: 3 mm Cylinder: 3 mm Bottom: 4 mm Internal diameter tank: 2.100 mm Cylinder height: 3.500 mm Total height of tank: 5.500 mm
