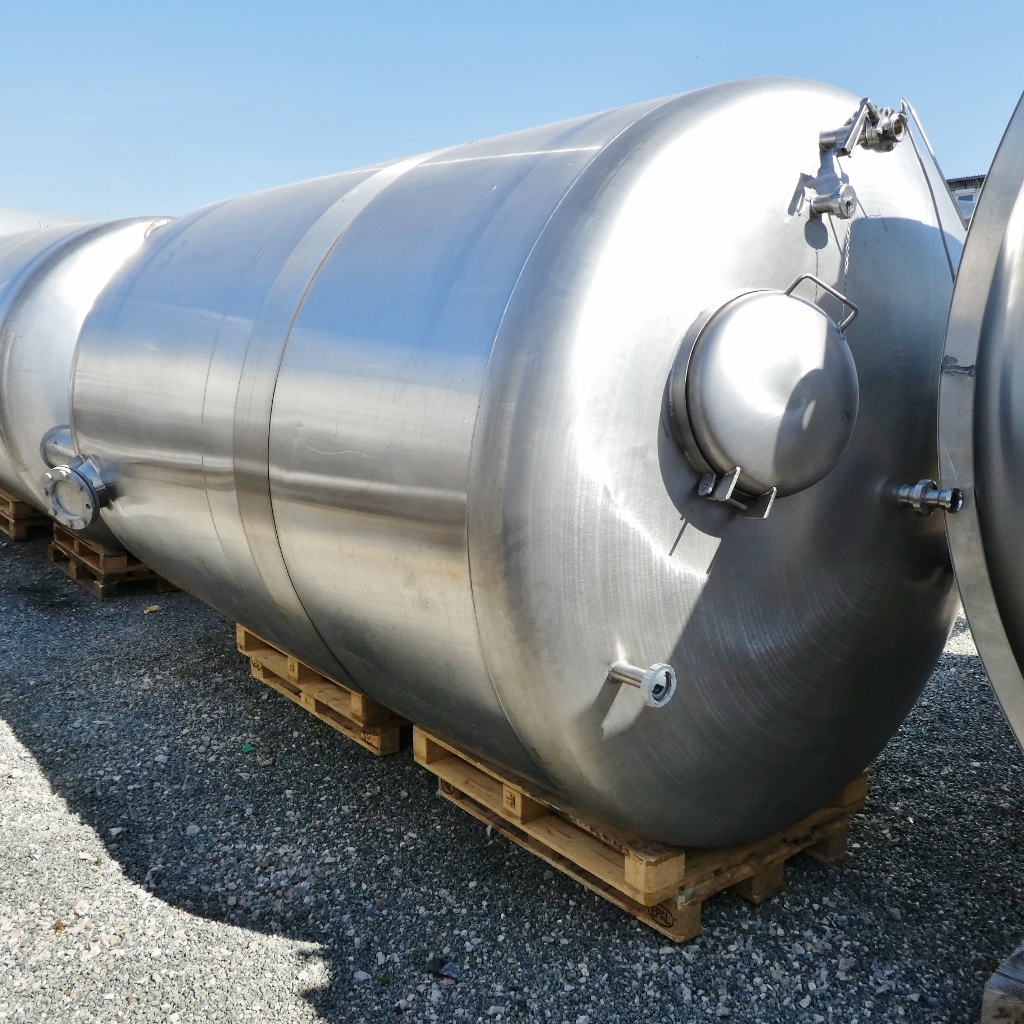

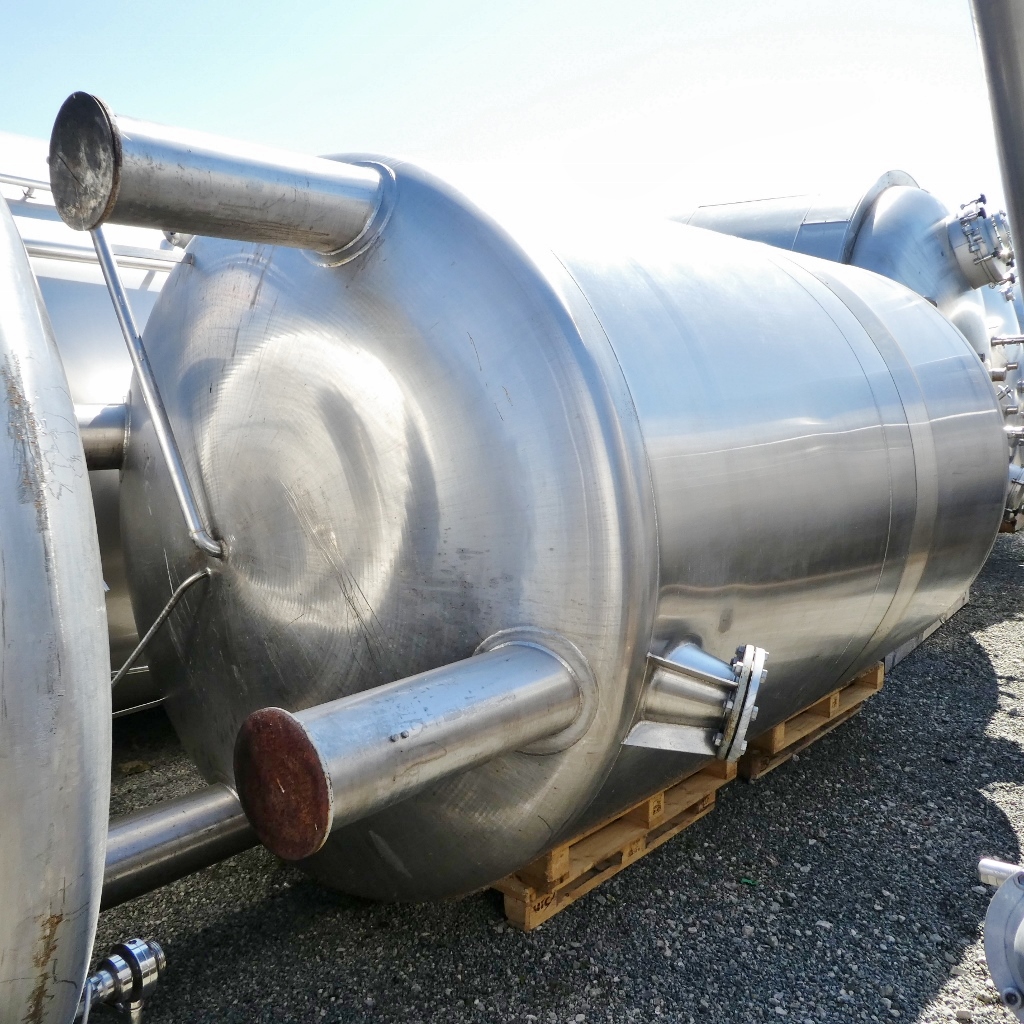

12200 liter tank i Rostfritt 304

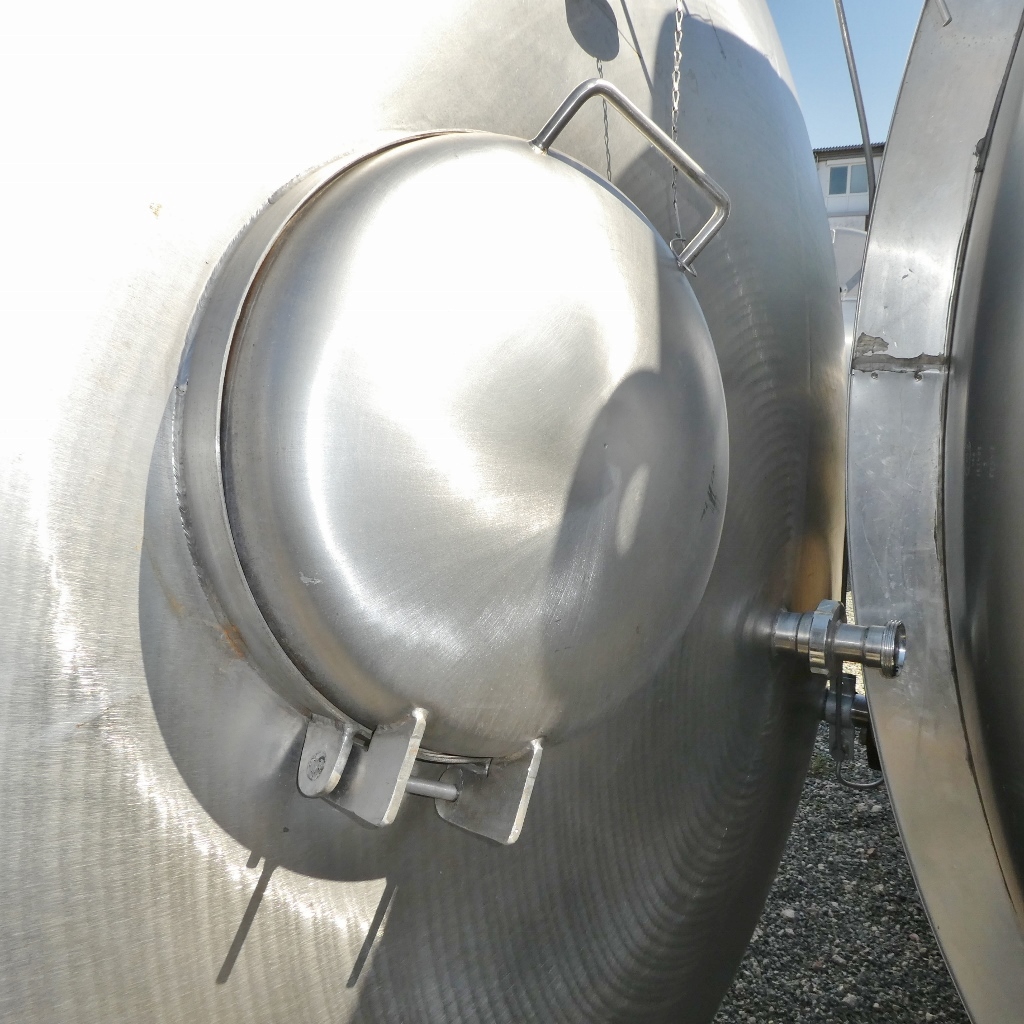

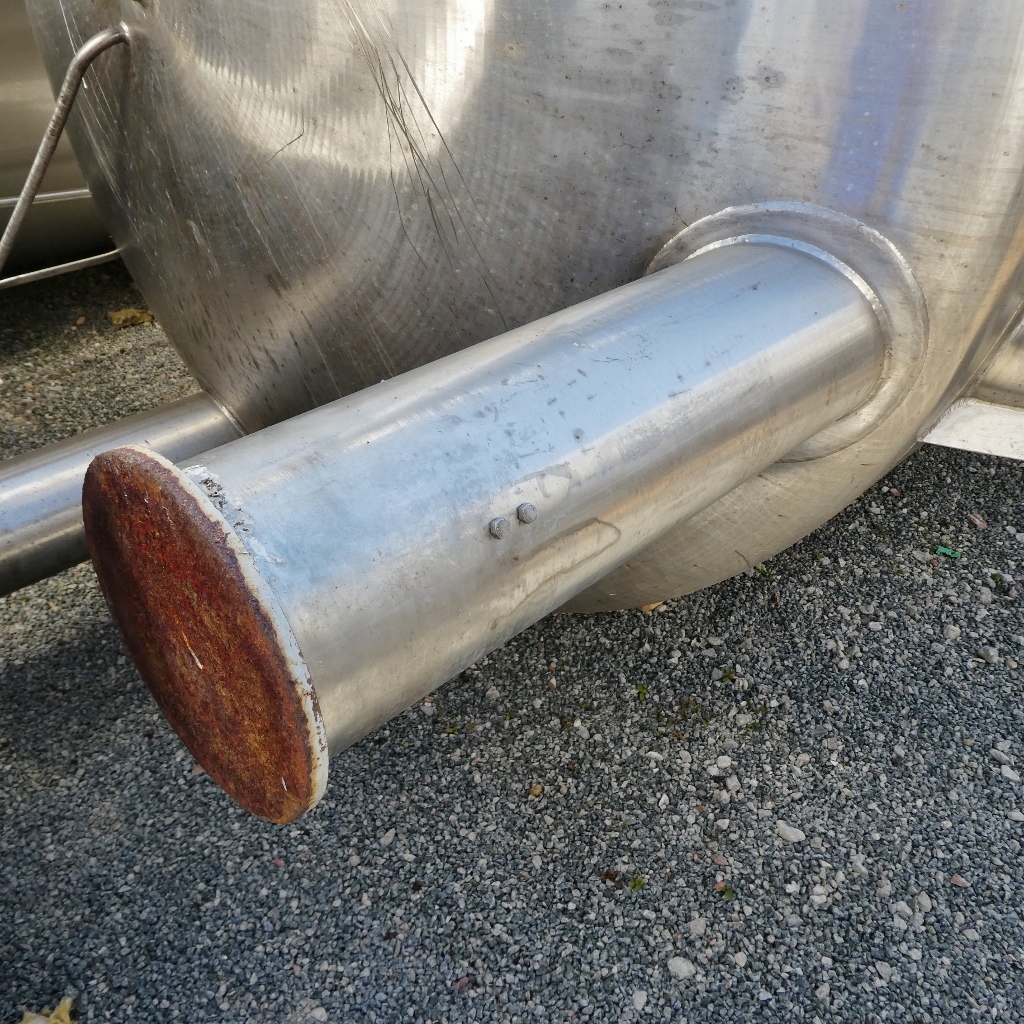

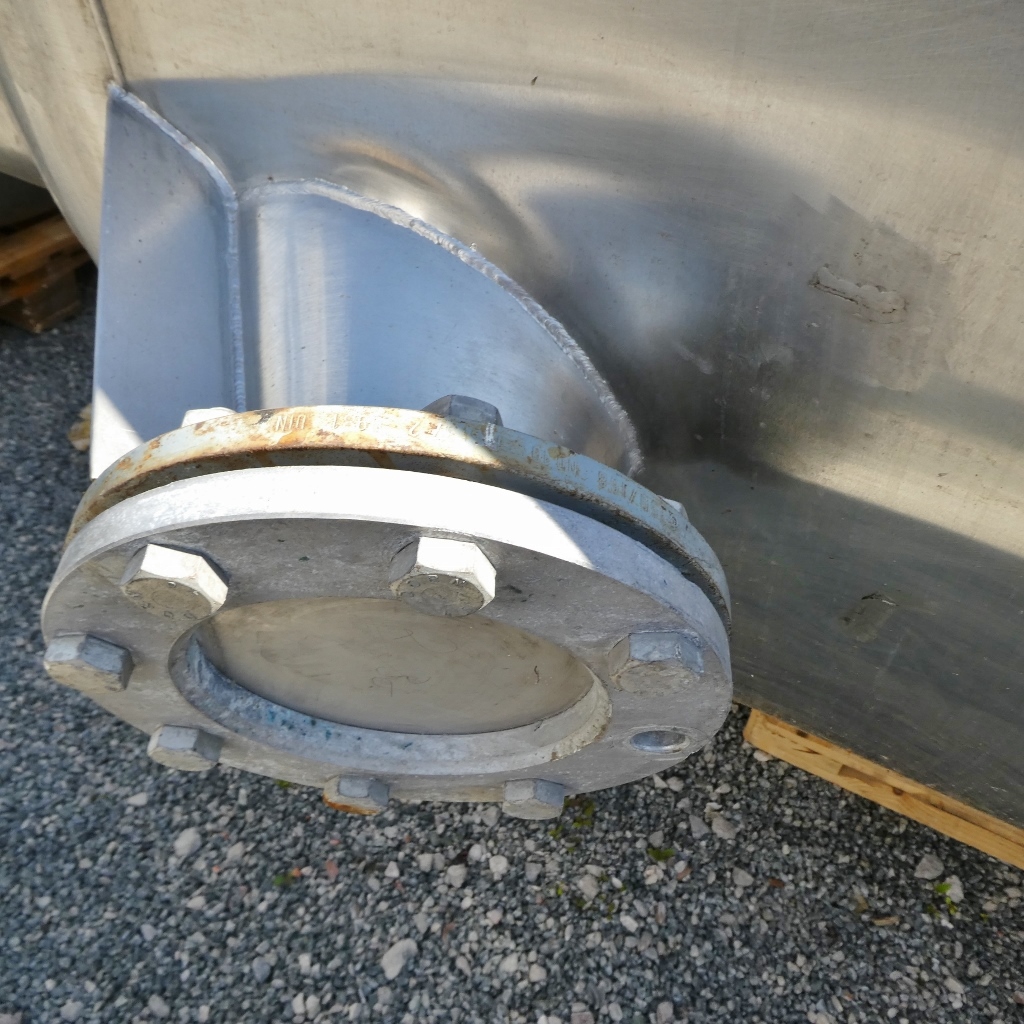

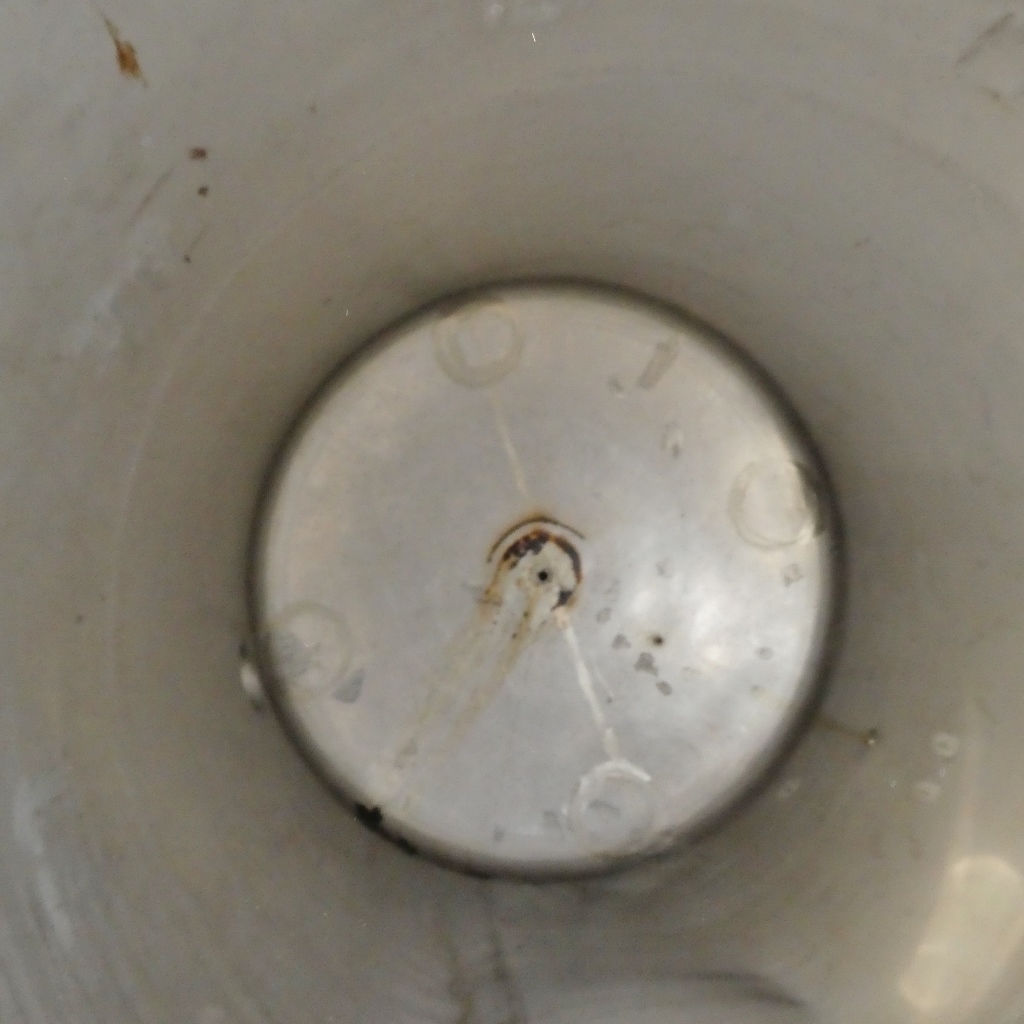

Additional information: spirits; footplates made of Fe; manhole diameter 430 mm; 1 stronger dent in the cylinder; some residues of previous content; dents at the cylinder Volumetric volume (L): 12.200 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: no Flange for agitator: yes Position of manway: headside Outlet of tank: DN40 DIN 11851 Internal diameter tank: 2.100 mm Cylinder height: 3.000 mm Total height of tank: 4.550 mm
