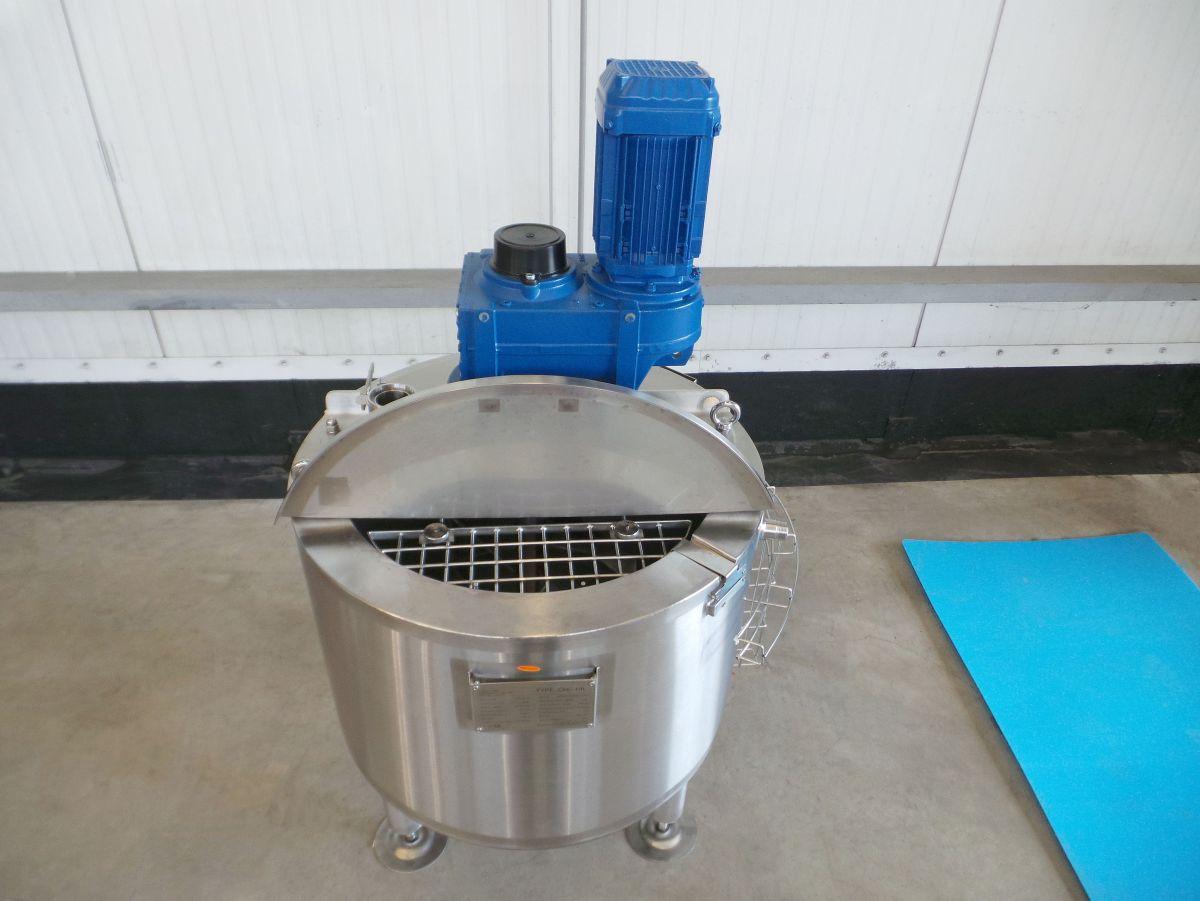

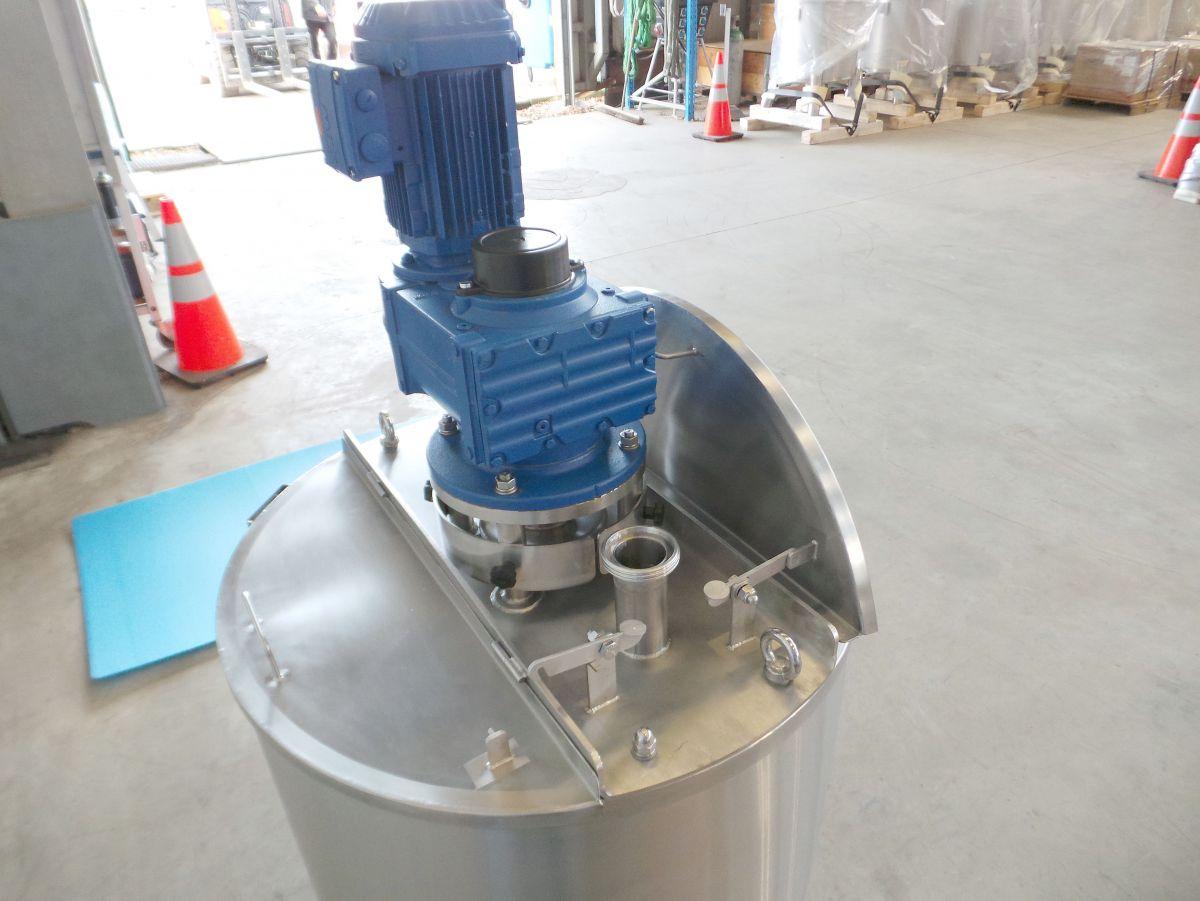

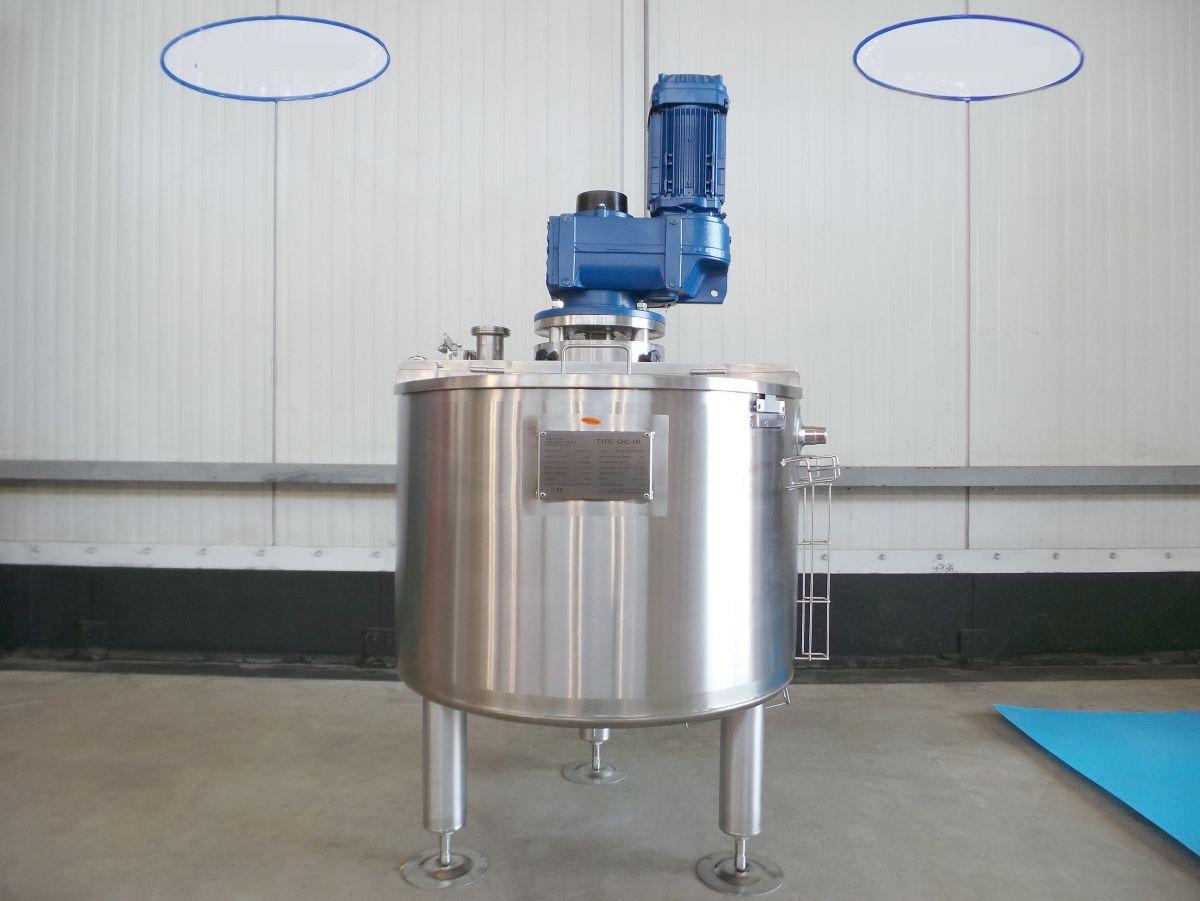

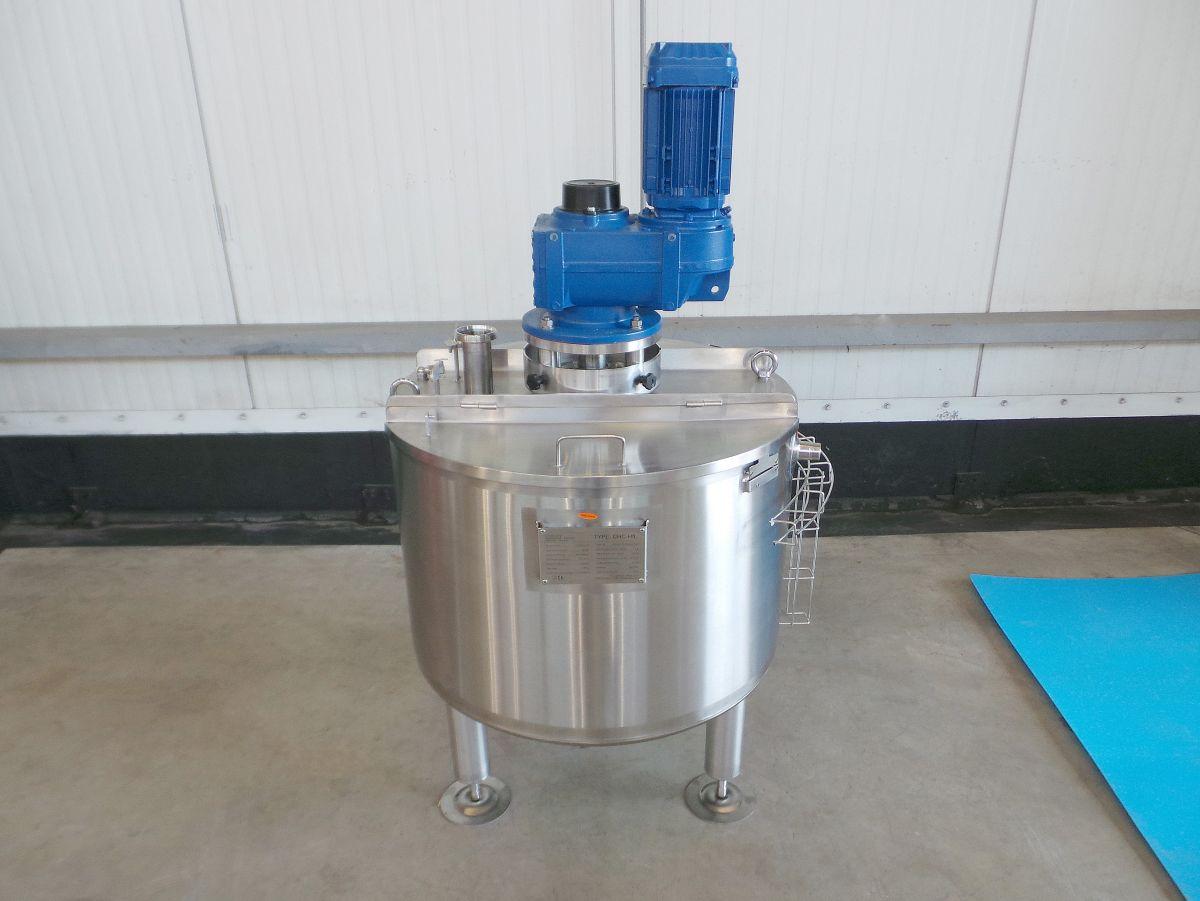

120 liter tank i Syrafast 316

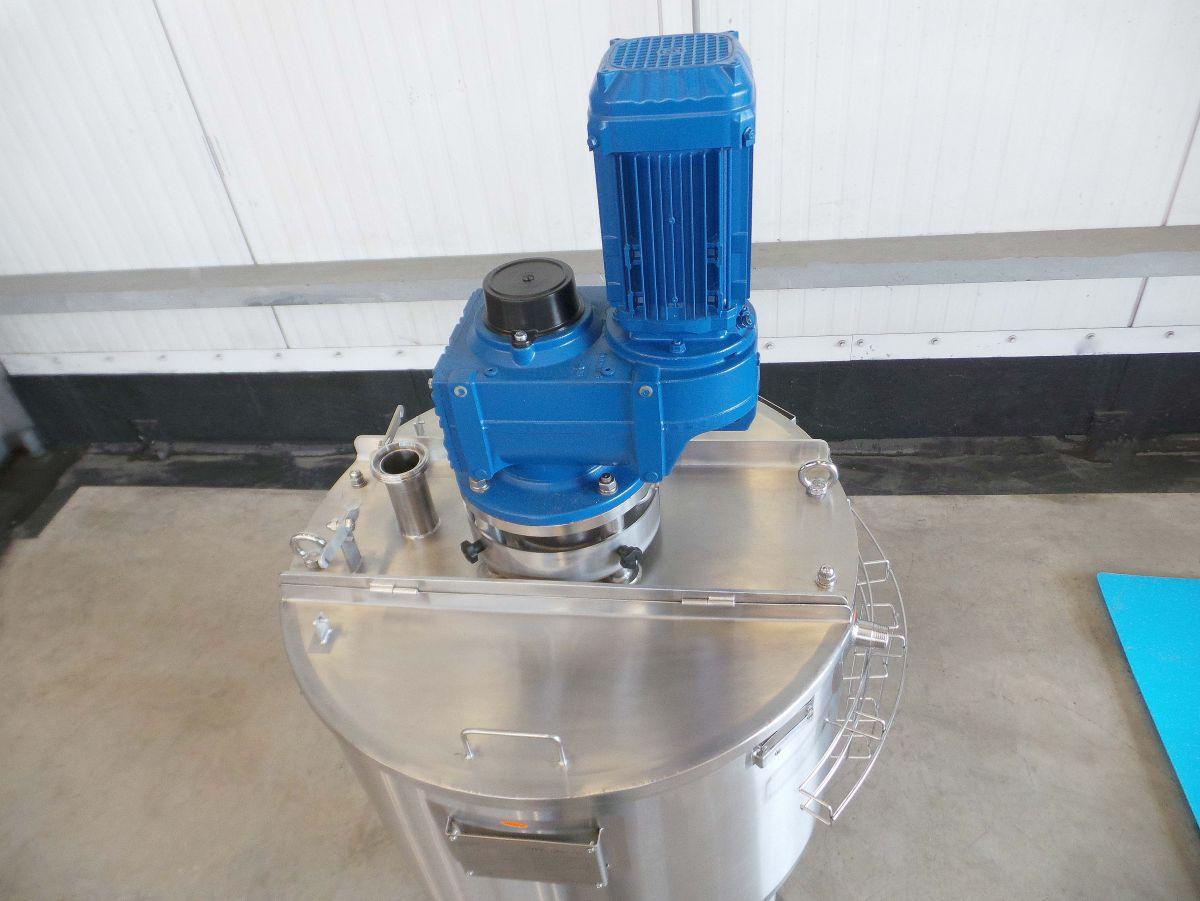

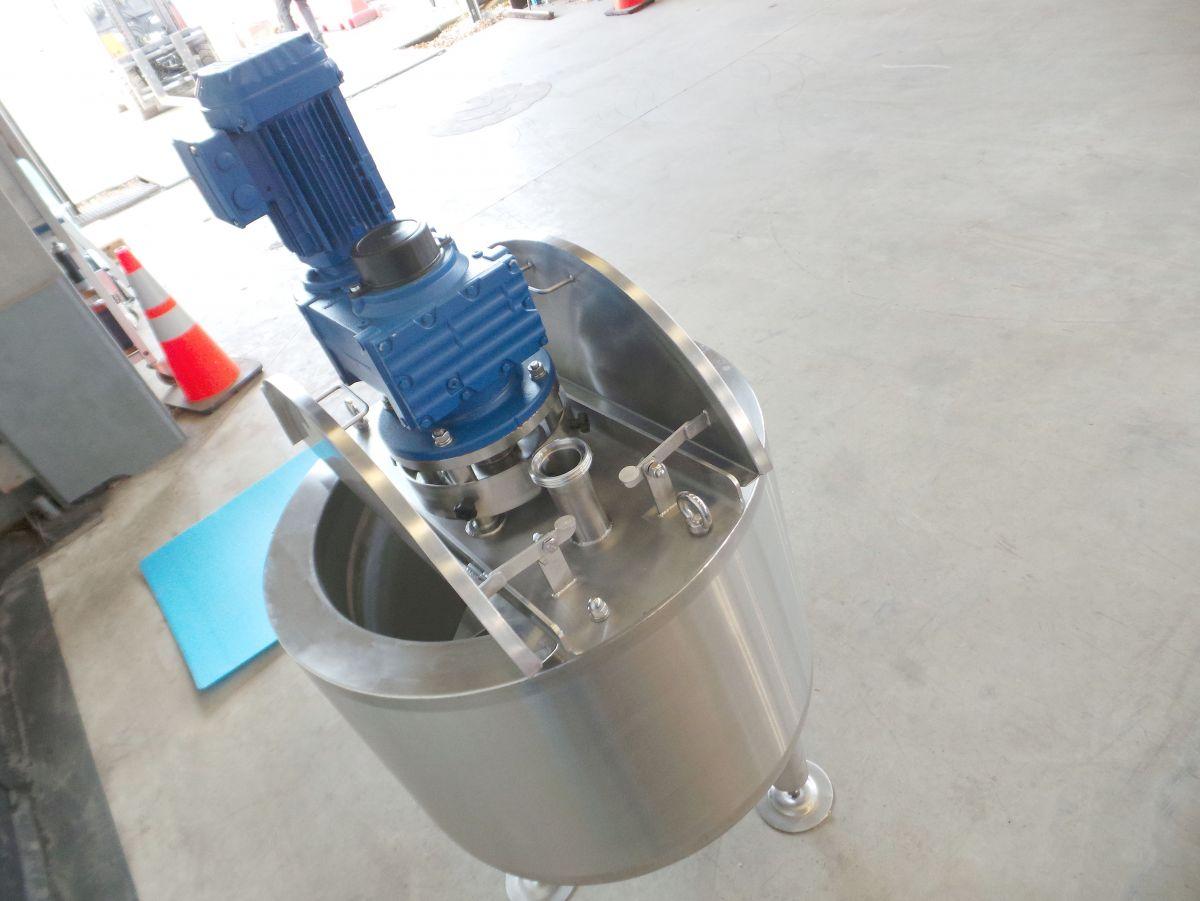

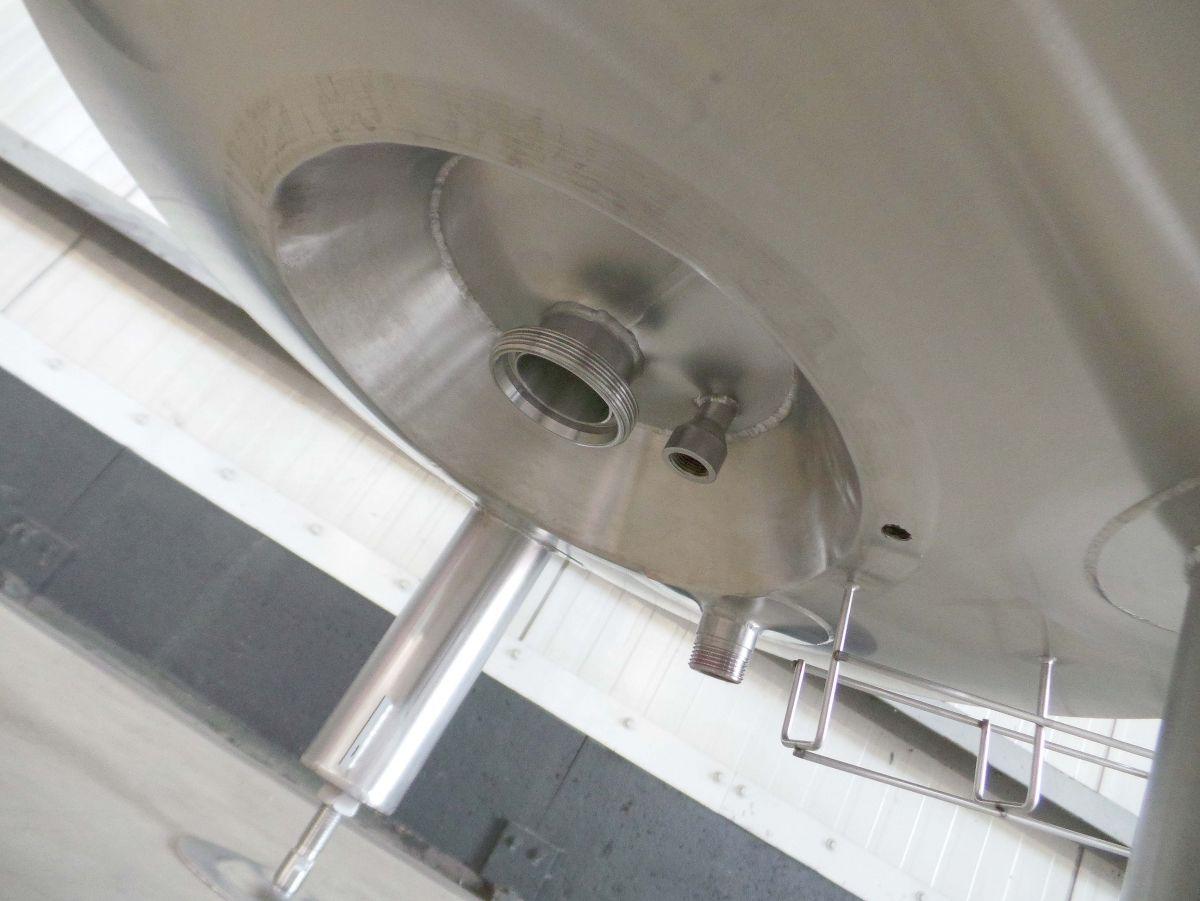

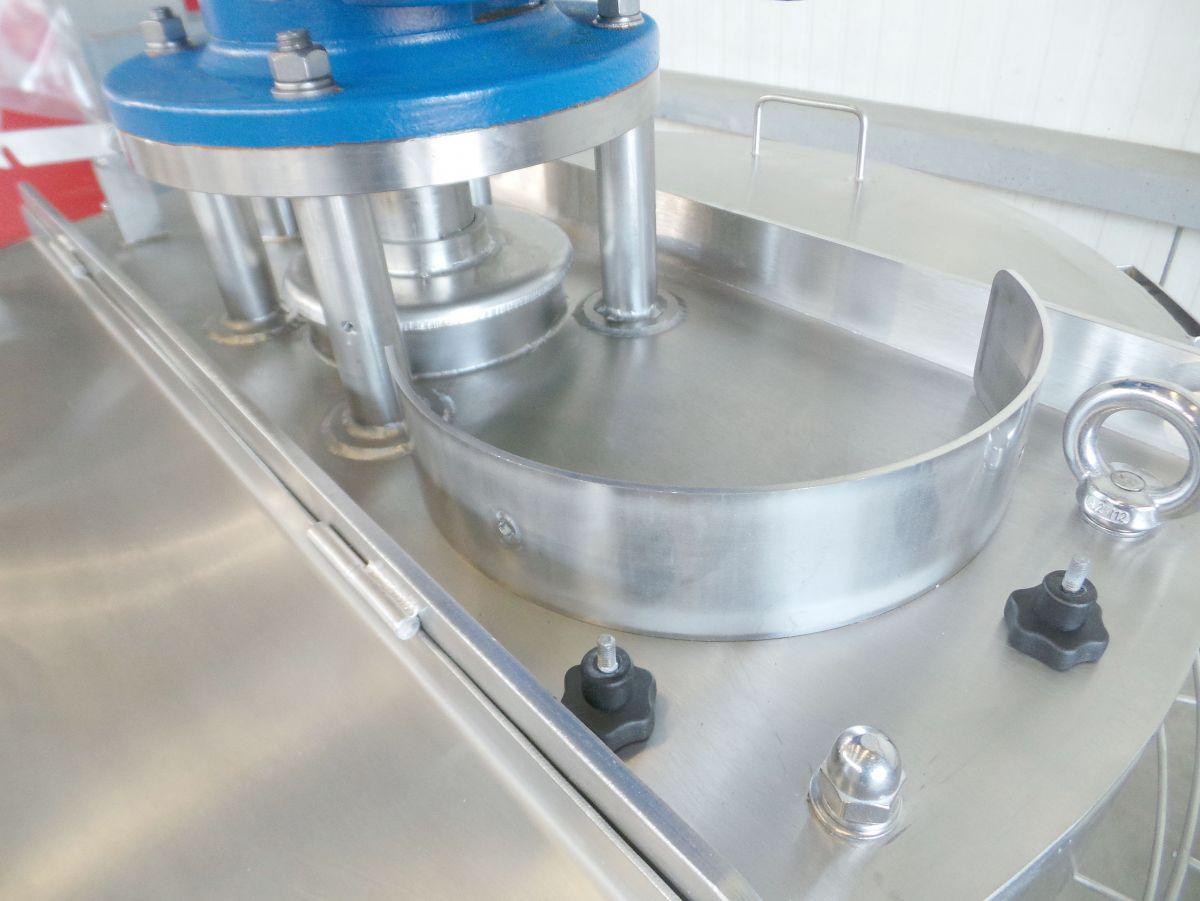

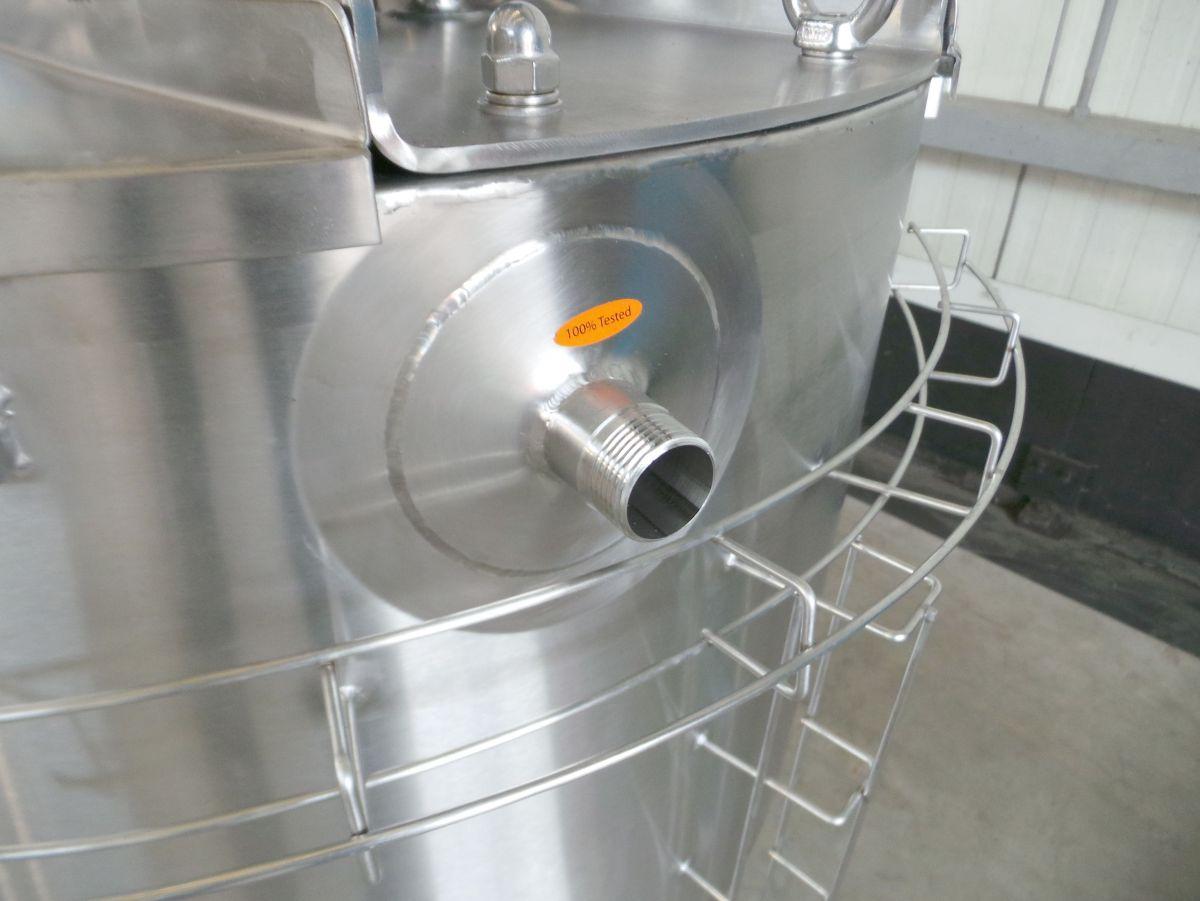

item available on order Article type: brand new mixing tank - type CHC-HILA Additional information: Delivered with food certificate; article price without control panel; see options; (The article can also be purchased without options)   Volumetric volume (L): 120 L Max. density P (kg/m³): 1.200 Pressure in tank: ATM - atmosferic Max. temperature (°C): 100 °C Material wet parts: SS AISI 316L (V4A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Top type: bridge with 2 lids Shape of tank: cylindrical Bottom type: conical 15 ° Total discharge: yes Fixation points: 3 adjustable feet Legs: Set of baseplates and adjusting pieces included Type of HE on the cylinder: half pipe welded onto the outside of the innertank Position HE: the complet cilinder Number of windings: 3 Water pressure HE: 3 Bar Contact surface cylinder: 0,40 m² Connection HE: 1 BSP Working temperature HE cylinder: 100 °C Type of HE on the bottom: dimple-jacket Heat exchanger bottom connected with cylinder: yes Connection of the bottom to the cylinder: binnen isolatie Water pressure HE: 3 Bar Contact surface bottom: 0,13 Connection HE: 1 BSP Working temperature HE bottom: 100 °C Heat exchanger: RVS 304 Insulation material: Rockwool Outer jacket (ornamental wall): RVS 304 Fixation point(s): RVS 304 Suitable for food industry: yes Documents included: yes, optional Technical drawing included: yes Registration plate on the tank: yes Inspection of: TüV Flange for agitator: yes CIP spray ball: no Tank outlet: inside Ø 50 mm Outlet type: DIN 11851 Male Total outlet valve: no, optional Adjustable legs: yes Agitator: yes Agitator type: gate Position engine: at the top Number of revolutions: 10 : yes Power: 0,75 Voltage: 400 V - three-phase Top: 2 mm Cylinder: 3 mm Bottom: 3 mm Cylinder: 2 Insulation body: yes Bottom: 2 Insulation bottom/sides: yes finish of the outer jacket: welded Insulation thickness: 70 Internal diameter tank: 600 mm Distance from outlet to ground: 250 mm Outer diameter tank: 750 mm Cylinder height: 425 mm Feet height: 298 mm Total height of tank: 1.400 mm Empty weight tank: 180
