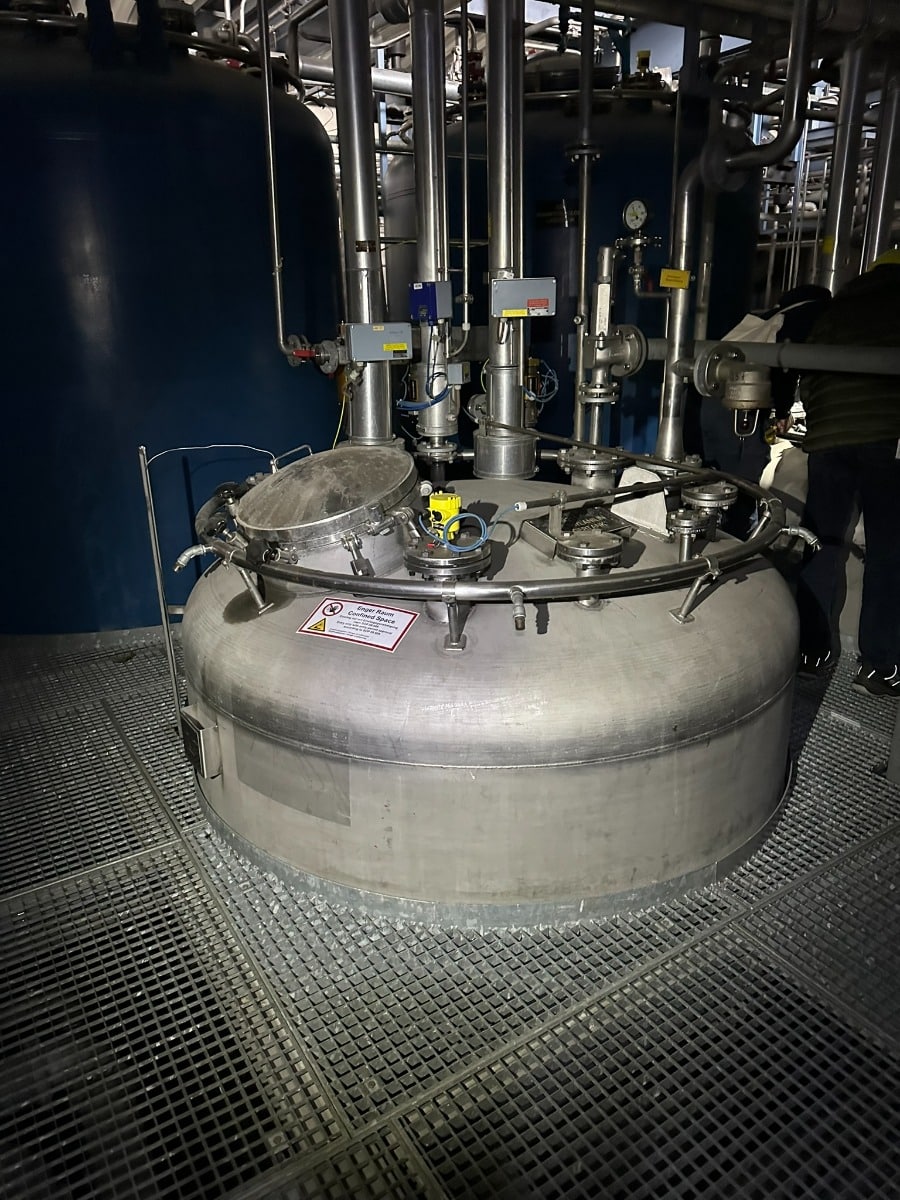

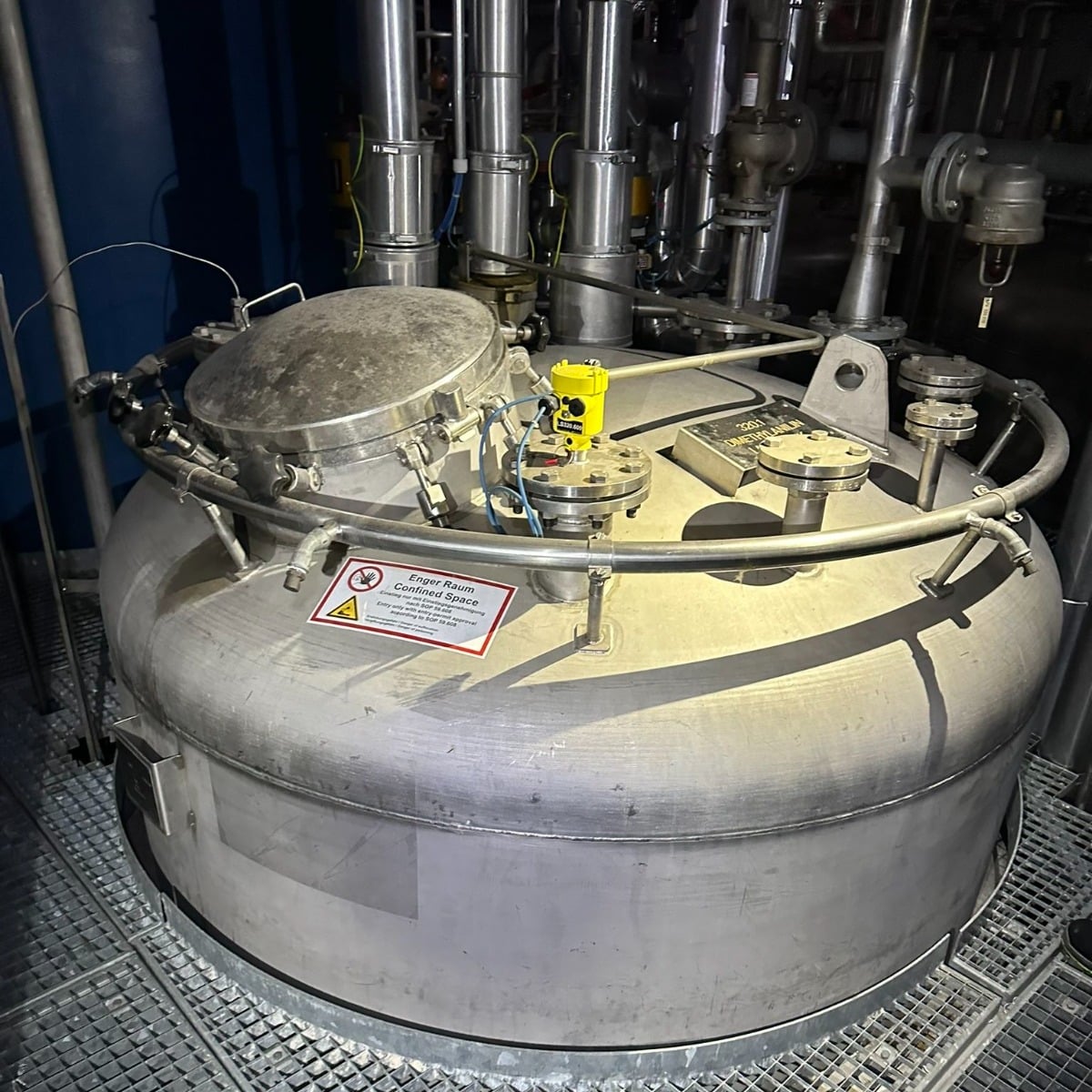

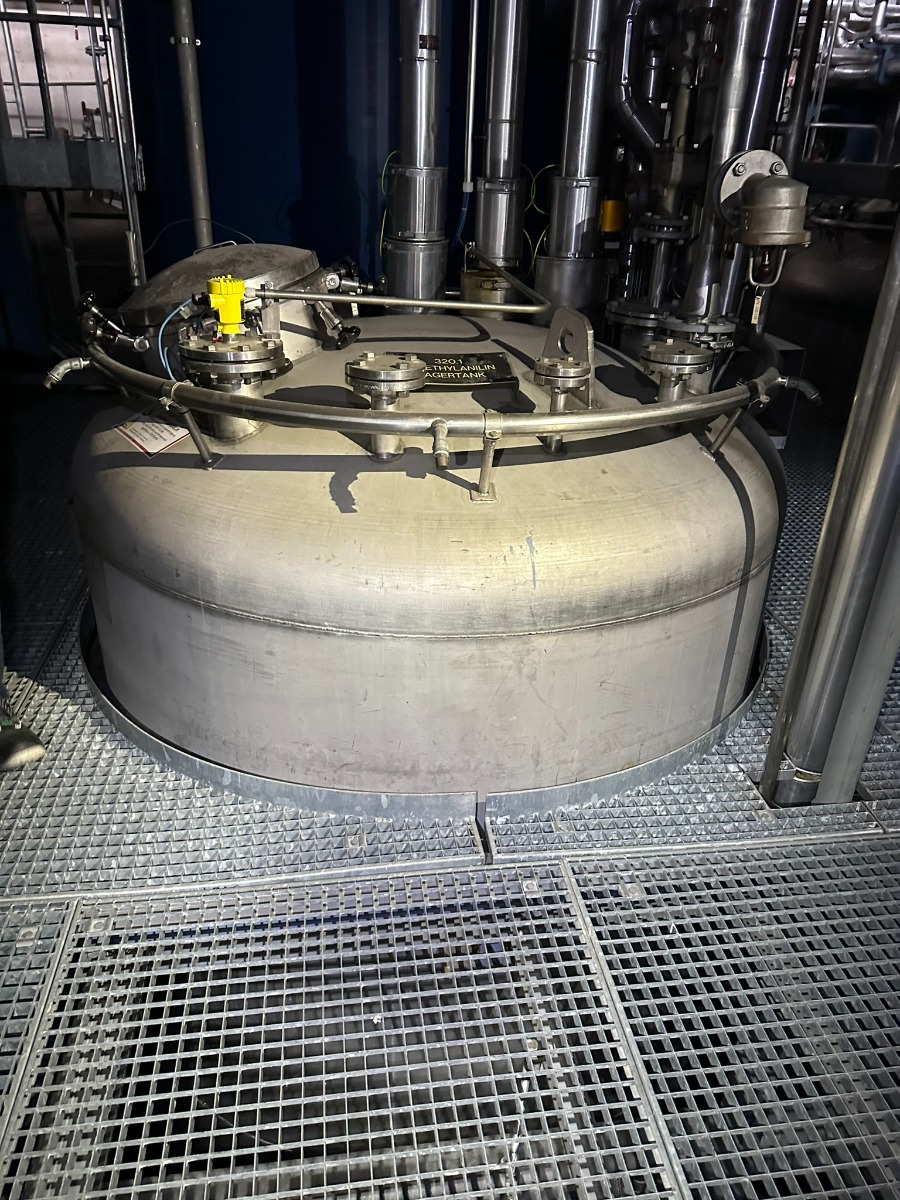

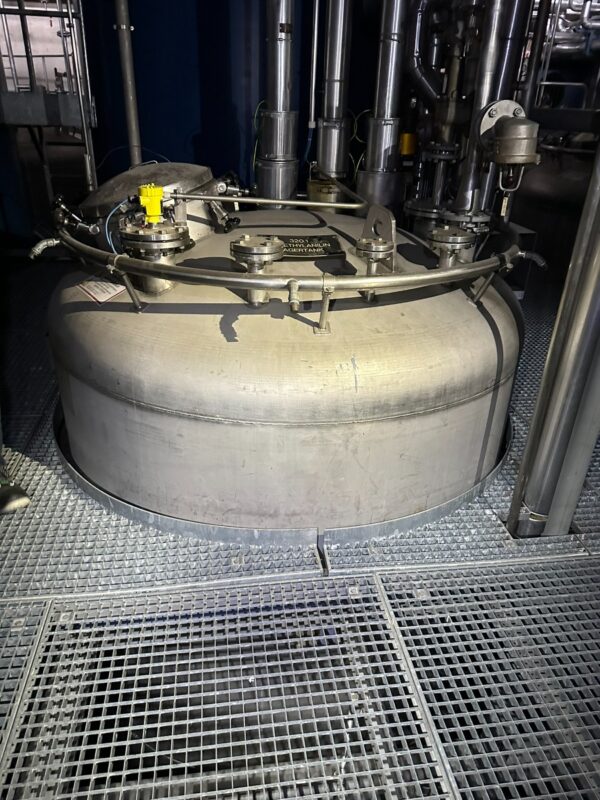

11500 liter tank i Syrafast 316

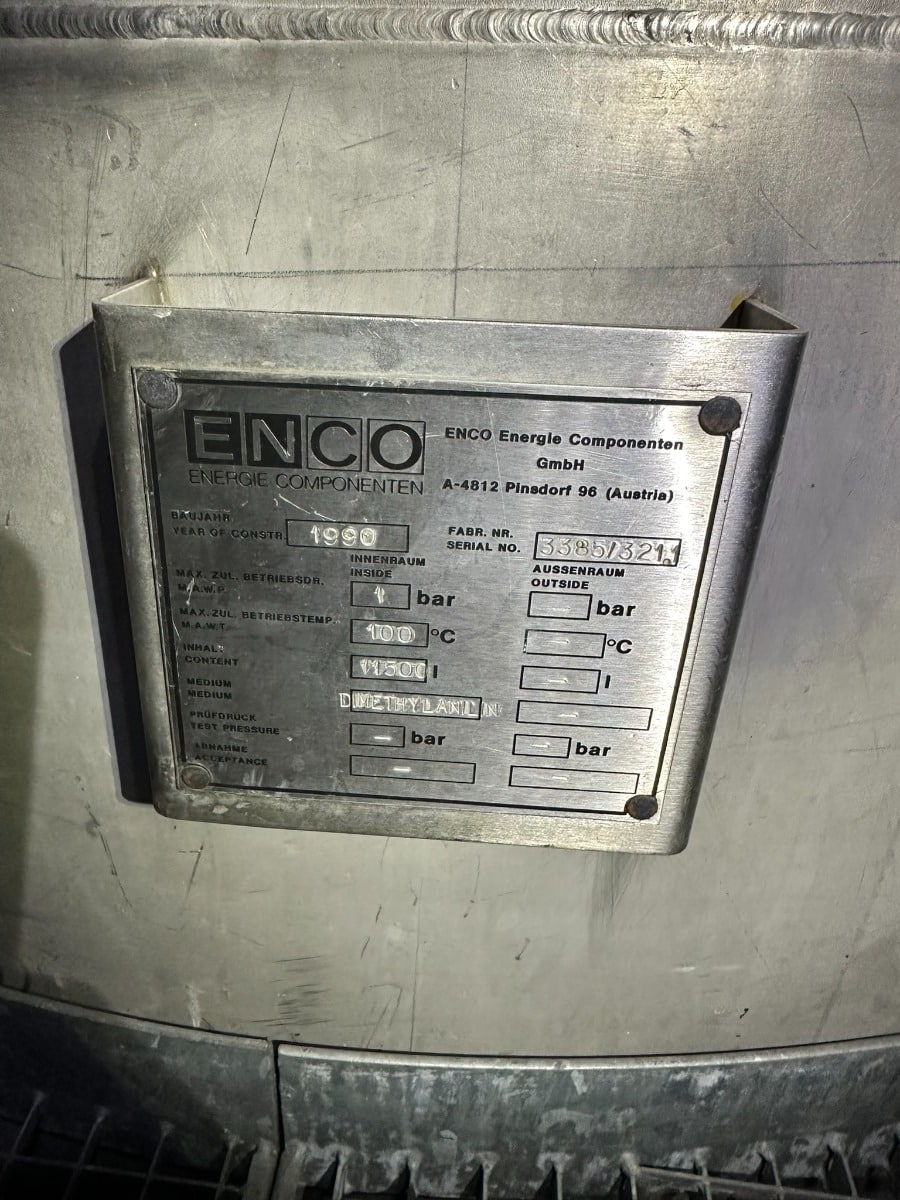

Additional information: dimethylanilin; Total height specified according to technical drawing Volumetric volume (L): 11.500 L Pressure in tank: pressure Max. pressure (Bar): 1 Bar Max. temperature (°C): 100 °C Model: vertical Configuration: insulated Heat exchanger: no Insulation: yes Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: headside Outlet of tank: flange DN80 Top: 4 mm Cylinder: 4 mm Bottom: 5 mm Internal diameter tank: 2.000 mm Cylinder height: 3.491 mm Total height of tank: 6.600 mm
