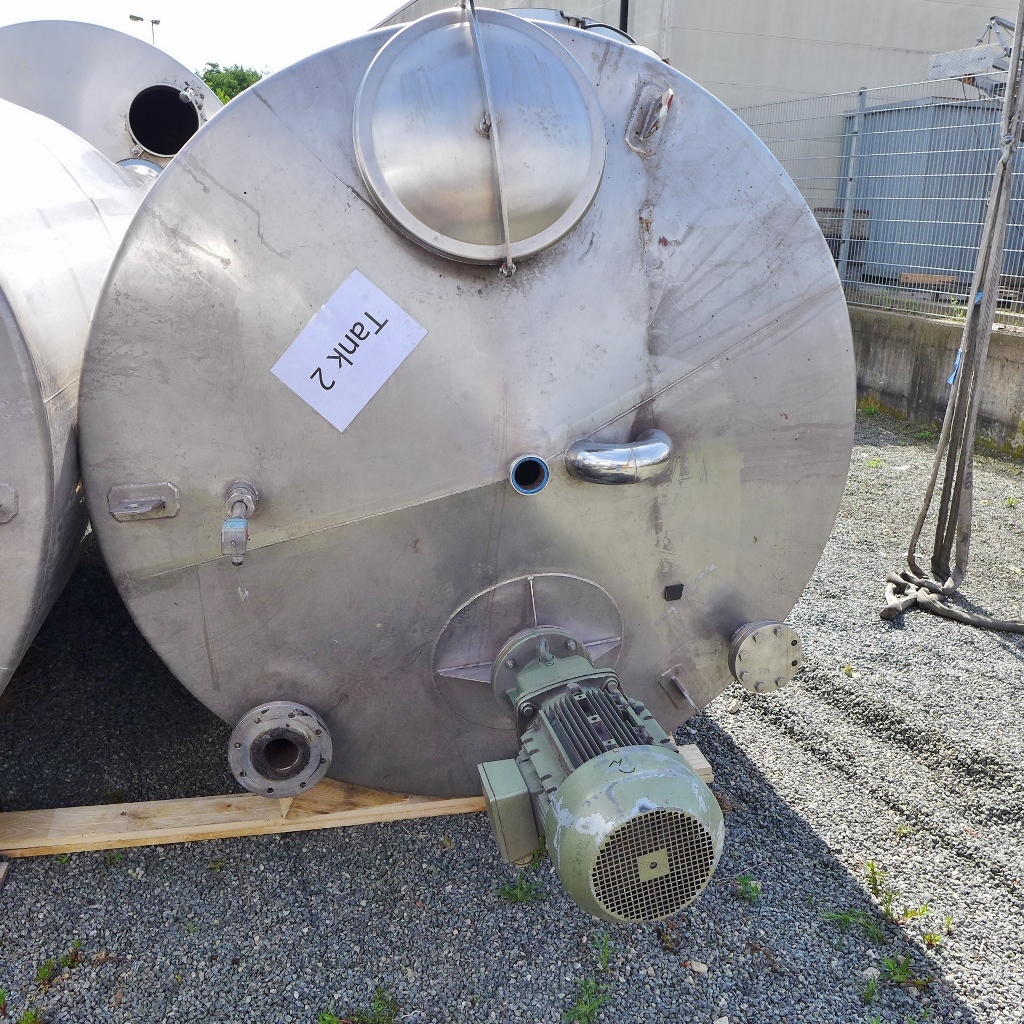

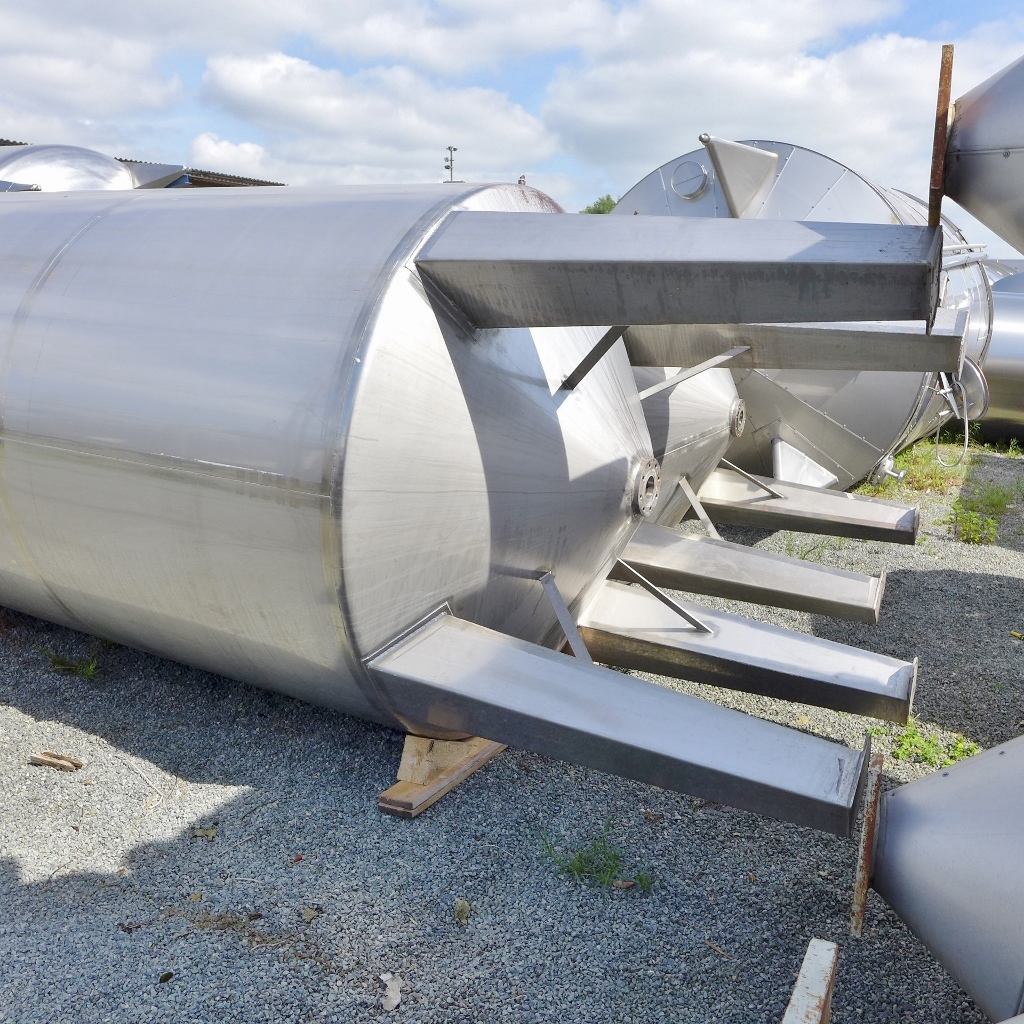

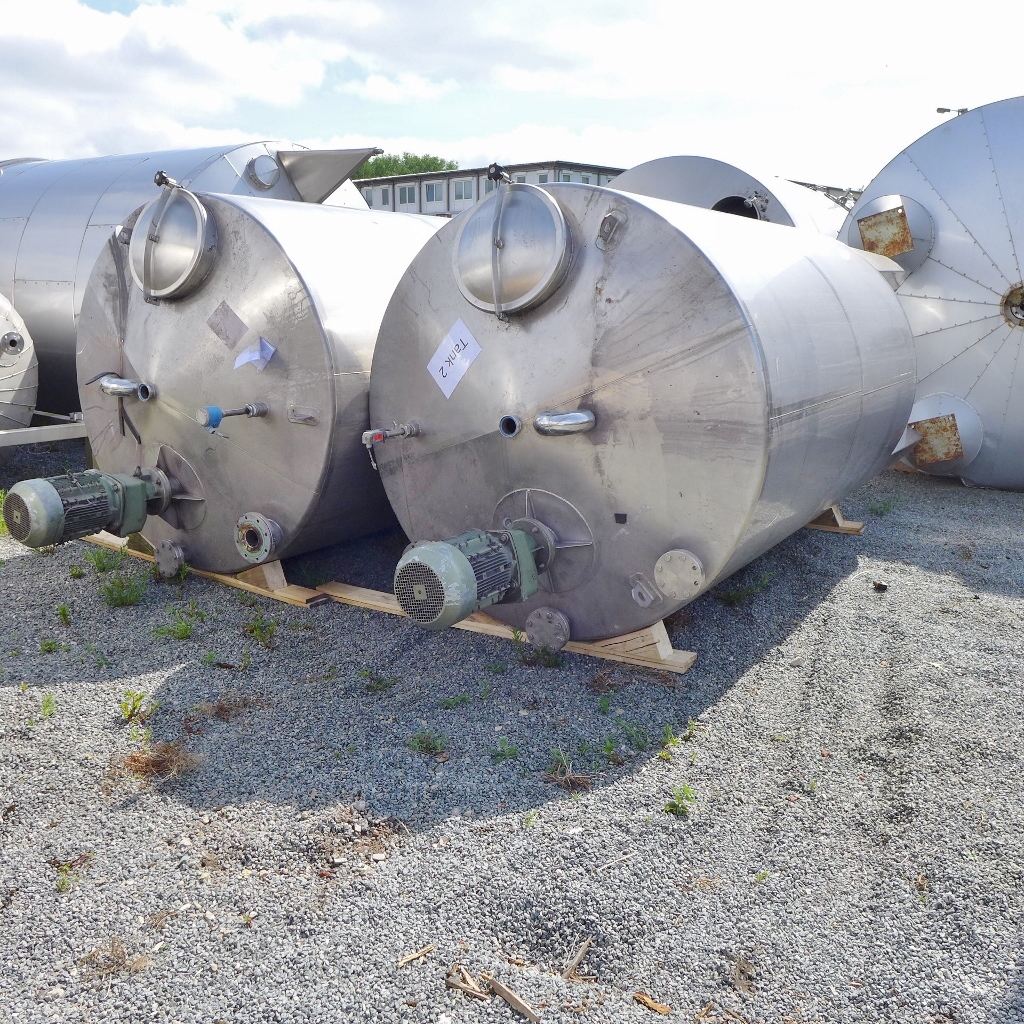

10000 liter tank i Rostfritt 304

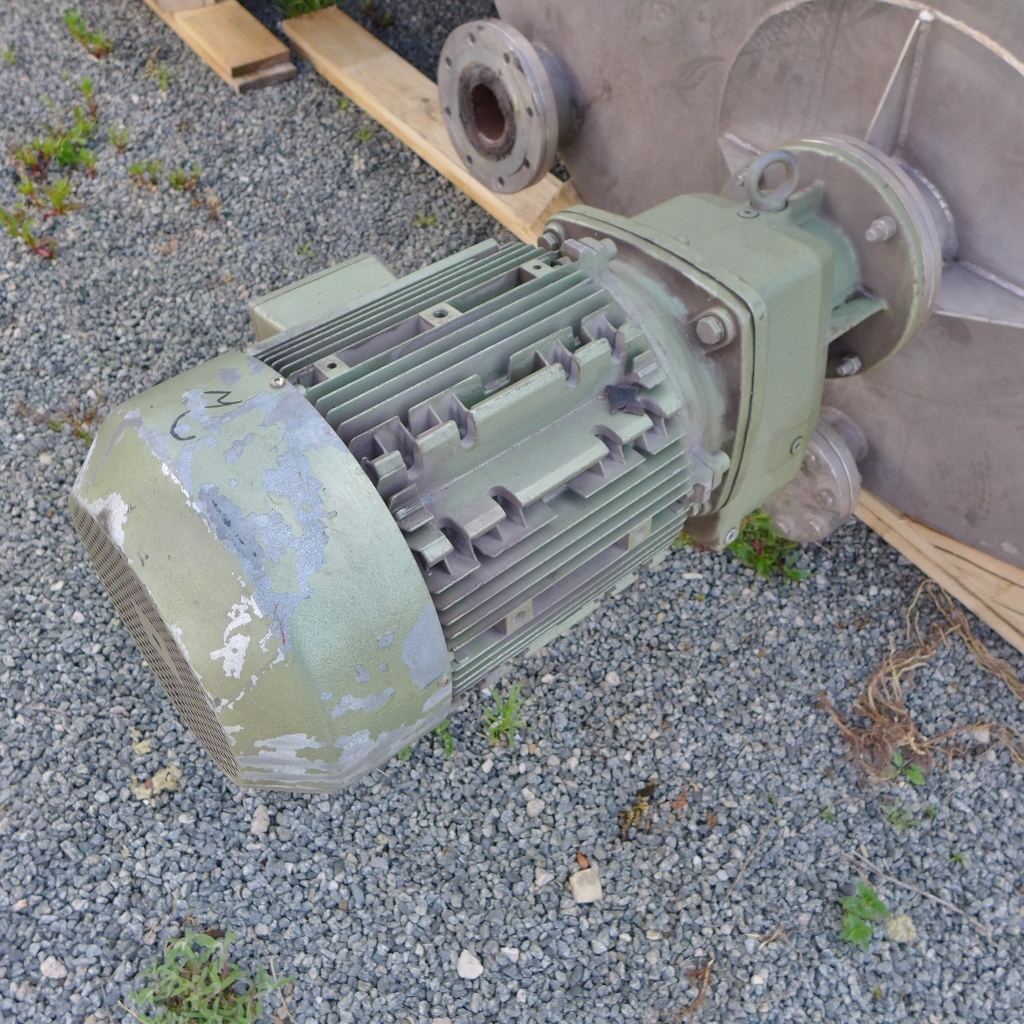

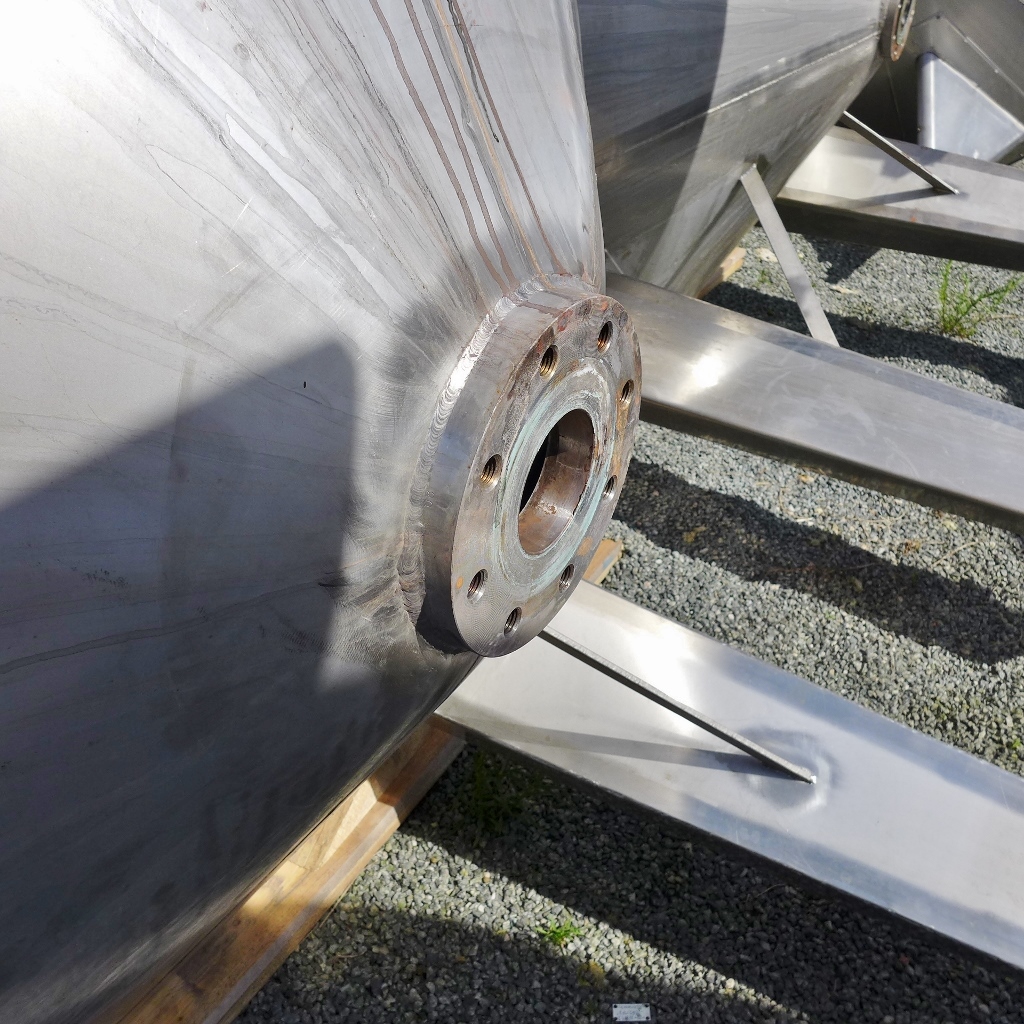

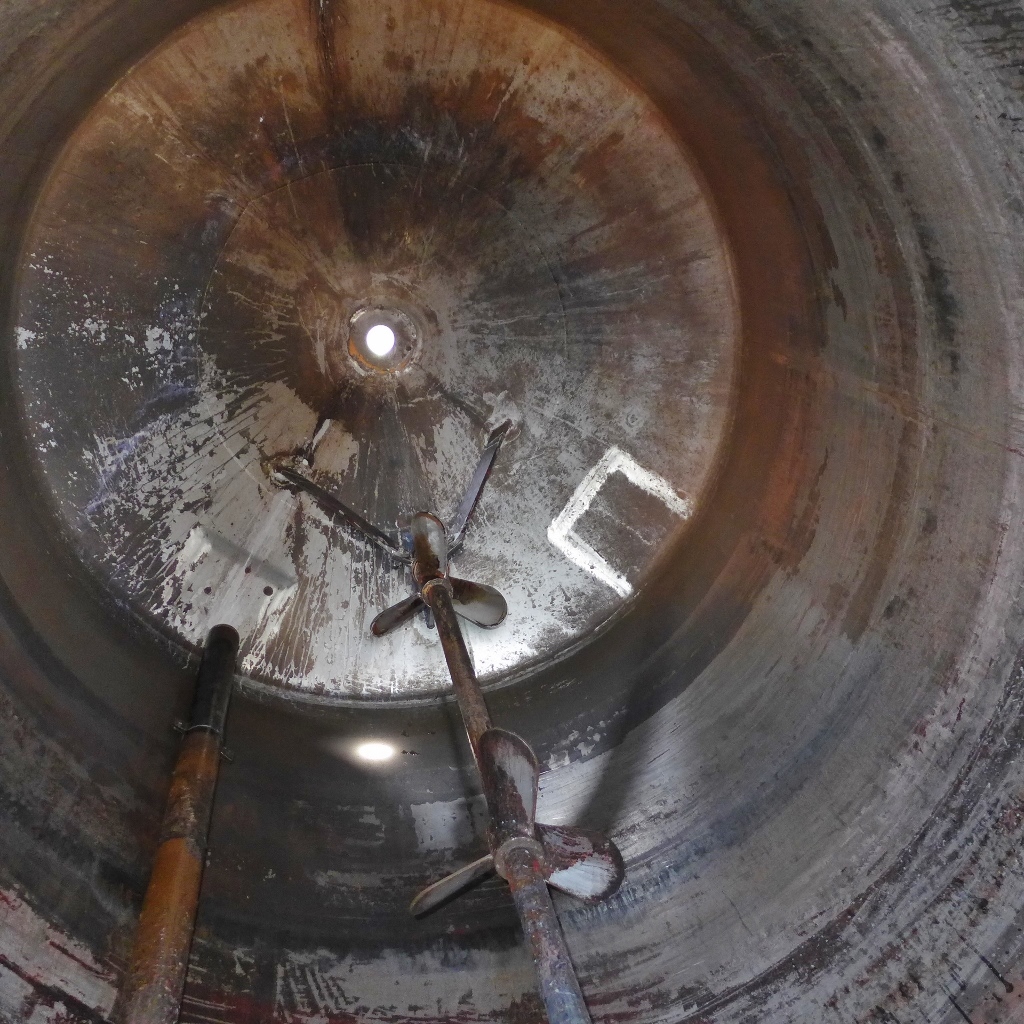

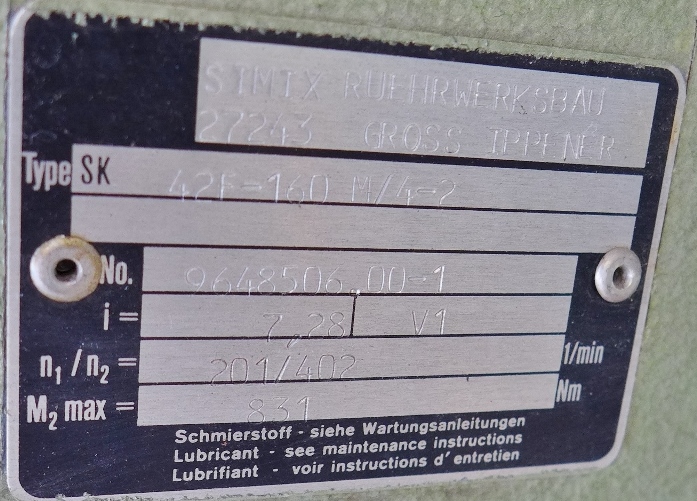

Additional information: Paint industry; 1 pipe inside the tank; stronger adhesions inside Volumetric volume (L): 10.000 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: in the bottom Outlet of tank: flange DN80 Agitator: yes Number of revolutions: 201 / 402 Power: 9.5 / 11 Internal diameter tank: 1.990 mm Cylinder height: 3.000 mm Total height of tank: 5.500 mm
