Article type: second-hand storage tank
Volumetric volume (L): 1.000 L
Pressure in tank: ATM - atmosferic
Material wet parts: SS AISI 304 (V2A)
Model: vertical
Configuration: single-skin
Heat exchanger: no
Insulation: no
Mobile tank: no
Top type: dished
Shape of tank: cylindrical
Bottom type: dished
Wall type: flat
Bottom outlet: yes
Total discharge: yes

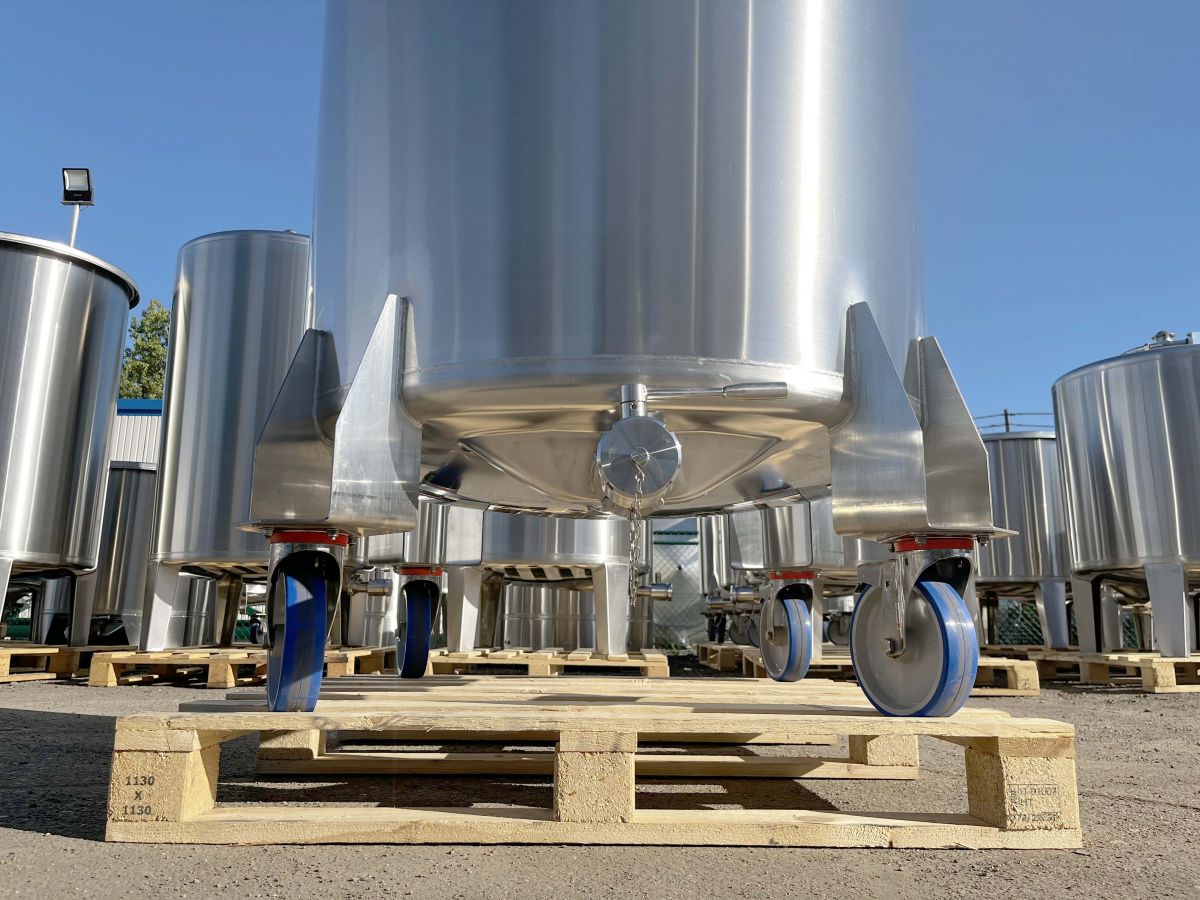

Fixation points: 4 casters

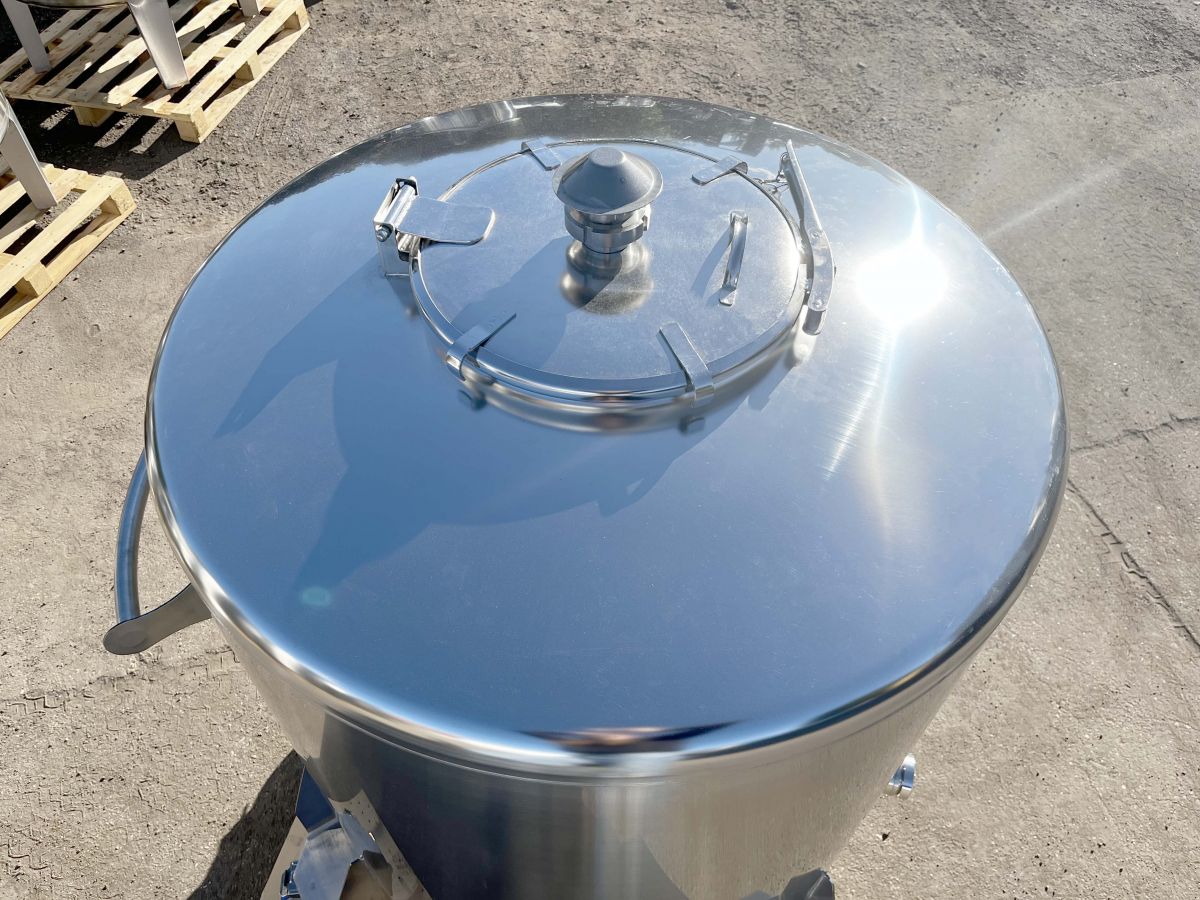

Manway(s): RVS 304
Gasket manway(s): EPDM
Valve: RVS 304
Suitable for food industry: yes
Documents included: no

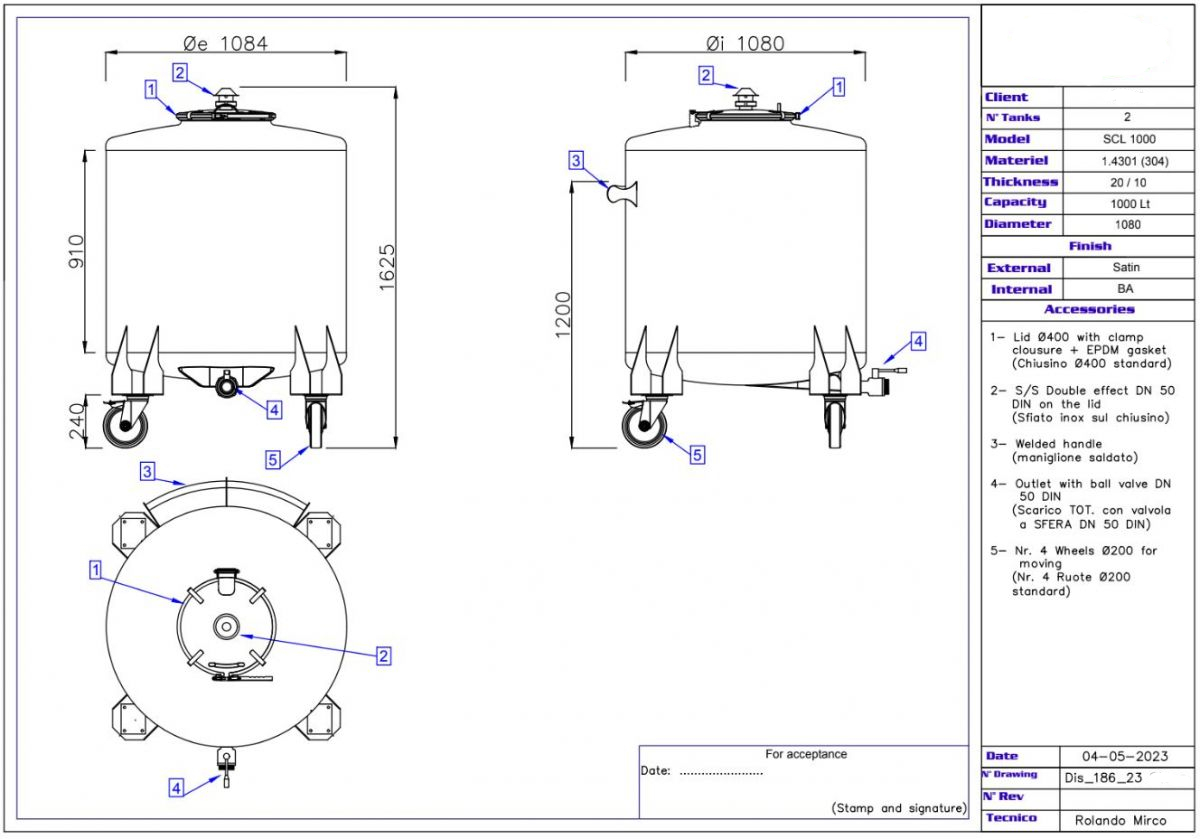

Technical drawing included: no
Registration plate on the tank: no
Flange for agitator: no
Number of manways: 1
Position of manway: headside
Height manhole 1 (mm): 400 mm
Hinged lid: yes
Outlet of tank: DN50
Total outlet valve: yes
Agitator: no
Cylinder: 2 mm
Internal diameter tank: 1.080 mm
Outer diameter tank: 1.084 mm
Cylinder height: 910 mm
Total height of tank: 1.625 mm
Empty weight tank: 115
