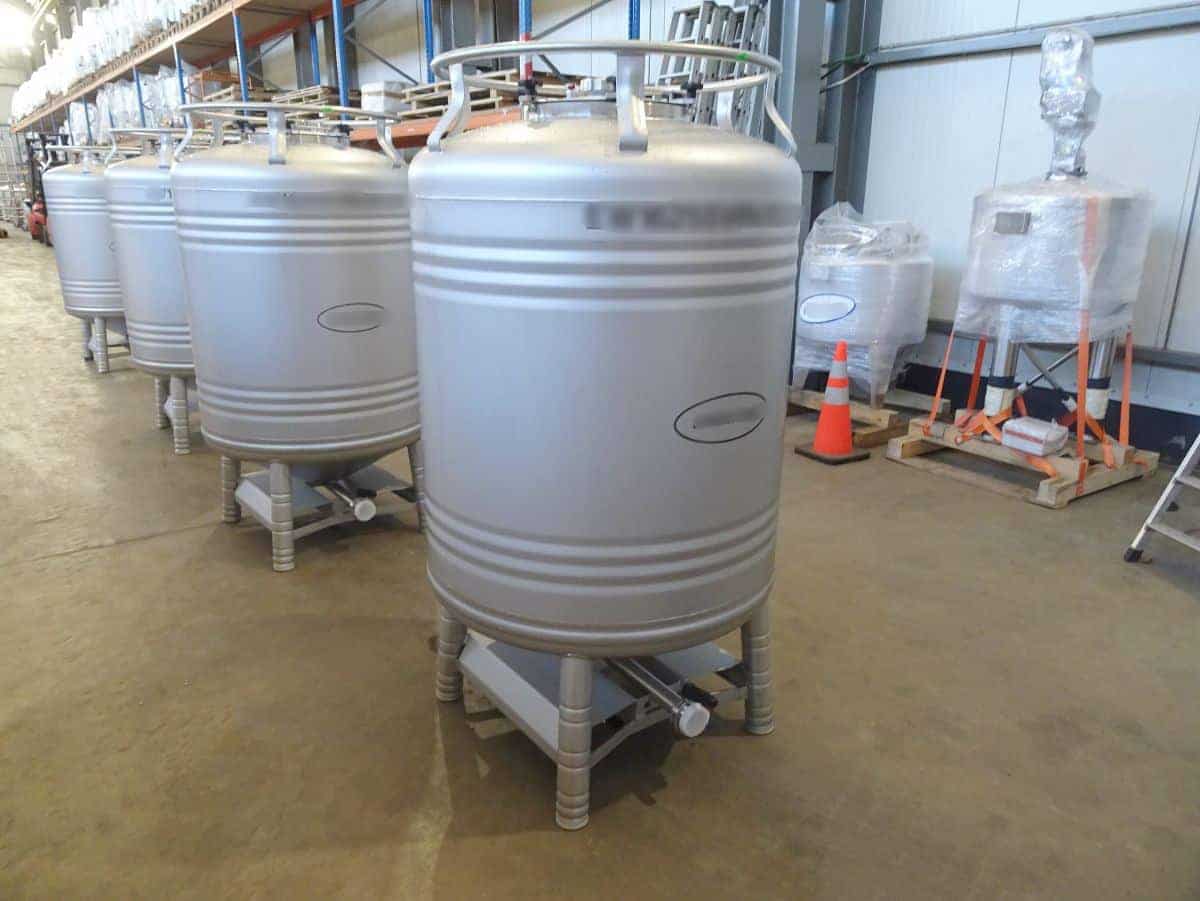

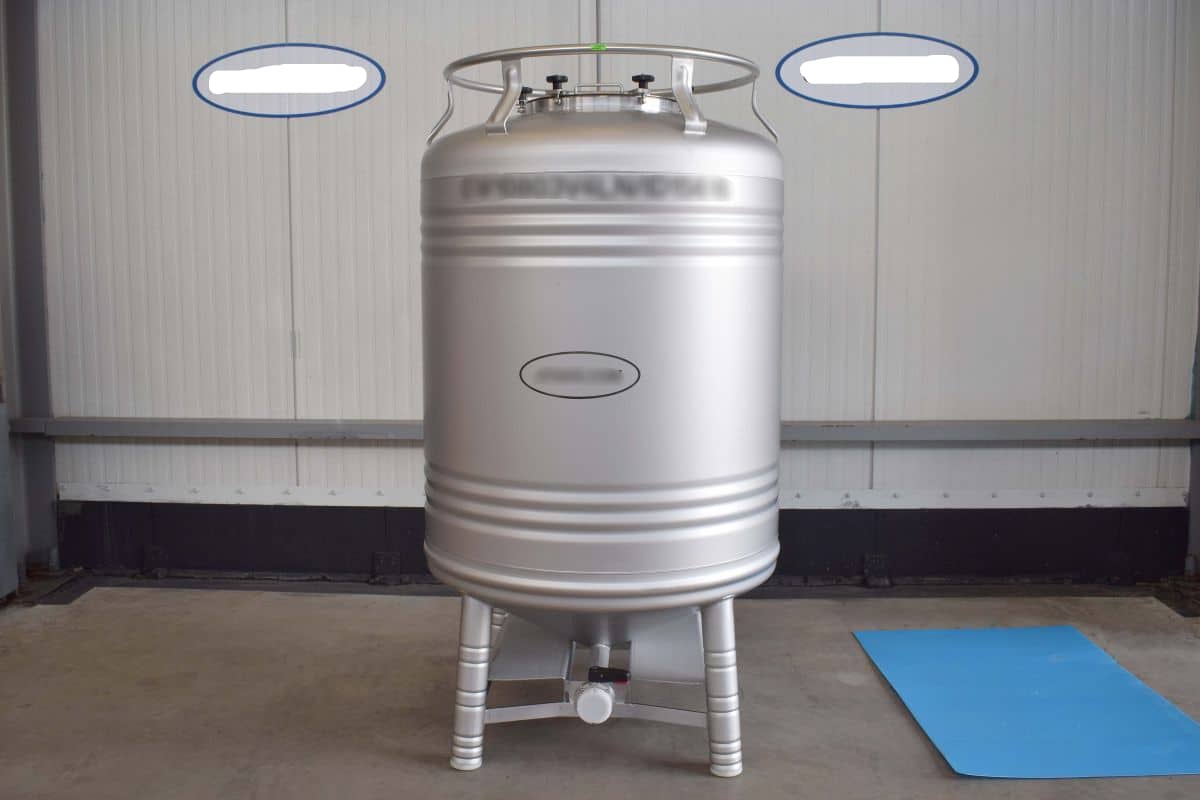

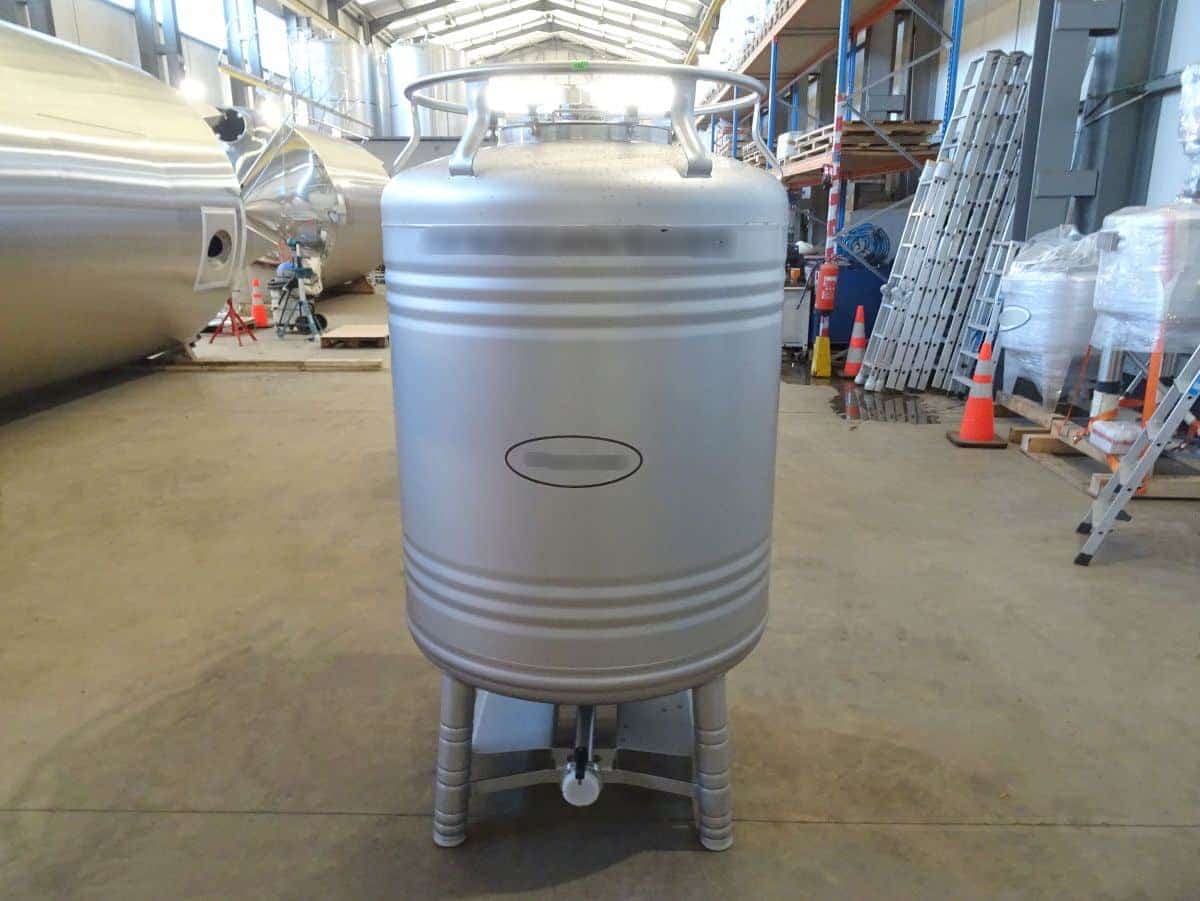

1000 liter tank i Rostfritt 304

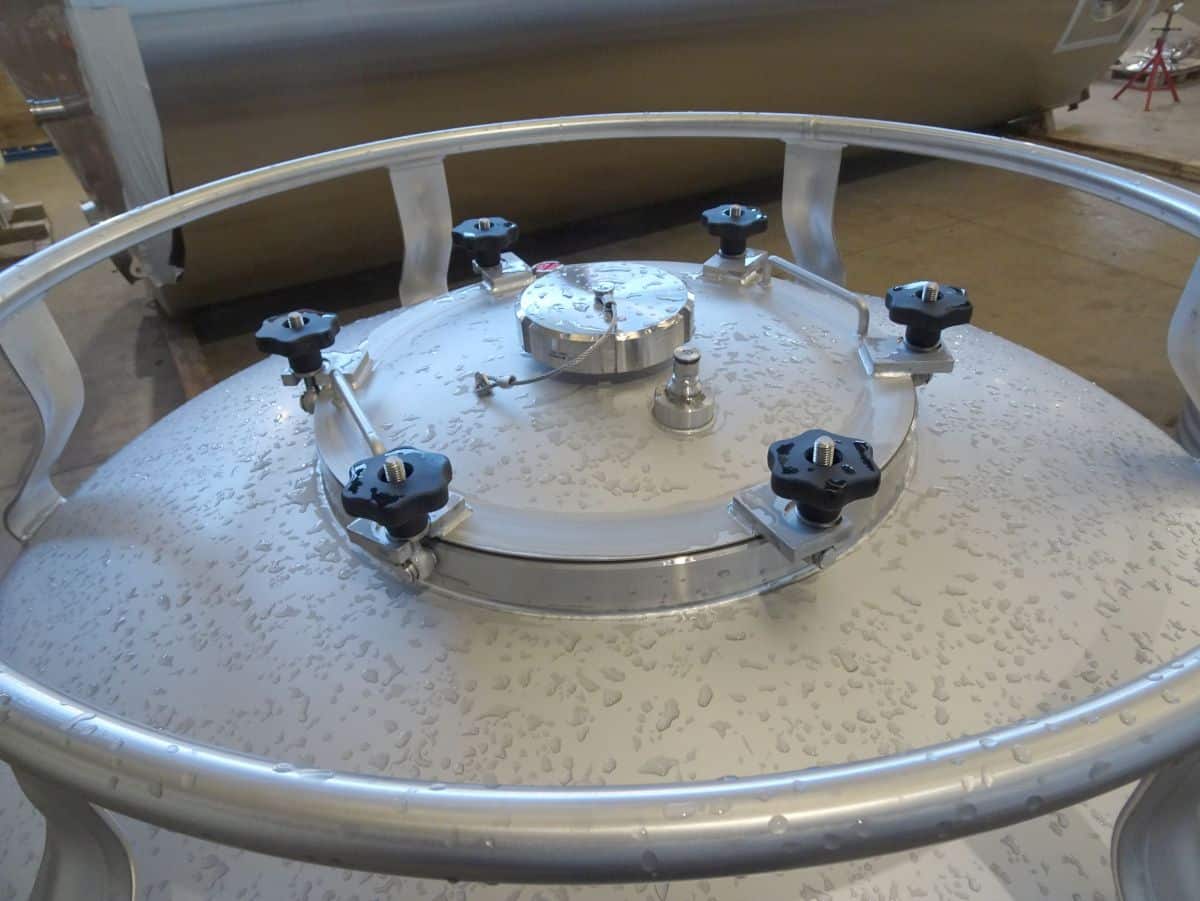

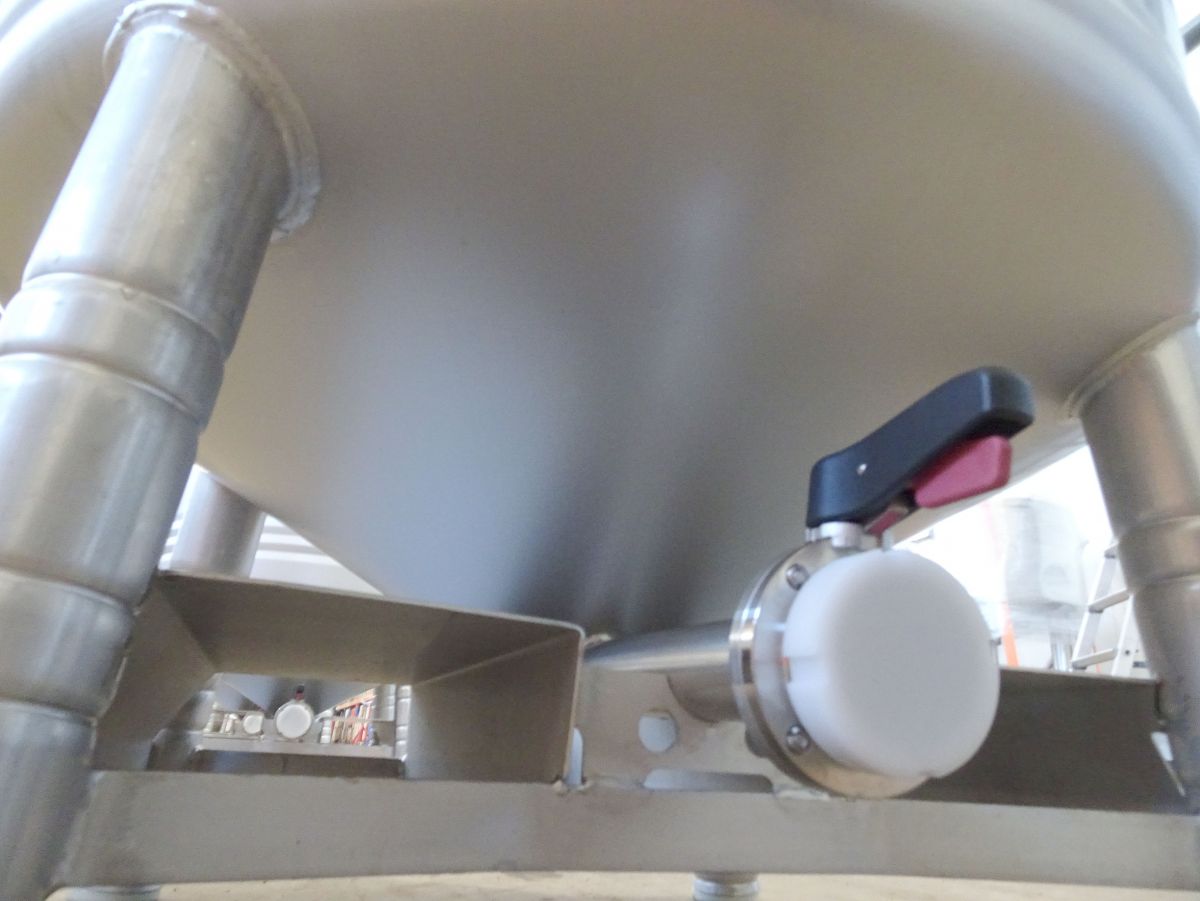

item available on order Article type: brand new transport tank Volumetric volume (L): 1.000 L Max. density P (kg/m³): 1.500 Ra inner weld: 0,80 Pressure in tank: pressure Design pressure (Bar): 3,40 Bar Max. pressure (Bar): 2 Bar Min. pressure (Bar): -0,15 Bar Max. temperature (°C): 130 °C Min. temperature (°C): -10 °C Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Top type: dished Shape of tank: cylindrical Bottom type: strong conical Total discharge: yes Fixation points: 4 stackable frame Manway(s): RVS 304 Gasket manway(s): EPDM Valve: RVS 304 Gasket shut-off valve (mat): EPDM Fixation point(s): RVS 304 Suitable for food industry: yes Documents included: yes, optional Technical drawing included: yes Registration plate on the tank: yes Inspection of: CE0408 Flange for agitator: no Number of manways: 1 Position of manway: at the top Height manhole 1 (mm): 400 mm Outlet type: DIN11851 male Total outlet valve: yes Agitator: no, optional Top: 2 mm Cylinder: 2 mm Bottom: 2,50 mm Distance from outlet to ground: 202 mm Outer diameter tank: 1.002 mm Cylinder height: 965 mm Total height of tank: 1.850 mm Empty weight tank: 200
