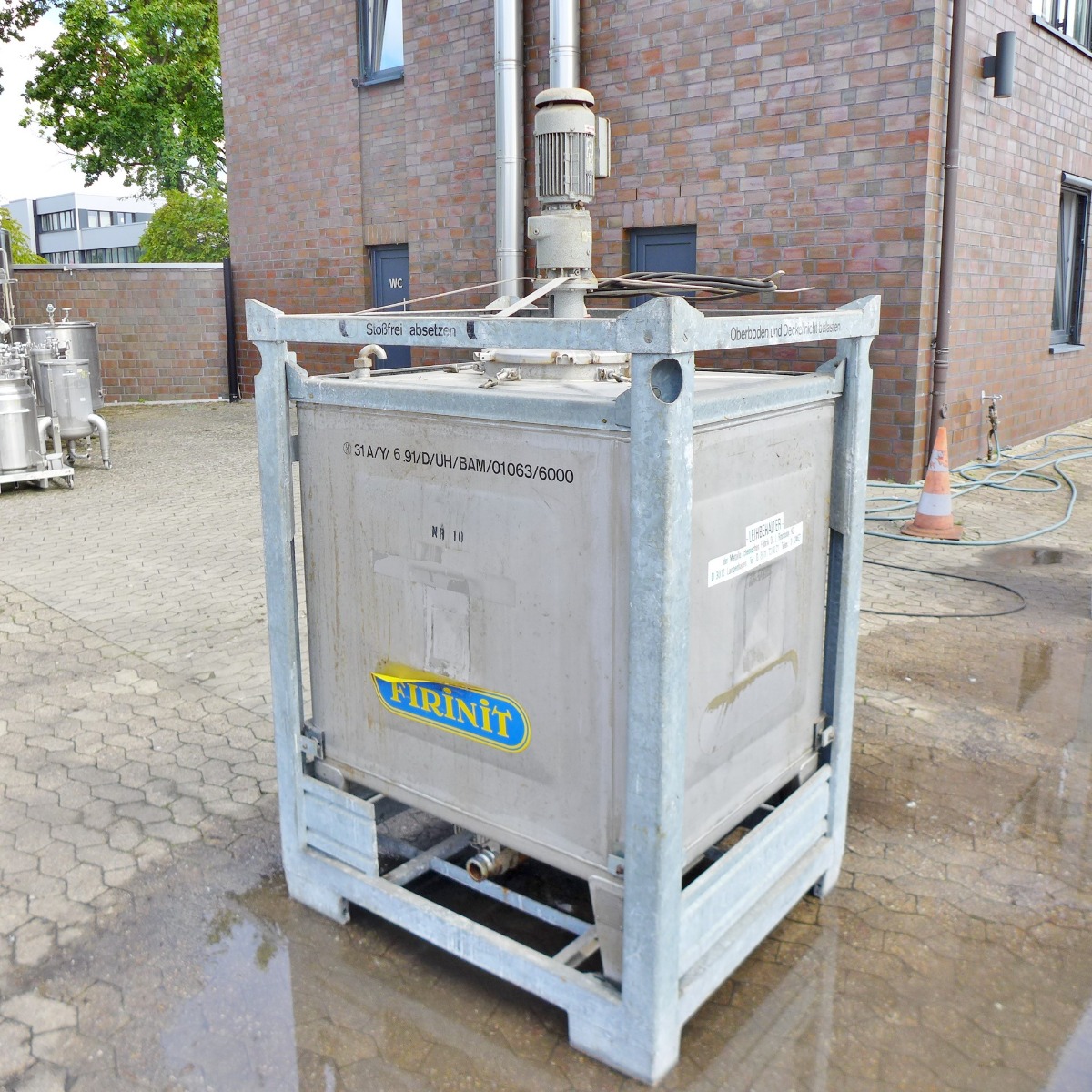

1000 liter tank i Rostfritt 304

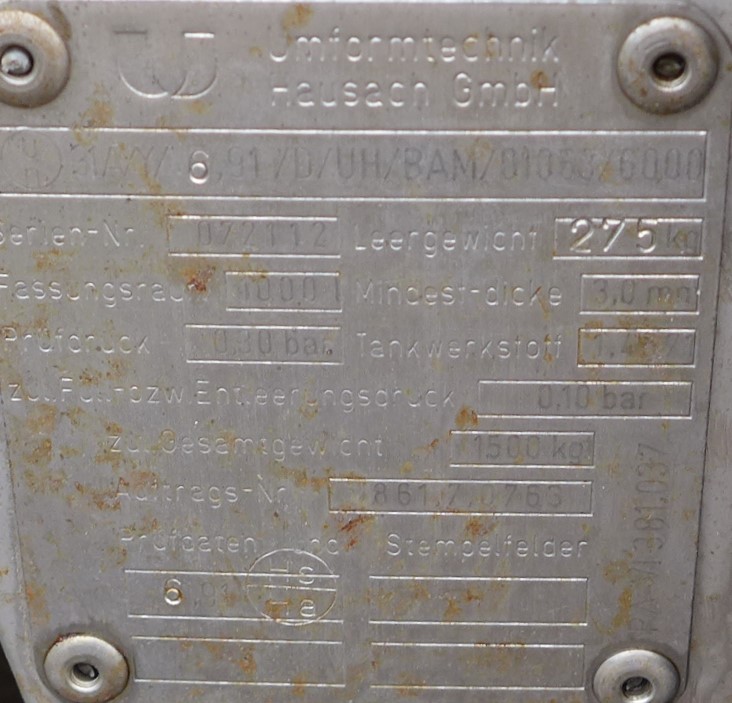

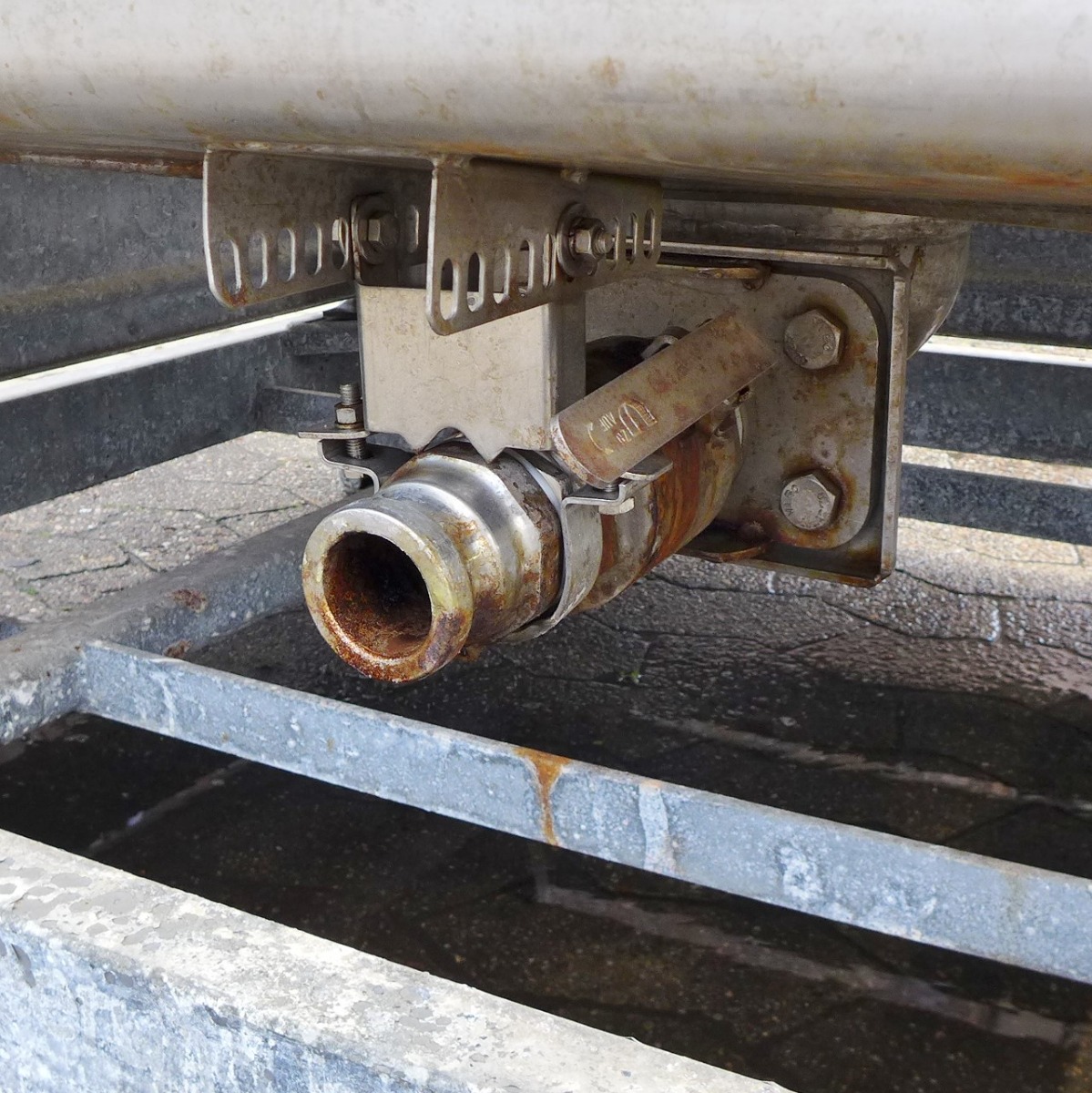

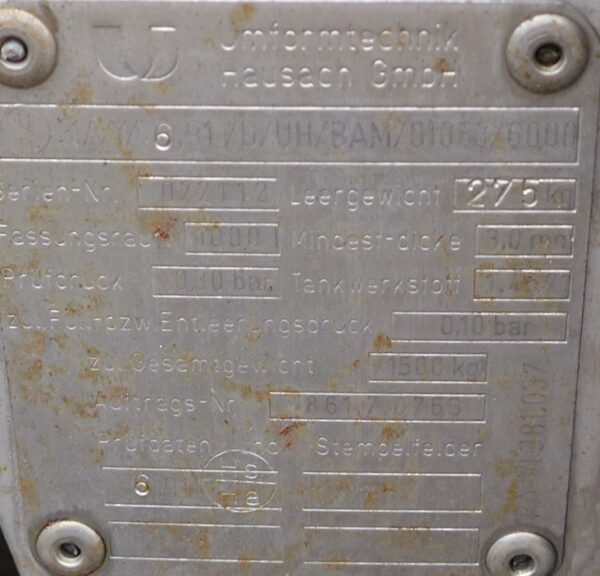

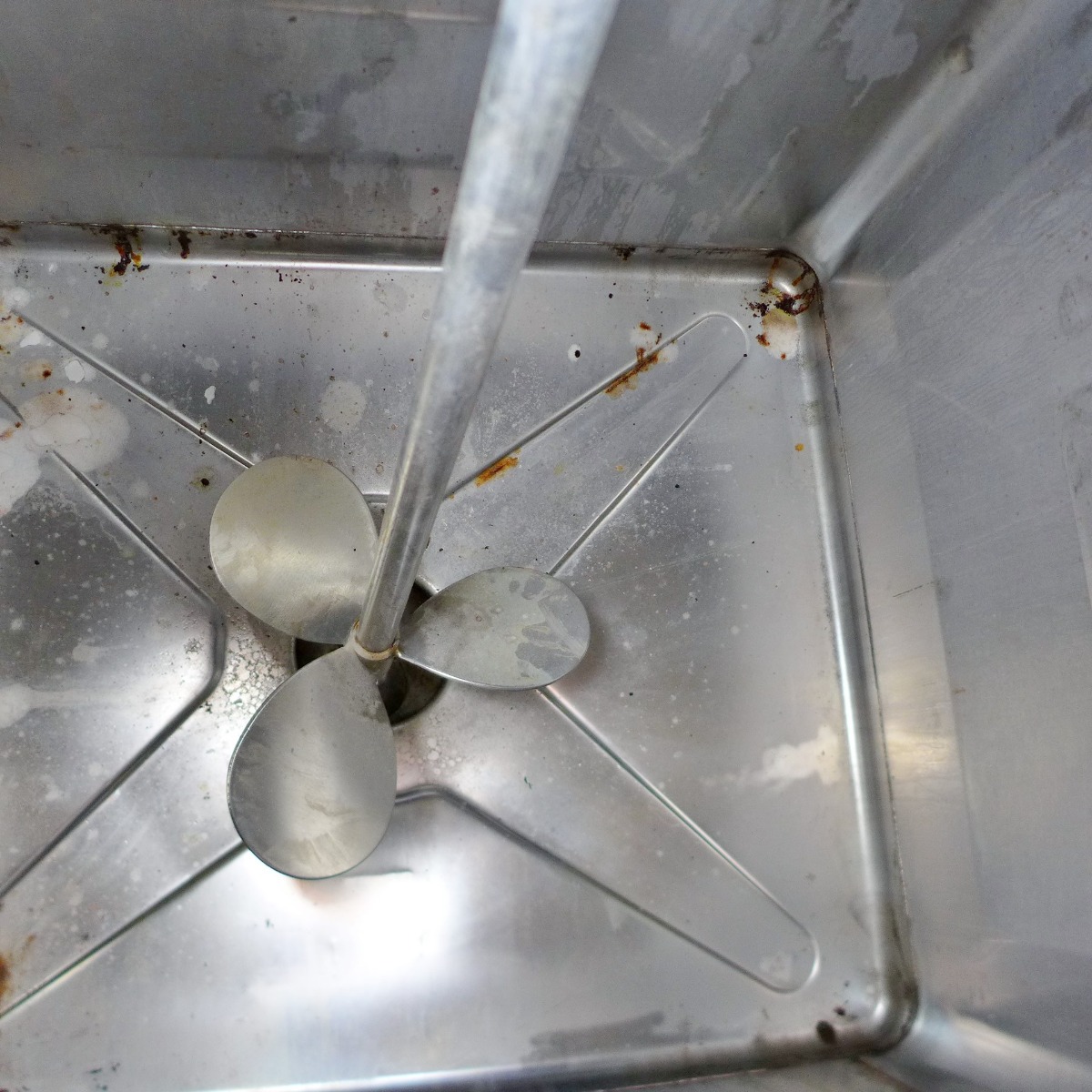

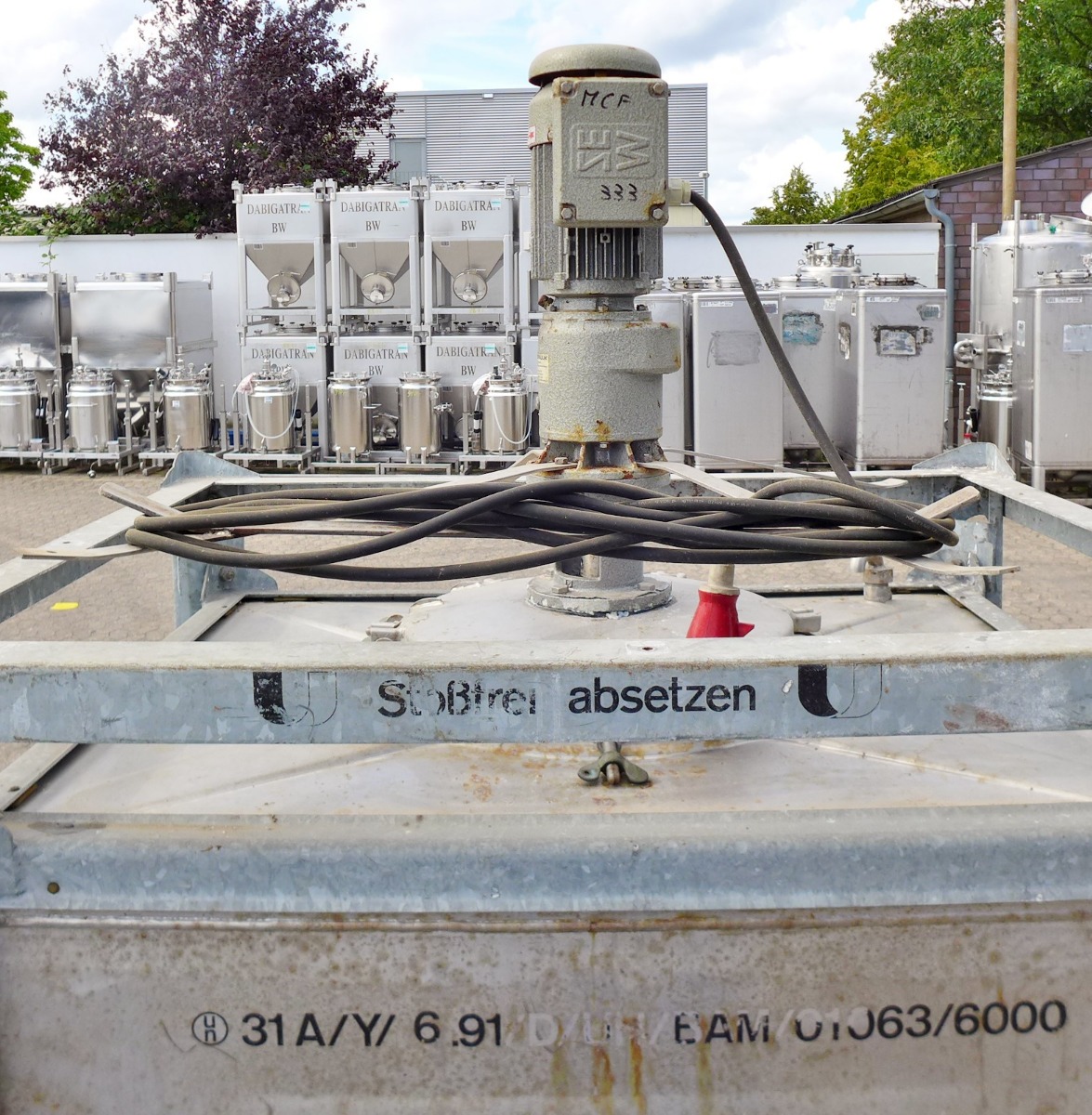

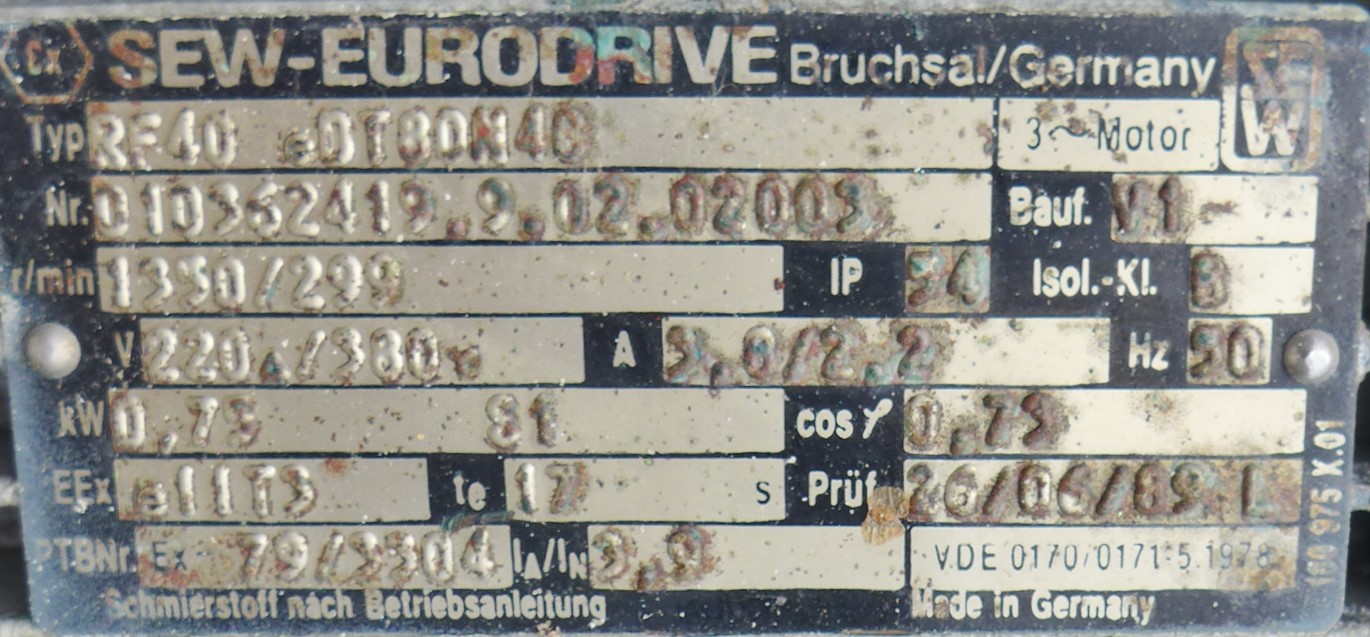

Additional information: aluminum paste (automotive industry); Frame, Fe (galvanized); Agitator runs through the center of the manhole; some residues of previous content Volumetric volume (L): 1.000 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: in the bottom Outlet of tank: 45 Agitator: yes Number of revolutions: 299 Power: 0,75 Total height of tank: 2.180 mm Total outer width: 1.230 mm Total outer length: 1.030 mm
