1000 liter i Rostfritt 304
30,000.00 SEK/st exkl moms
Mer information
Volym i liter | 1000 |
---|---|
Nytillverkad/Begagnad | Nytillverkad |
Livsmedelsklassad | Ja |
Modell | Vertikal |
Material | Rostfritt 304 |
Omrörare | Nej |
Uppvärmning/kylning | Nej |
Isolerad | Nej |
Trycktank | Ja |
Ritning
Öppnaitem available on order

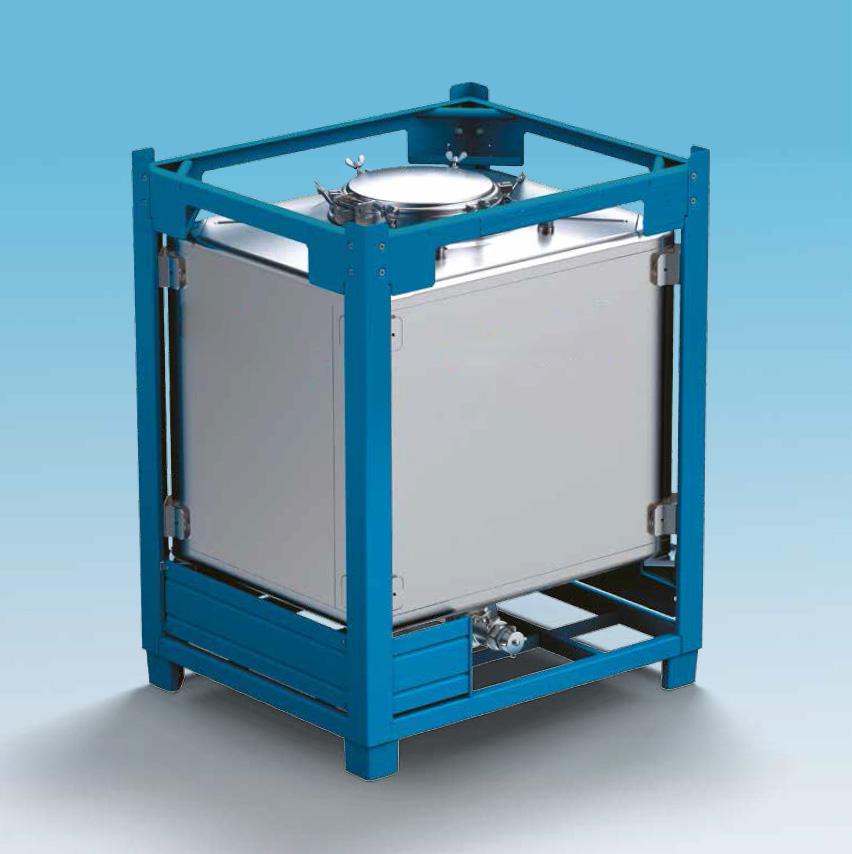

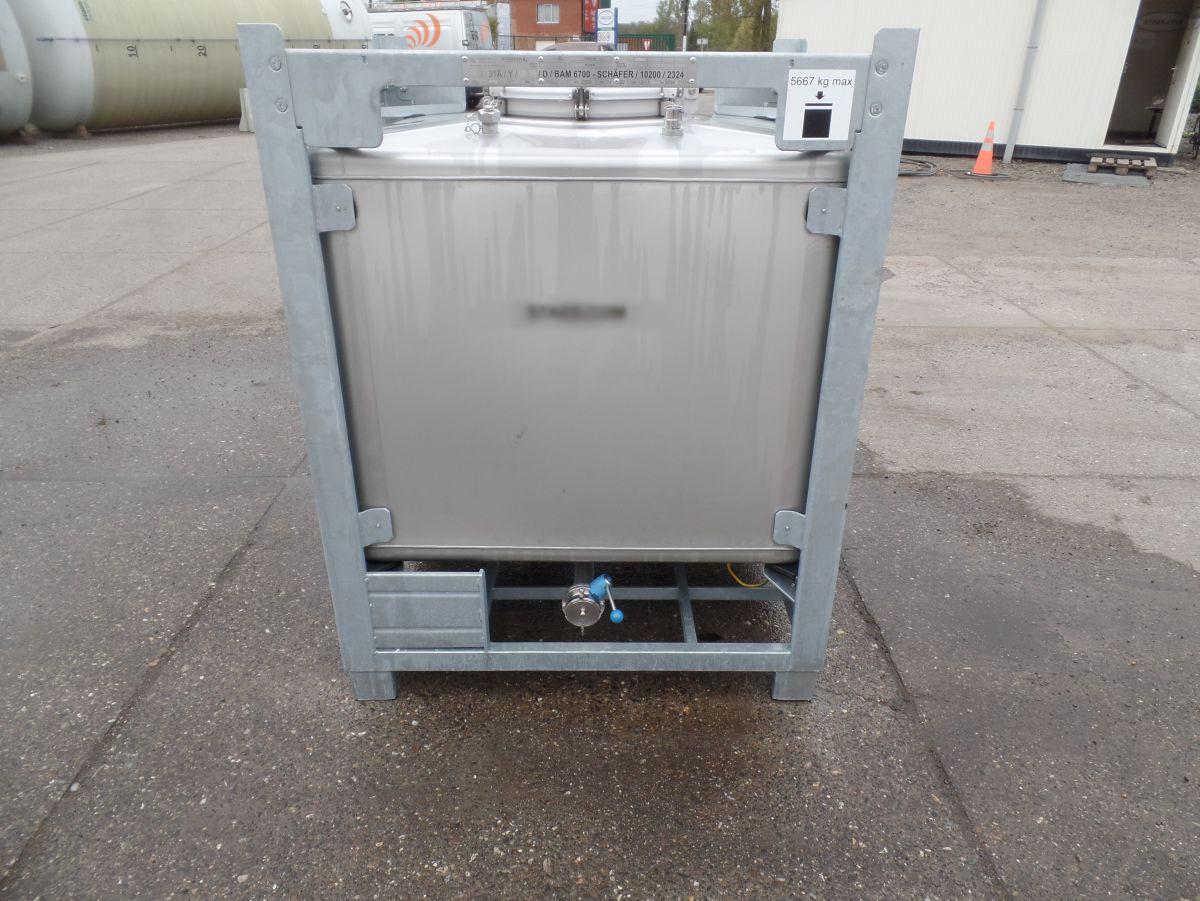

Article type: brand new transport tank
Additional information: GGVSEB / GGVSea / ADR / RID / IMDG-Code
Capacity: 1.000 L
Maximal density of the product: 2.100
Working pressure in tank: pressure
Overpressure: 0,40 Bar
Material wet parts: SS AISI 304 (V2A)
Model: vertical
Configuration: single-skin
Heat exchanger: no
Insulation: no
Agitator: yes, optional
Mobile tank: no
Top type: flat
Shape of tank: rectangular
Bottom type: flat sloping
Total discharge: yes
Fixation points: 4 stackable frame

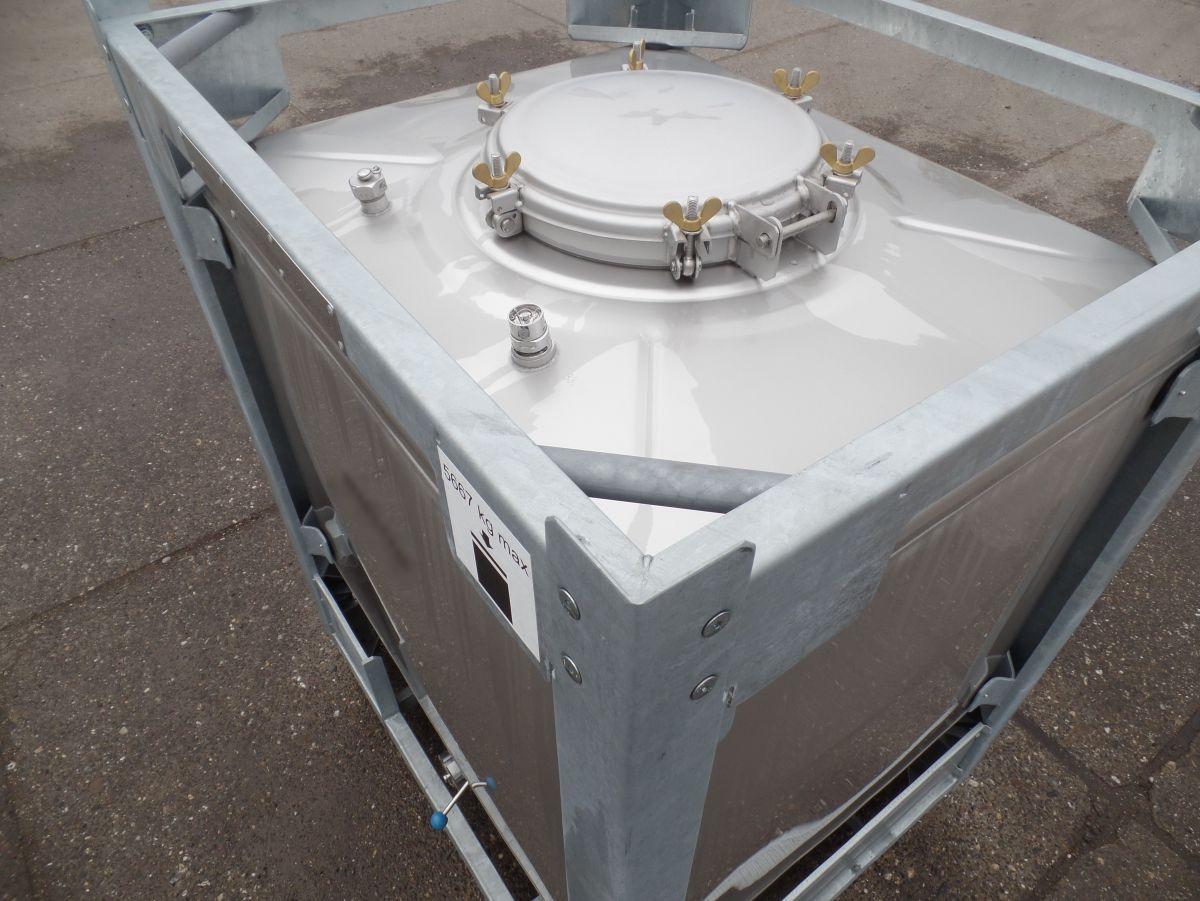

Manway(s): RVS 304
Gasket manway(s): EPDM
Valve: RVS 304
Gasket shut-off valve (mat): EPDM
Fixation point(s): galvanised steel
Suitable for food industry: yes
Documents included: yes, optional
Technical drawing included: yes

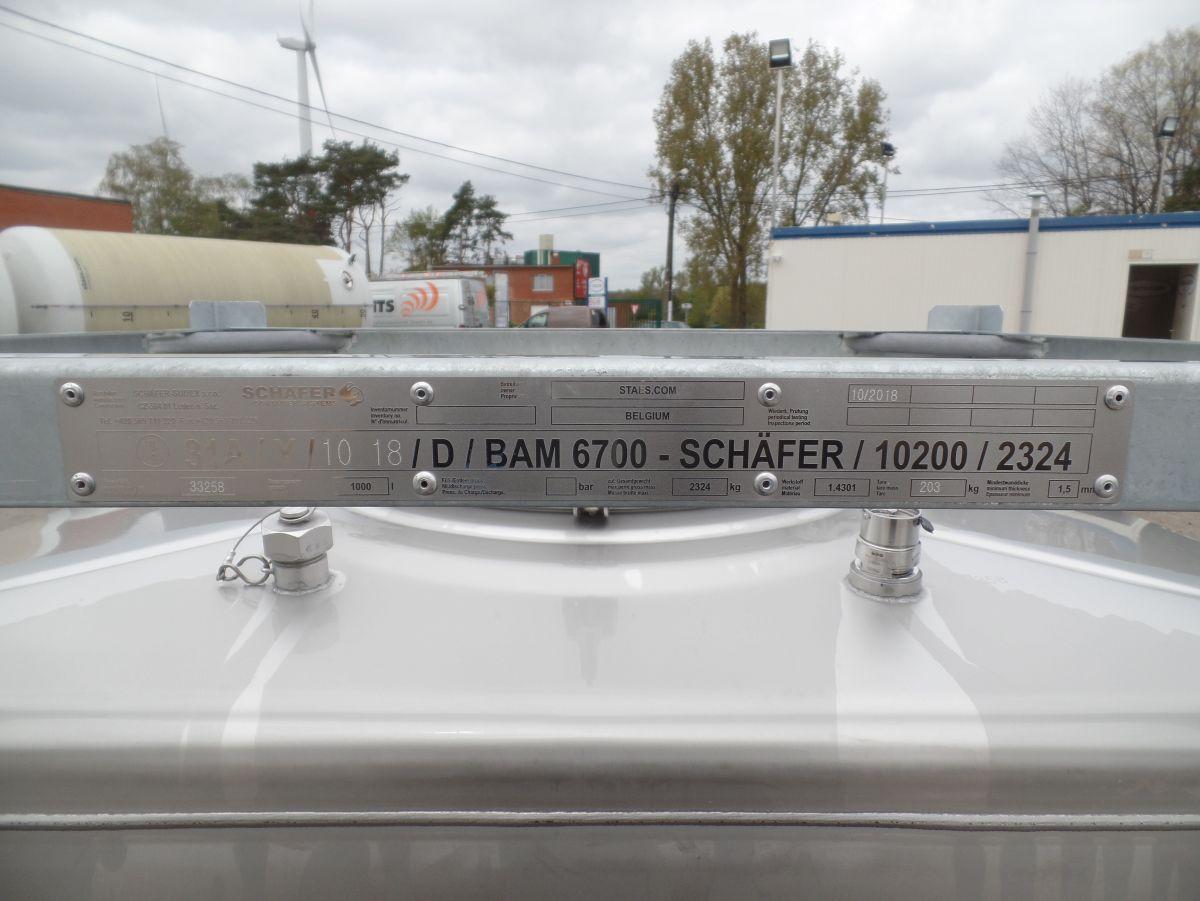

Registration plate on the tank: yes
Flange for agitator: no
Tank outlet: inside Ø 50 mm
Outlet type: DIN11850
Total outlet valve: yes

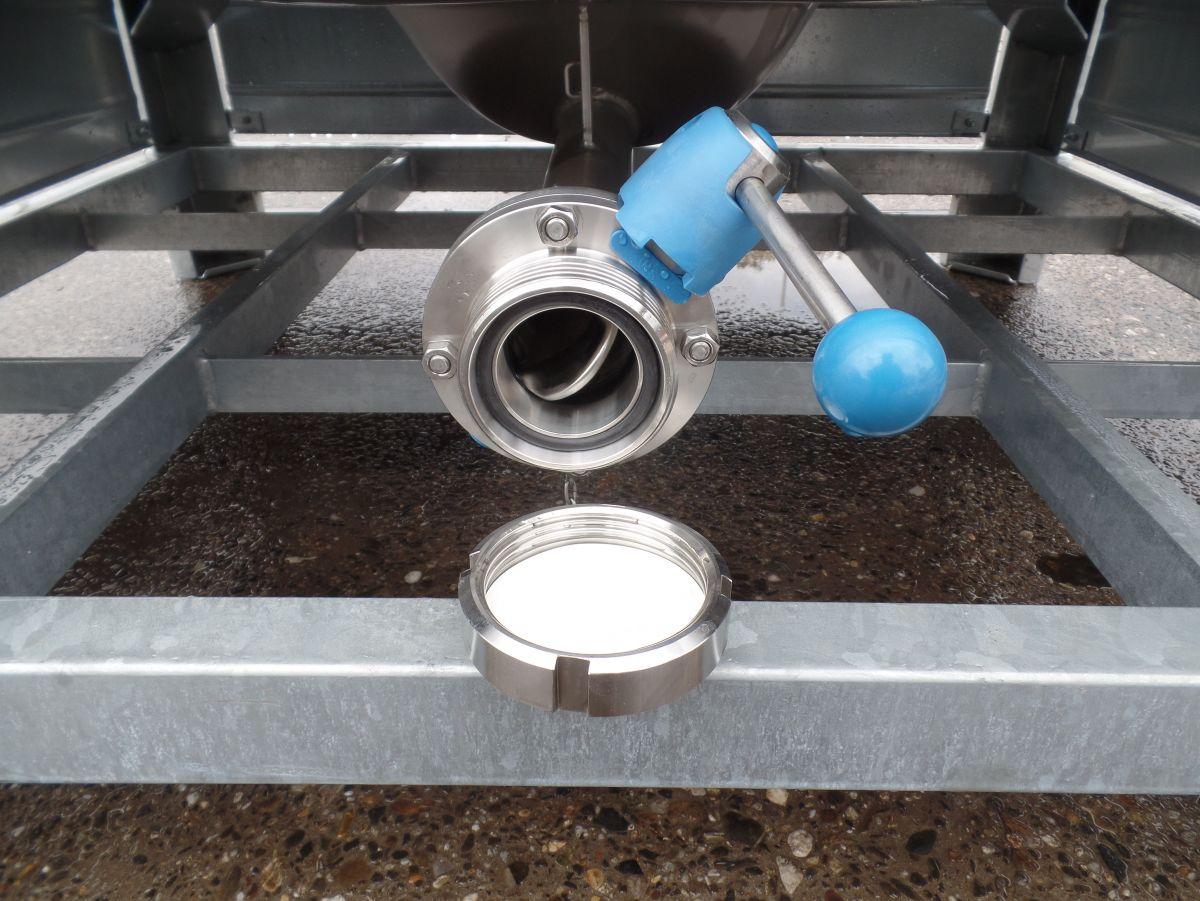

Type shut-off valve: butterfly valve
Top: 2 mm
Cylinder: 2 mm
Bottom: 2 mm
Total height of tank: 1.550 mm
Total outer width: 1.015 mm
Total outer length: 1.215 mm
Empty weight tank: 180
