Volym i liter Volym i literAnvänd draglisten för det volymspann ni önskar se. Klicka sen i t.ex. (material, omrörare, isolering etc.) för att slutligen klicka på FILTRERA, då visas endast de tankar som finns inom de krav ni angett.

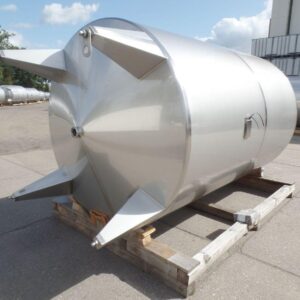

Article type: brand new storage tank - type K-SL Volumetric volume (L): 8.100 L Max. density P (kg/m³): 1.200 Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Top type: conical 15 ° Shape of tank: cylindrical Bottom type: conical 15 ° Total discharge:…

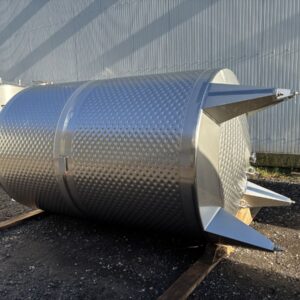

item available on order Article type: brand new storage tank - type K2-SL Volumetric volume (L): 8.100 L Max. density P (kg/m³): 1.200 Ra inner weld: 1,60 Finish stainless steel: 2b Pressure in tank: ATM - atmosferic Design pressure (Bar): 0,05 Bar Max. temperature (°C): 100 °C Min. temperature (°C): -10 °C Material wet parts: SS AISI 316L (V4A) Model:…
Article type: second-hand storage tank Additional information: The tank has never been used, with all documents and factory warranty (STAES;COM). Volumetric volume (L): 8.100 L Max. density P (kg/m³): 1.200 Ra inner weld: 0,80 Finish stainless steel: 2B Pressure in tank: ATM - atmosferic Max. temperature (°C): 100 °C Min. temperature (°C): -10 °C Material wet parts: SS AISI 316L…
Additional information: Wine storage; 2 cooling plates inside each tank; 1 manhole approx. 340 x 440 mm in the front bottom; feet partially padded (see photos) Volumetric volume (L): 8.310 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: single jacketed with heat-exchanger Heat exchanger: yes Insulation: no Mobile tank: no Total…
Additional information: Pharmaceutical Chemistry; External heating cables without controls; 3 support brackets, Aisi 304 (1 support bracket was cut off during disassembly and is enclosed loose); more technical documents available; manhole cover plated Volumetric volume (L): 8.380 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 2 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 200 °C Material…
Additional information: Pharmaceutical Chemistry; 3 support brackets, Aisi 304 (1 support bracket was cut off during disassembly and is enclosed loose); more technical documents available; manhole cover plated Volumetric volume (L): 8.380 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 2 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 200 °C Material wet parts: SS AISI 316…
Article type: second-hand storage tank Additional information: Tank comes from the coffee industry, still residue from the previous product in the tank. Volumetric volume (L): 8.500 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: insulated Heat exchanger: no Insulation: yes Mobile tank: no Top type: conical Shape of tank: cylindrical Bottom…
Additional information: food industry; some residues of previous content Volumetric volume (L): 8.500 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position…
Additional information: Chemistry; Support ring, Fe; Manhole diameter appr. 480 mm; vessel with corrosion on the inside (see photos); Total height including agitator gear (without gear approx. 3400 mm); ; motor is missing; manhole cover is missing Volumetric volume (L): 8.609 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 6 Bar Min. pressure (Bar): 1 Bar Max. temperature…
Additional information: Chemistry; Support ring, Fe; Manhole diameter appr. 480 mm; Total height including agitator gear (without gear approx. 3500 mm); slight pitting inside the vessel; motor is missing; manhole cover plated Volumetric volume (L): 8.651 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 6 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 200 °C Material wet…
Additional information: Chemistry; Insulation around the upper bottom; support ring made of Fe; drawing not available; diameter manhole 470 mm Volumetric volume (L): 8.651 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 6 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 200 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: insulated with heat-exchanger Heat…
Additional information: Wine storage; 2 cooling plates each inside the tanks; 1 manhole approx. 300 x 400 mm in the front bottom; feet fitted with loose, height-adjustable screws (possibly no longer available for all feet; screws were not included in the overall height; this would increase accordingly if used); feet are arranged slightly offset Volumetric volume (L): 8.750 L Pressure…
Volym i liter
Använd draglisten för det volymspann ni önskar se. Klicka sen i t.ex. (material, omrörare, isolering etc.) för att slutligen klicka på FILTRERA, då visas endast de tankar som finns inom de krav ni angett.
