Volym i liter Volym i literAnvänd draglisten för det volymspann ni önskar se. Klicka sen i t.ex. (material, omrörare, isolering etc.) för att slutligen klicka på FILTRERA, då visas endast de tankar som finns inom de krav ni angett.
Additional information: Diameter handhole 200 mm; some residues of previous content Volumetric volume (L): 180 L Pressure in tank: ATM - atmosferic Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: no Flange for agitator: no Outlet of tank: DN40 DIN 11851 Agitator: yes…
Additional information: Tank hangs in a former stainless steel tilting frame (currently not tiltable); tank open at the top with a screwed-on, foldable stainless steel protective grille; outlet with plunger (requires on-site modification; plunger does not close tightly) Volumetric volume (L): 200 L Pressure in tank: ATM - atmosferic Max. temperature (°C): 100 °C Configuration: single jacketed with heat-exchanger Heat…
Additional information: Biotechnology; Technical documentation in Finnish Volumetric volume (L): 300 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 3 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 150 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single jacketed with heat-exchanger Heat exchanger: yes Insulation: no Mobile tank: no Total discharge: yes Volume: 30…

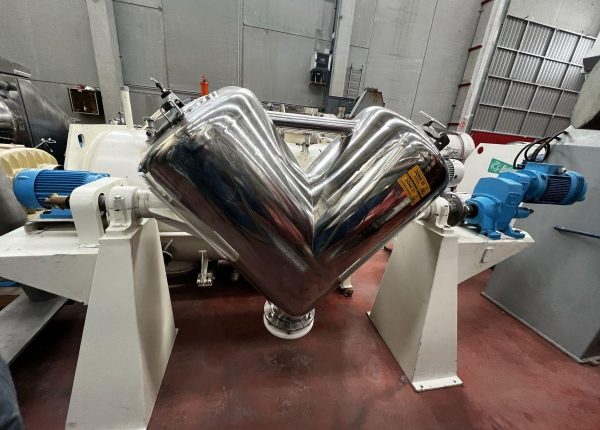

Article type: second-hand mixing tank Additional information: Stainless steel V-mixer with a capacity of 400 liters equipped with an intensification bar (prepared for inerting or liquid injection) to improve mixing. Supply through the two upper holes with manual cover and discharge with a 200 mm diameter butterfly valve. The intensifier bar motor is 5.5 hp (1430 rpm) * With electrical…
Additional information: Pharmacy; According to the previous operator, the vessel's heating/cooling jacket is no longer functional; further technical documents available Volumetric volume (L): 660 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 3,50 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 140 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: insulated Heat exchanger: no…
Additional information: Copper insulating jacket Volumetric volume (L): 1.000 L Pressure in tank: ATM - atmosferic Configuration: insulated Heat exchanger: no Insulation: yes Mobile tank: no Total discharge: no Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Agitator: yes Power: 2,20 Total height of tank: 2.350 mm Total outer width: 1.360…
Additional information: Lebensmittel; Behälterauslauf ragt über Behälterfüße hinaus, Behälter müsste zur Aufstellung entsprechend unterfüttert werden; 1 loses Fußgestell aus Normalstahl gehört zum Lieferumfang; Gesamthöhe inkl. Fußgestell Volumetric volume (L): 1.000 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: single jacketed with heat-exchanger Heat exchanger: yes Insulation: no Mobile tank: no Total…
Article type: second-hand mixing tank Additional information: tank has never been used: welds polished Ra 0.8; agitator completely stainless-steel; we can’t give any guarantees about the agitator Volumetric volume (L): 1.000 L Max. density P (kg/m³): 1.200 Pressure in tank: ATM - atmosferic Max. temperature (°C): 80 °C Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: single-skin Heat…
Additional information: adhesive production; former support brackets were cut off by dismantling and are not available anymore; 1 heating connection cut off; tank with stronger adhesions; manhole cover plated Volumetric volume (L): 1.100 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single jacketed with heat-exchanger Heat exchanger: yes Insulation: no Mobile…
item available on order Article type: brand new production tank - type CHC-HILA Additional information: Delivered with food certificate; article price without control panel; see options; (The article can also be purchased without options) Volumetric volume (L): 1.500 L Max. density P (kg/m³): 1.200 Pressure in tank: ATM - atmosferic Max. temperature (°C): 100 °C Min. temperature (°C): -10 °C…
Additional information: Pharmacy; 4 support brackets, Aisi 304 Volumetric volume (L): 2.000 L Pressure in tank: ATM - atmosferic Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Outlet of tank: DN50 DIN 11851 Agitator: yes Number of revolutions:…
Additional information: Pharmaceutical chemistry; Manhole DN 350/450 (manhole cover incomplete); Support ring, Fe; Flanges partially Fe Volumetric volume (L): 2.420 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 3,20 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 200 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single jacketed with heat-exchanger Heat exchanger: yes Insulation:…
Volym i liter
Använd draglisten för det volymspann ni önskar se. Klicka sen i t.ex. (material, omrörare, isolering etc.) för att slutligen klicka på FILTRERA, då visas endast de tankar som finns inom de krav ni angett.
