Additional information: Chemistry; 4 loose foot extensions made of stainless steel are included; some residues of previous content; Metallic discolouration inside Volumetric volume (L): 2.500 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 6 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 200 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single jacketed with…

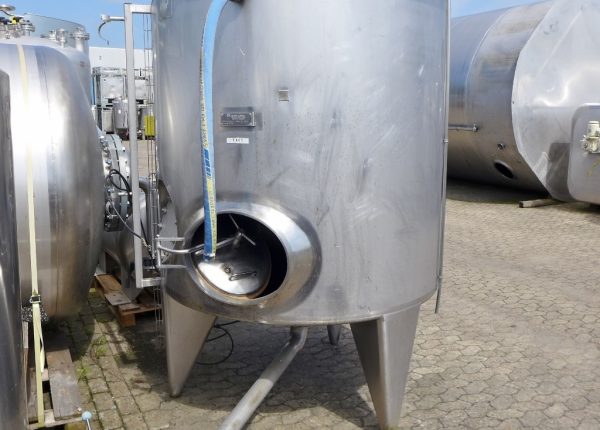

Additional information: Dairy; Manhole approx. 400 x 510 mm; 2 pipes inside the tank; some residues of previous content Volumetric volume (L): 3.000 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration…
Additional information: Pharmaceutical chemistry; 3 support brackets, Aisi 304; double jacket for heating/cooling around the lower cylinder area and the lower bottom (double jacket was added later and is not shown in the vessel drawing); slight differences in the design of the two vessels, e.g. differences in the manhole covers and the outlets (1 x outlet diameter approx. 53 mm,…
Additional information: Pharmaceutical chemistry; Sight glasses in the manhole covers are missing; support ring, Fe; Flanges partly made of Fe Volumetric volume (L): 3.586 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 3,20 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 200 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single jacketed with heat-exchanger…
Additional information: Pharmaceutical chemistry; Further technical documents available; Sight glass in the manhole cover is missing; support ring, Fe; Flanges partly made of Fe Volumetric volume (L): 3.586 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 3,20 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 200 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration:…
Additional information: Chemistry Volumetric volume (L): 3.640 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 0,49 Bar Min. pressure (Bar): 1 Bar Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Total discharge: yes Volume: 132 L Max Overpressure: 10 Bar Max. working temperature: 200 °C…
Additional information: cosmetic; differences in design (see pictures); type plates are only available for 1 tank; cone height appr. 800 mm; hand hole 350 mm in the upper bottom; some residues of previous content Volumetric volume (L): 3.660 L Pressure in tank: pressure Max. pressure (Bar): 3 Bar Max. temperature (°C): 85 °C Material wet parts: SS AISI 316 (V4A)…
Additional information: Chemistry; 4 support brackets made of Fe; 1 vessel with insulation (insulation jacket Fe, lacquered; diameter outside approx. 1780 mm); some residues of previous content; Metallic discolouration inside Volumetric volume (L): 3.685 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 3,20 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 200 °C Material wet parts: SS…
Additional information: Pharmaceutical chemistry; Manhole cover incomplete (among other things, the sight glass is missing, see photos); Support ring made of Fe Volumetric volume (L): 3.690 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 3,20 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 200 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single jacketed…
Additional information: Pharmaceutical chemistry; Support ring, Fe; manhole cover incomplete; one tank has most of its heater connections cut off and included loose; 1 tank is approx. 100 mm lower in overall height due to different motor/gear units Volumetric volume (L): 3.690 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 3,20 Bar Min. pressure (Bar): 1 Bar Max.…

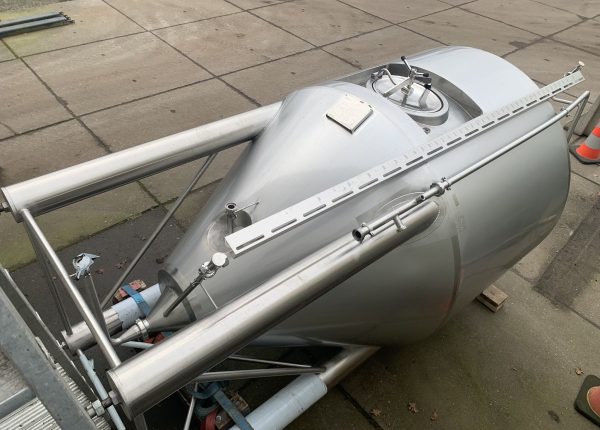

Article type: brand new pressure tank - type CCT-HIL Volumetric volume (L): 3.850 L Ra inner weld: 0,80 Finish stainless steel: 2B Pressure in tank: pressure Max. pressure (Bar): 3,30 Bar Max. temperature (°C): 50 °C Min. temperature (°C): -10 °C Material wet parts: SS AISI 304L (V2A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile…
Additional information: Full set of pharma-compliant technical documentation included in delivery; tank was manufactured for a global pharmaceutical company but was never put into operation; hand hole with sight glass diameter: 150mm; incl. Südmo single-seat valve SVP (outlet) Volumetric volume (L): 4.000 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 6 Bar Min. pressure (Bar): 1 Bar Max.…
