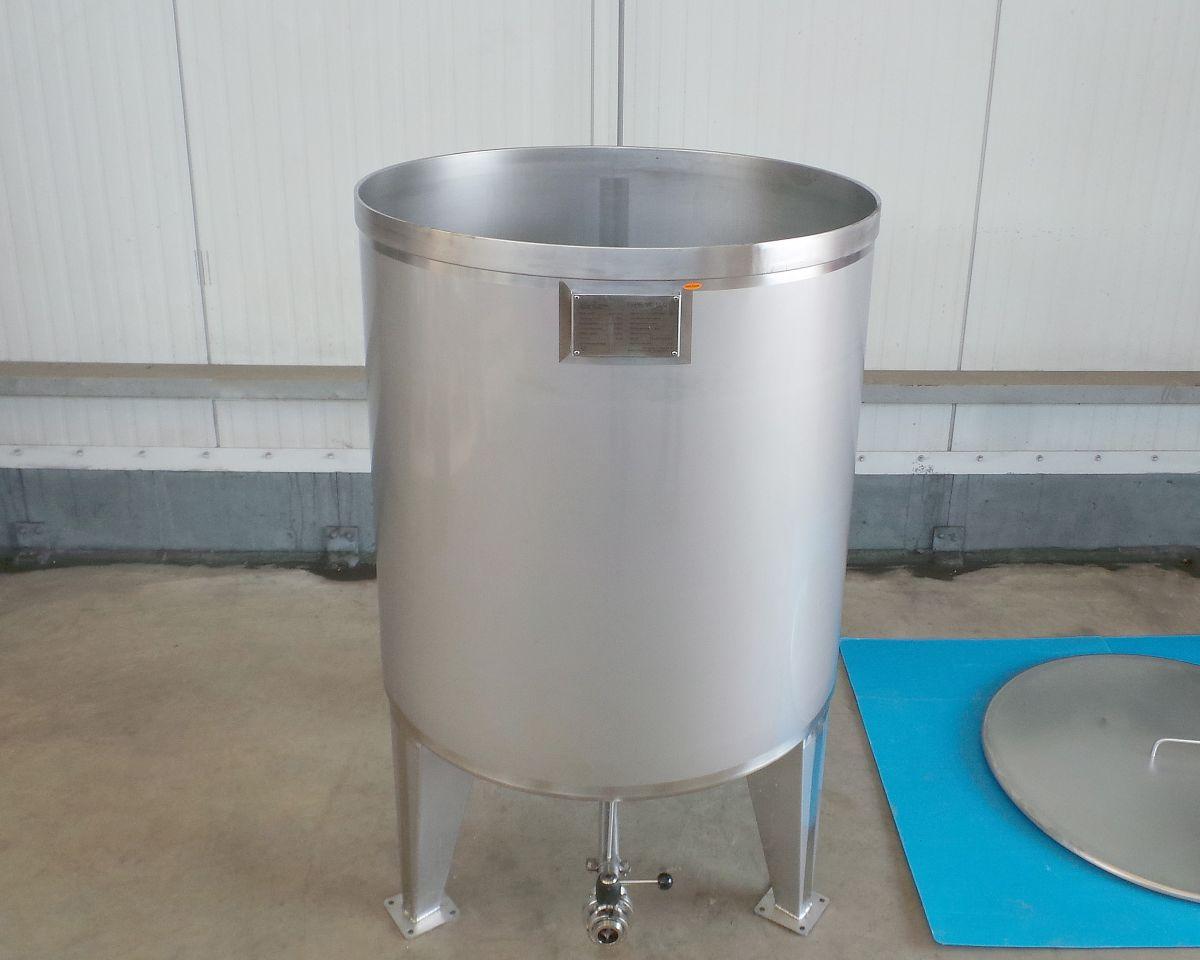

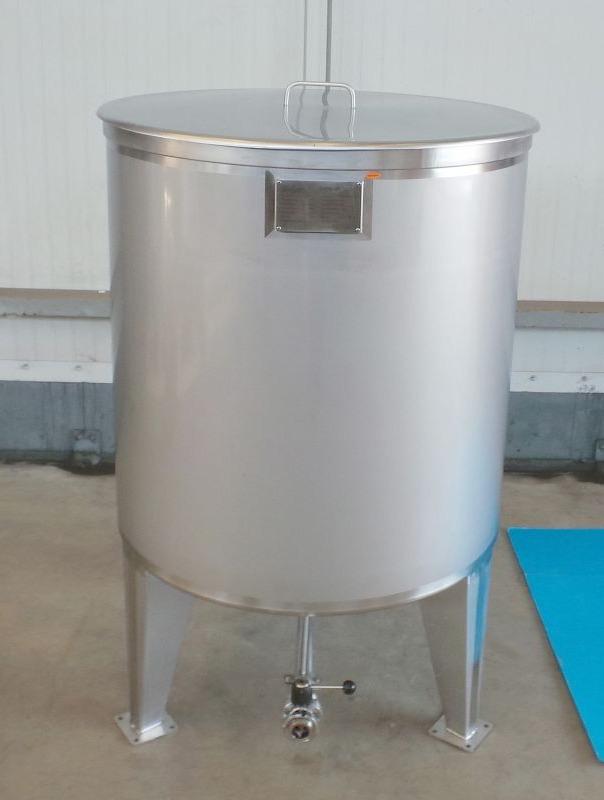

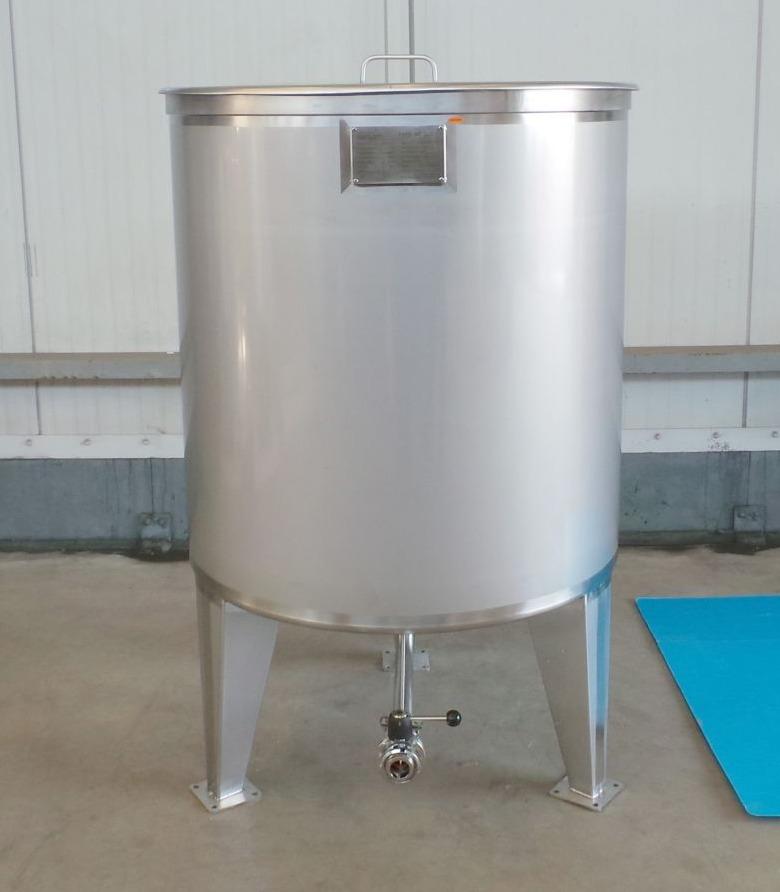

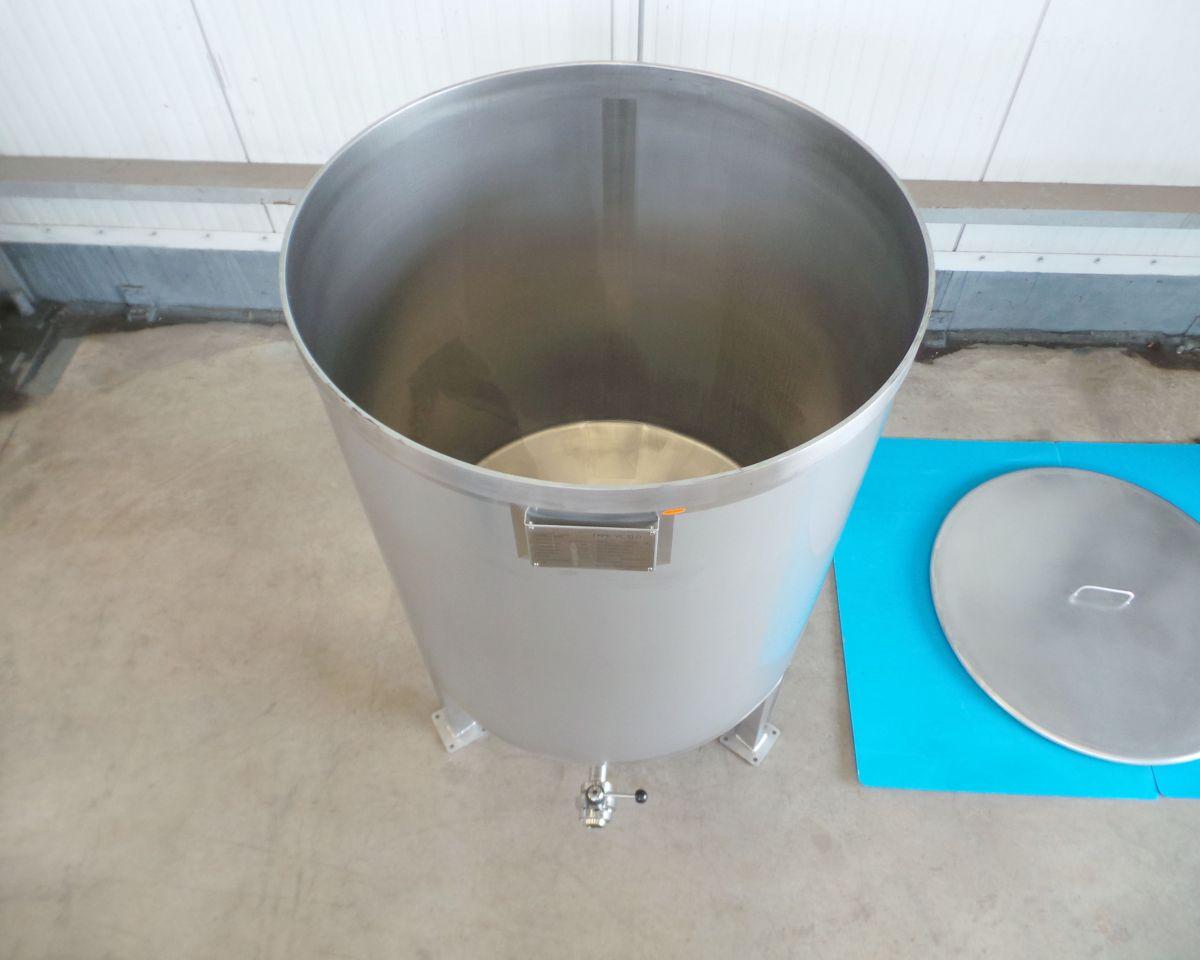

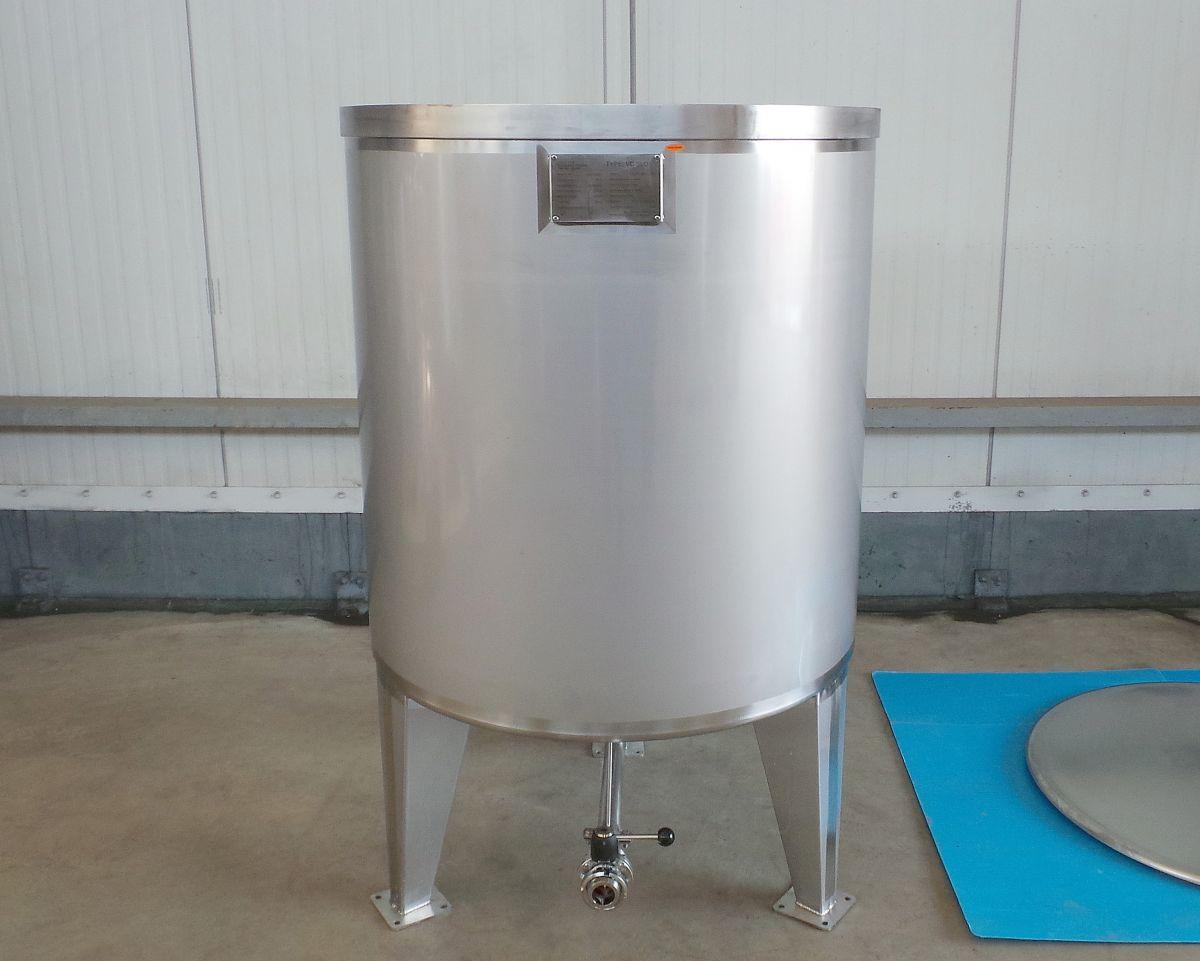

750 liter tank i Syrafast 316

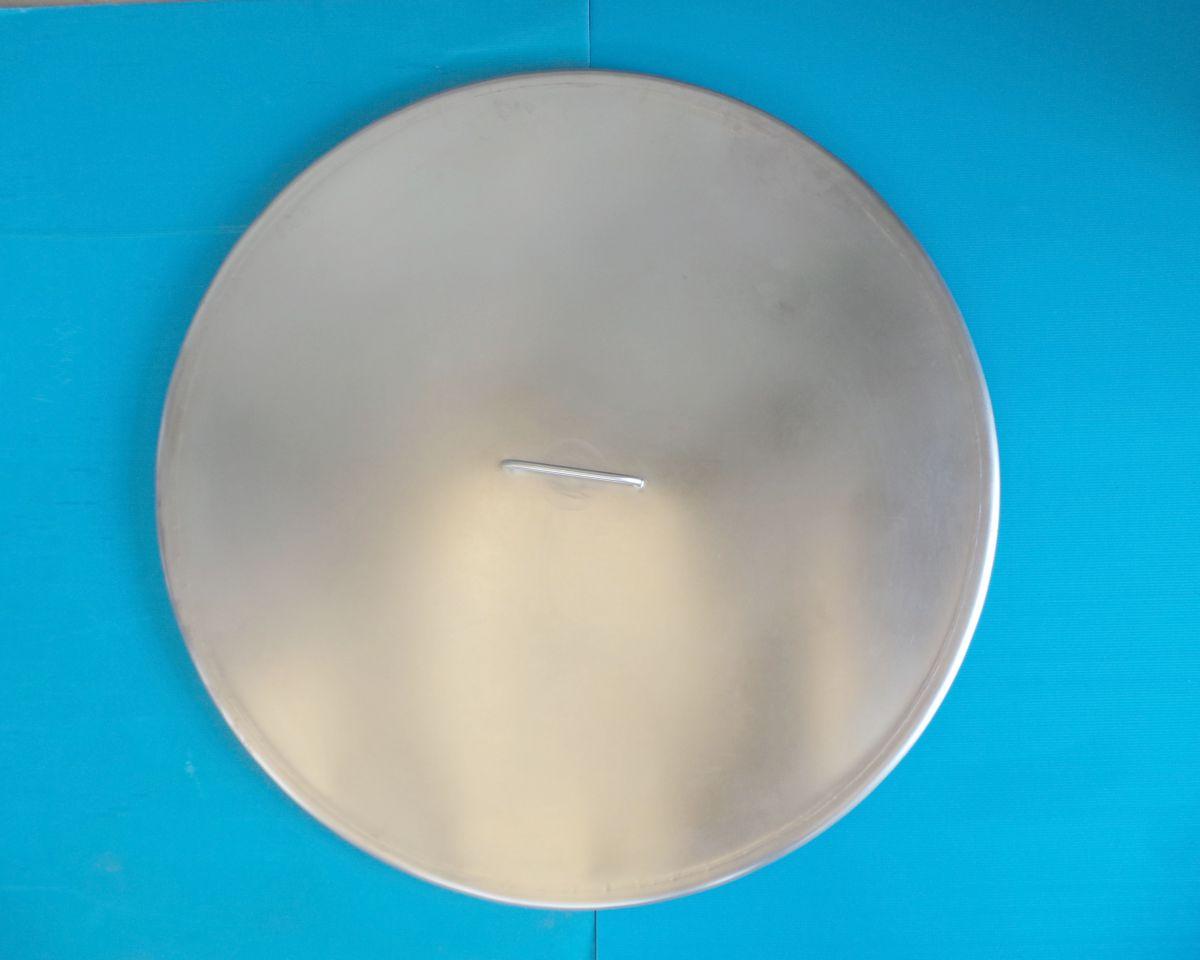

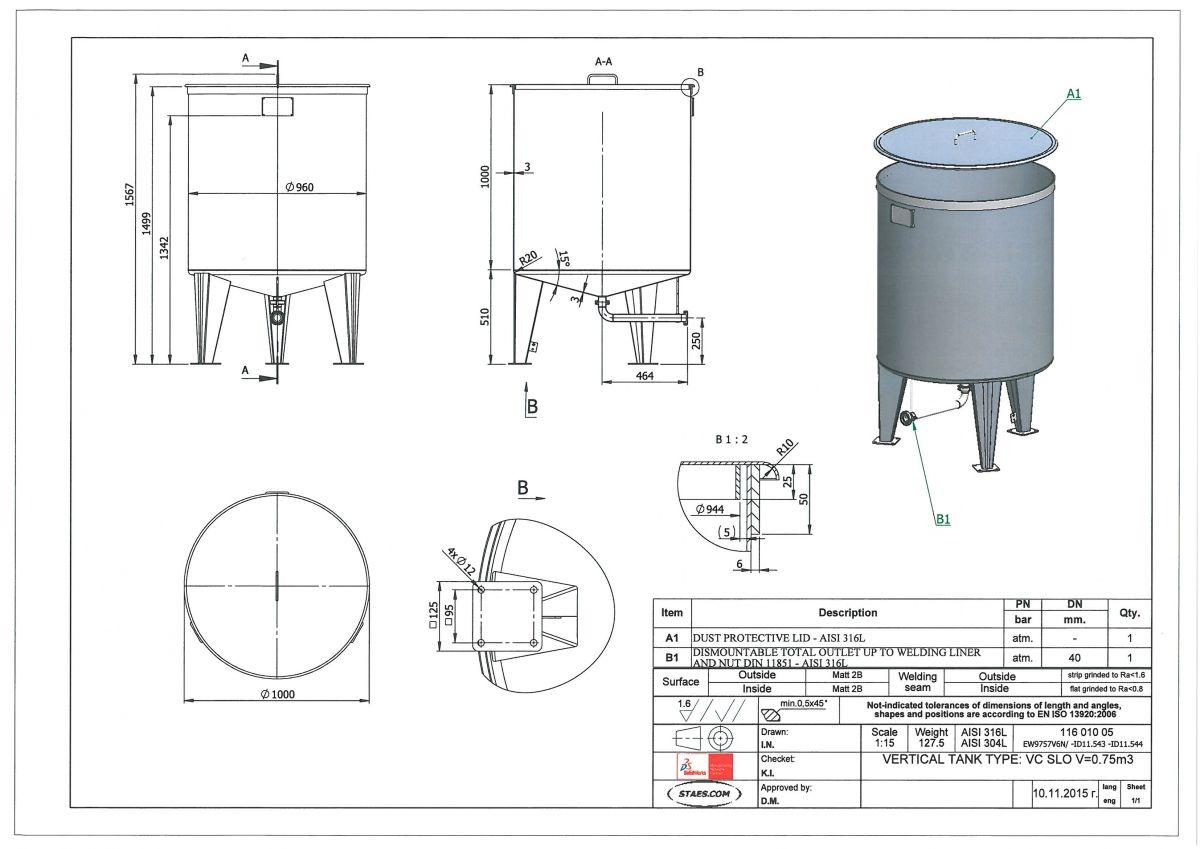

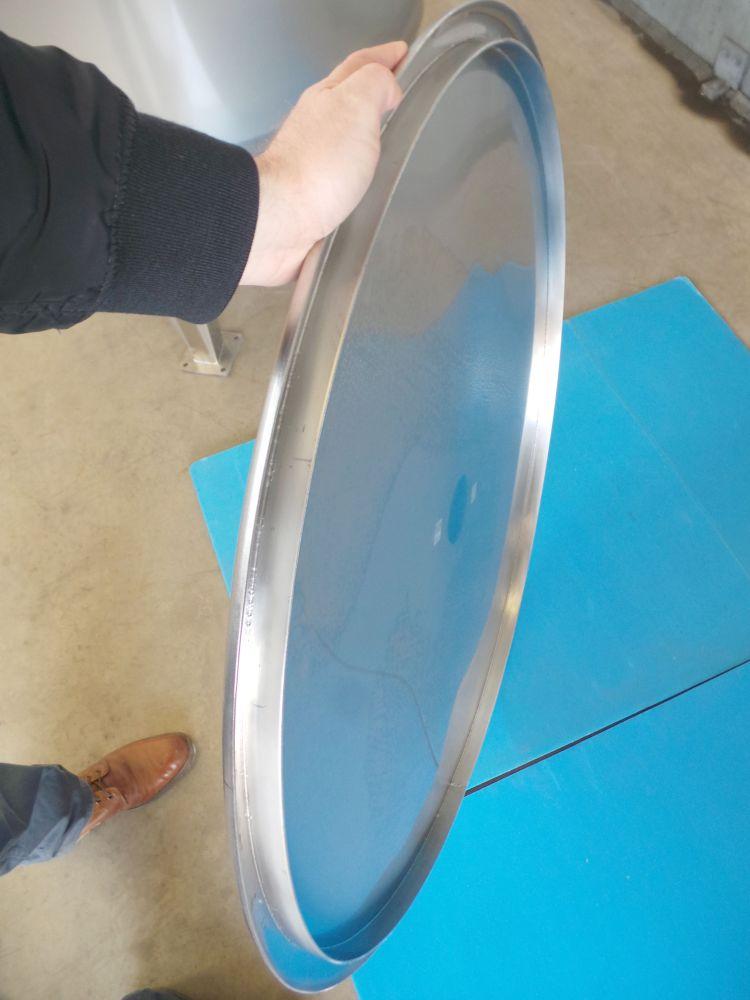

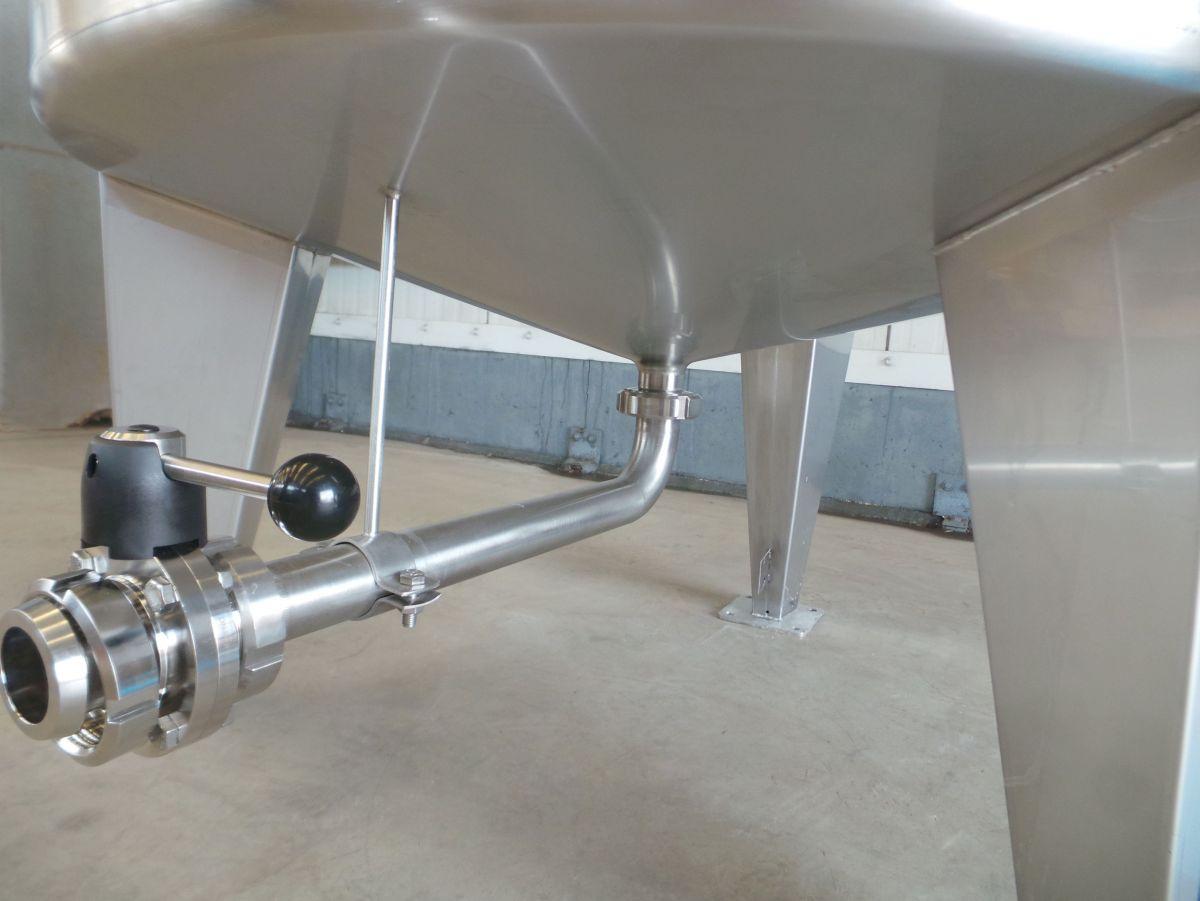

item available on order Article type: brand new storage tank - type VC-SLO Volumetric volume (L): 750 L Max. density P (kg/m³): 1.200 Ra inner weld: 0,80 Pressure in tank: ATM - atmosferic Max. temperature (°C): 80 °C Min. temperature (°C): -10 °C Material wet parts: SS AISI 316L (V4A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Top type: large seperat lid Shape of tank: cylindrical Bottom type: conical 20 ° Total discharge: yes Fixation points: 3 non adjustable feet Fixation point(s): RVS 304L Suitable for food industry: yes Documents included: yes, optional Technical drawing included: yes Registration plate on the tank: yes Flange for agitator: no CIP spray ball: no Tank outlet: inside Ø 40 mm Outlet type: DIN11851 female Total outlet valve: no, optional Agitator: no Top: 2 mm Cylinder: 3 mm Bottom: 3 mm Distance from outlet to ground: 250 mm Outer diameter tank: 960 mm Cylinder height: 1.000 mm Total height of tank: 1.567 mm Empty weight tank: 128
