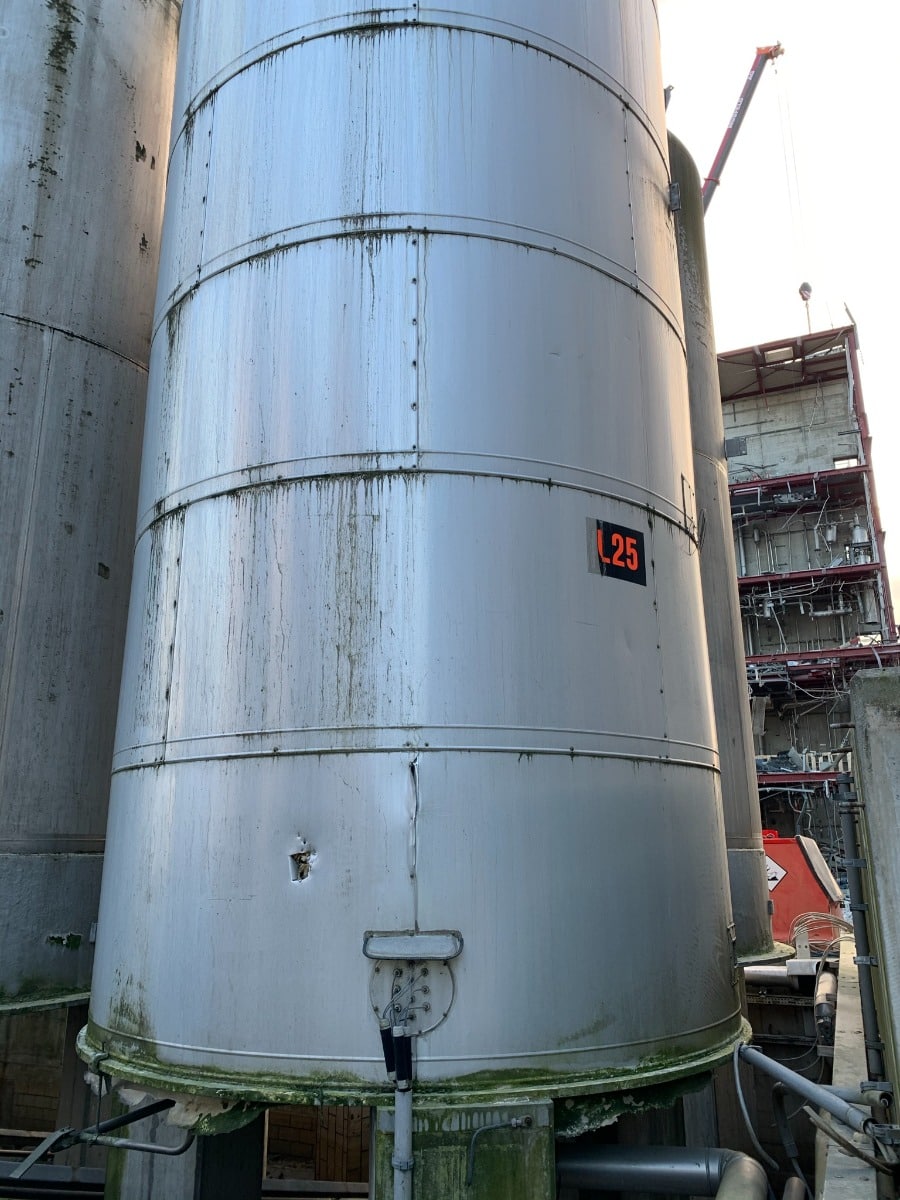

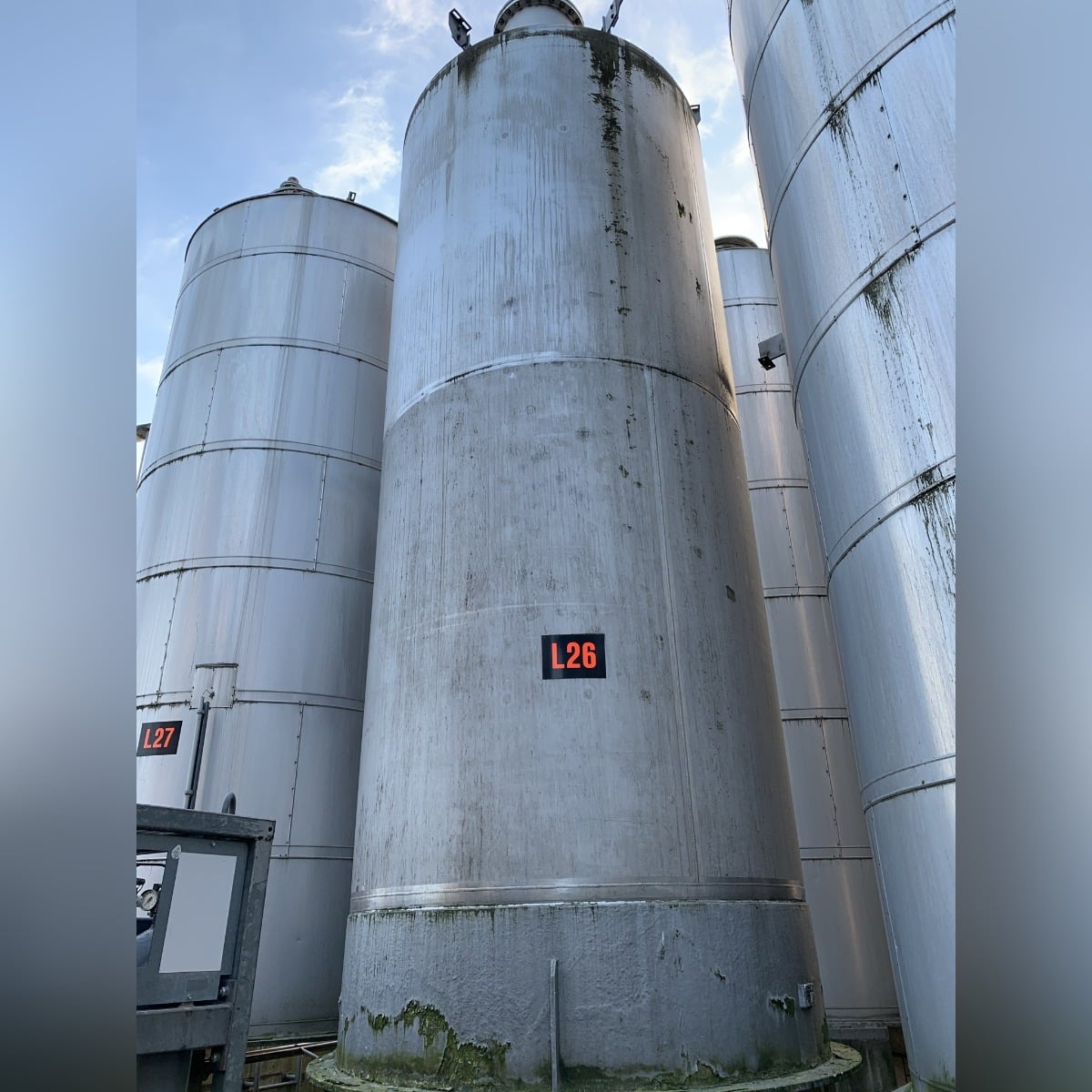

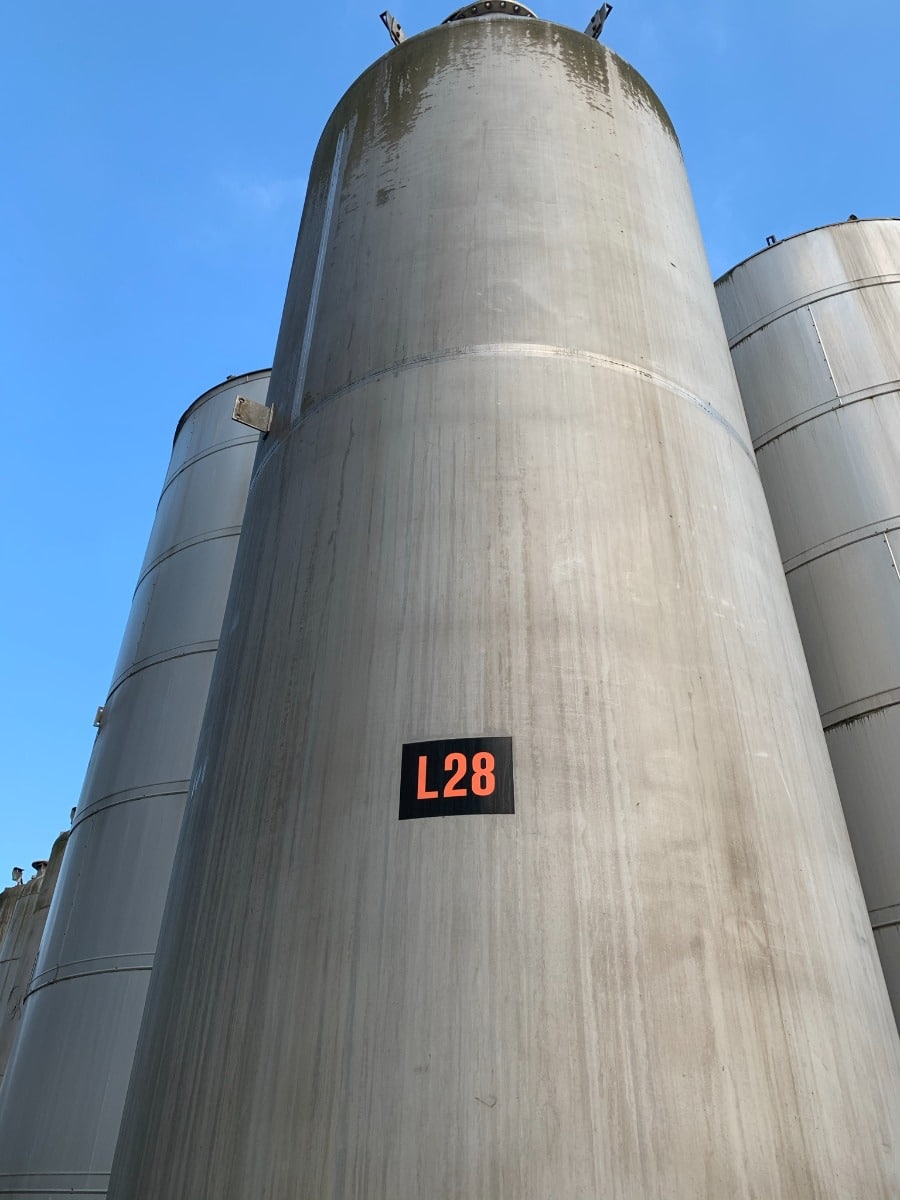

25000 liter tank i Syrafast 316

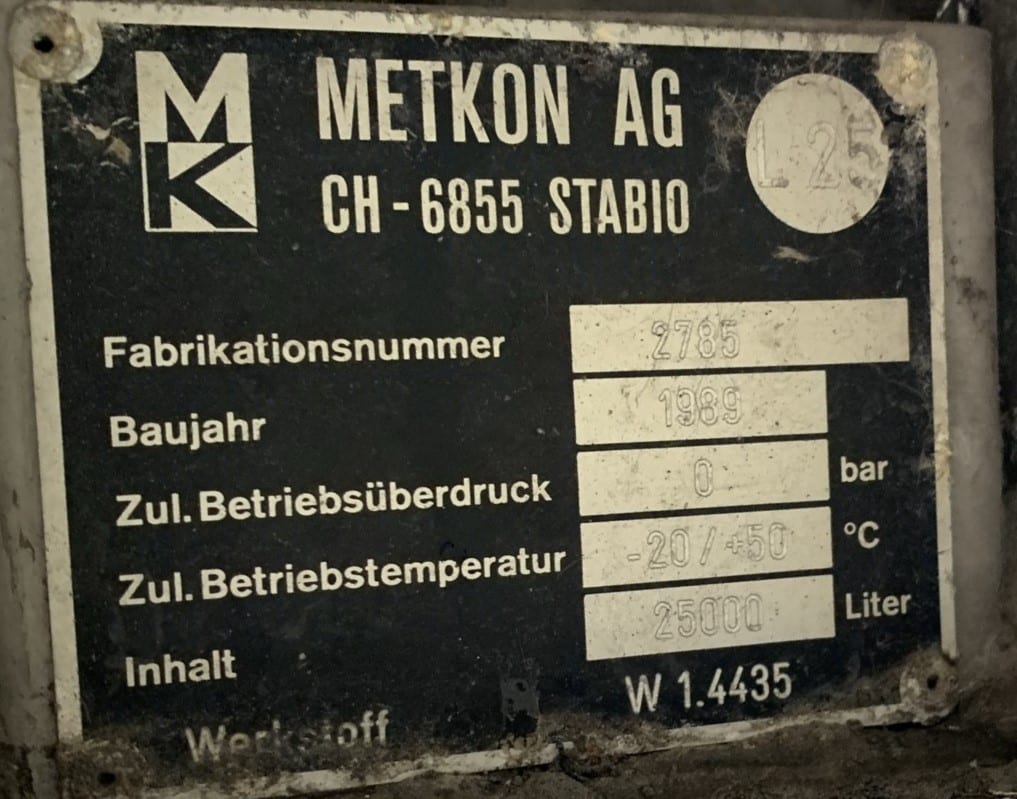

Additional information: Pharmaceutical Chemistry; Floor frame made of stainless steel 304; wall thickness of lower cylinder half approx. 6 mm; manhole cover plated Volumetric volume (L): 25.000 L Pressure in tank: ATM - atmosferic Max. temperature (°C): 50 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: headside Outlet of tank: available Top: 5,80 mm Cylinder: 5 mm Bottom: 6,30 mm Internal diameter tank: 2.400 mm Outer diameter tank: 2.400 mm Cylinder height: 5.400 mm Total height of tank: 7.200 mm
