22735 liter tank i Rostfritt 304

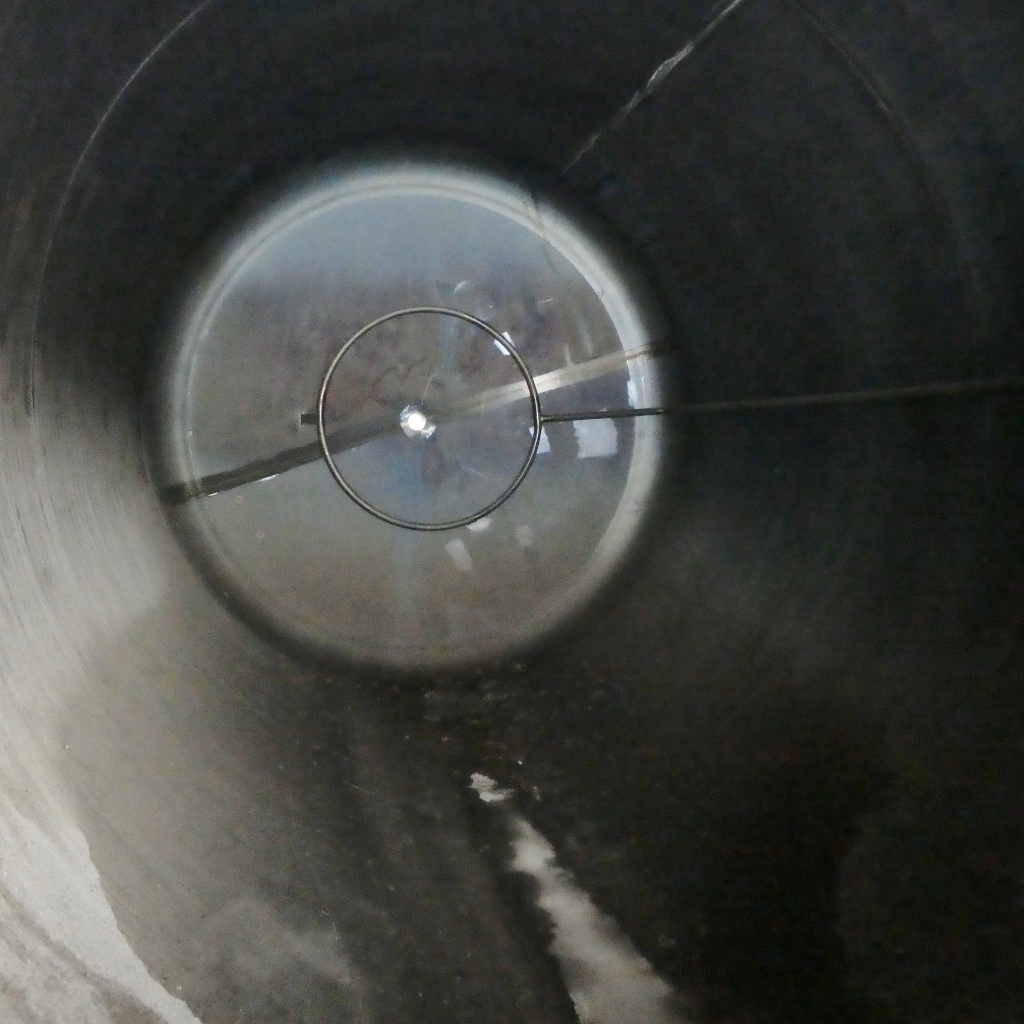

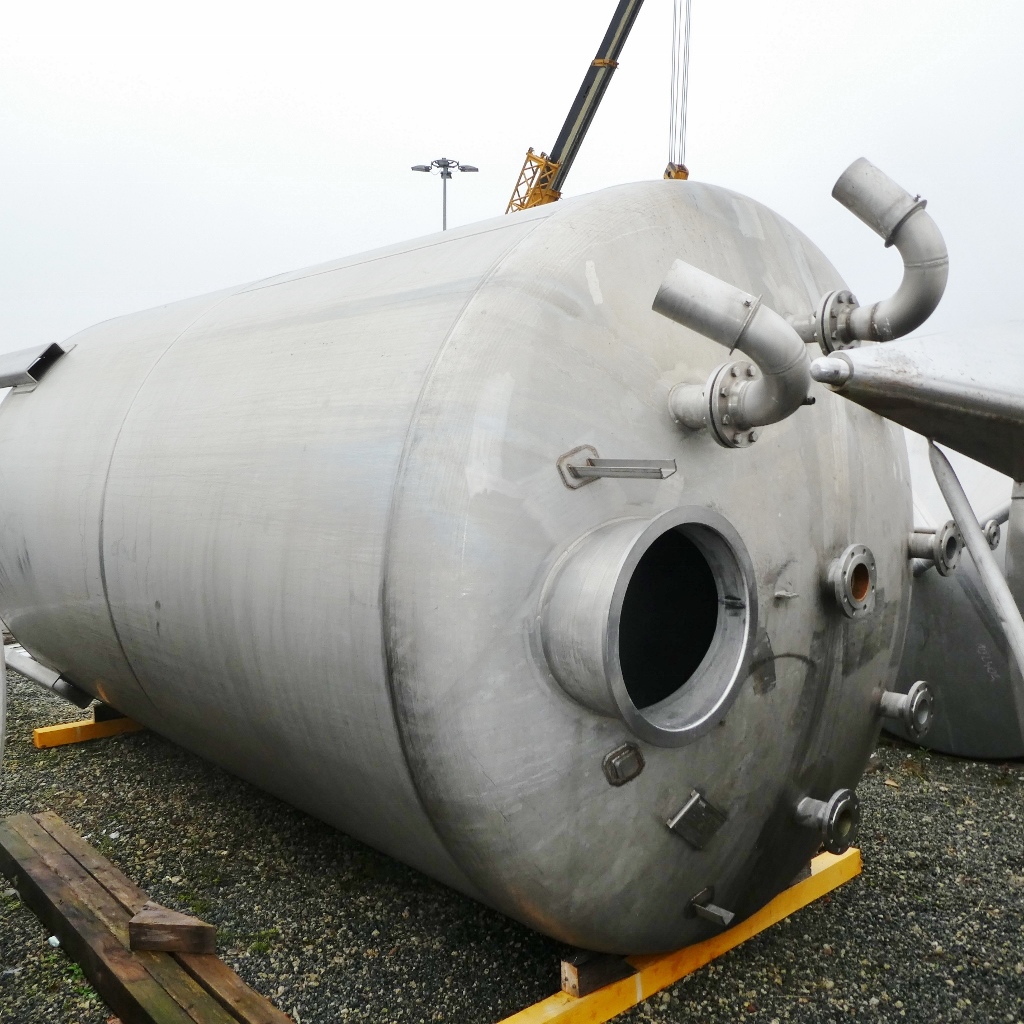

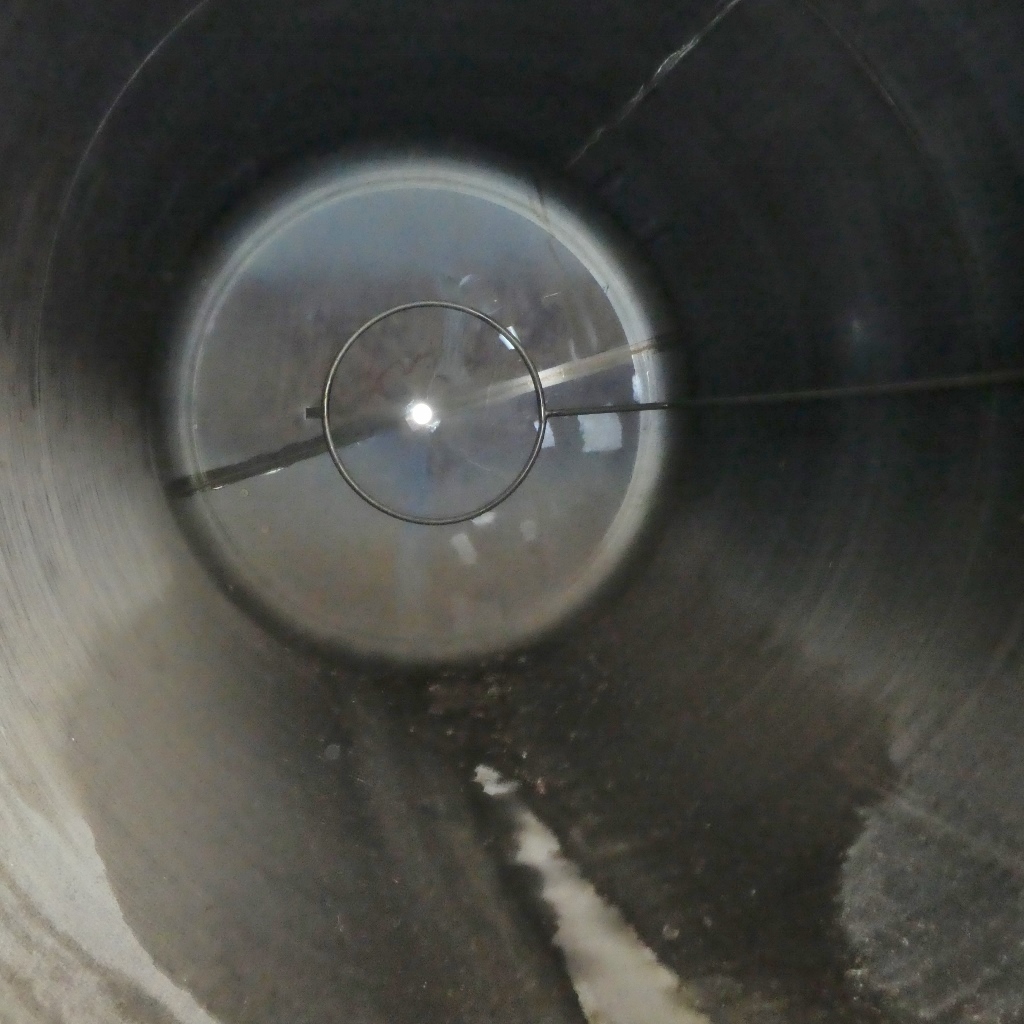

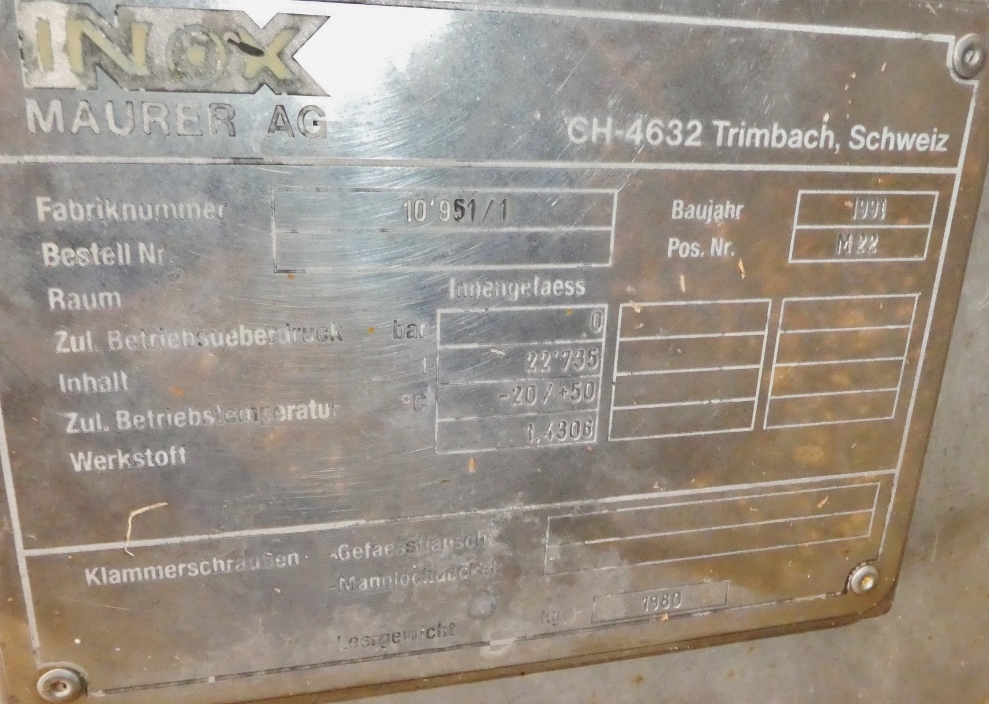

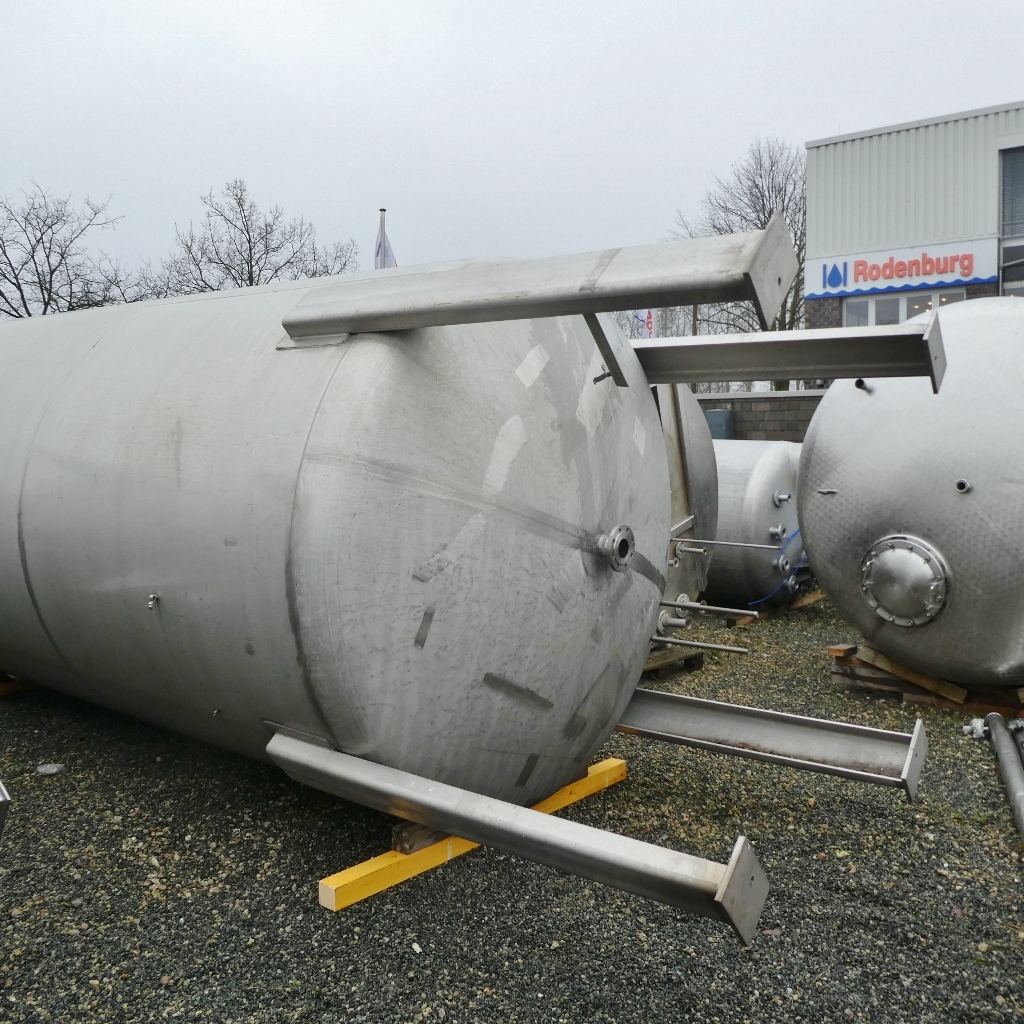

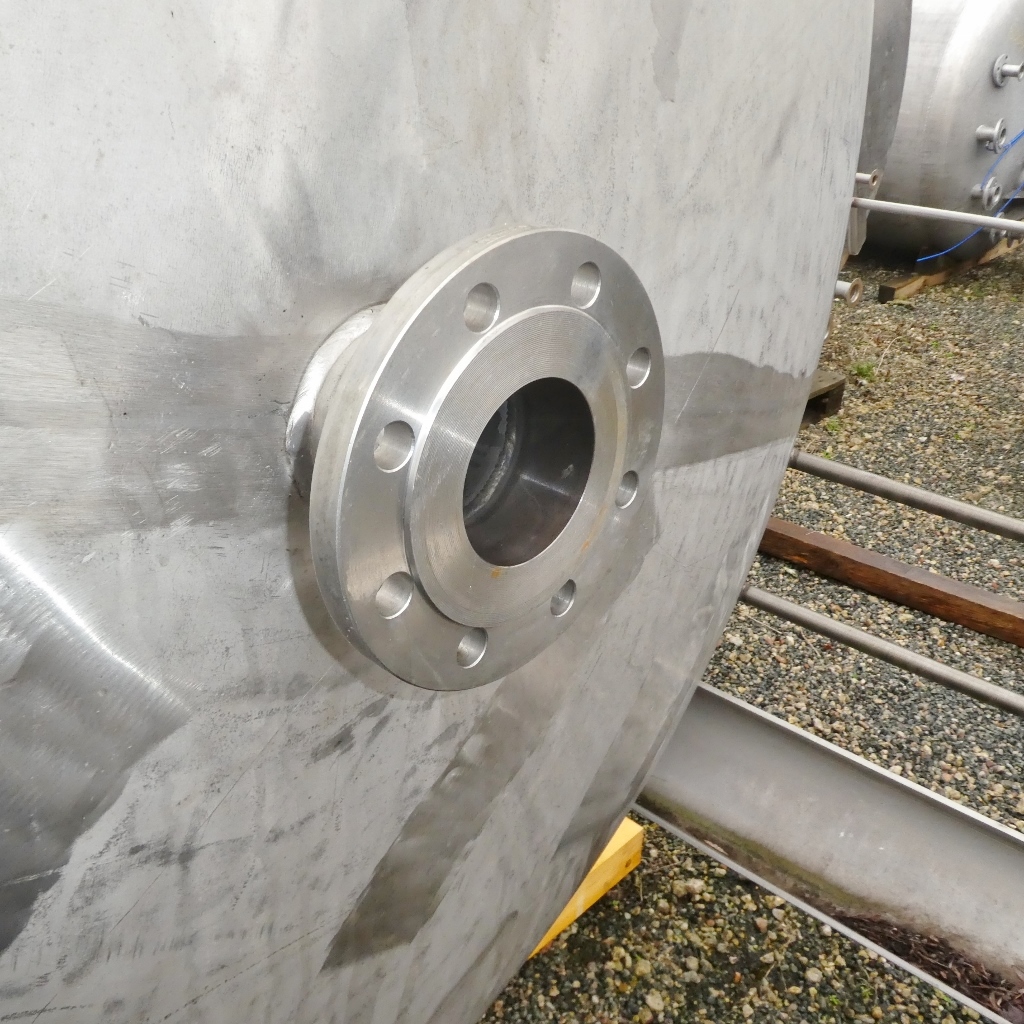

Additional information: Chemistry; 1 pipe inside the tank (see photos); some residues of previous content; manhole cover is missing Volumetric volume (L): 22.735 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: in the bottom Outlet of tank: flange DN80 Internal diameter tank: 2.490 mm Cylinder height: 3.970 mm Total height of tank: 6.550 mm
