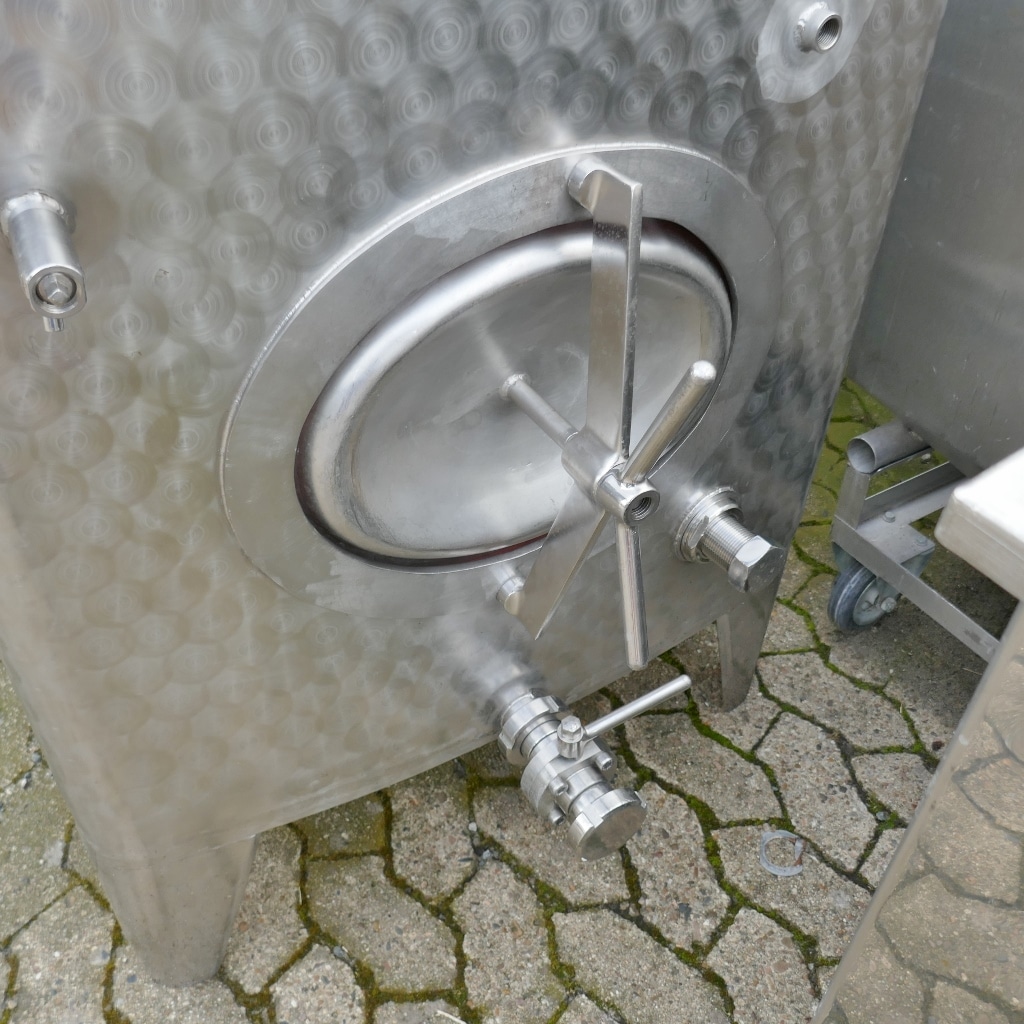

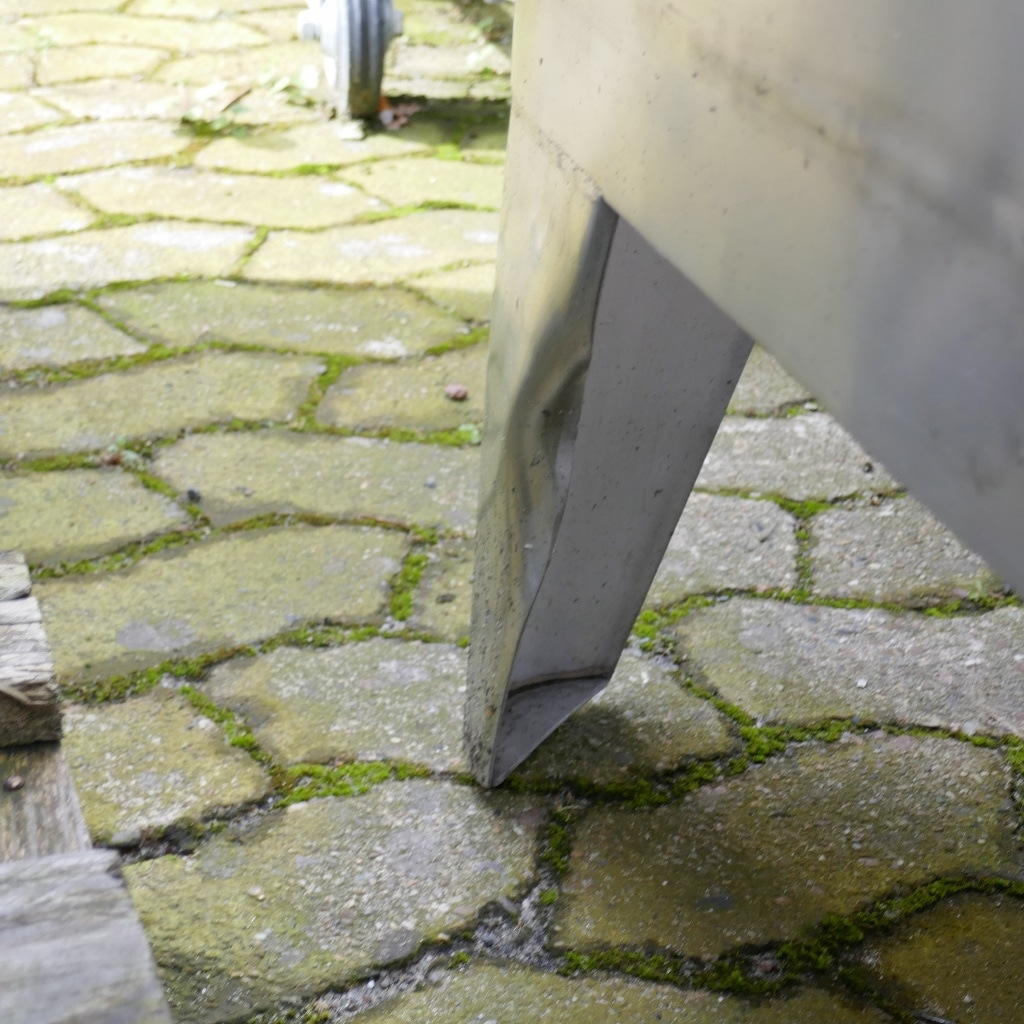

Additional information: Wine storage; 1 manhole approx. 300 x 390 mm in the front bottom; basic dimensions inside approx. 1,210 x 830 mm; internal height approx. 1,120 mm; container feet partially slightly bent; the tank with our order number 9671 can be stacked on this tank; tanks were professionally cleaned and overhauled in 2024; brand new residual drain valves and manhole seals were installed
Volumetric volume (L): 1.100 L
Pressure in tank: ATM - atmosferic
Material wet parts: SS AISI 304 (V2A)
Model: vertical
Configuration: single-skin
Heat exchanger: no
Insulation: no
Mobile tank: no
Total discharge: yes
Documents included: no
Technical drawing included: no
Registration plate on the tank: no
Flange for agitator: no
Outlet of tank: DN40 DIN 11851
Total height of tank: 1.600 mm
Total outer width: 840 mm
Total outer length: 1.500 mm
