1000 liter tank i Rostfritt 304

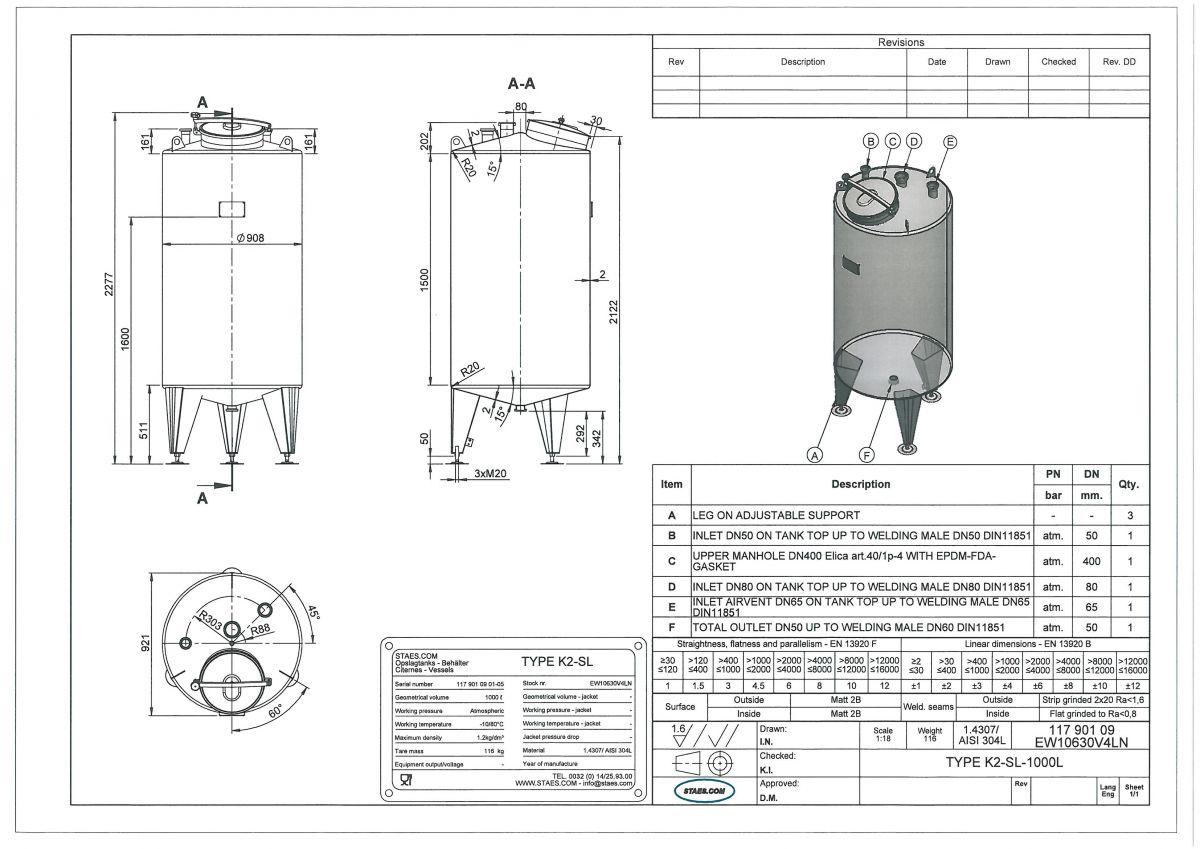

item available on order Article type: brand new storage tank - type K2-SL Volumetric volume (L): 1.000 L Max. density P (kg/m³): 1.200 Ra inner weld: 0,80 Finish stainless steel: 2b Pressure in tank: ATM - atmosferic Design pressure (Bar): 0,05 Bar Max. temperature (°C): 100 °C Min. temperature (°C): -10 °C Material wet parts: SS AISI 304L (V2A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Top type: conical 15 ° Shape of tank: cylindrical Bottom type: conical 15 ° Total discharge: yes Fixation points: 3 adjustable feet Legs: Set of baseplates and adjusting pieces included Manway(s): RVS 304 Gasket manway(s): EPDM Fixation point(s): RVS 304L Suitable for food industry: yes Documents included: yes, optional Technical drawing included: yes Registration plate on the tank: yes Inspection of: TUV Flange for agitator: no Number of manways: 1 Position of manway: at the top Height manhole 1 (mm): 400 mm CIP spray ball: no, optional Max. CIP temp. (°C): 30 °C Tank outlet: inside Ø 50 mm Outlet type: DIN11851 male Total outlet valve: no, optional Agitator: no, optional Top: 2 mm Cylinder: 2 mm Bottom: 2 mm Distance from outlet to ground: 342 mm Outer diameter tank: 908 mm Cylinder height: 1.500 mm Feet height: 511 mm Total height of tank: 2.277 mm Empty weight tank: 116
