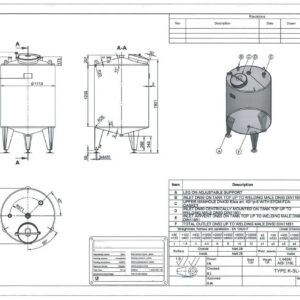

item available on order Article type: brand new storage tank - type K2-SL Volumetric volume (L): 1.330 L Max. density P (kg/m³): 1.200 Ra inner weld: 0,80 Finish stainless steel: 2b Pressure in tank: ATM - atmosferic Max. temperature (°C): 100 °C Min. temperature (°C): -10 °C Material wet parts: SS AISI 316L (V4A) Model: vertical Configuration: single-skin Heat exchanger:…
item available on order Article type: brand new storage tank - type K3-IL Volumetric volume (L): 1.330 L Max. density P (kg/m³): 1.200 Ra inner weld: 0,80 Finish stainless steel: 2B Pressure in tank: ATM - atmosferic Max. temperature (°C): 100 °C Min. temperature (°C): -10 °C Material wet parts: SS AISI 316L (V4A) Model: vertical Configuration: insulated Heat exchanger:…

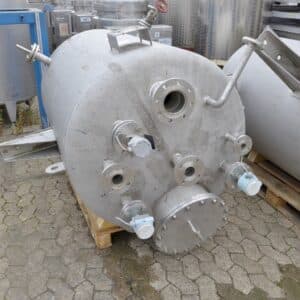

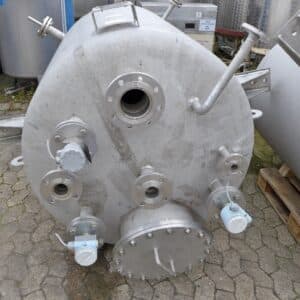

Additional information: Manhole diameter 350 mm; 2 support brackets, Aisi 316; 1 connection in the cylinder bent; Connections upper bottom: 1 x DN 100; 5 x DN 50; 2 x DN 25; some residues of previous content Volumetric volume (L): 1.330 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 2 Bar Min. pressure (Bar): 0,50 Bar Max. temperature…
item available on order Article type: brand new storage tank - type K3-H12W.IL Volumetric volume (L): 1.330 L Max. density P (kg/m³): 1.500 Ra inner weld: 0,80 Finish stainless steel: 2b Pressure in tank: ATM - atmosferic Max. temperature (°C): 130 °C Min. temperature (°C): -10 °C Material wet parts: SS AISI 316L (V4A) Model: vertical Configuration: insulated with heat-exchanger…
item available on order Article type: brand new storage tank - type K-SC Volumetric volume (L): 1.330 L Max. density P (kg/m³): 1.200 Finish stainless steel: 2B Pressure in tank: ATM - atmosferic Max. temperature (°C): 80 °C Material wet parts: SS AISI 316L (V4A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: yes Top type: conical…
item available on order Article type: brand new storage tank - type K3-H12W.L Volumetric volume (L): 1.330 L Max. density P (kg/m³): 1.200 Ra inner weld: 0,80 Pressure in tank: ATM - atmosferic Max. temperature (°C): 100 °C Min. temperature (°C): -10 °C Material wet parts: SS AISI 316L (V4A) Model: vertical Configuration: single jacketed with heat-exchanger Heat exchanger: yes…
Additional information: Pharmaceutical chemistry; 2 support brackets made of Aisi 304 (contact surface the other way around; see photos); flanges partly made of Fe; further techn. documents available; bump at the insulation jacket Volumetric volume (L): 1.345 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 3,20 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 200 °C Material…
Additional information: Pharmaceutical chemistry; 2 support brackets made of Aisi 304 (contact surface the other way around; see photos); flanges partly made of Fe Volumetric volume (L): 1.345 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 3,20 Bar Min. pressure (Bar): 1 Bar Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single jacketed with heat-exchanger Heat…
Additional information: Pharmaceutical chemistry; 3 feet, Aisi 304 screwed to support brackets, Aisi 304; 1 longitudinal sight glass each in the cylinder and in the lower bottom; on the outlet there is a fitting with a pipe diameter of approx. 38 mm inside; manhole cover is missing Volumetric volume (L): 1.356 L Pressure in tank: pressure and vacuum Max. pressure…
Additional information: Food industry; 3-legged foot frame made of stainless steel with components made of mild steel; smaller dents in the insulating jacket; Fastening toggle of the manhole cover is missing Volumetric volume (L): 1.358 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 0,50 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 100 °C Material wet parts:…
Additional information: Spirits; Manhole appr. 300 x 440 mm; Level indicator incomplete; Butterfly valve screwed to the outlet (for 1 tank DN 50, for the other tank DN 40); 1 lifting eye in the upper bottom; some residues of previous content; scratches inside Volumetric volume (L): 1.400 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 304…
Additional information: spirits; tank with internal fixtures and slight metallic discolourations Volumetric volume (L): 1.400 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: no Flange for agitator:…
