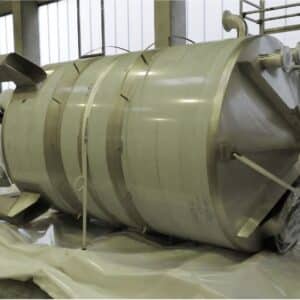

Additional information: Unused mixing tank Volumetric volume (L): 4.000 L Pressure in tank: ATM - atmosferic Max. temperature (°C): 80 °C Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: no Flange for agitator: no…
Additional information: Pet food; Small dents in the insulating jacket; some residues of previous content Volumetric volume (L): 3.000 L Pressure in tank: pressure Max. pressure (Bar): 0,40 Bar Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Total discharge: yes Max Overpressure: 4 Bar Max. working temperature:…

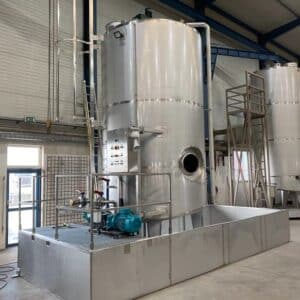

Additional information: Both manhole covers available; optional access ladder, drip tray and agitator available at extra cost Volumetric volume (L): 15.000 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: insulated Heat exchanger: no Insulation: yes Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on…
Additional information: Food; bump at the insulation jacket Volumetric volume (L): 13.000 L Pressure in tank: ATM - atmosferic Max. temperature (°C): 95 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: insulated Heat exchanger: no Insulation: yes Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange…
Additional information: Fine chemistry; Stainless steel 304 ladder steps inside the tank; the base plate of 1 tank foot is slightly bent (see photos) Volumetric volume (L): 11.000 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no…
Additional information: Biotech; 4 feet bolted to height-adjustable stainless steel weighing pallet; hand hole DN 200; an identical second vessel can be offered on request Volumetric volume (L): 1.600 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 3,20 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 160 °C Material wet parts: SS AISI 316 (V4A) Model: vertical…
Additional information: Food Volumetric volume (L): 3.200 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 3 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 150 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Total discharge: yes Max Overpressure: 3 Bar Max onderdruk: 1…
Additional information: The pressure tank has a heating/cooling jacket, but this is leaking in several places (see photos); defect heating jacket Volumetric volume (L): 41.700 L Pressure in tank: pressure Max. pressure (Bar): 4 Bar Max. temperature (°C): 165 °C Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: single jacketed with heat-exchanger Heat exchanger: yes Insulation: no Mobile…
Additional information: Pharmacy; Hand hole DN 150 Volumetric volume (L): 620 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 1 Bar Min. pressure (Bar): 0,30 Bar Max. temperature (°C): 200 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical drawing…
Additional information: Pharmacy; Hand hole DN 150; foot ends cut off Volumetric volume (L): 348 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 3,50 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 200 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents…
Additional information: Pharmacy; Manhole DN 450; outlet flange DN 15; crane lugs cut off Volumetric volume (L): 536 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 6 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 130 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total…
Article type: second-hand transport tank Additional information: The tanks have some dents; look closely at the photos; used for various egg products. Not all tanks have nameplates, bayonet manhole closure. Volumetric volume (L): 800 L Pressure in tank: pressure Design pressure (Bar): 2,86 Bar Max. pressure (Bar): 2 Bar Min. pressure (Bar): -0,15 Bar Max. temperature (°C): 130 °C Min.…
