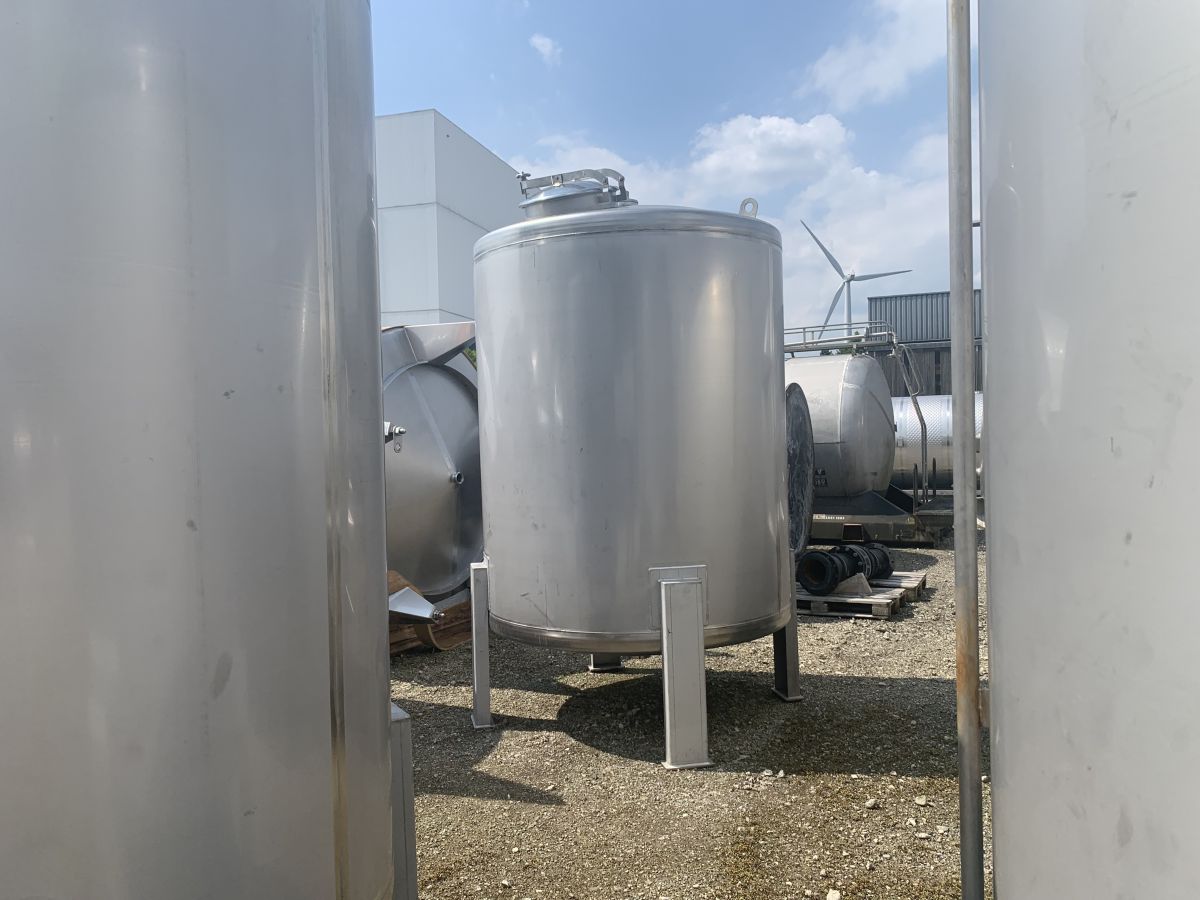

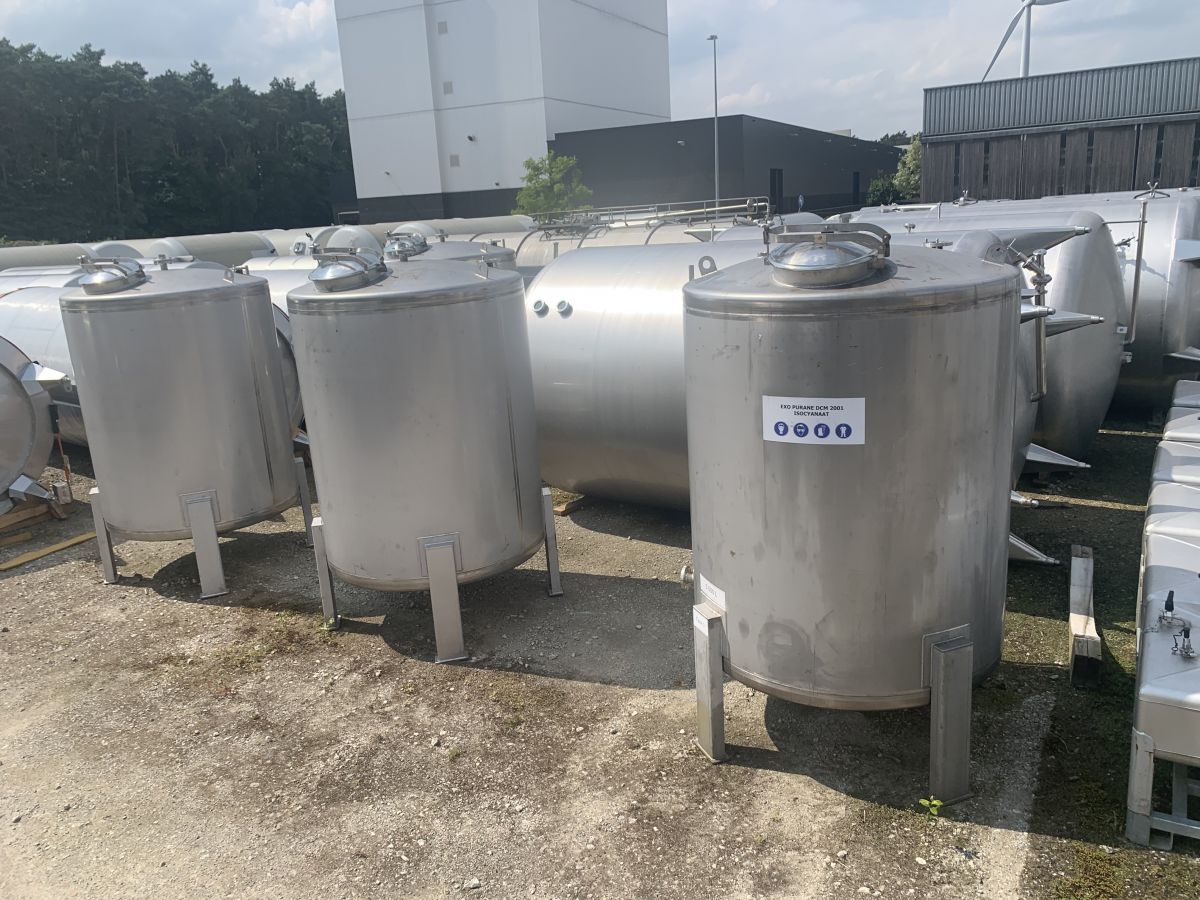

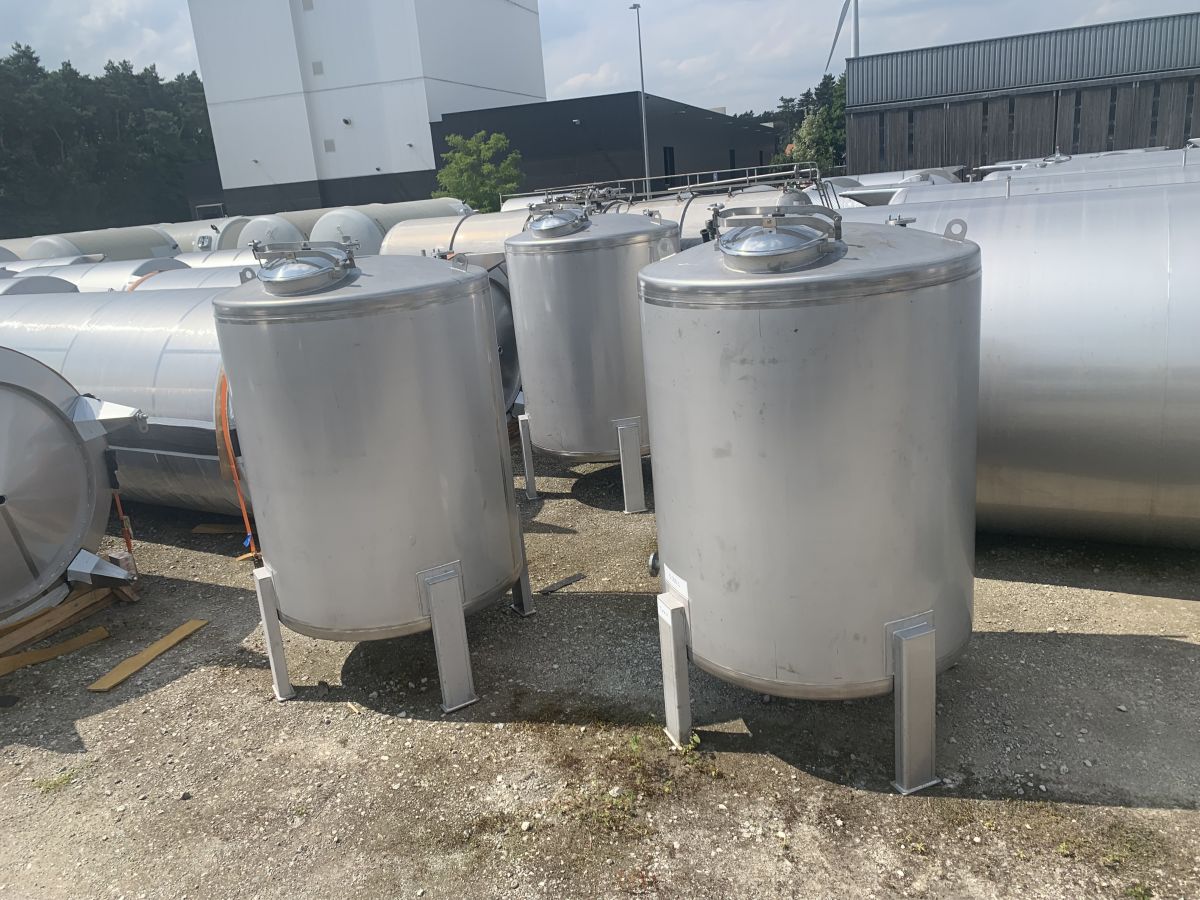

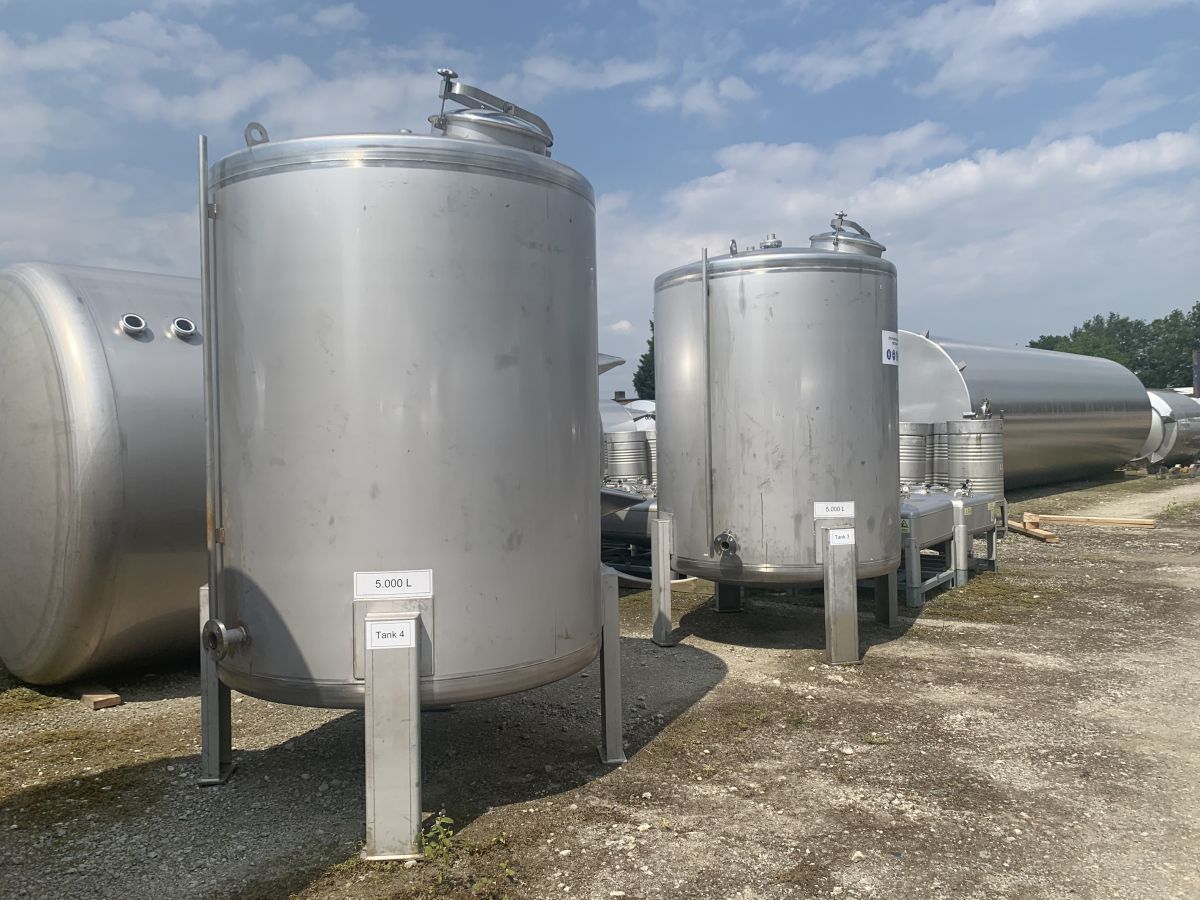

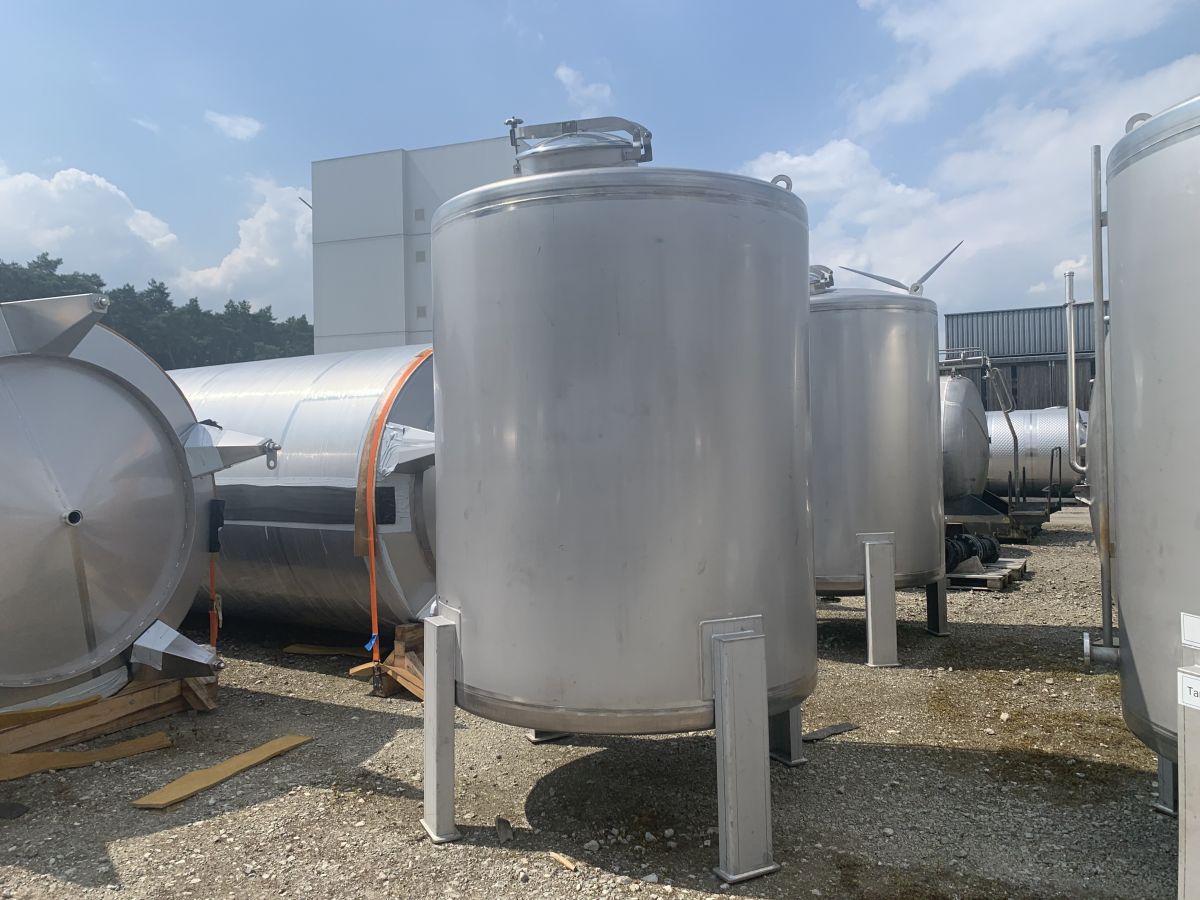

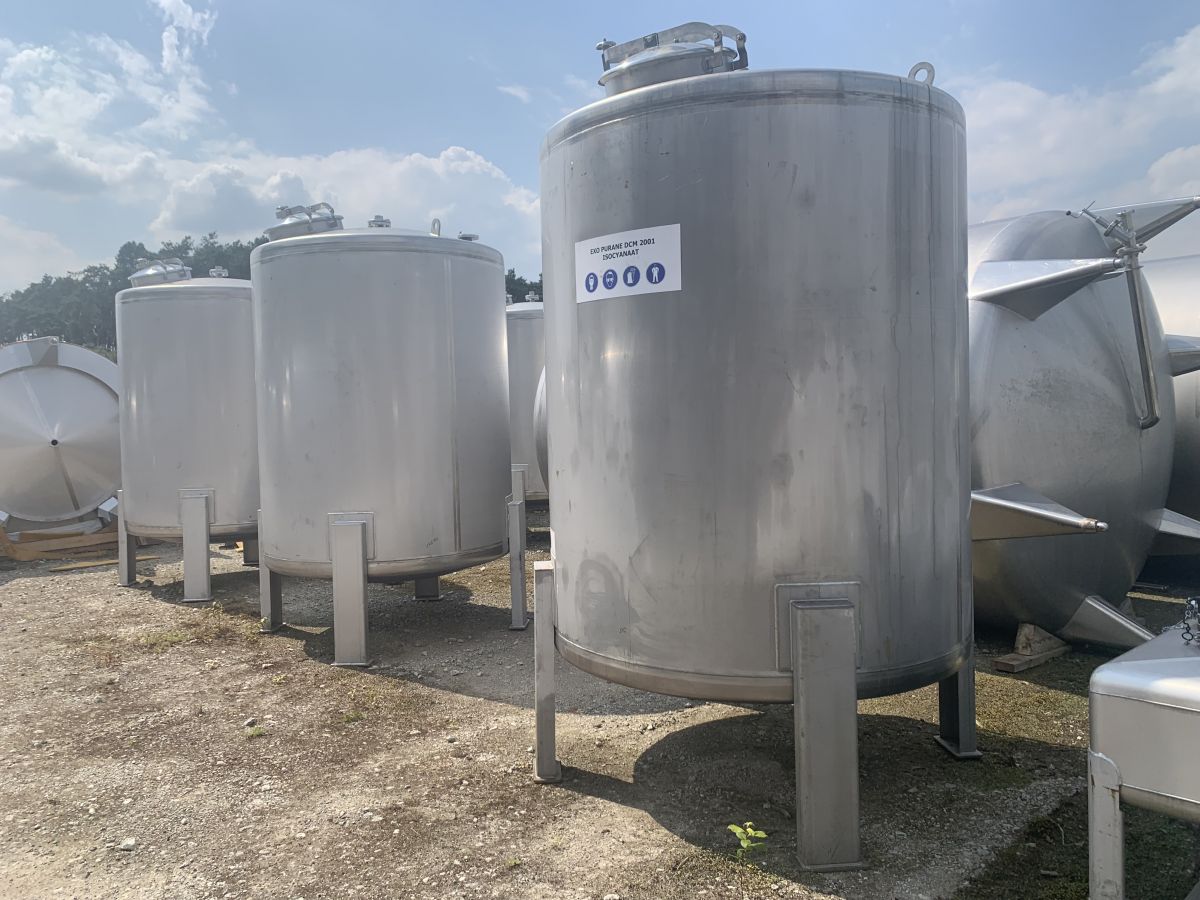

Article type: second-hand storage tank
Volumetric volume (L): 5.000 L
Max. density P (kg/m³): 1.500
Pressure in tank: ATM - atmosferic
Material wet parts: SS AISI 304L (V2A)

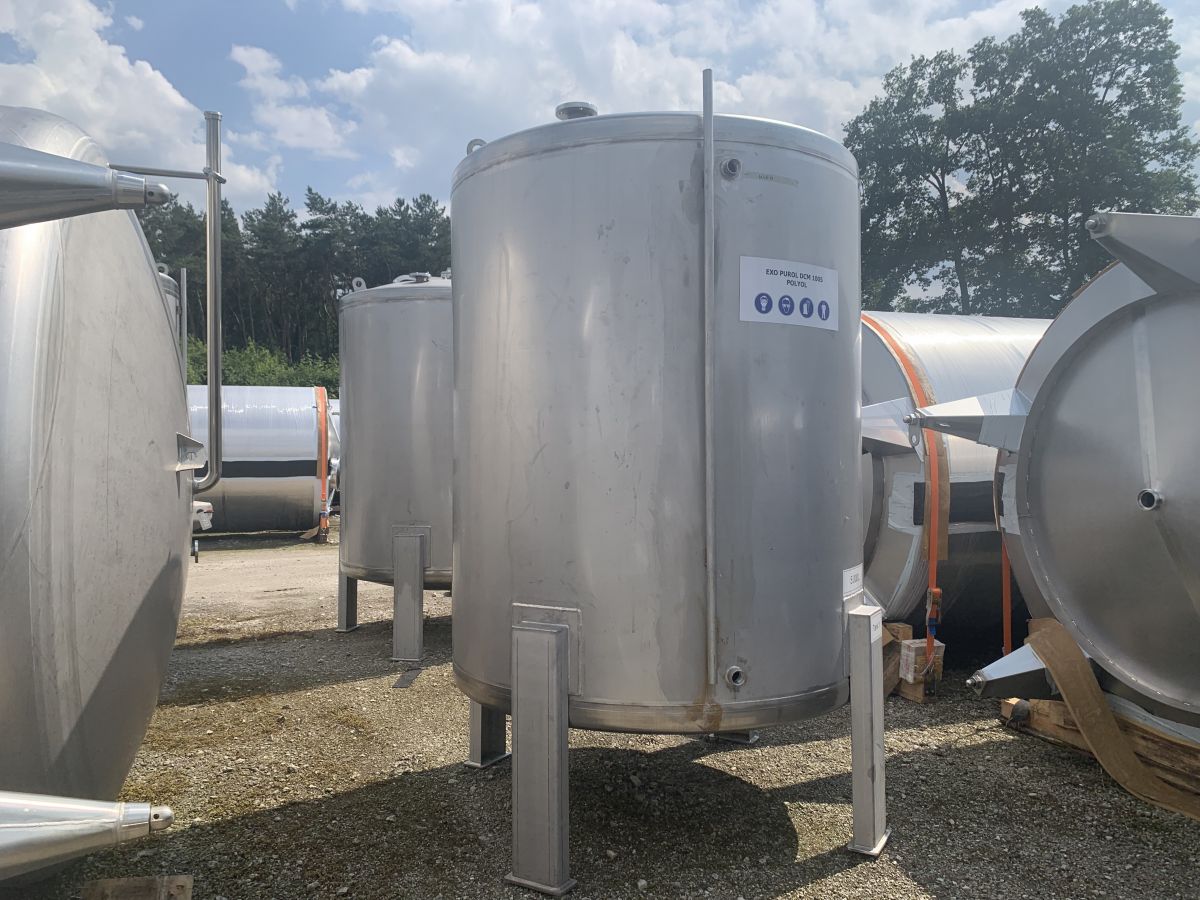

Model: vertical
Configuration: single-skin
Heat exchanger: no
Insulation: no
Mobile tank: no
Top type: dished
Shape of tank: cylindrical

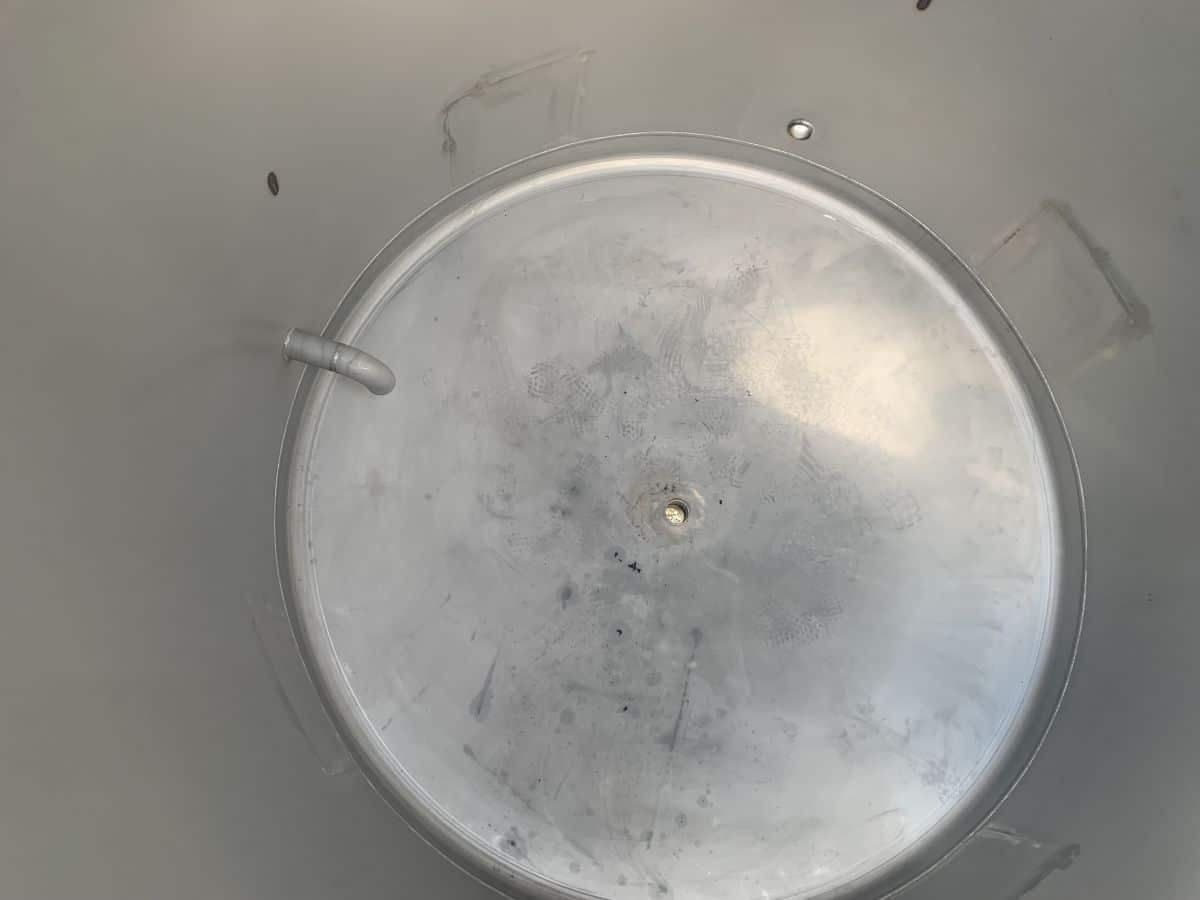

Bottom type: dished
Total discharge: yes

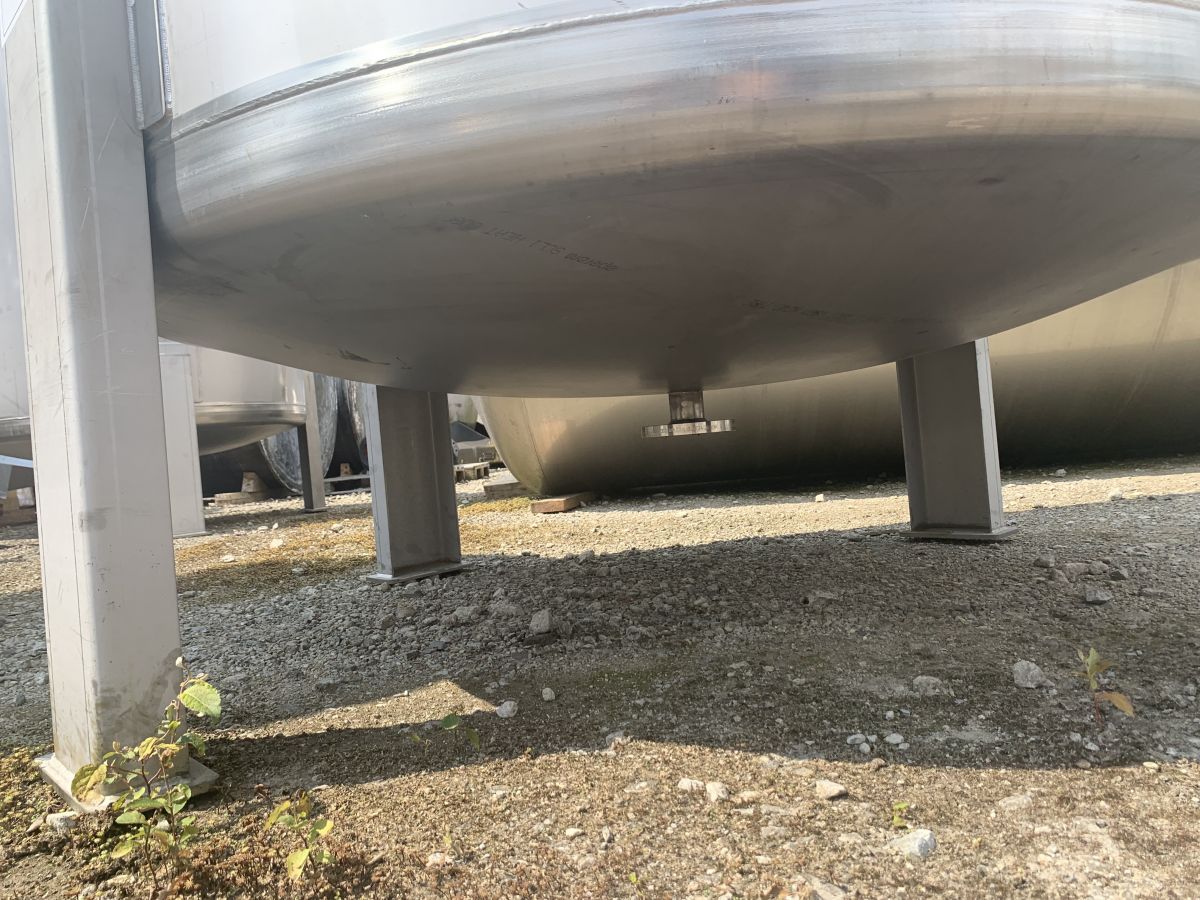

Fixation points: 4 non adjustable feet

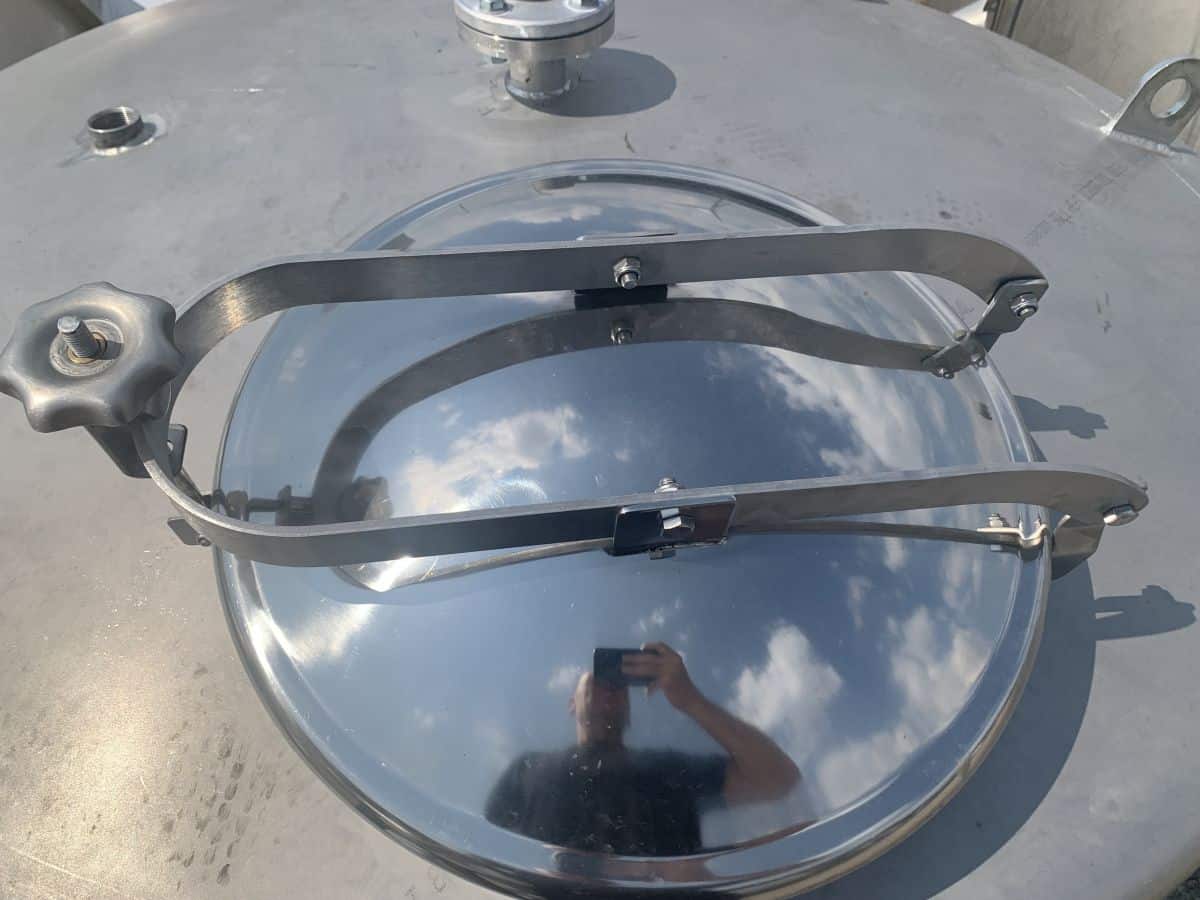

Manway(s): RVS 304L
Gasket manway(s): unknown
Fixation point(s): RVS 304L
Suitable for food industry: no
Documents included: no
Technical drawing included: yes
Registration plate on the tank: no
Flange for agitator: no
Number of manways: 1

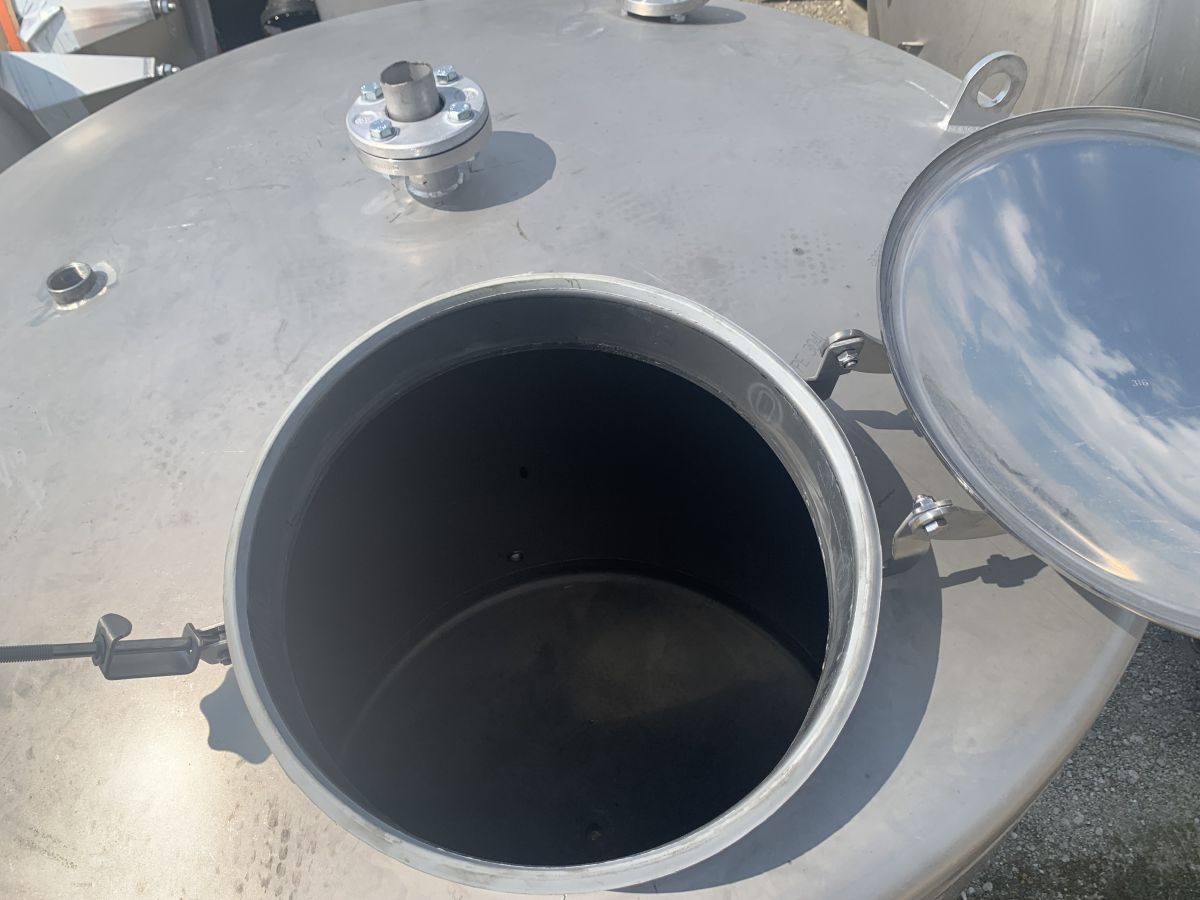

Position of manway: at the top

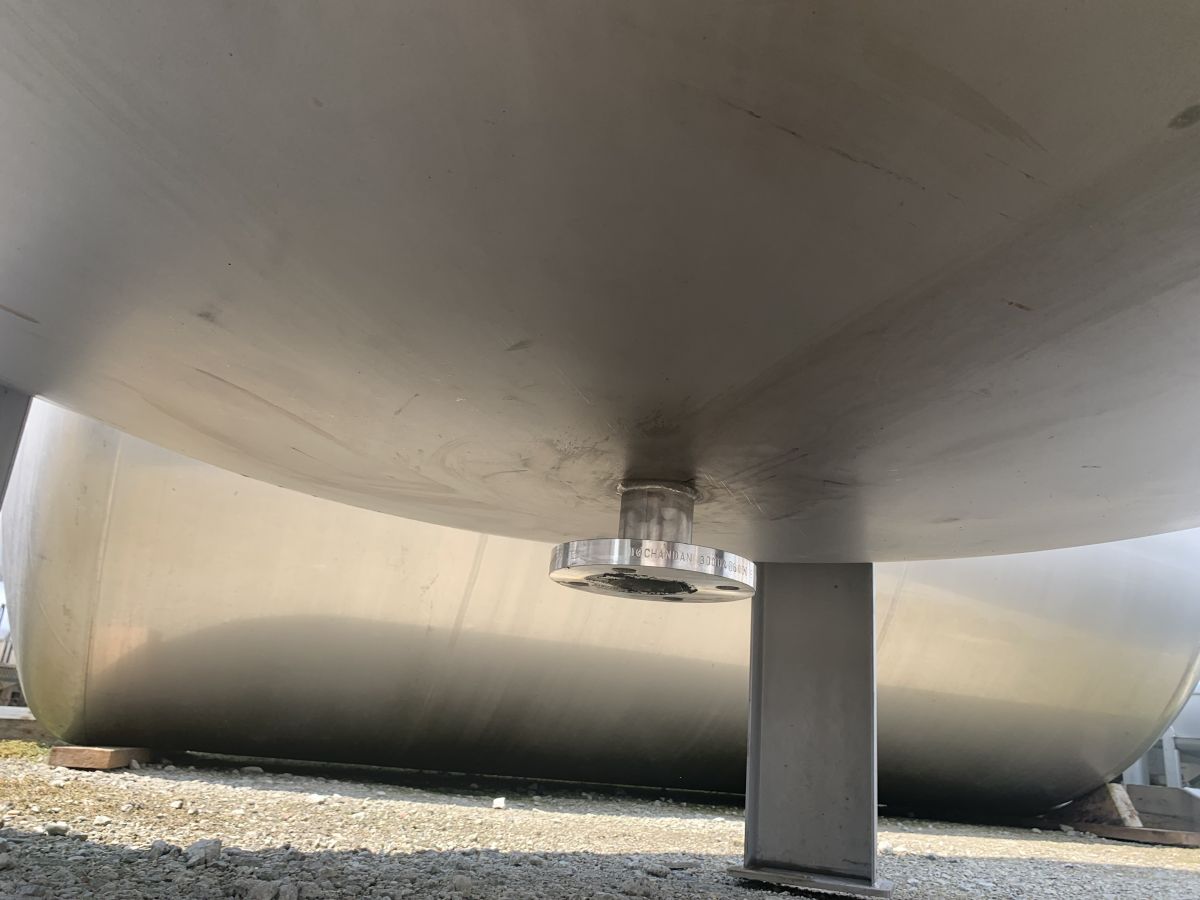

Tank outlet: inside Ø 50 mm
Agitator: no, optional
Top: 4 mm
Cylinder: 3 mm
Bottom: 4 mm
Internal diameter tank: 1.800 mm
Distance from outlet to ground: 290 mm
Outer diameter tank: 1.806 mm
Cylinder height: 2.000 mm
Total height of tank: 2.950 mm
Empty weight tank: 600
