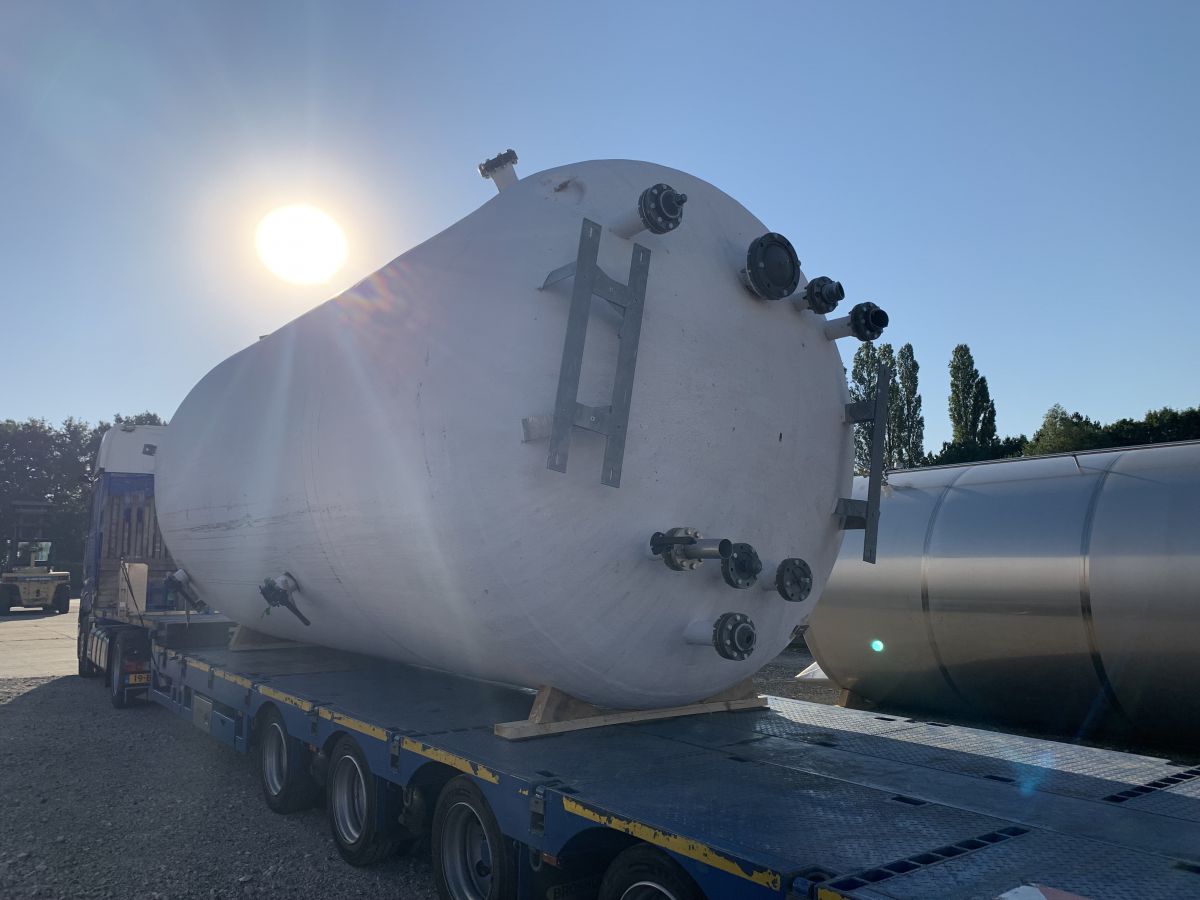

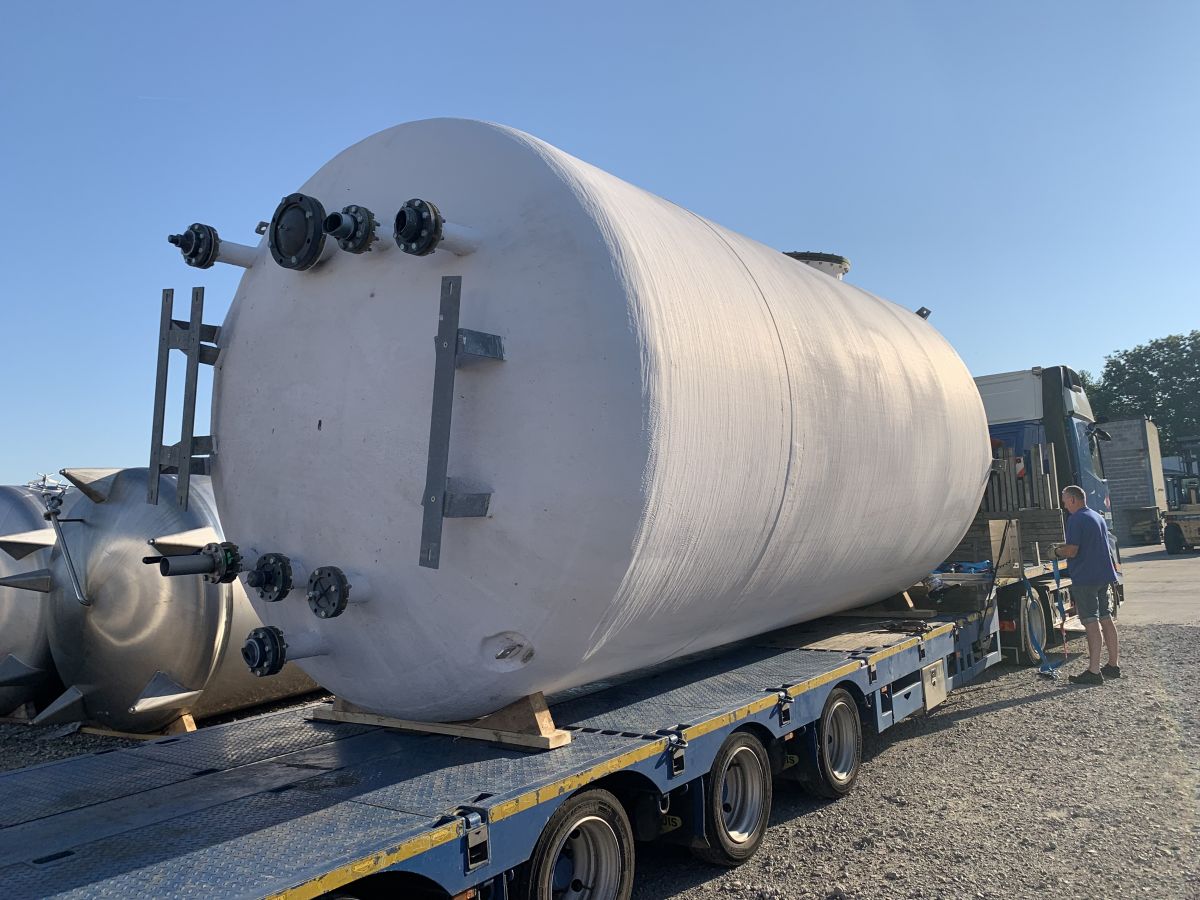

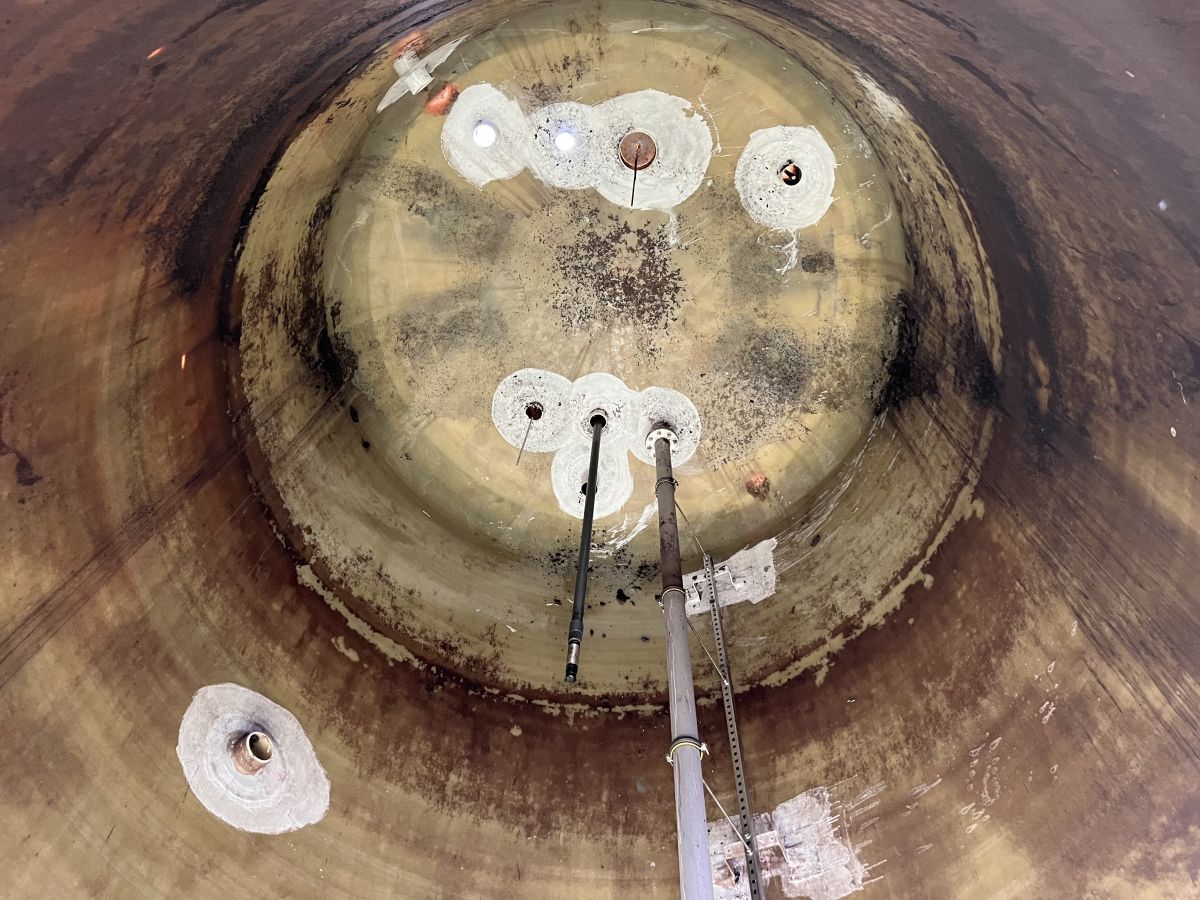

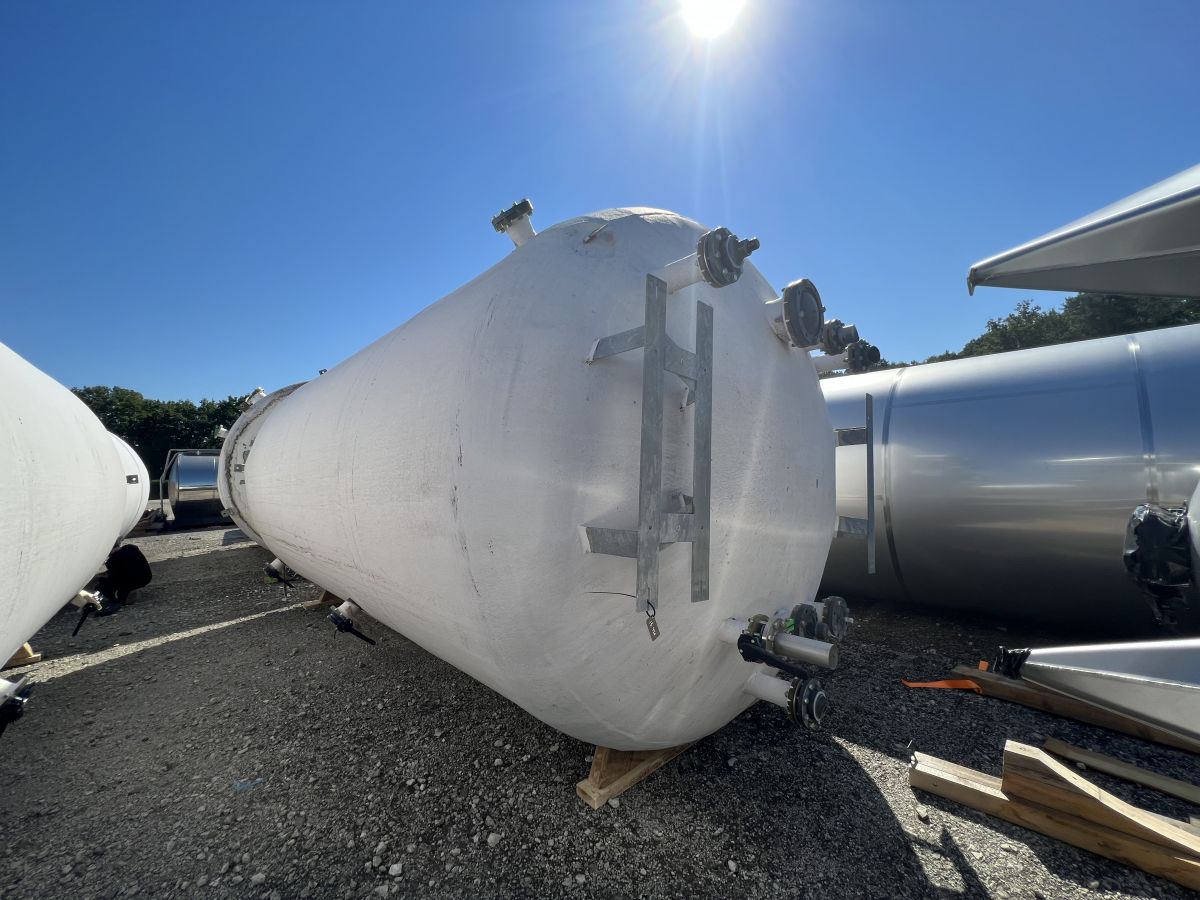

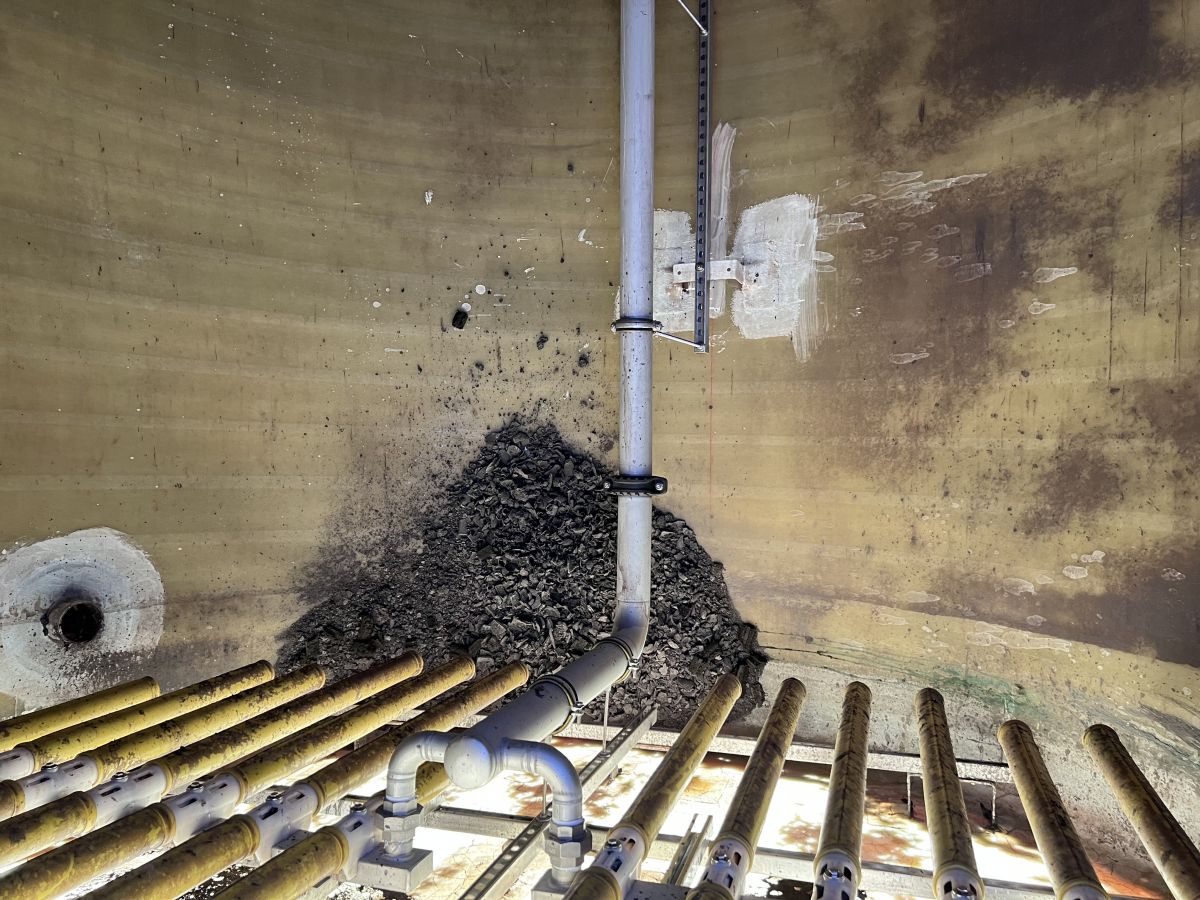

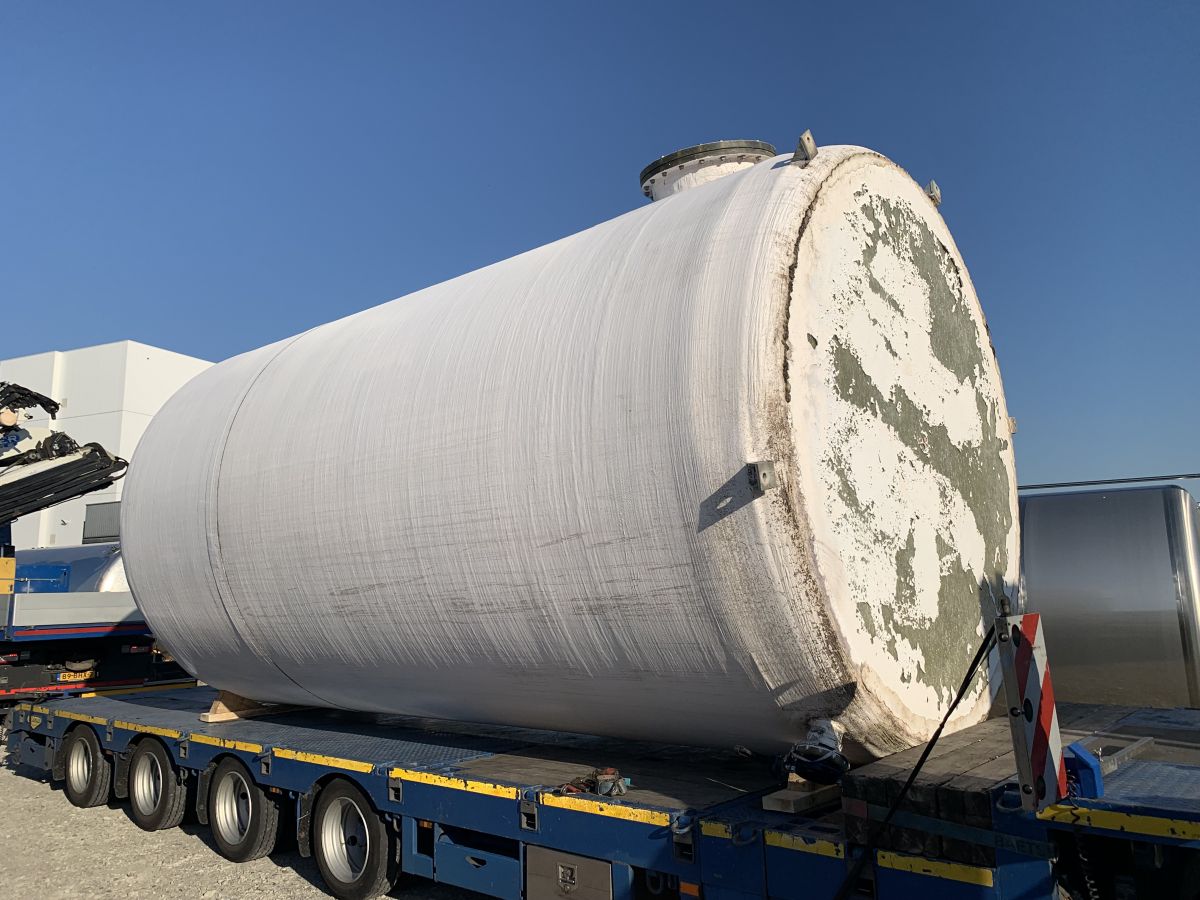

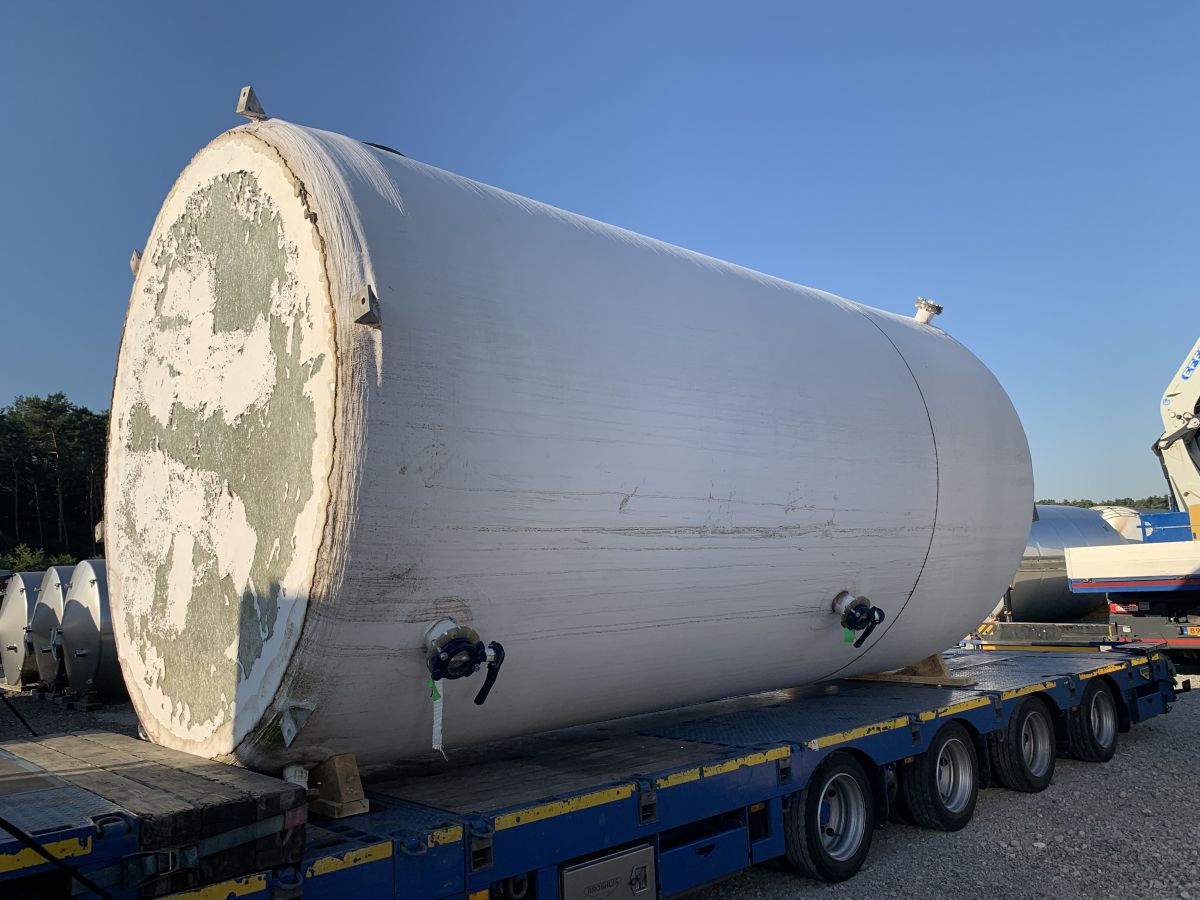

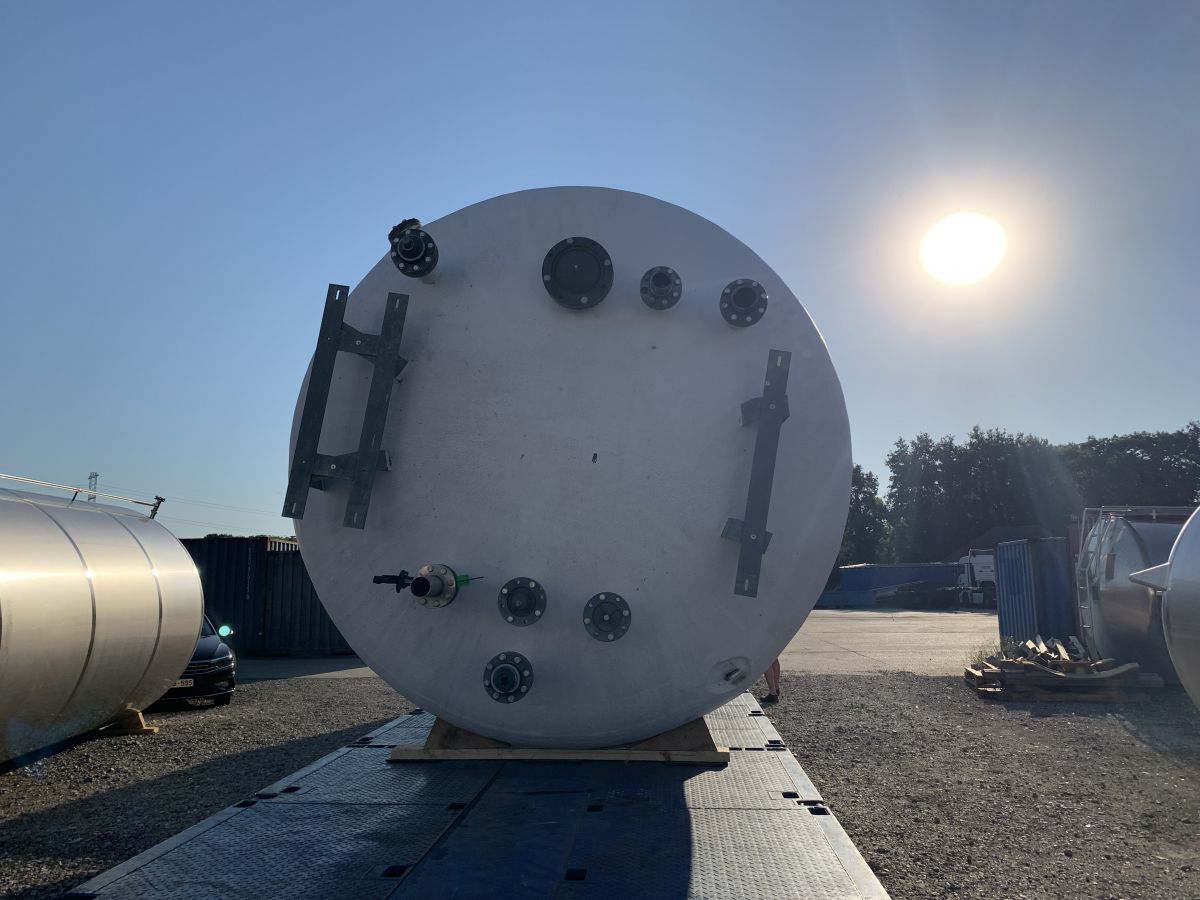

42200 liter tank i GAP/Plast

Article type: second-hand storage tank Volumetric volume (L): 42.200 L Max. density P (kg/m³): 1.300 Pressure in tank: ATM - atmosferic Max. temperature (°C): 30 °C Min. temperature (°C): -20 °C Material wet parts: polyester (fiberglass) Model: vertical Configuration: insulated Heat exchanger: no Insulation: yes Mobile tank: no Top type: dished Shape of tank: cylindrical Bottom type: flat Total discharge: no Fixation points: 6 attachment points Insulation material: PUR Suitable for food industry: no Documents included: no Technical drawing included: yes Registration plate on the tank: yes Flange for agitator: no Number of manways: 1 Position of manway: cylinder Height manhole 1 (mm): 600 mm Tank outlet: outside Ø 100 mm Insulation thickness: 30 Tank capacity top cylinder: 42.200 L Internal diameter tank: 3.000 mm Distance from outlet to ground: 500 mm Outer diameter tank: 3.190 mm Total height of tank: 6.260 mm Total outer width: 3.190 mm Empty weight tank: 3.000
